Elkay LBWD06BKK | Liv Built-in Refrigerated Water Dispenser | Filte...

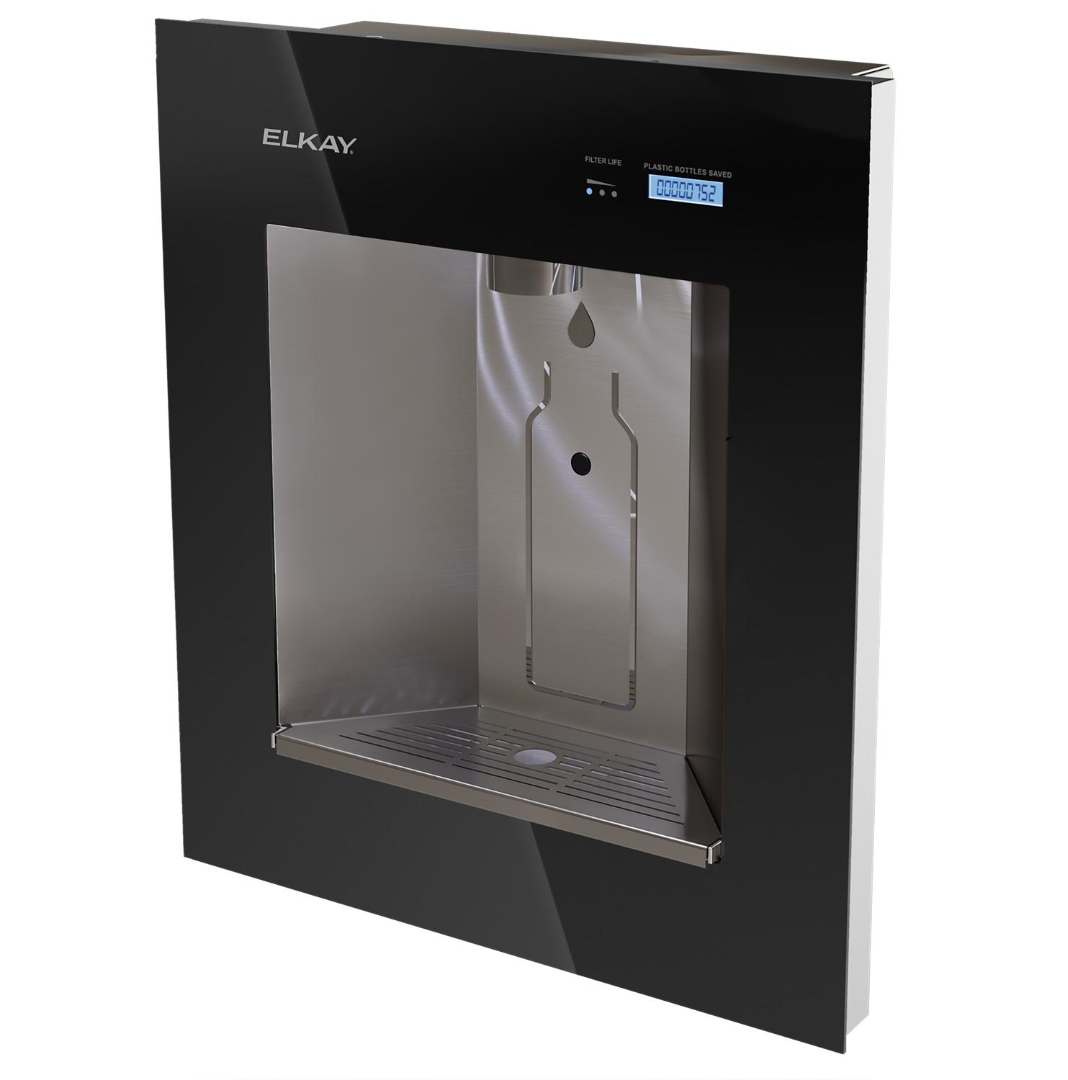

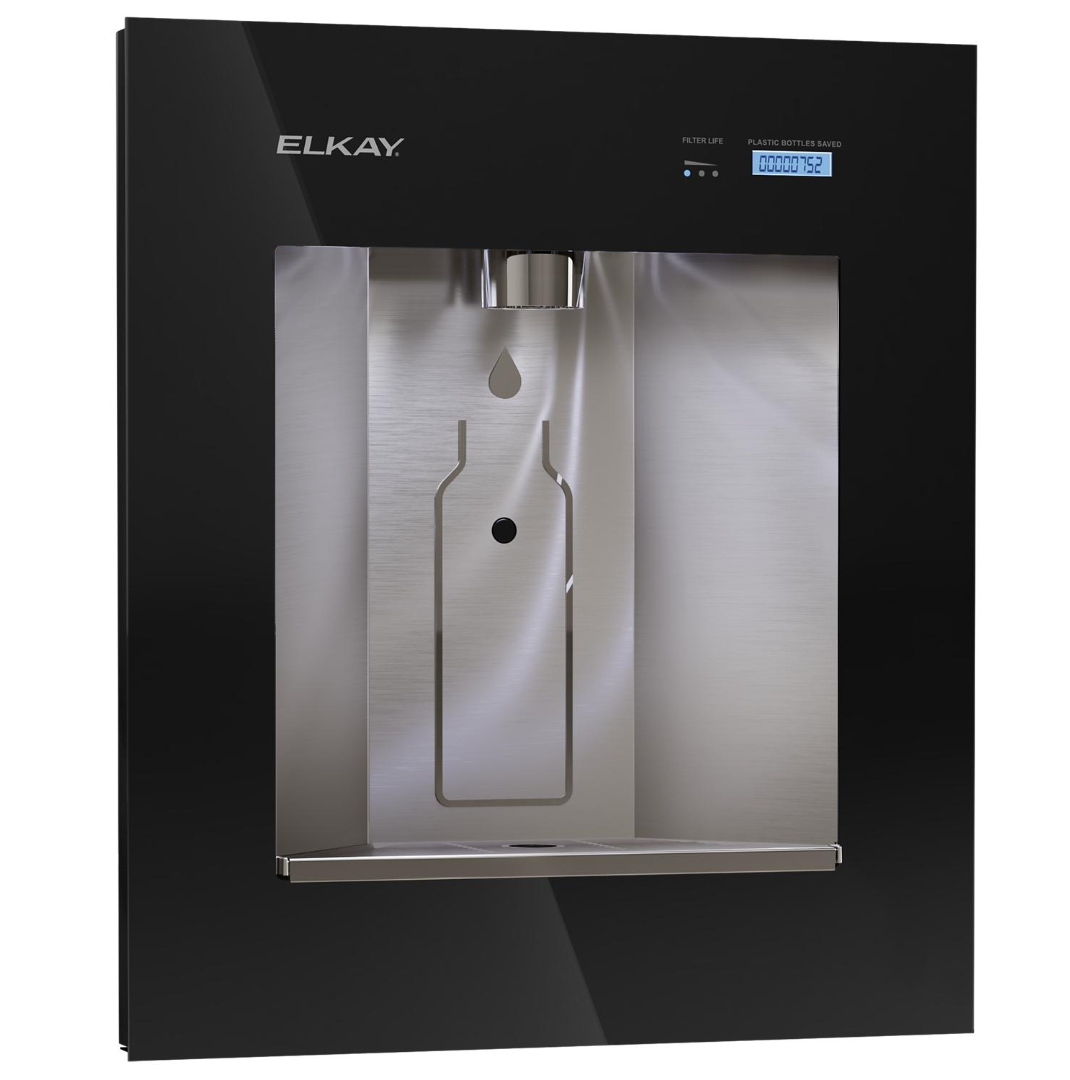

The Elkay LBWD06BKK Liv™ Filtered and Chilled Water Dispenser delivers stylish in-wall hydration with Midnight Black finish. Designed for residential use, it provides chilled, filtered water with hands-free convenience and a sleek built-in design.
Key Specifications:
- Design: Built-in residential filtered and chilled water dispenser with electronic sensor activation
- Finish: Midnight Black. Also available in Aspen White
- Filtration: Includes 71300C WaterSentry® PFAS + Lead + Microplastics Filter, NSF 42/53/401 certified, 2,250-gallon capacity
- Refrigeration: Provides 1.5 GPH of 50°F chilled water with included ERS11Y Remote Chiller
- Stations Served: 1 station (single built-in dispenser)
Features & Benefits:
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed
- PFOA/PFOS Reduction: Certified to reduce PFAS chemicals, lead, microplastics, particulates, cysts, and chlorine taste & odor
- Green Ticker™: Displays the number of plastic bottles saved from waste
- Laminar Flow: Provides clean fill with minimal splash
- Automatic Filter Status Reset: System recognizes new filter installation for accurate monitoring
What's Included:
- LBWD06BKK Liv™ Water Dispenser
- ERS11Y 1.5 GPH Remote Chiller
- 71300C WaterSentry® Filter
- Remote filter cable
- Installation hardware and guide
FAQ
Q: How Often Should the Filter Be Replaced?
A: The Elkay LBWD06BKK includes one 71300C Filter. It should be replaced every 2,250 gallons or 12 months, whichever comes first. An optional upgrade is available with the 51600C Filter for 6,000 gallons of capacity.
Q: Is the Elkay LBWD06BKK ADA Compliant?
A: Yes, the built-in design meets ADA accessibility requirements when installed according to standards.
Q: What Accessories Are Available for the Elkay LBWD06BKK?
A: Optional accessories include the PM3 On-Wall Chiller Shelf and the EFBLIVSC Liv™ Filter Box Kit for alternate installation configurations.
Q: Does the Elkay LBWD06BKK Come With a Chiller?
A: Yes, each unit includes the ERS11Y Remote Chiller for chilled water dispensing.
Q: How Do I Know When to Change the Filter?
A: The built-in Visual Filter Monitor uses an LED indicator to alert you when it’s time to replace the filter. Automatic reset ensures accurate tracking after replacement.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

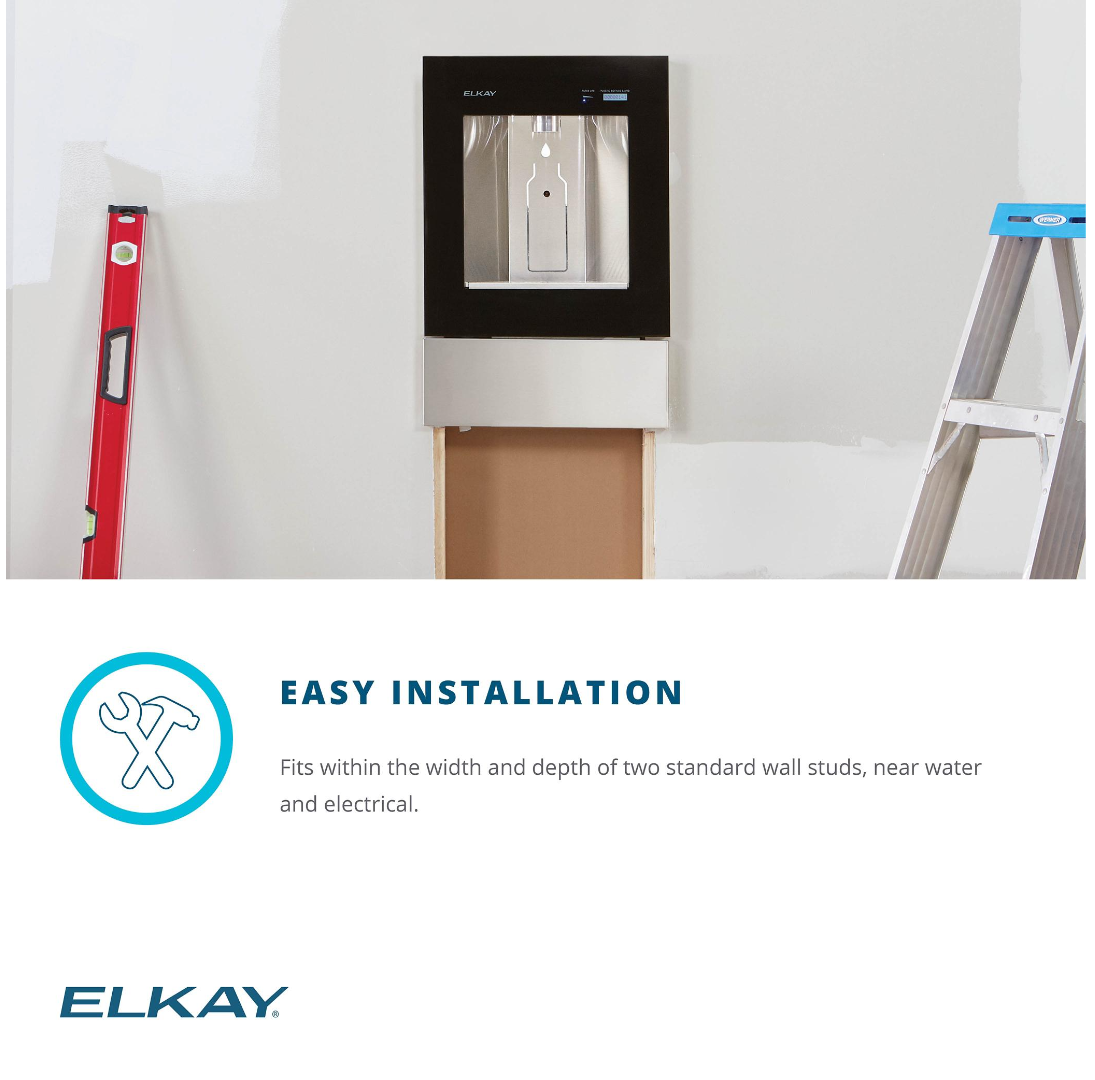

Installation
To install your Elkay LIV EZ Built-in Filtered Water Dispenser, ensure you have a water line available. A qualified plumber should perform the installation if you're unsure about making these connections.
- Cut a wall opening measuring 19-1/2"H x 14-1/2"W at approximately 59-2/5" from the floor.
- Verify the wall cavity depth is at least 3-1/2" (89 mm) to accommodate the unit.
- Route the 3/8" water line through the opening at the base of the dispenser.
- Level the unit and secure it to wall studs using 4 screws (not included).
- Install the 3 AA batteries in the battery compartment.
- Insert the filter into the filter head and turn clockwise to lock in place.
- Connect the water line to the shutoff valve at the filter's inlet.
- Open the water supply and check for leaks.
- Flush the system by dispensing at least one gallon of water before regular use.
- Attach the glass front cover using the included Phillips head screws.
Maintenance
To keep your Elkay LIV EZ in optimal condition:
- Replace the filter and batteries annually.
- Monitor the filter status light - pulsing red indicates 91.6% capacity used, solid red means immediate replacement needed.
- Remove the front panel screws when replacing the filter.
- Turn off the water supply before filter replacement.
- Rotate old filter counterclockwise to remove it.
- Install new filter by turning clockwise until locked.
- Turn water supply back on after filter replacement.
- Press the reset button above the battery compartment to reset the filter light.
- Maintain water pressure between 40-105 psi (60 psi optimal).
- Regularly check for leaks around connections.
- Clean exterior with mild detergent and soft cloth as needed.
Refer to the product manual for detailed installation and maintenance information.
