Elkay LBWD06BKK | Liv Built-in Refrigerated Water Dispenser | Filtered, Midnight
Elkay LBWD06BKK | Liv Built-in Refrigerated Water Dispenser | Filtered, Midnight is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install your Elkay LIV EZ Built-in Filtered Water Dispenser, ensure you have a water line available. A qualified plumber should perform the installation if you're unsure about making these connections.
- Cut a wall opening measuring 19-1/2"H x 14-1/2"W at approximately 59-2/5" from the floor.
- Verify the wall cavity depth is at least 3-1/2" (89 mm) to accommodate the unit.
- Route the 3/8" water line through the opening at the base of the dispenser.
- Level the unit and secure it to wall studs using 4 screws (not included).
- Install the 3 AA batteries in the battery compartment.
- Insert the filter into the filter head and turn clockwise to lock in place.
- Connect the water line to the shutoff valve at the filter's inlet.
- Open the water supply and check for leaks.
- Flush the system by dispensing at least one gallon of water before regular use.
- Attach the glass front cover using the included Phillips head screws.
Maintenance
To keep your Elkay LIV EZ in optimal condition:
- Replace the filter and batteries annually.
- Monitor the filter status light - pulsing red indicates 91.6% capacity used, solid red means immediate replacement needed.
- Remove the front panel screws when replacing the filter.
- Turn off the water supply before filter replacement.
- Rotate old filter counterclockwise to remove it.
- Install new filter by turning clockwise until locked.
- Turn water supply back on after filter replacement.
- Press the reset button above the battery compartment to reset the filter light.
- Maintain water pressure between 40-105 psi (60 psi optimal).
- Regularly check for leaks around connections.
- Clean exterior with mild detergent and soft cloth as needed.
Refer to the product manual for detailed installation and maintenance information.
Elkay LBWD06BKK | Liv Built-in Refrigerated Water Dispenser | Filte...
The Elkay LBWD06BKK is a built-in filtered refrigerated water dispenser delivering chilled, cleaner water with hands-free convenience.
Key Specifications:
- Refrigerated: Yes, this unit includes a remote water chiller (ERS11Y) with a 1.5 GPH capacity.
- Filtered: Yes, with a 2,250-gallon filter capacity.
- Activation: Electronic sensor
- Color: Midnight Black
Features & Benefits:
- Built-In Design: Space-saving installation fits within standard wall studs, perfect for kitchens, mudrooms, recreation rooms, or master suites without taking up counter space.
- Advanced Filtration: NSF/ANSI certified to reduce PFOA/PFOS (PFAS), lead, microplastics, cysts, and chlorine taste and odor for safer, great-tasting water.
- Hands-Free Operation: Sensor-activated dispensing with automatic timed shut-off provides touchless convenience for filling bottles, coffee makers, pet bowls, and more.
- Environmental Impact: Green Ticker™ LED display tracks the number of disposable plastic bottles saved, promoting sustainability and reducing single-use plastic waste.
FAQ
Q: How does the filter status monitoring work on the LBWD06BKK?
A: The Visual Filter Monitor features LED lights that change color to indicate filter status, alerting you when it's time for a replacement. The filter lasts up to 2,250 gallons or 1 year.
Q: Can the LBWD06BKK be installed in existing walls or only new construction?

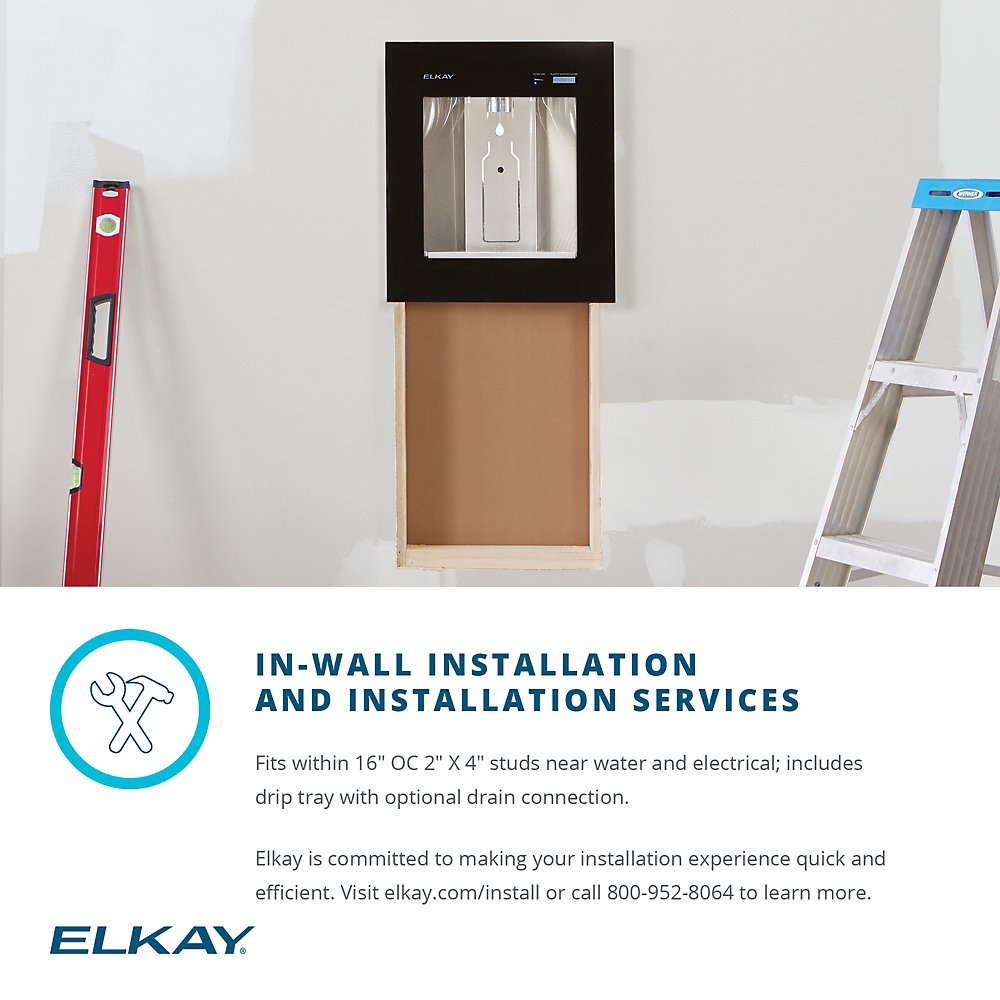

A: The LBWD06BKK is ideal for both new construction and remodels. It fits within the standard width and depth of two wall studs (5-1/8" x 18" x 20-1/2") for easy installation.
Q: What is included with the LBWD06BKK purchase?
A: The unit includes the water dispenser, 1.5 GPH water chiller (ERS11Y), remote filter cable, 2,250-gallon filter, and drip tray with optional drain connection. It ships in multiple boxes.
Detailed Features & Benefits
Refrigerated Water On-Demand: The LBWD06BKK includes a remote 1.5 GPH chiller that delivers refreshing chilled water at 50°F, satisfying thirst instantly. The hermetically-sealed compressor with fan-cooled condenser ensures efficient cooling performance, while the adjustable thermostat allows for temperature customization based on altitude requirements. This ensures consistent access to cold, filtered water throughout the day.

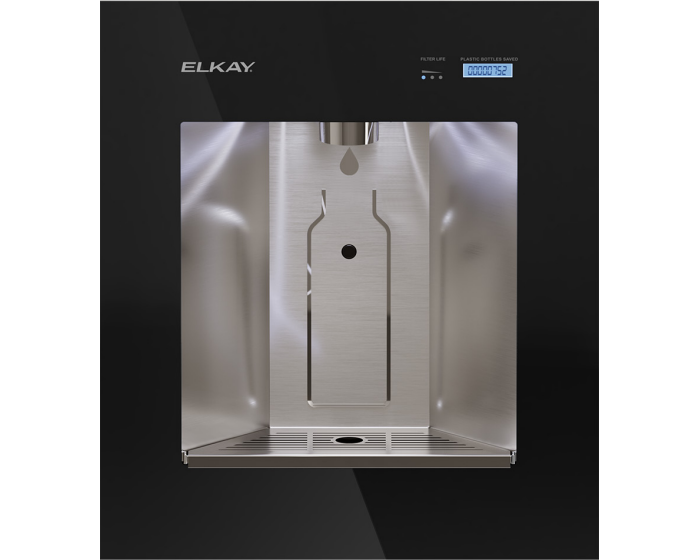

Premium Design with Interactive Lighting: Featuring a sleek glass front and midnight finish, the Elkay LBWD06BKK adds a touch of elegance to any room. The interactive backlit LED lighting brightens as water dispenses, creating a sophisticated user experience. The laminar flow spout provides clean, splash-free filling while maintaining a modern aesthetic that complements contemporary home designs.
Safety and Convenience Features: The LBWD06BKK includes an optional safety lock setting that prevents unsupervised use, making it ideal for families with small children or pets. The automatic filter status reset and visual monitoring system eliminate guesswork about maintenance needs. With sensor activation and automatic shut-off, users enjoy effortless, hygienic operation without touching any surfaces, perfect for busy households and entertaining.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
