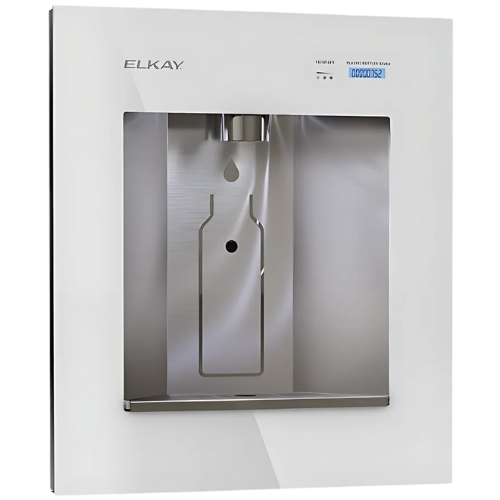

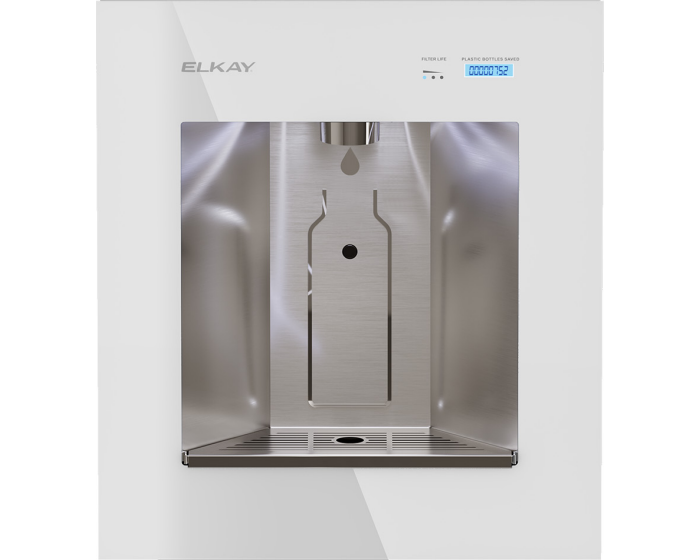

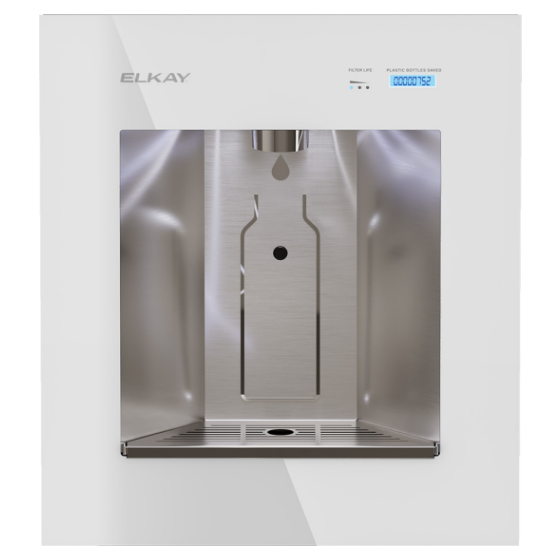

Elkay LBWD06WHK | Liv Built-In Water Dispenser | Filtered, Aspen White
Elkay LBWD06WHK | Liv Built-In Water Dispenser | Filtered, Aspen White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
To install your Elkay LIV EZ Built-in Filtered Water Dispenser, ensure you have a water line available. A qualified plumber should perform the installation if you're unsure about making these connections.
- Cut a wall opening measuring 19-1/2"H x 14-1/2"W at approximately 59-2/5" from the floor.
- Verify the wall cavity depth is at least 3-1/2" (89 mm) to accommodate the unit.
- Route the 3/8" water line through the opening at the base of the dispenser.
- Level the unit and secure it to wall studs using 4 screws (not included).
- Install the 3 AA batteries in the battery compartment.
- Insert the filter into the filter head and turn clockwise to lock in place.
- Connect the water line to the shutoff valve at the filter's inlet.
- Open the water supply and check for leaks.
- Flush the system by dispensing at least one gallon of water before regular use.
- Attach the glass front cover using the included Phillips head screws.
Maintenance
To keep your Elkay LIV EZ in optimal condition:
- Replace the filter and batteries annually.
- Monitor the filter status light - pulsing red indicates 91.6% capacity used, solid red means immediate replacement needed.
- Remove the front panel screws when replacing the filter.
- Turn off the water supply before filter replacement.
- Rotate old filter counterclockwise to remove it.
- Install new filter by turning clockwise until locked.
- Turn water supply back on after filter replacement.
- Press the reset button above the battery compartment to reset the filter light.
- Maintain water pressure between 40-105 psi (60 psi optimal).
- Regularly check for leaks around connections.
- Clean exterior with mild detergent and soft cloth as needed.
Refer to the product manual for detailed installation and maintenance information.
Elkay LBWD06WHK | Liv Built-In Water Dispenser | Filtered, Aspen White
The Elkay LBWD06WHK Series is a built-in filtered refrigerated water dispenser providing hands-free access to chilled, filtered water throughout the home.
Key Specifications:
- Refrigerated: Yes, this unit includes a remote water chiller (ERS11Y) with a 1.5 GPH capacity.
- Filtered: Yes, with a 2,250-gallon filter capacity.
- Dimensions: 5-1/8" x 18" x 20-1/2"
-
Color: Aspen White
Features & Benefits:
- PFOA/PFOS Reduction: The included filter is certified to NSF/ANSI 42, 53, 372, and 401 standards, reducing harmful PFAS chemicals, lead, microplastics, Class 1 particulates, cysts, and chlorine taste and odor for cleaner, safer drinking water.

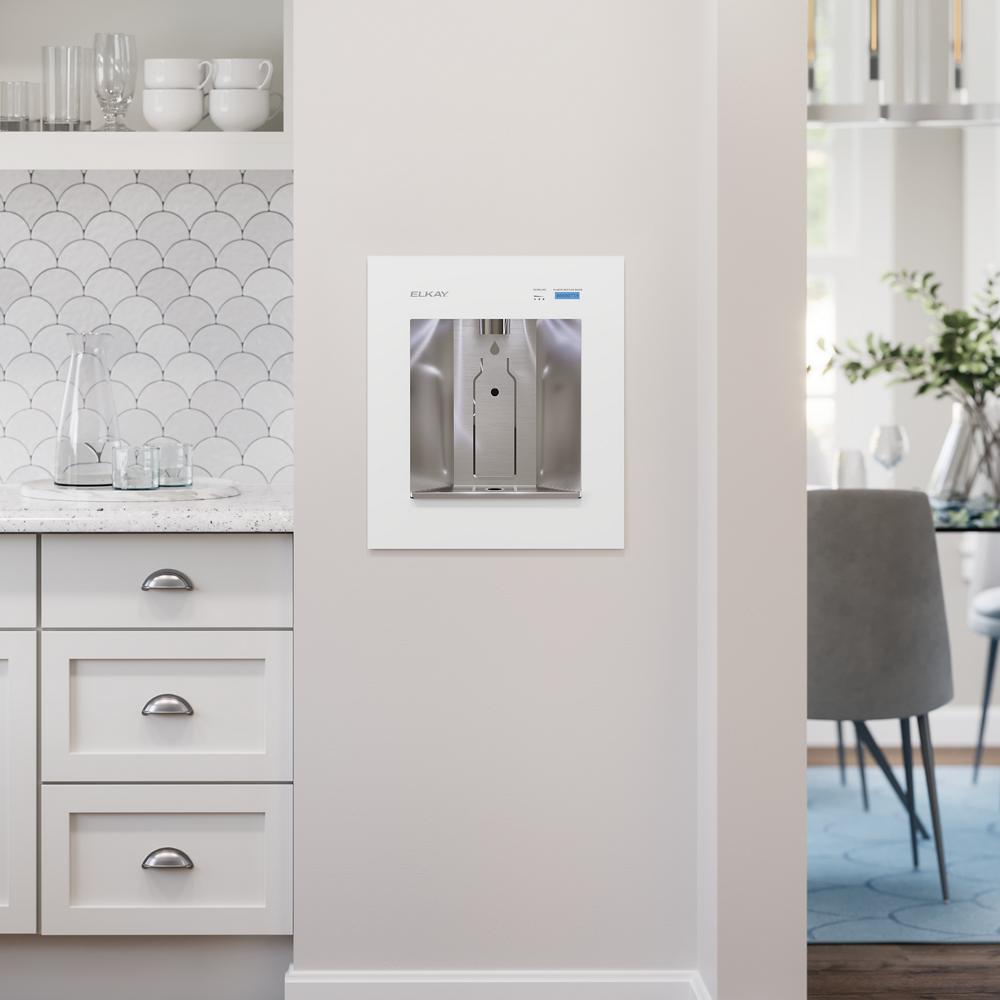

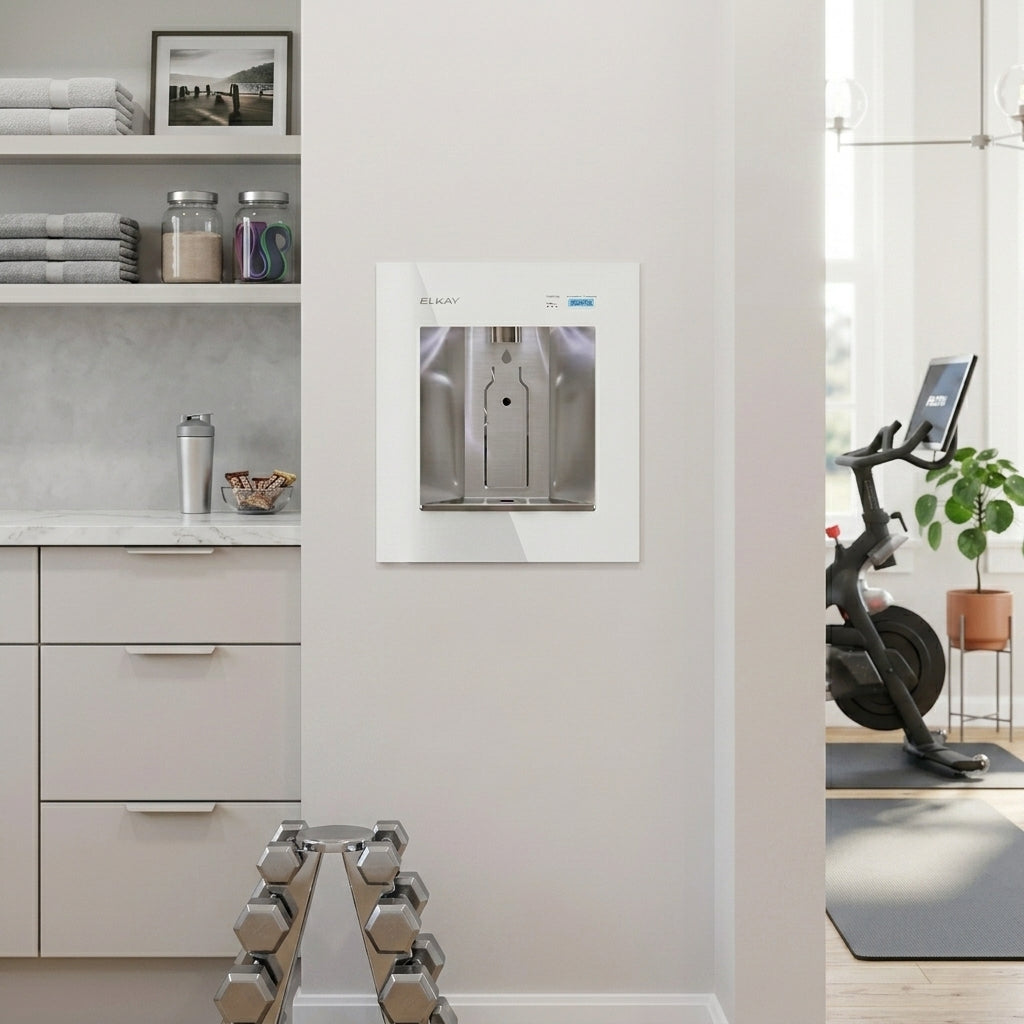

- Space-Saving Built-In Design: Fits within standard wall studs for seamless integration in kitchens, mudrooms, recreation rooms, or master suites without consuming valuable counter space.
- Hands-Free Convenience: Electronic bottle filler sensor provides touchless activation with automatic timed shut-off, perfect for filling coffee makers, water bottles, pet bowls, and watering cans effortlessly.
- Environmental Impact Tracking: Green Ticker™ displays the number of 16.9 oz. plastic bottles saved from waste, encouraging sustainable hydration habits for the entire household.
FAQ
Q: Does the LBWD06WHK require professional installation?
A: Yes, professional installation is recommended. The unit fits within standard two-stud wall spacing and includes a drip tray with optional drain connection. Complete installation instructions are provided with the product.
Q: How often does the filter need to be replaced?
A: The filter should be replaced after 2,250 gallons of use or 12 months after installation, whichever comes first. The visual filter monitor with LED status indicator will alert you when a filter change is necessary.
Q: What comes included with the LBWD06WHK?
A: The complete system includes the water dispenser unit, a 1.5 GPH remote water chiller (ERS11Y), remote filter cable, and a 2,250-gallon capacity filter. The product ships in multiple boxes with an approximate total weight of 78 lbs.
Detailed Features & Benefits
Advanced Filtration Technology: The Elkay LBWD06WHK features WaterSentry filtration technology that targets contaminants of emerging concern. The NSF/ANSI 401 certification ensures reduction of PFOA and PFOS, two prevalent "forever chemicals" that have become a major water quality concern. Additionally, the filter addresses lead contamination, microplastics, and biological contaminants like cysts, providing comprehensive protection for your family's drinking water. The 2,250-gallon capacity means fewer filter changes while maintaining optimal performance throughout the filter's lifespan.
Refrigerated Water System: The LBWD06WHK includes a remote 1.5 GPH chiller with hermetically-sealed reciprocating compressor and fan-cooled condenser for consistent cooling performance. The system delivers 50°F drinking water based on 80°F inlet water and 90°F ambient temperature per ASHRAE 18 testing standards. The refrigerant R-134a is controlled by a precisely calibrated capillary tube, while the enclosed adjustable thermostat comes factory preset for optimal performance. This dedicated cooling system ensures refreshing, chilled water is available whenever needed without relying on refrigerator dispensers.
Smart User Interface: The LBWD06WHK combines elegant design with intelligent features. The visual filter monitor uses LED indicators to show filter status at a glance, eliminating guesswork about maintenance timing. The laminar flow provides clean, splash-free filling for any container. Interactive lighting brightens as water dispenses, adding visual appeal while confirming system operation. The optional safety lock prevents unsupervised use, making it ideal for households with small children or pets. The glass front and brushed stainless steel finishes complement any interior design aesthetic while the sensor activation ensures hygienic, touchless operation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
