Zurn  |  SKU: ZTR6200EV-LL

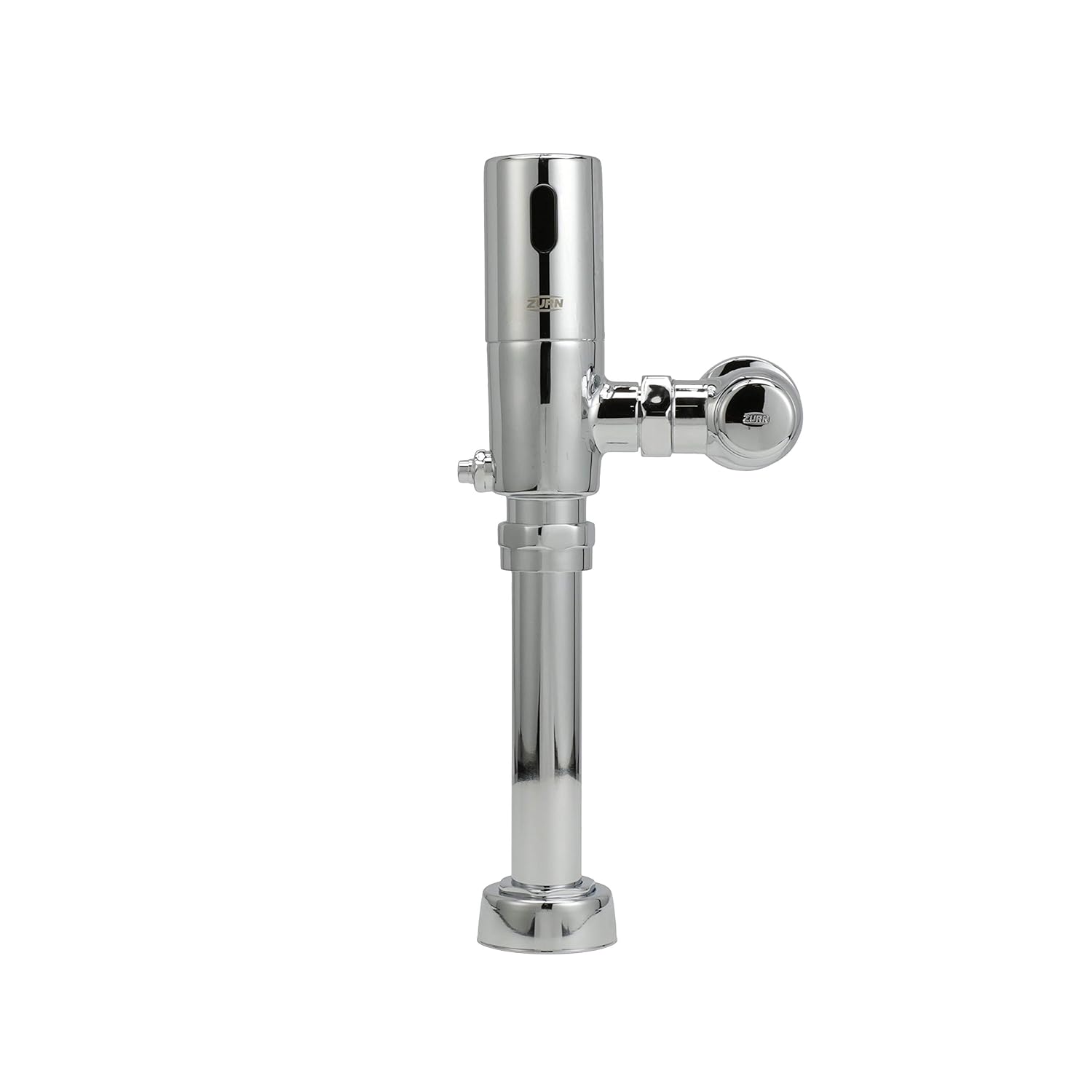

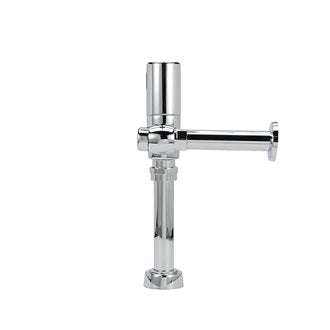

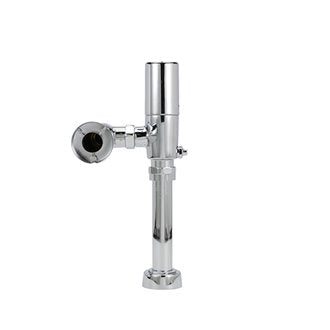

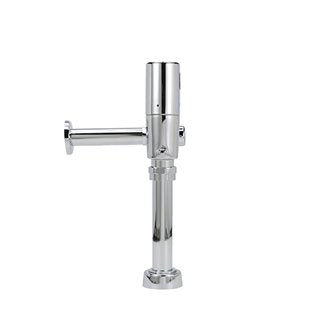

Zurn ZTR6200EV-LL | EcoVantage ZTR Exposed Sensor Piston Water Closet Flush Valve, 1.28 GPF, Long Life Battery, Chrome

$ 703.99
Shipping calculated at checkout.

Product Care Information
Installation
  • All plumbing is to be installed according to state and local codes and regulations.
  • Water supply lines need to allow proper water flow for each fixture.
  • Flush all lines of any debris before making connections.
  • Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.

The Zurn ZTR6200EV-LL Sensor Operated Water Closet Flush Valve delivers reliable hands-free operation with water-saving efficiency for commercial restrooms. Its 1.28 gpf high-efficiency design combines advanced sensor technology with long-life battery power, making it an ideal solution for modern commercial facilities seeking reduced maintenance requirements.


Key Specifications:

  • Flow Rate: 1.28 gallons per flush (WaterSense certified).
  • Power Supply: Long-life lithium batteries with 10-year battery life.
  • Construction: Chrome-plated brass with proprietary DR resistant low lead brass alloy.
  • Activation: Infrared sensor with mechanical manual override button.
  • Backflow Prevention: High back pressure vacuum breaker with one-piece hex coupling nut.


Features & Benefits:

  • Extended Battery Life: The long-life battery option provides up to 10 years of reliable operation, significantly reducing maintenance requirements.
  • Touchless Operation: The advanced sensor technology eliminates cross-contamination in public restrooms.
  • Water Conservation: The 1.28 gpf high-efficiency design reduces water consumption while maintaining effective flushing performance.
  • Durable Construction: The chrome-plated brass body with proprietary dezincification-resistant low lead brass alloy ensures long-term reliability.
  • Filtered Piston Technology: The filtered piston kit with chloramine-resistant components prevents clogging and extends service life.


Options Available:

  • ZTR6200EV: Standard model powered by 4 "AA" batteries with approximately 3 years of life under normal conditions (48,000 activations per year).
  • ZTR6200EV-HW: Hardwired version utilizing 7.6 VDC power supply input for continuous operation without battery replacement in high-traffic facilities.


What's Included:

  • 1 x ZTR6200EV-LL Sensor Flush Valve
  • 1 x Filtered Piston Kit
  • 1 x High Back Pressure Vacuum Breaker
  • 1 x Adjustable Tailpiece
  • 1 x Spud Coupling and Flange for Top Spud Connection
  • 1 x Sweat Solder Kit with Cast Wall Flange
  • 1 x Vandal Resistant Stop Cap
  • 4 x Long-Life Lithium Batteries
  • 1 x Installation Hardware


FAQ


Q: How does the long-life battery option benefit facility maintenance?

A: The ZTR6200EV-LL's specialized lithium batteries provide up to 10 years of service, dramatically reducing the frequency of battery replacements compared to standard models. This translates to lower maintenance costs, less downtime, and fewer service interruptions, making it ideal for facilities where consistent performance is critical. The extended battery life is particularly valuable in high-traffic restrooms, remote locations, or areas where access for maintenance is limited or disruptive.

Q: How does this flush valve contribute to water conservation?

A: The ZTR6200EV-LL operates at just 1.28 gallons per flush, earning it WaterSense certification and saving up to 20% more water than standard 1.6 gpf models. In high-traffic facilities, this can translate to thousands of gallons saved annually. The sensor activation prevents unnecessary flushes, while the filtered piston technology ensures reliable performance despite the lower water volume. These water savings contribute to reduced utility costs and support environmentally responsible building operations.


Detailed Features & Benefits


Advanced Sensor Technology: The ZTR6200EV-LL utilizes sophisticated infrared sensor technology that provides reliable detection for hands-free operation. The sensor range is factory set for optimal performance but can be field-adjusted to accommodate different fixture types and installation environments. A convenient mechanical override button ensures operation even during power outages or in case of sensor malfunction.

Durable Piston Technology: The filtered piston design offers superior performance compared to traditional diaphragm valves in challenging water conditions. The chloramine-resistant components prevent premature deterioration, while the filtered bypass protects against debris that can cause malfunction. This design significantly reduces maintenance requirements and extends the service life of the valve.

Vandal-Resistant Design: The ZTR6200EV-LL features a polished robust metal cap design and vandal-resistant components to withstand high-traffic public environments. The control stop includes internal siphon-guard protection and a vandal-resistant stop cap to prevent tampering. These features ensure consistent performance and reduced maintenance even in demanding conditions.


NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
