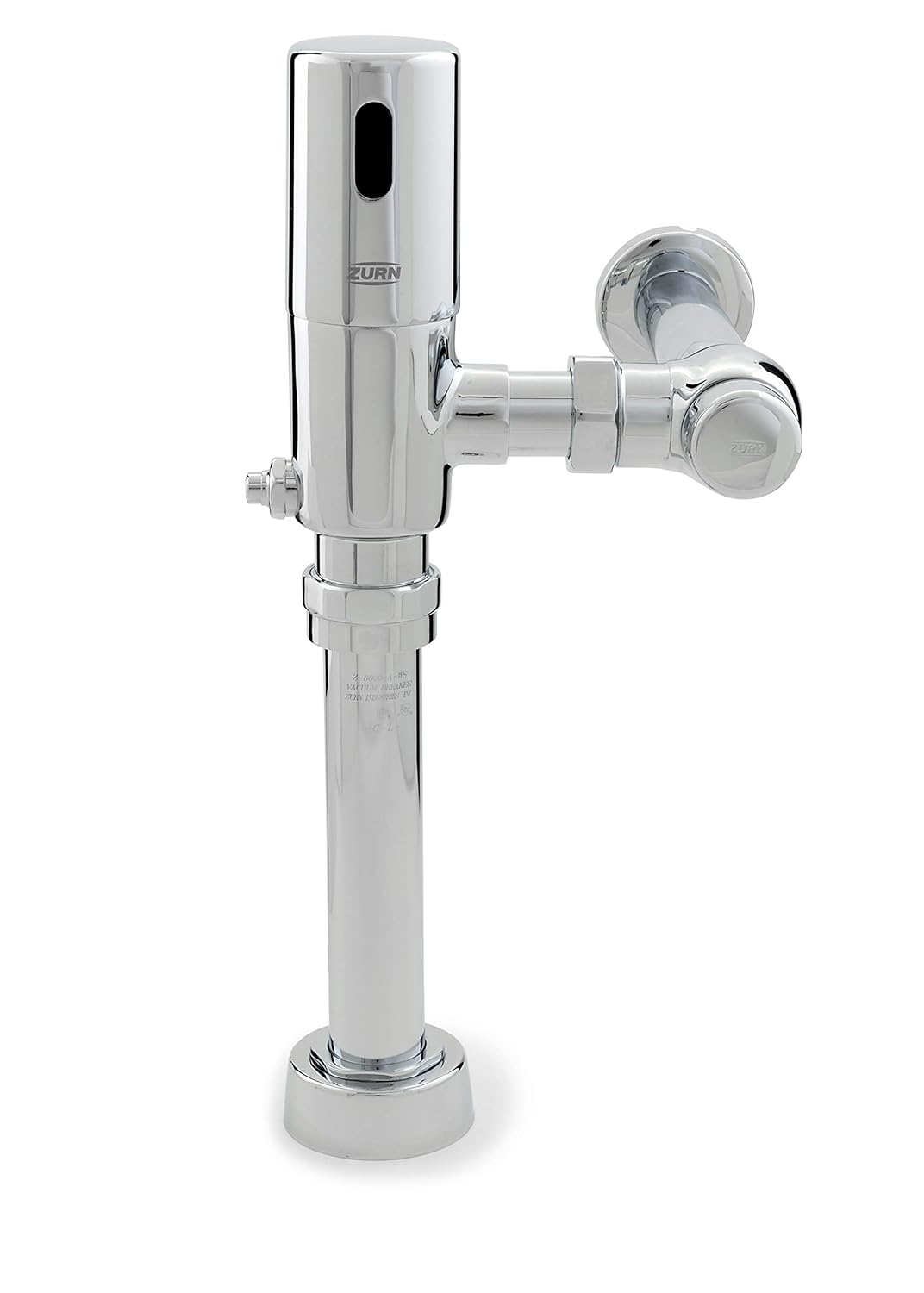

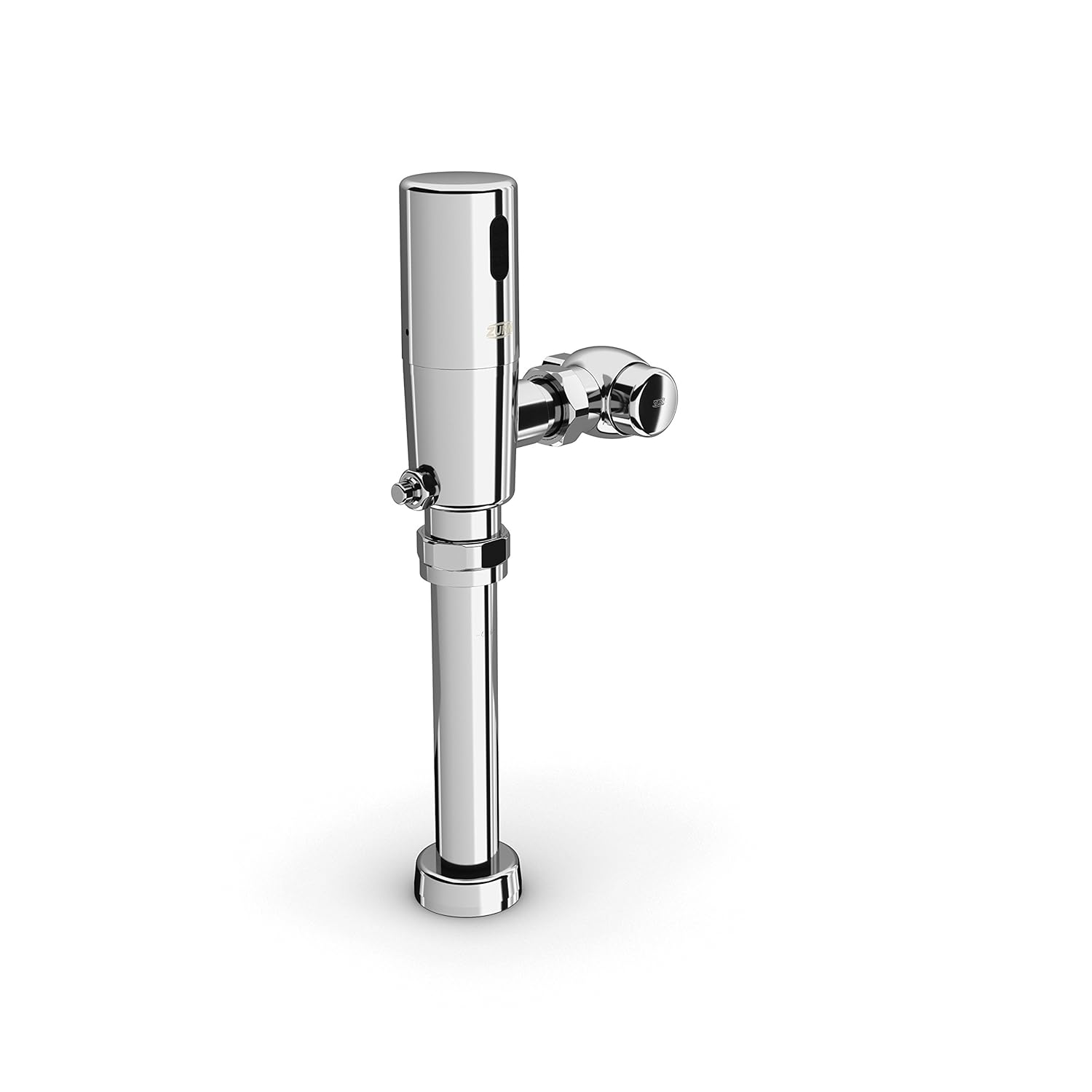

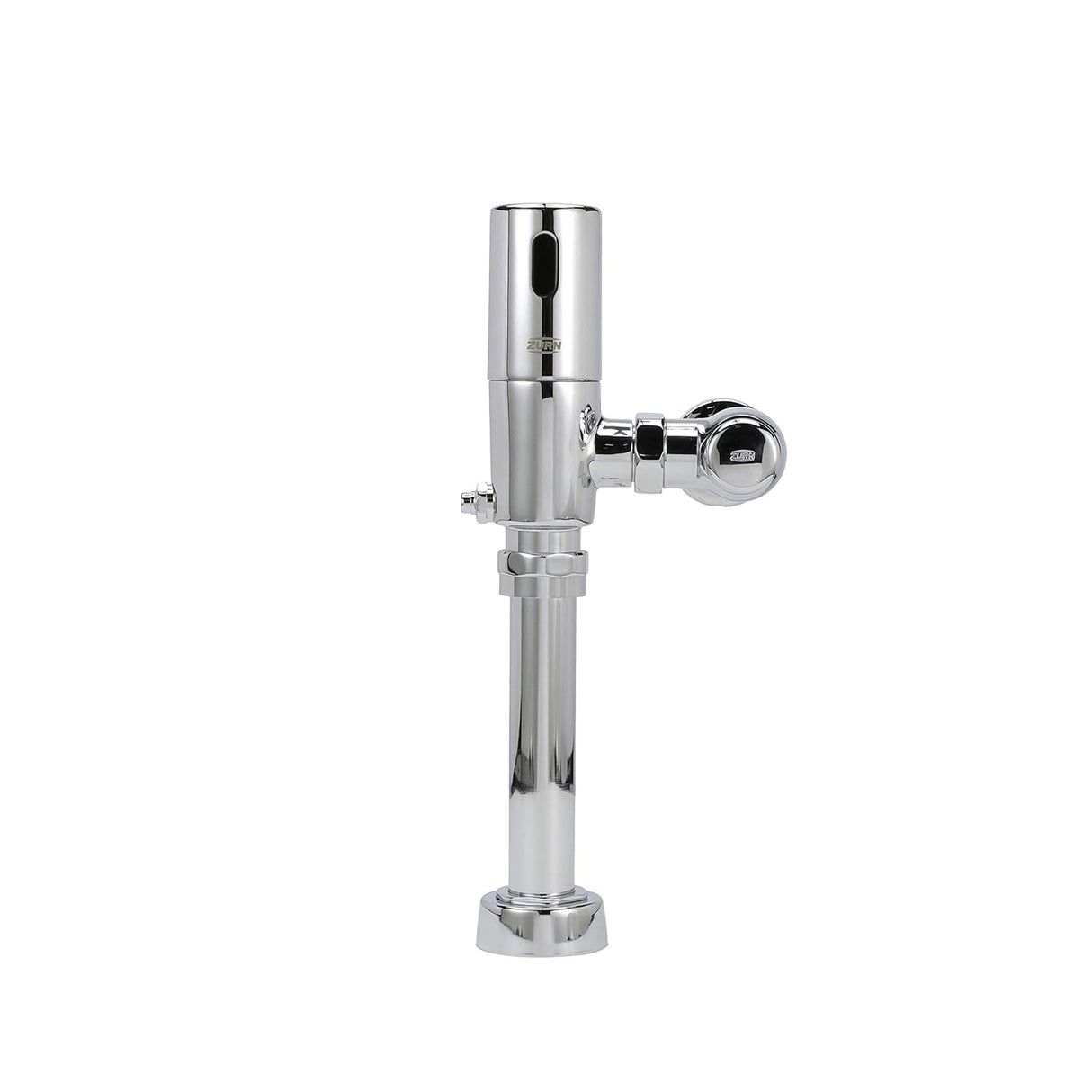

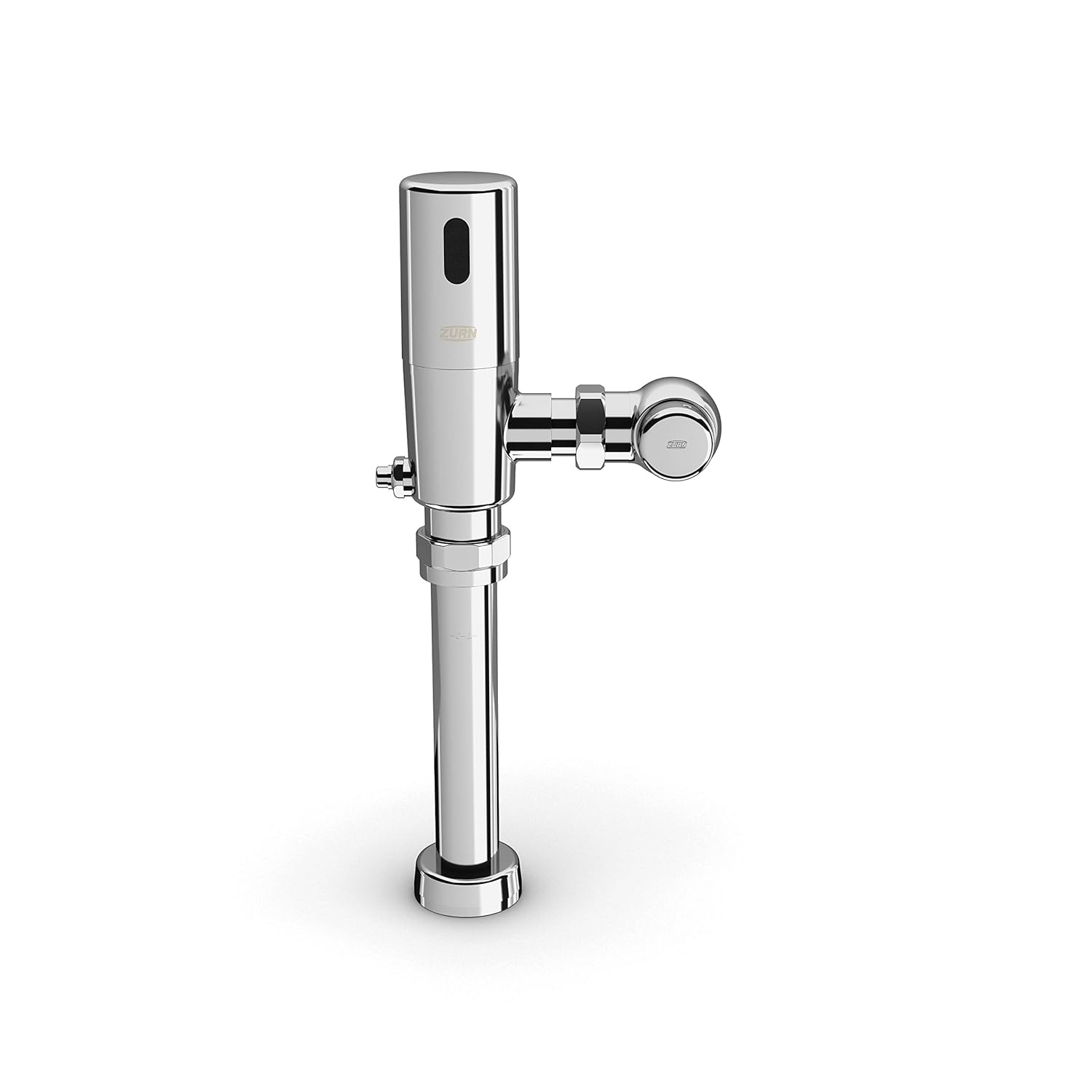

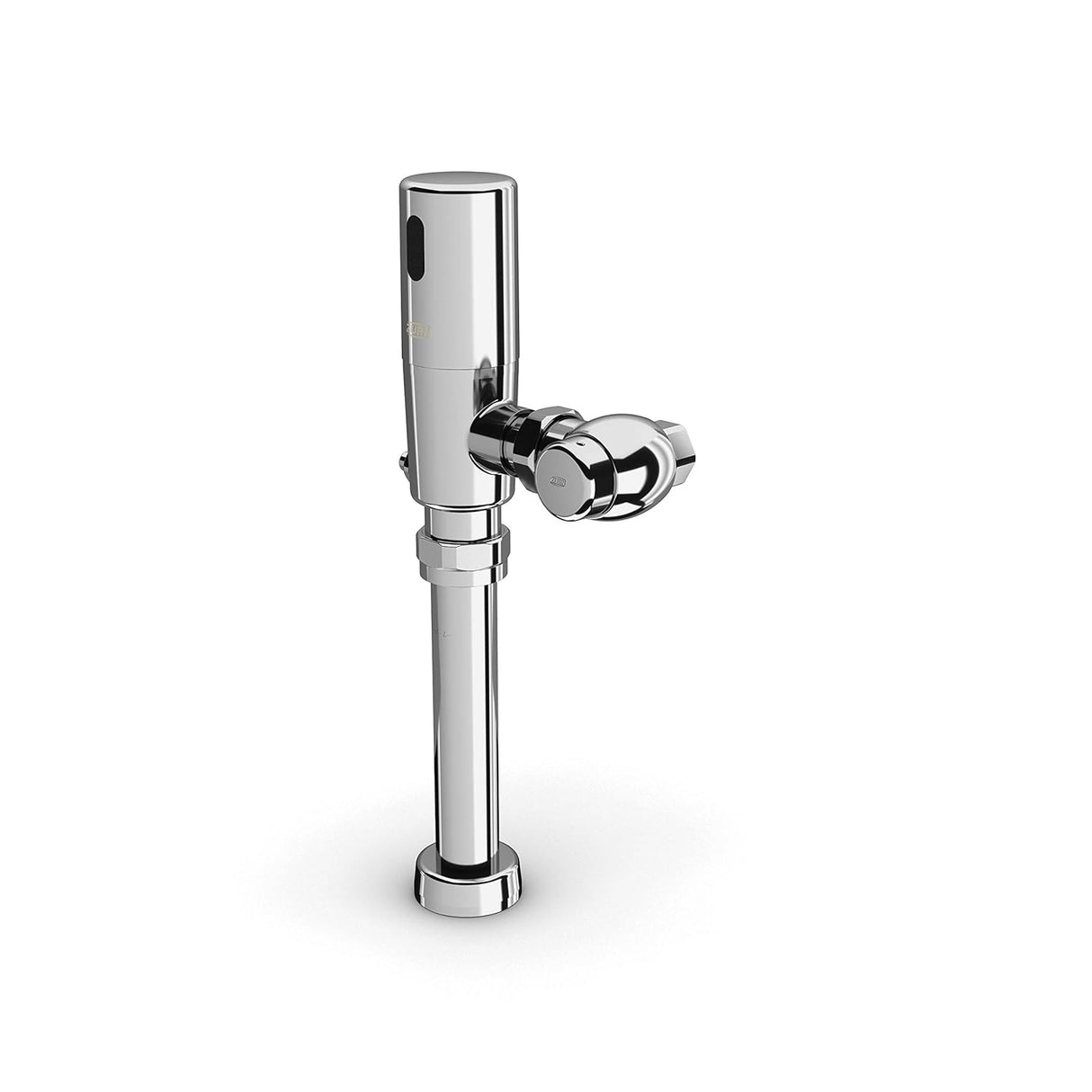

Zurn ZTR6200EV | ZTR Exposed Sensor Piston Water Closet Flush Valve, 1.28 GPF, Chrome
Zurn ZTR6200EV | ZTR Exposed Sensor Piston Water Closet Flush Valve, 1.28 GPF, Chrome - Standard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZTR6200EV | ZTR Exposed Sensor Piston Water Closet Flush Valve...
The Zurn ZTR6200EV Sensor Operated Water Closet Flush Valve delivers reliable hands-free operation with water-saving efficiency for commercial restrooms. Its 1.28 gpf high-efficiency design combines advanced sensor technology with durable construction, making it an ideal solution for modern commercial facilities.
Key Specifications:
- Flow Rate: 1.28 gallons per flush (WaterSense certified).
- Power Supply: Battery-powered with 4 "AA" batteries (standard).
- Construction: Chrome-plated brass with proprietary DR resistant low lead brass alloy.
- Activation: Infrared sensor with mechanical manual override button.
- Backflow Prevention: High back pressure vacuum breaker with internal siphon-guard.
Features & Benefits:
- Touchless Operation: The advanced sensor technology eliminates cross-contamination in public restrooms.
- Water Conservation: The 1.28 gpf high-efficiency design reduces water consumption while maintaining effective flushing performance.
- Durable Construction: The chrome-plated brass body with proprietary dezincification-resistant low lead brass alloy ensures long-term reliability.
- Filtered Piston Technology: The filtered piston kit with chloramine-resistant components prevents clogging and extends service life.
- Manual Override: The mechanical override button provides backup operation when needed.
Options Available:
- ZTR6200EV-HW: Hardwired version utilizing 7.6 VDC power supply input for continuous operation without battery replacement. Ideal for high-traffic facilities seeking maintenance-free power.
- ZTR6200EV-LL: Long-life battery option providing up to 10 years of battery life for reduced maintenance in moderate-use applications. Perfect for locations where hardwired installation is impractical.
What's Included:
- 1 x ZTR6200EV Sensor Flush Valve
- 1 x Filtered Piston Kit
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece and Coupling Assembly
- 1 x Spud Coupling Assembly
- 1 x Sweat Solder Kit with Cast Wall Flange
- 4 x "AA" Batteries (Standard and -LL versions)
- 1 x Power Converter (HW version only)
- 1 x Installation Wrench
FAQ
Q: How does this flush valve contribute to water conservation?
A: The ZTR6200EV operates at just 1.28 gallons per flush, earning it WaterSense certification and saving up to 20% more water than standard 1.6 gpf models. In high-traffic facilities, this can translate to thousands of gallons saved annually. The sensor activation also prevents unnecessary flushes, while the filtered piston technology ensures reliable performance despite the lower water volume.
Q: What are the power options available for this flush valve?
A: The ZTR6200EV offers three power options to suit different installation needs. The standard version operates on 4 "AA" batteries with approximately 3 years of life under normal conditions (48,000 activations per year). The -LL option features long-life lithium batteries providing up to 10 years of service. For locations requiring continuous operation without battery maintenance, the -HW hardwired version connects to a 7.6 VDC power supply.
Detailed Features & Benefits
Advanced Sensor Technology: The ZTR6200EV utilizes sophisticated infrared sensor technology that provides reliable detection for hands-free operation. The sensor range can be field-adjusted to accommodate different fixture types and installation environments. A convenient mechanical override button ensures operation even during power outages.
Durable Piston Technology: The filtered piston design offers superior performance compared to traditional diaphragm valves in challenging water conditions. The chloramine-resistant components prevent premature deterioration, while the filtered bypass protects against debris that can cause malfunction. This design significantly reduces maintenance requirements and extends the service life of the valve.
Vandal-Resistant Design: The ZTR6200EV features a polished, robust metal cap design and vandal-resistant components to withstand high-traffic public environments. The control stop includes internal siphon-guard protection and a vandal-resistant stop cap to prevent tampering. These features ensure consistent performance and reduced maintenance even in demanding conditions.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions.
