Zurn  |  SKU: ZTR6200EV-HW

Zurn ZTR6200EV-HW | EcoVantage ZTR Exposed Sensor Piston Water Closet Flush Valve, 1.28 GPF, Hardwired, Chrome

$ 703.99
Shipping calculated at checkout.


Product Care Information

Installation
  • All plumbing is to be installed according to state and local codes and regulations.
  • Water supply lines need to allow proper water flow for each fixture.
  • Flush all lines of any debris before making connections.
  • Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.

The Zurn ZTR6200EV-HW provides touchless flush technology with the reliability of continuous hardwired power for demanding commercial environments. This premium sensor flush valve combines modern hygiene standards with sustainable water usage, making it the ideal solution for high-traffic facilities seeking dependable performance without ongoing maintenance concerns.


Key Specifications:

  • Flow Rate: 1.28 gallons per flush (WaterSense certified).
  • Power Supply: Hardwired 7.6 VDC power converter for continuous operation.
  • Construction: Chrome-plated brass with proprietary DR resistant low lead brass alloy.
  • Activation: Infrared sensor with mechanical manual override button.
  • Backflow Prevention: High back pressure vacuum breaker with one-piece hex coupling nut.


Features & Benefits:

  • Continuous Power: The hardwired power supply eliminates the need for battery replacements, providing uninterrupted operation in high-traffic environments.
  • Touchless Operation: The advanced sensor technology eliminates cross-contamination in public restrooms.
  • Water Conservation: The 1.28 gpf high-efficiency design reduces water consumption while maintaining effective flushing performance.
  • Durable Construction: The chrome-plated brass body with proprietary dezincification-resistant low lead brass alloy ensures long-term reliability.
  • Filtered Piston Technology: The filtered piston kit with chloramine-resistant components prevents clogging and extends service life.


Options Available:

  • ZTR6200EV: Standard model powered by 4 "AA" batteries with approximately 3 years of life under normal conditions (48,000 activations per year).
  • ZTR6200EV-LL: Long-life battery version with up to 10 years of battery life, ideal for locations where power access is limited but extended service life is desired.

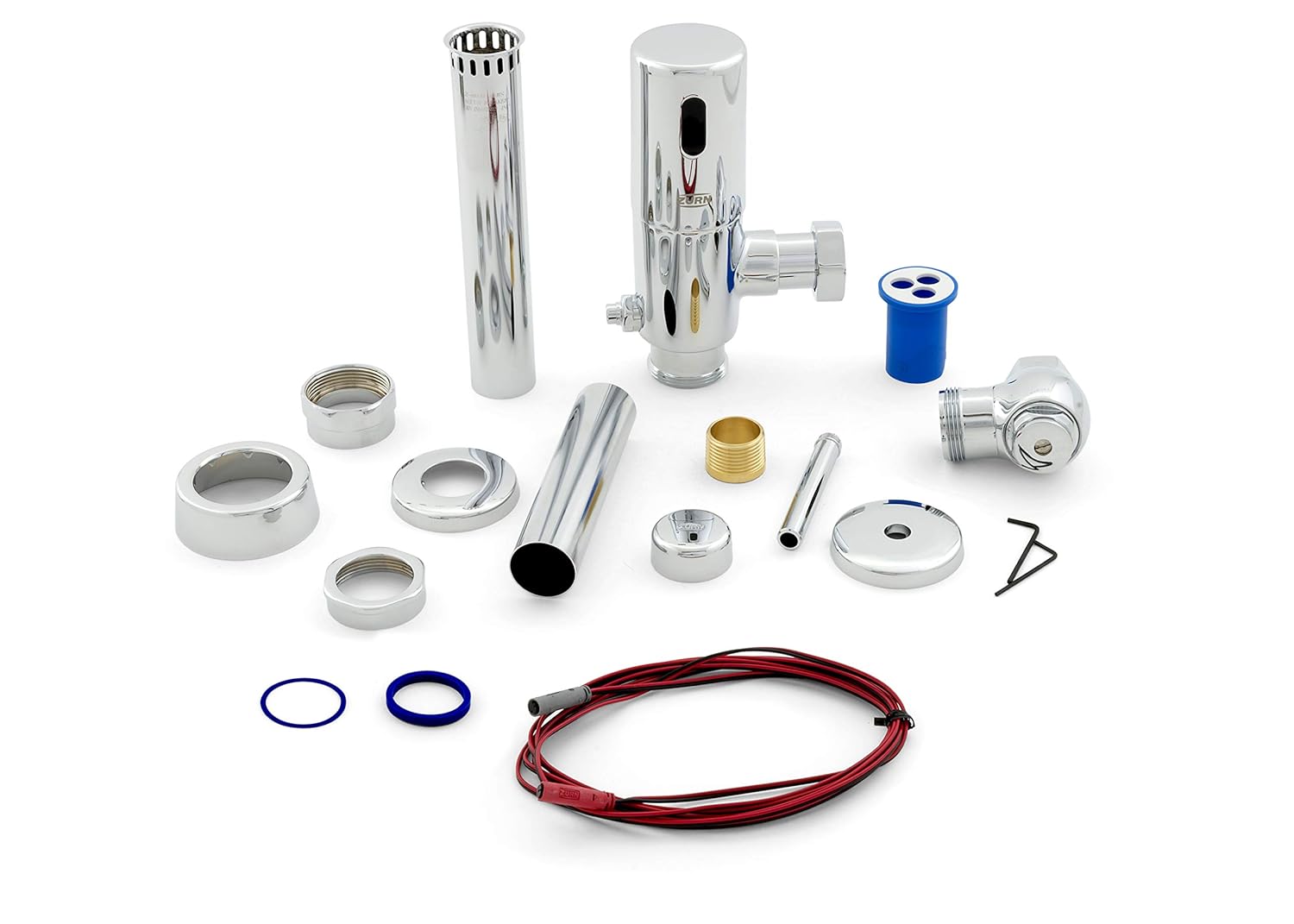

What's Included:

  • 1 x ZTR6200EV-HW Sensor Flush Valve
  • 1 x Filtered Piston Kit
  • 1 x High Back Pressure Vacuum Breaker
  • 1 x Adjustable Tailpiece
  • 1 x Spud Coupling and Flange for Top Spud Connection
  • 1 x Sweat Solder Kit with Cast Wall Flange
  • 1 x Vandal Resistant Stop Cap
  • 1 x 10' Power Supply Cable
  • 1 x Wire Supply Tube and Wall Escutcheon
  • 1 x Installation Hardware


FAQ


Q: What are the advantages of a hardwired flush valve for commercial applications?

A: The ZTR6200EV-HW's hardwired power supply offers significant advantages for high-traffic facilities. By eliminating battery replacements entirely, it reduces ongoing maintenance costs and ensures continuous, uninterrupted operation even in the busiest environments. This translates to improved reliability, fewer service calls, and consistent performance without the periodic downtime associated with battery replacement. The hardwired system is particularly valuable in locations where constant operation is critical, such as airports, stadiums, or shopping centers.

Q: How does this flush valve contribute to water conservation?

A: The ZTR6200EV-HW operates at just 1.28 gallons per flush, earning it WaterSense certification and saving up to 20% more water than standard 1.6 gpf models. In high-traffic facilities, this can translate to thousands of gallons saved annually. The sensor activation prevents unnecessary flushes, while the filtered piston technology ensures reliable performance despite the lower water volume. These water savings contribute to reduced utility costs and support environmentally responsible building operations.


Detailed Features & Benefits


Advanced Sensor Technology: The ZTR6200EV-HW utilizes sophisticated infrared sensor technology that provides reliable detection for hands-free operation. The sensor range is factory set for optimal performance but can be field-adjusted to accommodate different fixture types and installation environments. A convenient mechanical override button ensures operation even during power outages or in case of sensor malfunction.

Flexible Power Options: The hardwired design connects to Zurn's 7.6VDC power converter (P6000-HW6), which can power up to 8 flush valves simultaneously. For larger installations, optional power junction boxes (P6800-PJB-4 or P6800-PJB-8) are available to efficiently distribute power to multiple units. The included 10' power supply cable can be extended with optional extension cables for greater installation flexibility.

Vandal-Resistant Design: The ZTR6200EV-HW features a polished robust metal cap design and vandal-resistant components to withstand high-traffic public environments. The control stop includes internal siphon-guard protection and a vandal-resistant stop cap to prevent tampering. These features ensure consistent performance and reduced maintenance even in demanding conditions.


NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
