Zurn ZER6003AV-WS1-TM-YK | Top Mount Exp. Sensor Flush Valve for Urinal, Ceramic Gears, Battery
Zurn ZER6003AV-WS1-TM-YK | Top Mount Exp. Sensor Flush Valve for Urinal, Ceramic Gears, Battery is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZER6003AV-WS1-TM-YK | Top Mount Exp. Sensor Flush Valve for Ur...

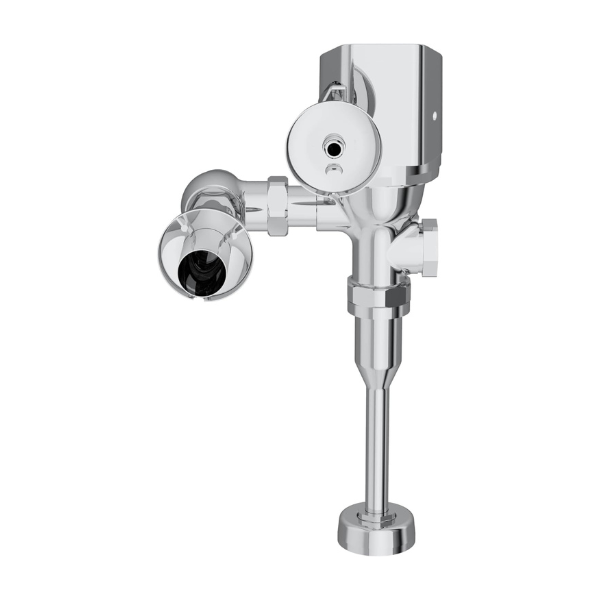

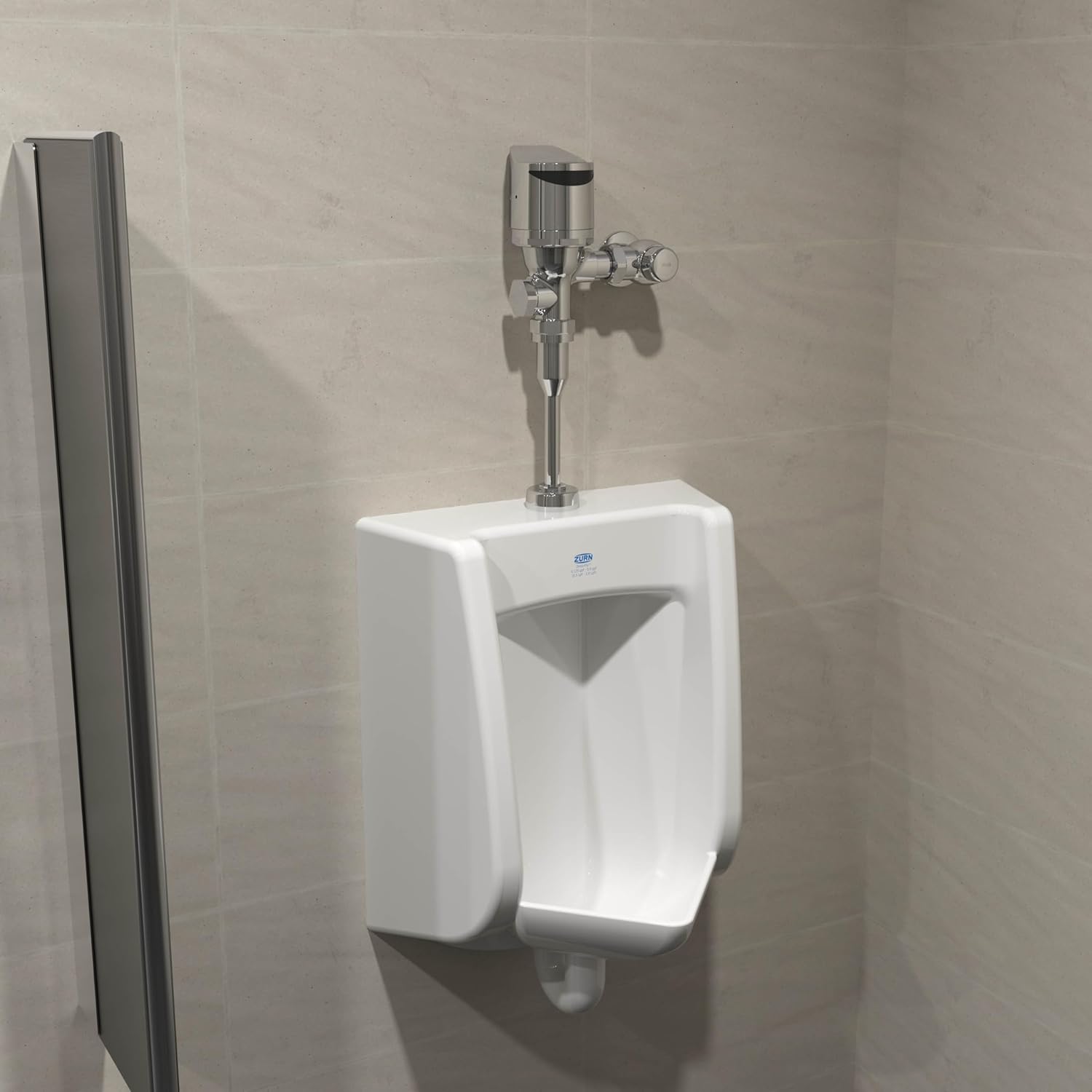

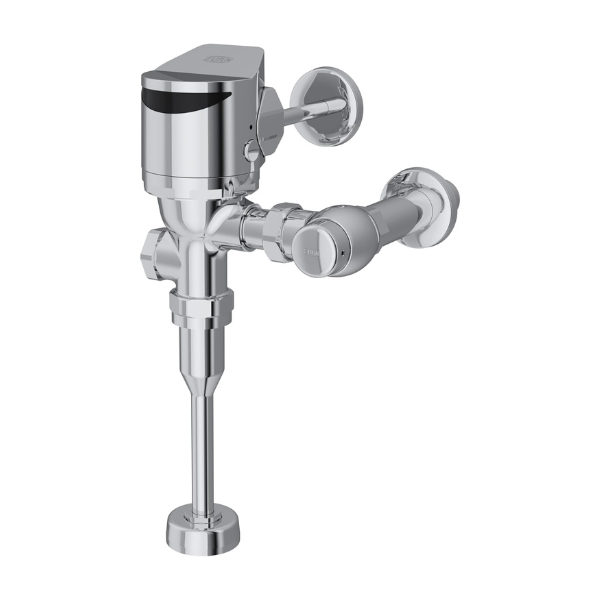

The ZER6003AV-WS1-TM-YK delivers reliable, water-conserving performance with advanced gear-driven technology and enhanced stability for commercial urinals. Its durable AquaSense® technology combines with polished chrome-plated brass construction and solid ring pipe support, making it an ideal solution for high-traffic facilities requiring both efficient performance and superior installation stability.
Key Specifications:
- Flow Rate: 1.0 gallon per flush (Water Saver)
- Operation: Battery-powered sensor with gear-driven ceramic cartridge
- Construction: Dezincification resistant low lead brass alloy
- Compliance: ADA compliant and WaterSense certified

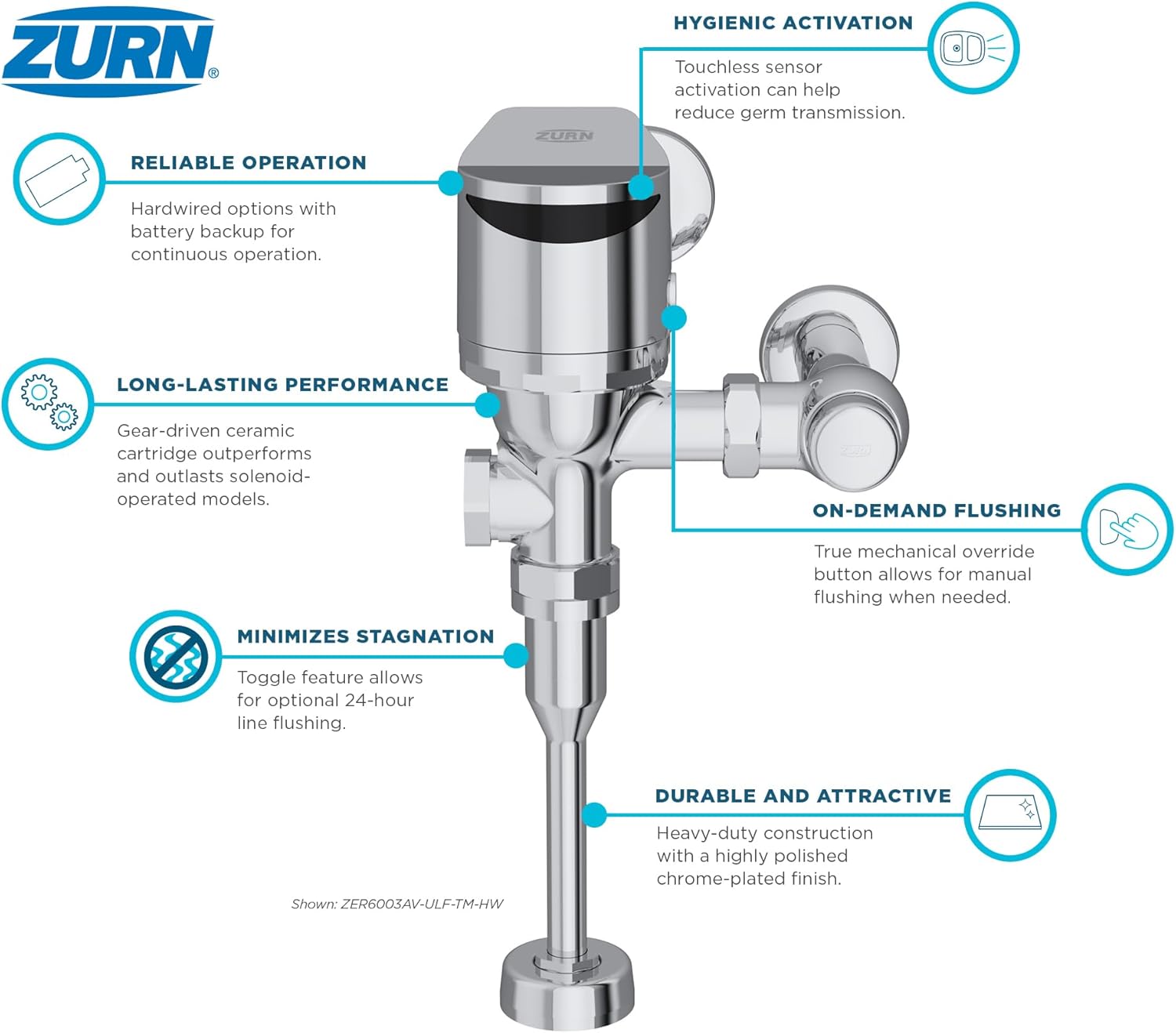

Features & Benefits:
- Solid Ring Pipe Support: The YK designation includes an integrated solid ring pipe support that provides exceptional stability and prevents movement during operation, ideal for high-traffic environments.
- Gear-Driven Technology: Performance-engineered with dual action ceramic disc cartridge and motor gear-driven operation for unmatched reliability and precision flush control.
- Extended Battery Life: Powered by 6 AA batteries with approximately 3 years of life under normal conditions (48,000 activations per year), minimizing maintenance requirements.
- True Mechanical Override Button: Provides manual flush capability during battery replacement or maintenance, ensuring fixture availability at all times.
- Water Conservation: The 1.0 gpf performance reduces water consumption compared to standard flush valves while providing effective fixture cleaning.
What's Included:
- 1 x ZER6003AV-WS1-TM-YK AquaSense® Urinal Flush Valve
- 1 x Control Stop with Internal Siphon-Guard Protection
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Solid Ring Pipe Support
- 6 x AA Alkaline Batteries
- 1 x Mounting Hardware Kit
- 1 x Strap Wrench for Installation
Options Available:
- ZER6003AV-WS1-TM: Standard battery-powered model with 1.0 gallon per flush with standard spud configuration.
-

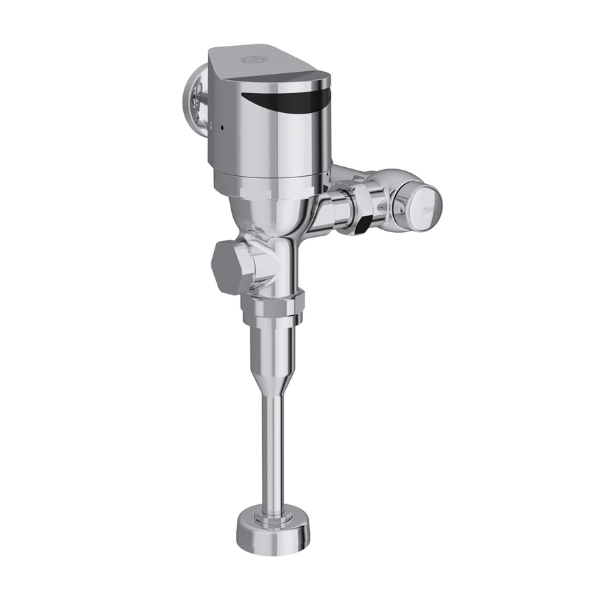

ZER6003AV-WS1-TM-HW: Hardwired version utilizing 7.6 VDC power supply input for continuous operation without battery replacement.
-
ZER6003AV-WS1-TM-X: Battery-powered model with specialized top spud configuration for unique plumbing layouts.
FAQ
Q: What does the YK designation indicate?
A: The YK designation indicates that this model includes a solid ring pipe support, which provides additional stability to the flush valve installation. This is particularly beneficial in high-traffic environments where the flush valve may experience more frequent use and potential movement.
Q: How often do the batteries need to be replaced?
A: Under normal usage conditions (approximately 48,000 activations per year), the 6 AA alkaline batteries will last approximately 3 years. The low battery indicator will flash periodically when batteries need replacement, giving ample warning before power is depleted.
Detailed Features & Benefits
Enhanced Installation Stability: The ZER6003AV-WS1-TM-YK's solid ring pipe support creates a more rigid connection between the flush valve and building plumbing infrastructure. This added stability prevents unwanted movement during operation, reducing stress on plumbing connections and extending the service life of the installation, particularly important in high-traffic commercial environments.
Advanced Gear-Driven Technology: The ZER6003AV-WS1-TM-YK utilizes a sophisticated gear-driven ceramic disc cartridge that delivers precise water control and exceptional reliability. Unlike traditional diaphragm valves, this innovative mechanism provides smoother operation, more consistent flush volume, and extended service life even in demanding commercial environments with varying water conditions.
Intelligent Power Management: The battery-powered system features smart power management that maximizes battery life while ensuring consistent performance. The system includes customizable settings for sensor range and courtesy flush intervals, ensuring fixtures remain fresh and hygienic even during periods of non-use, with minimal battery drain.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
