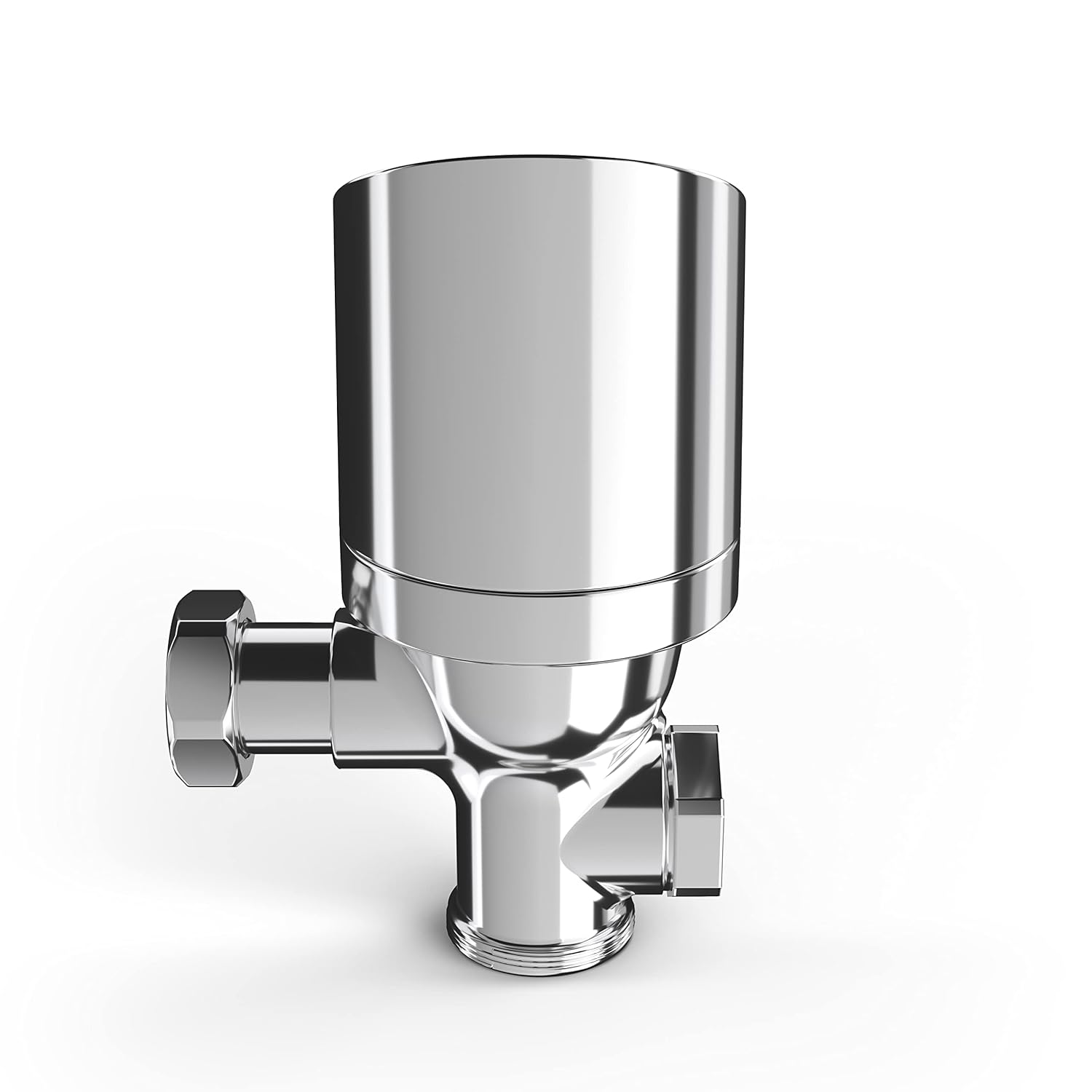

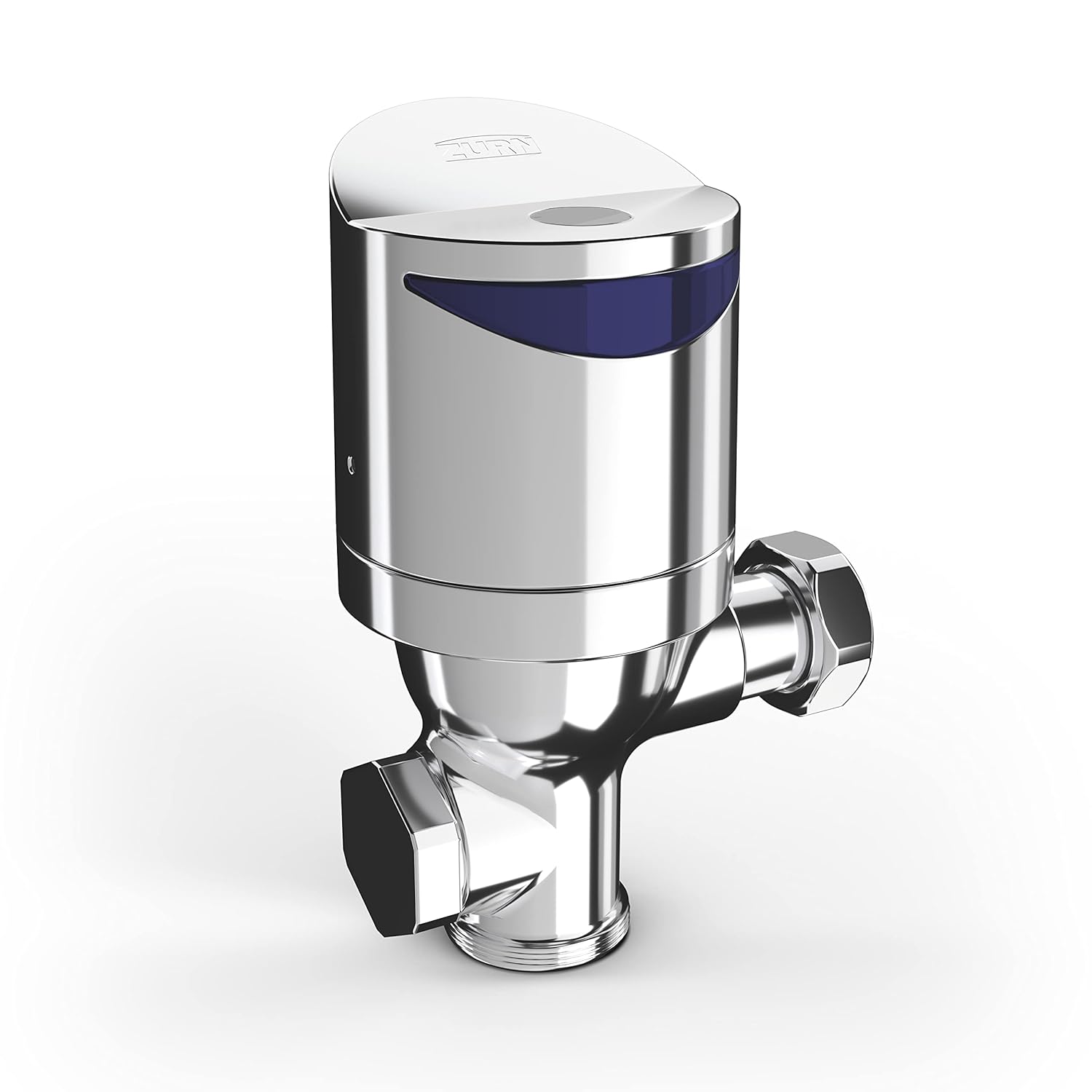

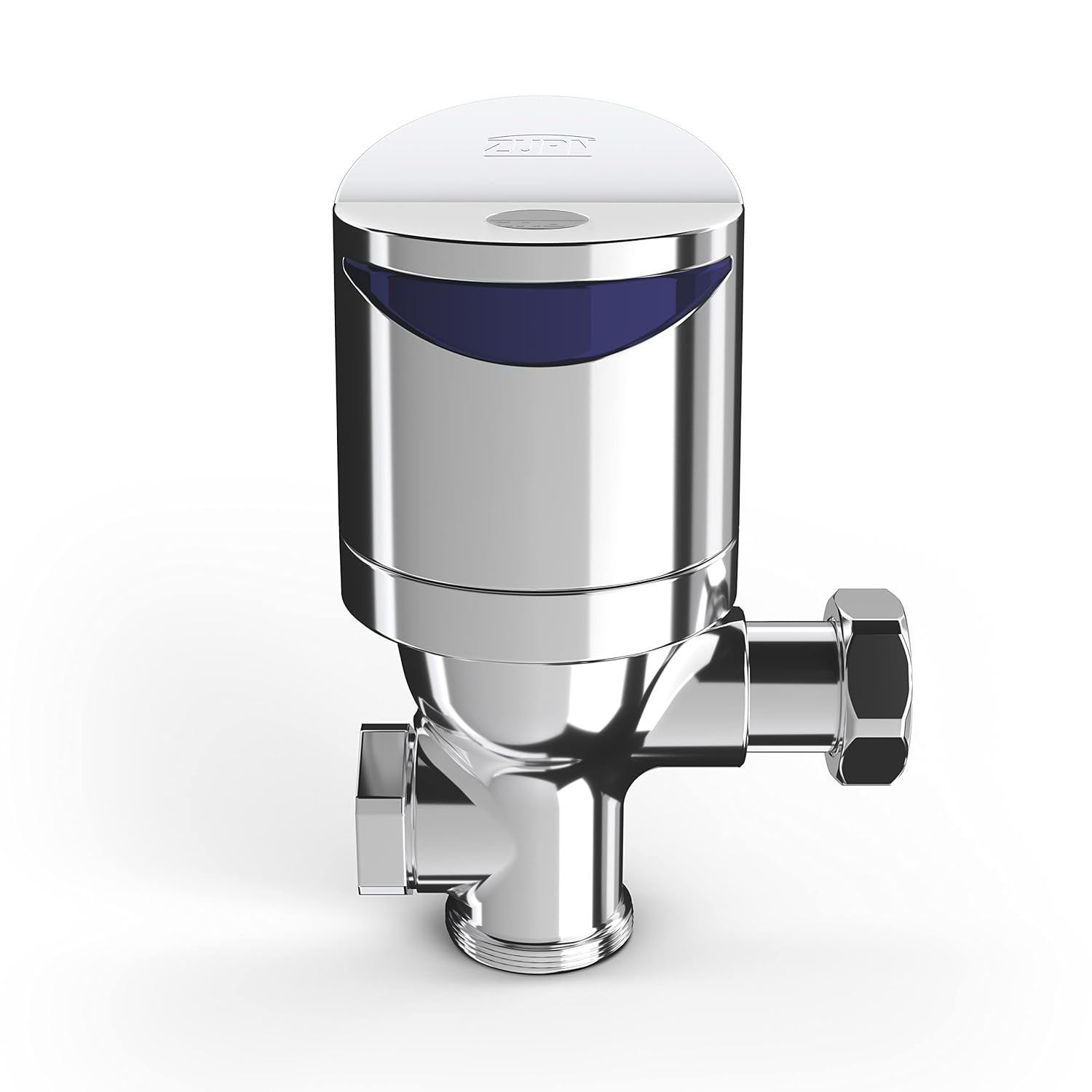

Zurn ZER6003AV-WS1-TM-X | AquaSense ZER-TM Series Sensor Flush Valve | Battery-Powered, 1.0 gpf
Zurn ZER6003AV-WS1-TM-X | AquaSense ZER-TM Series Sensor Flush Valve | Battery-Powered, 1.0 gpf is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZER6003AV-WS1-TM-X | AquaSense ZER-TM Series Sensor Flush Valv...
The ZER6003AV-WS1-TM-X delivers reliable, water-conserving performance with advanced gear-driven technology and specialized top spud configuration for commercial urinals. Its durable AquaSense® technology combines with polished chrome-plated brass construction, making it an ideal solution for facilities with unique plumbing layouts where standard configurations aren't optimal.
Key Specifications:
- Flow Rate: 1.0 gallon per flush (Water Saver)
- Operation: Battery-powered sensor with gear-driven ceramic cartridge
- Construction: Dezincification resistant low lead brass alloy
- Compliance: ADA compliant and WaterSense certified
Features & Benefits:
- Specialized Top Spud Configuration: The X designation provides a modified spud connection specifically designed for installations where standard spud configurations aren't feasible, offering greater installation flexibility.
- Gear-Driven Technology: Performance-engineered with dual action ceramic disc cartridge and motor gear-driven operation for unmatched reliability and precision flush control.
- Extended Battery Life: Powered by 6 AA batteries with approximately 3 years of life under normal conditions (48,000 activations per year), minimizing maintenance requirements.
- True Mechanical Override Button: Provides manual flush capability during battery replacement or maintenance, ensuring fixture availability at all times.
- Water Conservation: The 1.0 gpf performance reduces water consumption compared to standard flush valves while providing effective fixture cleaning.
What's Included:
- 1 x ZER6003AV-WS1-TM-X AquaSense® Urinal Flush Valve with Specialized Top Spud Configuration
- 1 x Control Stop with Internal Siphon-Guard Protection
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece
- 1 x Specialized Spud Coupling and Flange for Top Spud Connection
- 6 x AA Alkaline Batteries
- 1 x Mounting Hardware Kit
- 1 x Strap Wrench for Installation
Options Available:
- ZER6003AV-WS1-TM: Standard battery-powered model with 1.0 gallon per flush with standard spud configuration.
- ZER6003AV-WS1-TM-HW: Hardwired version utilizing 7.6 VDC power supply input for continuous operation without battery replacement.
- ZER6003AV-WS1-TM-YK: Battery-powered model with solid ring pipe support for additional stability in high-traffic environments.
FAQ
Q: What does the X designation indicate?
A: The X designation indicates that this model features a specialized top spud configuration designed for plumbing layouts where standard spud connections aren't optimal. This provides greater installation flexibility for unique facility requirements and retrofit applications.
Q: In what situations would the specialized top spud configuration be beneficial?
A: The specialized configuration is particularly beneficial in retrofit applications where existing plumbing doesn't align with standard flush valve configurations, in buildings with non-standard rough-in dimensions, or in spaces with structural elements that interfere with standard installations.
Detailed Features & Benefits
Flexible Installation Options: The ZER6003AV-WS1-TM-X's specialized top spud configuration offers installation flexibility for facilities with unique plumbing requirements. Whether retrofitting existing bathrooms or working around structural constraints, this specialized configuration allows for proper flush valve installation where standard connections aren't feasible, expanding your design possibilities without compromising performance.
Advanced Gear-Driven Technology: The ZER6003AV-WS1-TM-X utilizes a sophisticated gear-driven ceramic disc cartridge that delivers precise water control and exceptional reliability. Unlike traditional diaphragm valves, this innovative mechanism provides smoother operation, more consistent flush volume, and extended service life even in demanding commercial environments with varying water conditions.
Intelligent Power Management: The battery-powered system features smart power management that maximizes battery life while ensuring consistent performance. The system includes customizable settings for sensor range and courtesy flush intervals, ensuring fixtures remain fresh and hygienic even during periods of non-use, with minimal battery drain.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
