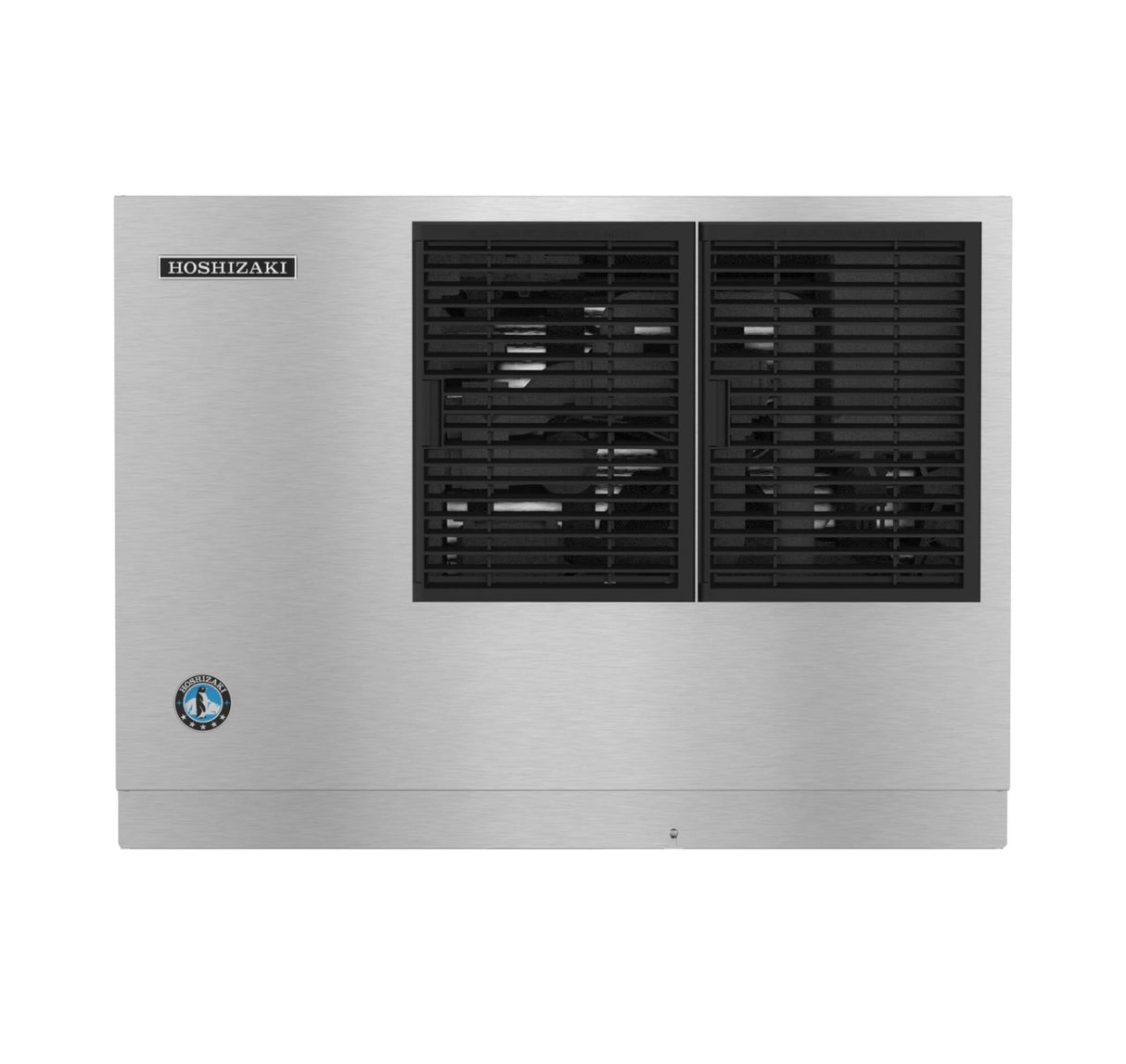

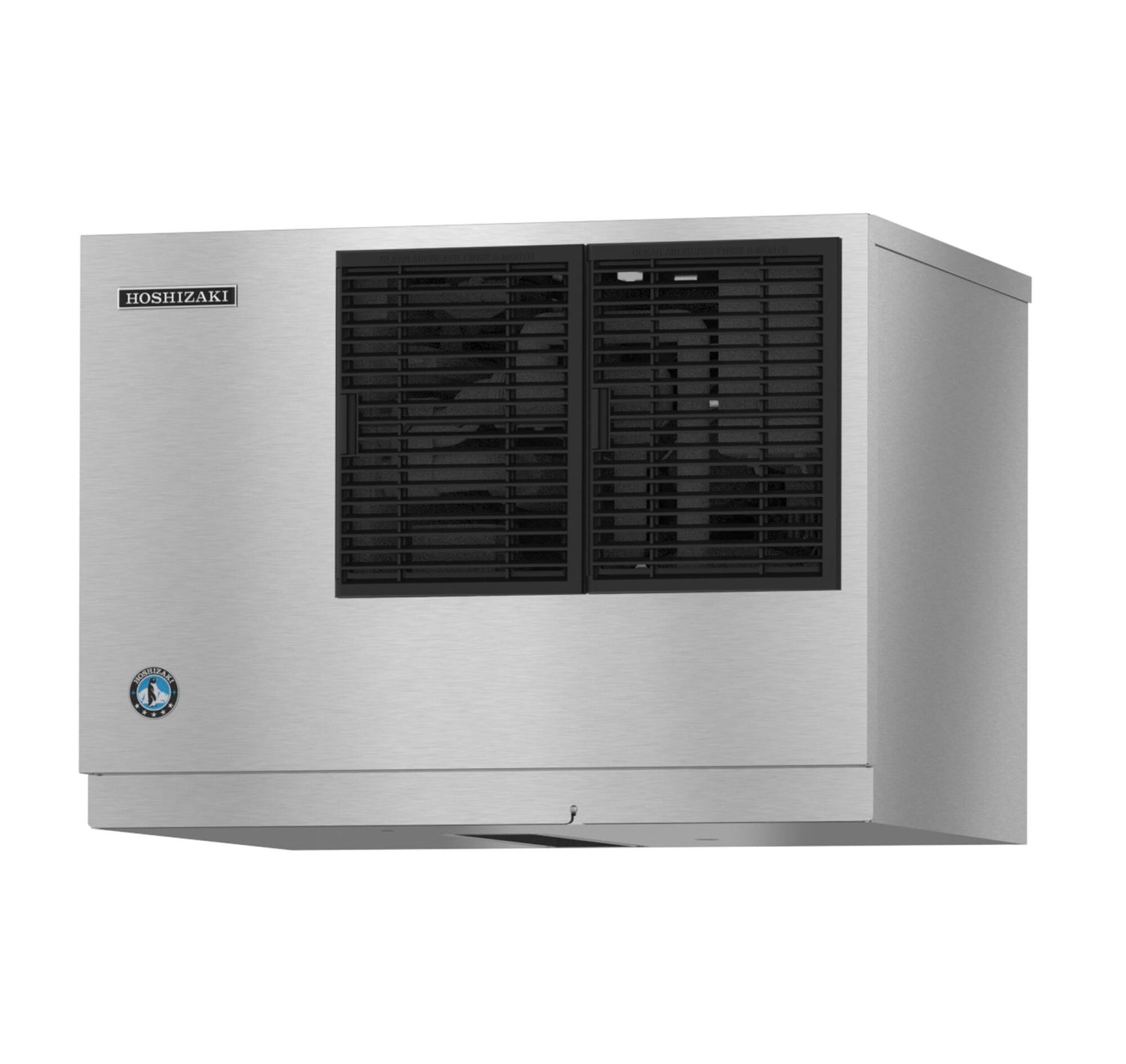

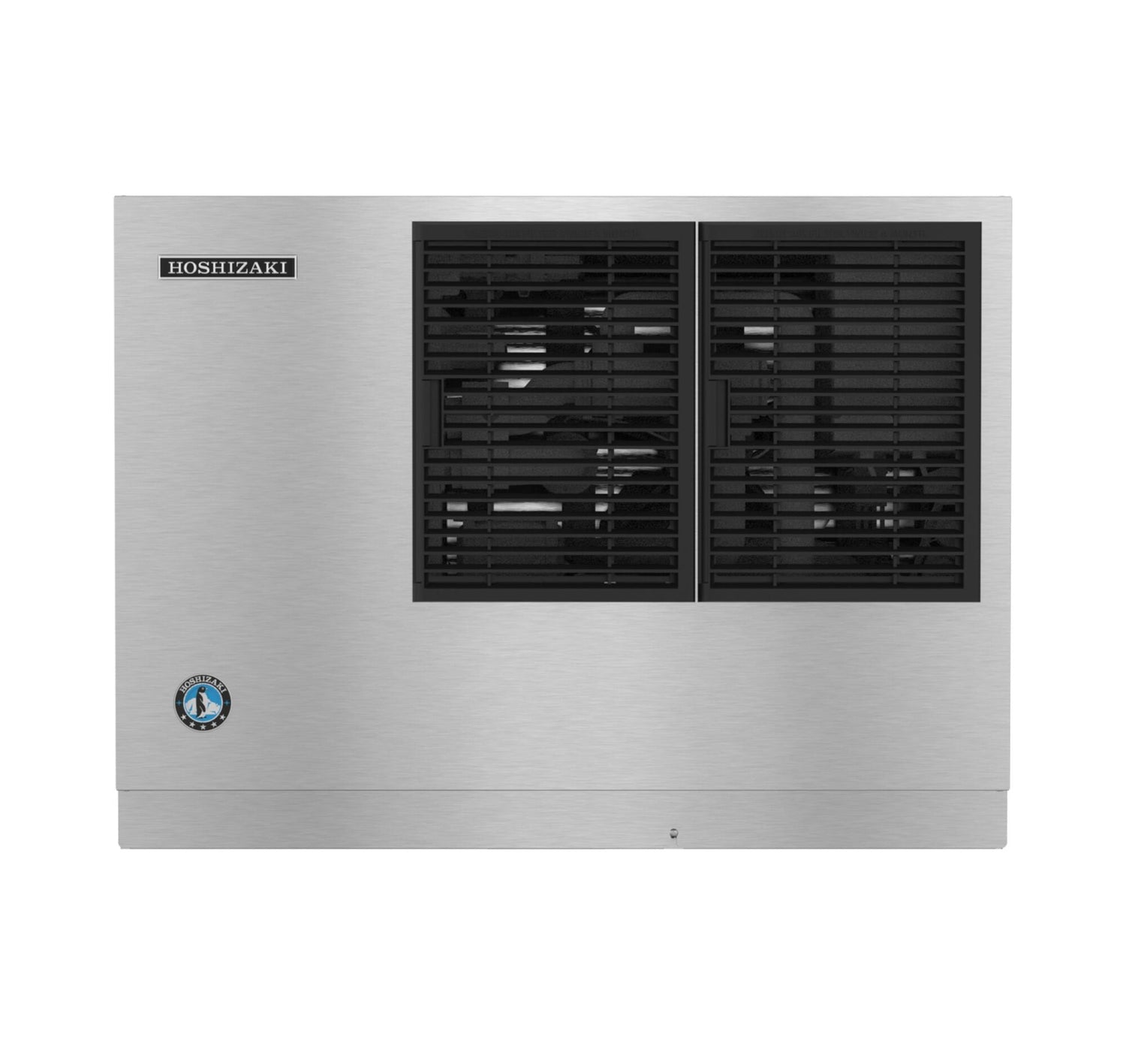

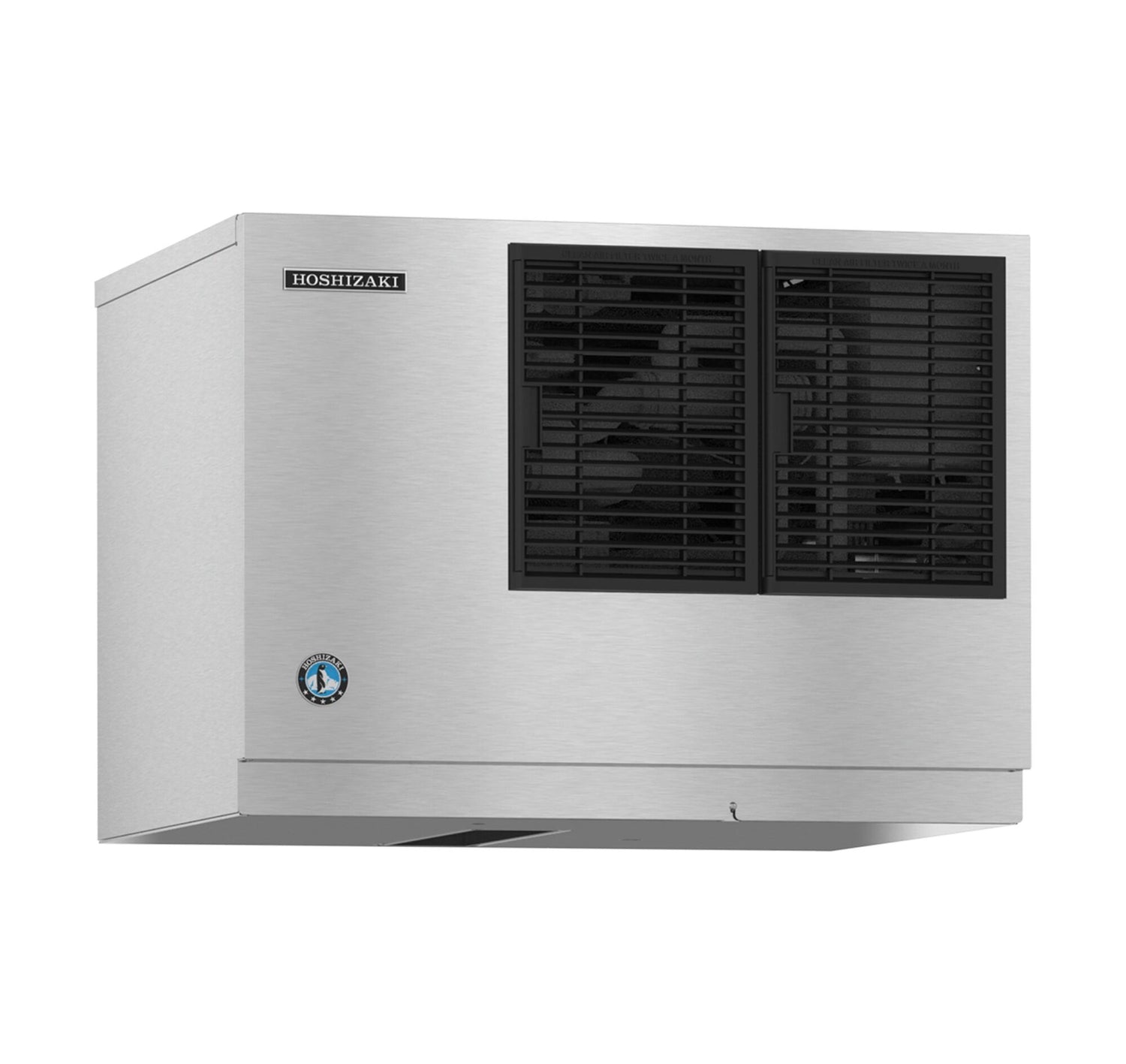

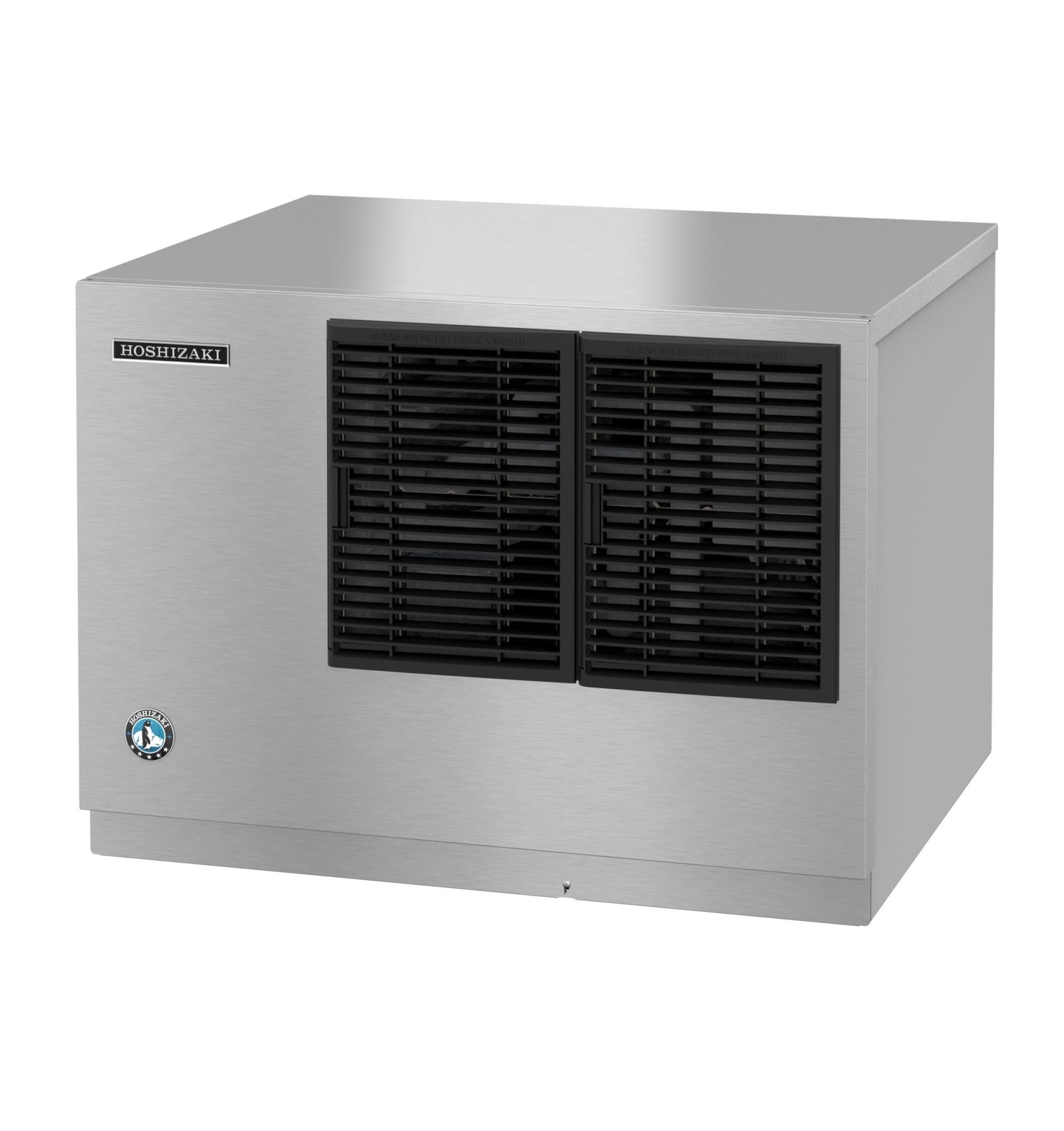

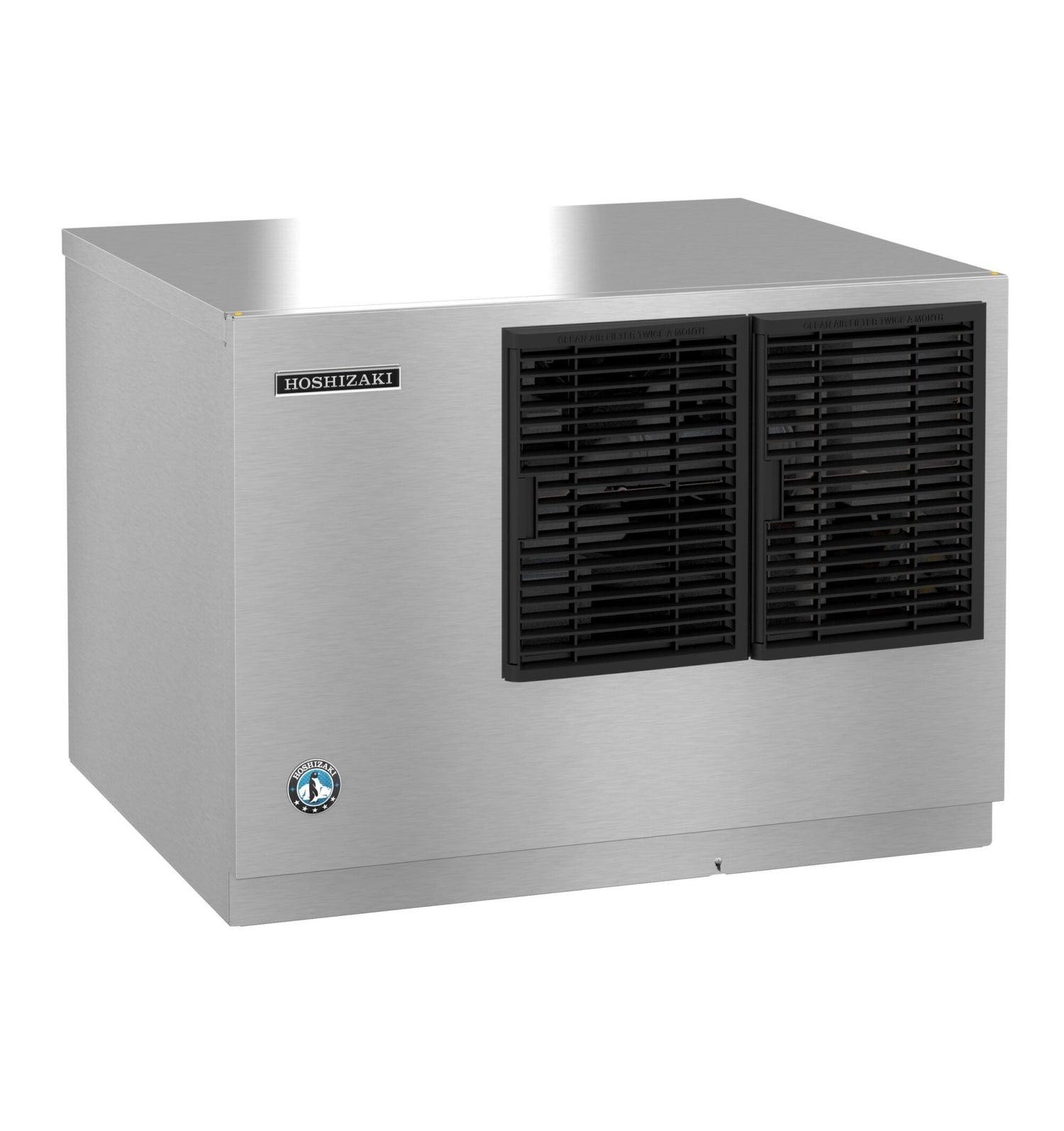

Hoshizaki KMD-505MAJ | KMEdge Modular Crescent Ice Cuber, Air-cooled, 60Hz Electrical
Hoshizaki KMD-505MAJ | KMEdge Modular Crescent Ice Cuber, Air-cooled, 60Hz Electrical - Air is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.
Maintenance
Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.
Hoshizaki KMD-505MAJ | KMEdge Modular Crescent Ice Cuber, Air-coole...
The Hoshizaki KMD-505M Series Low-Profile Modular Crescent Cubers deliver superior ice production with efficient performance for commercial applications. These compact units feature advanced CycleSaver™ technology and durable stainless steel construction, making them ideal solutions for restaurants, hotels, and healthcare facilities.
Key Specifications:
| KMD-505MAJ | KMD-505MWJ | KMD-505MRJZ | |
| Production Capacity | 500 lbs./24 hrs | 555 lbs./24 hrs | 490 lbs./24 hrs |
| Condenser Type | Air-cooled | Water-cooled | Remote air-cooled |
| Energy Consumption | 5.55 kWh/100 lbs. | 4.15 kWh/100 lbs. | 5.70 kWh/100 lbs. |
| Water Usage | 25.0 gal/100 lbs. | 25.0 gal/100 lbs. | 25.0 gal/100 lbs. |
Features & Benefits:
| KMD-505MAJ | KMD-505MWJ | KMD-505MRJZ | |
| Installation Requirements | Requires good ventilation | Requires water supply & drain | Requires separate condenser installation |
| Noise Level | Standard | Quieter operation | Reduced interior noise |
| Heat Output | Into installation space | Minimal heat into space | Heat relocated outside |
| Best For | Standard applications | Limited ventilation areas | Noise-sensitive environments |
What's Included:
| KMD-505MAJ | KMD-505MWJ | KMD-505MRJZ | |
| Ice Machine Head Unit | ✓ | ✓ | ✓ |
| Removable Air Filter | ✓ | - | - |
| Ice Scoop | ✓ | ✓ | ✓ |
| Installation Manual | ✓ | ✓ | ✓ |
| Remote Condenser Unit | - | - | Sold separately (URC-5FZ) |
| Line Set | - | - | Sold separately |
FAQ
Q: What type of bin or dispenser works with these ice machines?

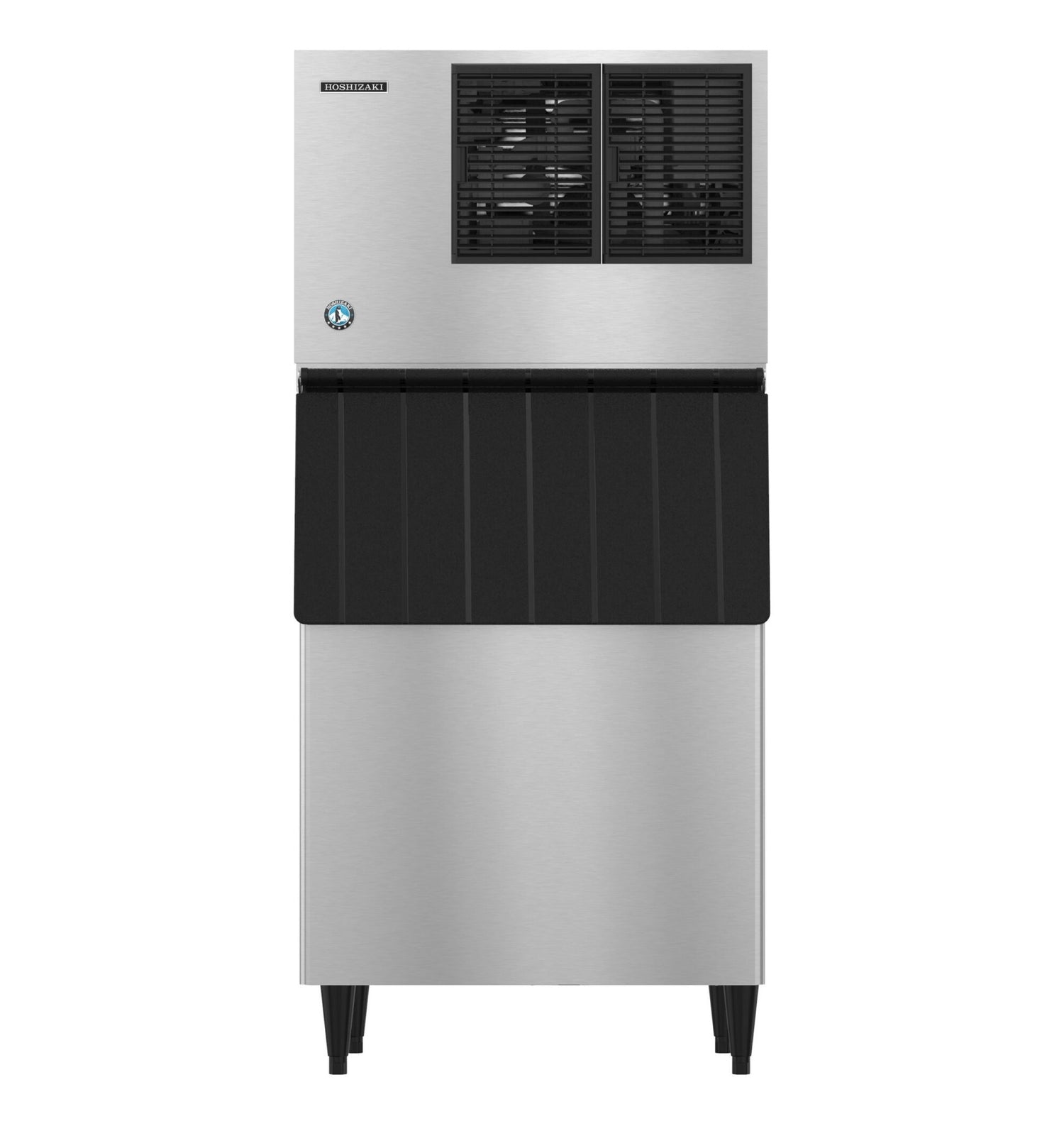

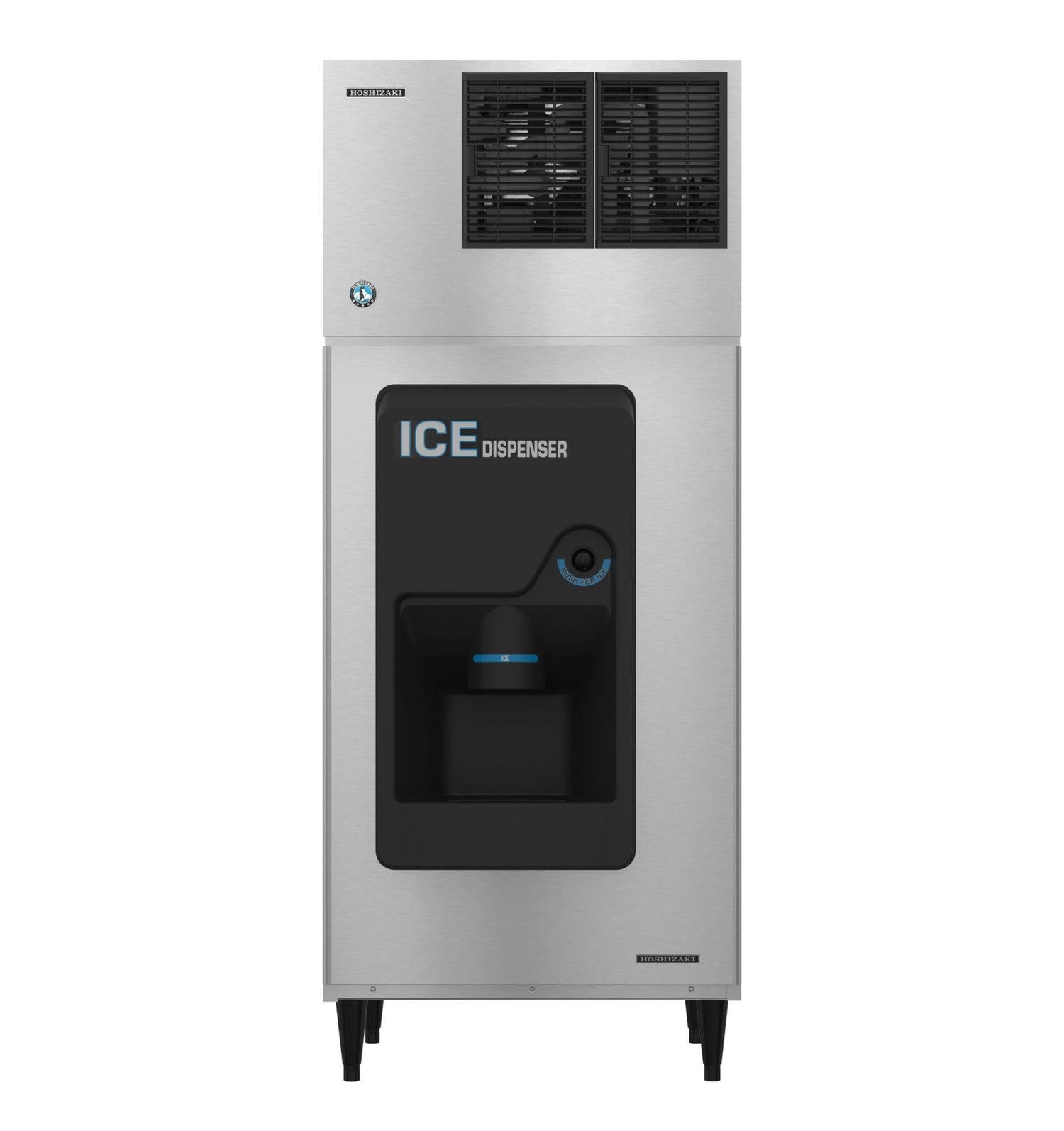

A: The KMD-505M series is designed to work with Hoshizaki B-series bins (B-500SF, B-700SF, B-800SF, B-900SF) and BD-series dispensers (BD-500SF). It's also optimized for use with select Hoshizaki DB-series dispensers (DB-130H, DB-200H). Depending on the application, a top kit may be required for proper fit and operation.
Q: How do I choose between air-cooled, water-cooled, and remote models?

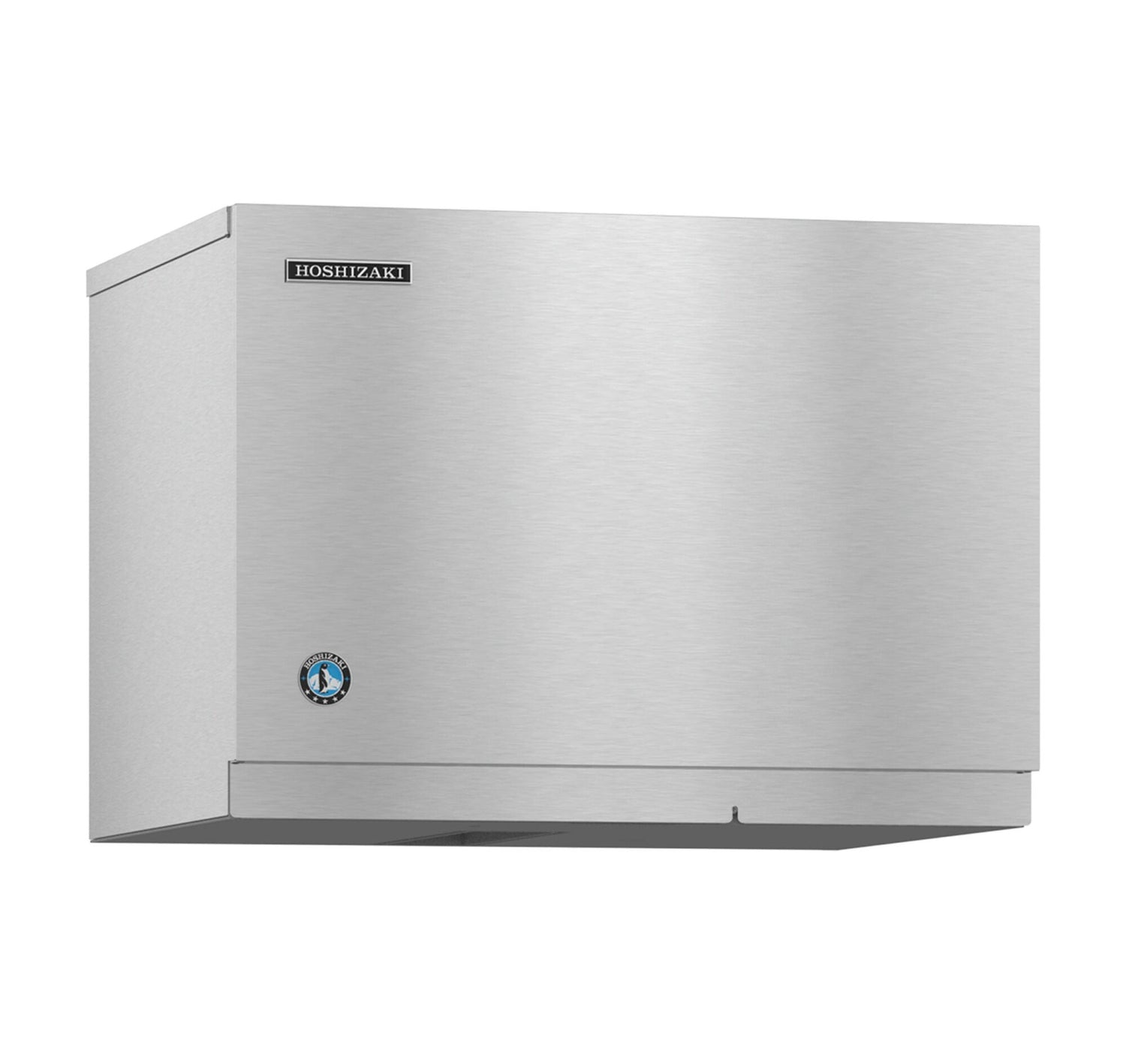

A: Select the air-cooled model (MAJ) for most standard applications with adequate ventilation. Choose the water-cooled model (MWJ) for locations with limited air circulation, high ambient temperatures, or where noise is a concern. The remote air-cooled model (MRJZ) is ideal when you need to relocate heat and noise away from the interior space or have limited interior ventilation.
Detailed Features & Benefits
KM Edge™ Technology: The KMD-505M series features advanced KM Edge™ technology that produces perfectly formed crescent cubes every cycle. The stainless steel evaporator with individually formed cube cells ensures consistent cube size and quality. This technology results in cubes that cool beverages quickly while maintaining drink flavor profiles.
CleanAssist™ Functionality: These ice machines include a simple one-hour cleaning process and easily removable components. The snap-fit parts require no tools for removal, making routine cleaning quick and straightforward. Regular cleaning and sanitizing help extend machine life and ensure food-safe ice production.
Efficient Operation: All models are designed with heat-resistant thermoplastic components for reliable performance in demanding environments. The ice machines feature self-diagnostic programming that automatically adjusts to changing conditions, while the EverCheck™ alert system monitors performance and provides feedback to prevent potential issues.
NOTICE: Do not use with water that is microbiologically unsafe or of unknown quality.
