Hoshizaki DB-130H | Hotel Ice Dispenser | 22″ W, 130 lbs Capacity, Stainless Steel
Hoshizaki DB-130H | Hotel Ice Dispenser | 22″ W, 130 lbs Capacity, Stainless Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
INSTALLATION
- Choose a flat, stable surface with adequate ventilation near a water source and electrical outlet.
- Carefully remove the water dispenser from the packaging and check for visible damage.
- Attach the water supply line to the inlet valve at the back of the dispenser, ensuring a secure connection to prevent leaks.
- Connect the dispenser to a grounded electrical outlet, avoiding the use of extension cords for safety.
- Open the water supply valve, allow water to fill the system, check for leaks, and dispense water to ensure proper flow and remove any air pockets.
MAINTENANCE
- Regularly wipe external surfaces with a damp cloth and clean the drip tray to prevent mold and odors.
- Weekly, clean the water dispensing nozzle using a mild detergent and sanitize the water reservoir along with the internal components using a diluted bleach solution (one tablespoon of bleach per gallon of water). Ensure to rinse thoroughly.
- Ensure efficient operation by checking and cleaning the condenser coils monthly.
The Hoshizaki DB-130H is a high-capacity, sanitary cube dispenser designed for hotel and motel applications. This versatile unit combines a 130 lbs capacity insulated storage bin with a push-button single auger agitator, dispensing ice at an impressive rate of 20 lbs per minute, making it an ideal solution for high-traffic areas requiring quick and efficient ice access.
Key Specifications:
- Storage Capacity: 130 lbs of ice in an insulated polyethylene-lined bin

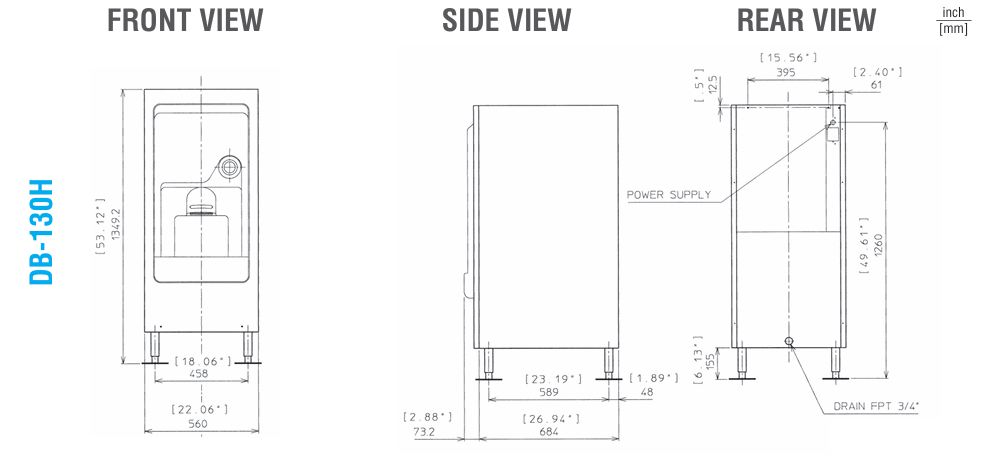

- Dimensions: 22" W x 30" D x 53" H (with 6" legs)
- Dispensing Rate: 20 lbs of ice per minute
- Electrical: 115V/60/1, drawing 1.4 amps
Features & Benefits:

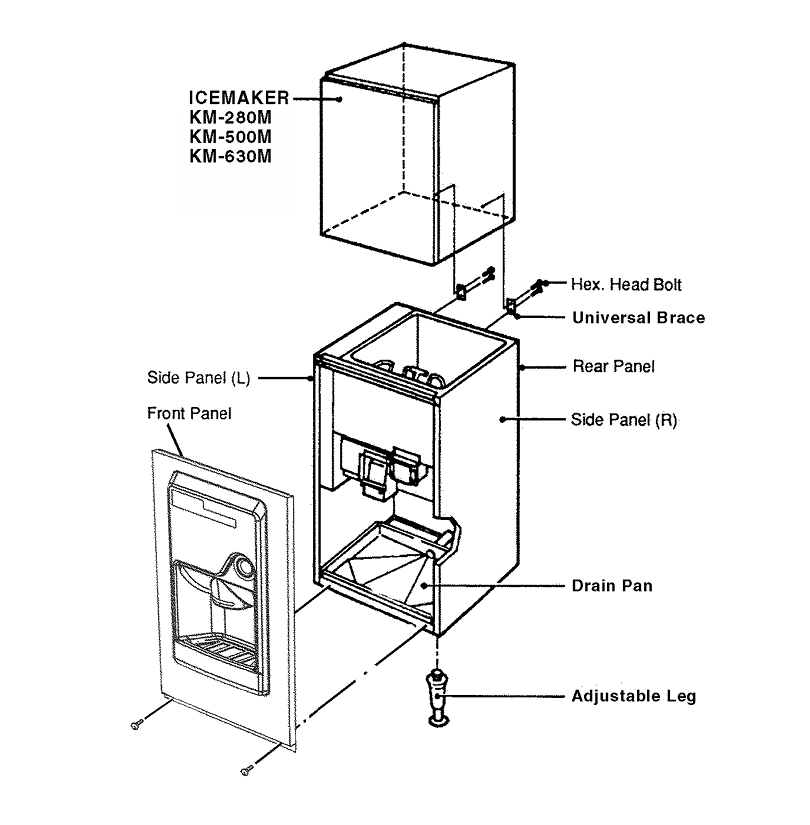

- Versatile Compatibility: Accommodates KM-350, KM-520, KM-660, or KMD-410 series cubers for 414 to 669 lbs of ice production per day
- ADA Compliant: Ice dispensing area meets accessibility standards, ensuring ease of use for all guests
- Efficient Dispensing: Push-button single auger agitator provides quick and controlled ice dispensing
- Sanitary Design: Insulated polyethylene-lined storage bin maintains ice quality and hygiene
- Space-Efficient: Combines storage and dispensing in a compact footprint, ideal for limited spaces
What's Included:
- DB-130H Sanitary Cube Dispenser unit
- 6" adjustable legs
- Installation and operation manual
- Warranty documentation
FAQ
Q: What are the plumbing requirements for the DB-130H?
A: The DB-130H requires a minimum 3/4" Nominal ID Hard Pipe or equivalent for the drain line. It's important to ensure proper drainage to maintain sanitary conditions and prevent water accumulation.
Q: Is the DB-130H compatible with all Hoshizaki ice machines?
A: The DB-130H is designed to work with specific Hoshizaki models, including the KM-350, KM-520, KM-660, and KMD-410 series cubers. Always check compatibility before pairing with an ice machine.
Q: What type of warranty does the DB-130H come with?
A: Hoshizaki provides a comprehensive 3-year parts and labor warranty on the entire machine. This warranty is valid in the United States, Canada, Puerto Rico, and U.S. Territories.
Detailed Features & Benefits
Push-Button Single Auger Agitator: The DB-130H's push-button single auger agitator is a standout feature that significantly enhances user experience and operational efficiency. This mechanism allows for rapid ice dispensing at a rate of 20 lbs per minute, making it ideal for high-traffic areas where quick service is essential. The push-button operation ensures easy and hygienic dispensing, reducing the risk of cross-contamination. The auger design helps to prevent ice clumping and ensures a consistent flow of ice, maintaining the quality of each serving. This feature not only improves guest satisfaction by providing quick and easy access to ice but also helps staff maintain efficient operations during peak times.
ADA Compliant Design: The DB-130H's ADA compliant ice dispensing area is a crucial feature that sets it apart in the market. This design consideration ensures that the dispenser is accessible to all users, including those with disabilities. The thoughtful placement and height of the dispensing area allow for easy reach and operation, making it suitable for a wide range of users. This inclusivity not only meets legal requirements but also demonstrates a commitment to customer service, ensuring that all guests can comfortably access ice. For hotels and motels, this feature can be a significant selling point, showcasing their dedication to accommodating all guests and potentially attracting a wider customer base.
NOTICE: Ensure proper maintenance and cleaning of your ice machine to guarantee the highest quality ice production and machine longevity.
