Halsey Taylor

HTHB-HACG8BLSS-NF

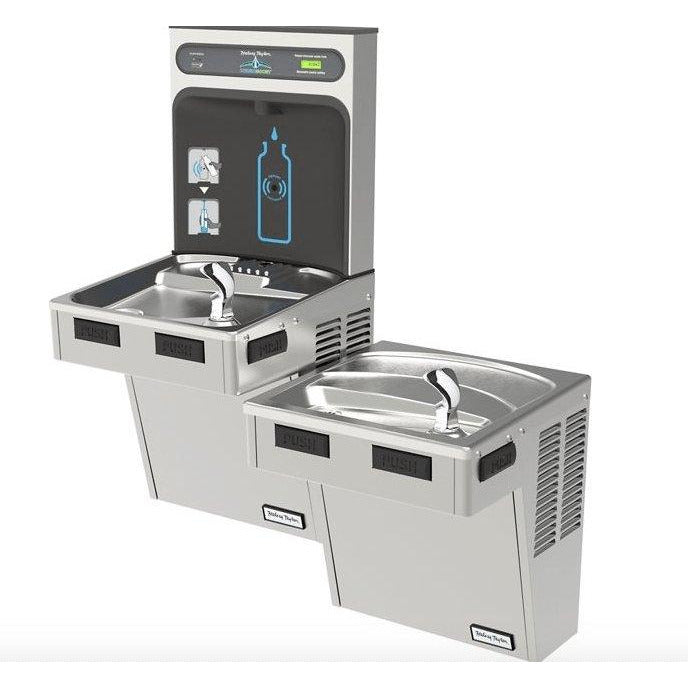

Halsey Taylor HTHB-HACG8BLSS-NF | Wall-mounted Bi-Level Bottle Filling Station | Filterless, High-efficiency chiller, HAC-style fountains, Stainless Steel color finish

MSRP: $2,654.00

Elkay water chillers provide 50 degree drinking water and meet Federal and State low-lead requirements
High-effiency refrigeration uses 35% less energy
Because of the current backorder, this product is on a 10+ weeks lead time.
  • One of the most popular models, the Halsey Taylor HTHB-HACG8BLSS-NF Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

    • ADA compliant design
    • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
    • Quick fill rate of 1.1 Gallons Per Minute
    • Energysavings versus traditional units
    • Green Ticker™ tracks number of plastic bottles saved from waste.

    VIEW SPEC SHEET HERE:Halsey Taylor HTHB-HACG8BLSS-NF

    FILTERED?

    No

    COOLER CABINET FINISH

    Stainless Steel

    POWER

    115V/60Hz

    BUBBLER OPTION


    Chrome-plated two-stream Double Bubbler™

    MOUNTING DETAILS

    Wall Mount (On-Wall)

    CHILLING DETAILS

    8 GPH

    INSTALLATION LOCATION

    INDOOR

    NUMBER OF STATIONS

    Two Stations

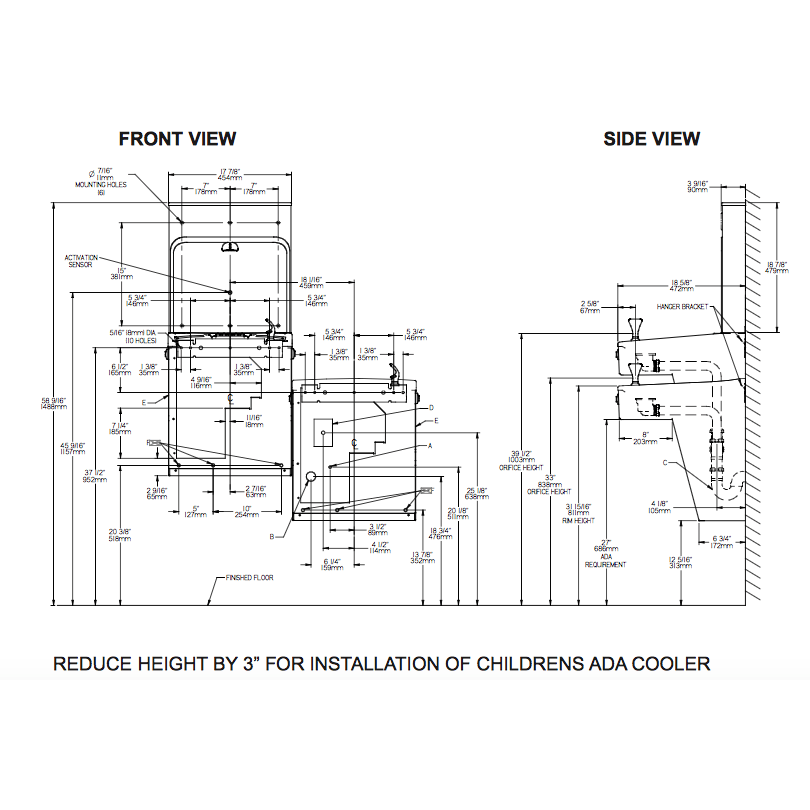

    DIMENSIONS

    D: 36"

    W: 18-5/8"

    H: 46-1/16"

    SHIPPING WEIGHT

    109 lbs

    PRODUCT COMPLIANCE

    • ADA & ICC A117.1
    • NSF/ANSI 61
    • NSF 372
    • CAN/CSA C22.2 No. 120
    • ASME A112.19.3/CSA B45.4
    • UL 399
    • Buy America Act



    Warranty

    Refrigeration System (IF APPLICABLE)

    Halsey Taylor HTHB-HACG8BLSS-NF refrigeration system includes 5 year limited warranty.

    Electrical Parts & Water System

    Halsey Taylor HTHB-HACG8BLSS-NF warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

    Installation Notes

    • Halsey Taylor HTHB-HACG8BLSS-NF requires installation from licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
    • Requires access to electrical connection.
    • Product also includes physical copy of installation instructions in package.
    • View detailed Halsey Taylor HTHB-HACG8BLSS-NF MANUAL.

    Maintenance

    Cleaning

    It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

    Filter Replacement (IF APPLICABLE)

    When filter status light turns to red, the filter needs to be changed.  Follow these steps:

    1) Remove the bottom access panel.

    2) Unplug unit

    3) Unscrew old filter

    4) Install new WaterSentry Plus filter.

    5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

    View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

    FAQ

    Q: What is the difference between the Cooler Combo and the Green model series?

    A: According to CSA 815-99, the Green Bottle Filling Station series exceeds average Energy Efficiency market performance by 35%



    *MADE IN THE UNITED STATES.
