Halsey Taylor HTHB-HAC8BLSS-NF | Wall-mounted Bi-Level Bottle Filling Station | Filterless, Refrigerated, HAC-style fountains, Stainless Steel color finish
Halsey Taylor HTHB-HAC8BLSS-NF | Wall-mounted Bi-Level Bottle Filling Station | Filterless, Refrigerated, HAC-style fountains, Stainless Steel color finish is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Halsey Taylor HTHB-HAC8BLSS-NF | Wall-mounted Bi-Level Bottle Filli...

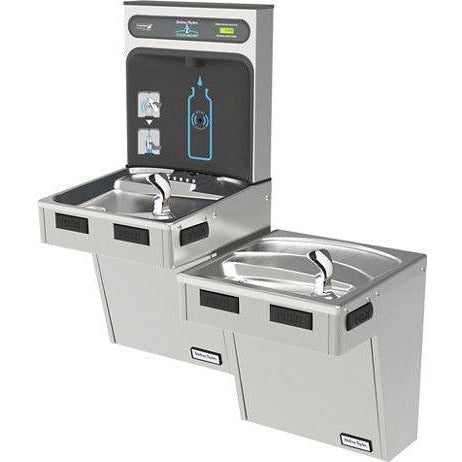

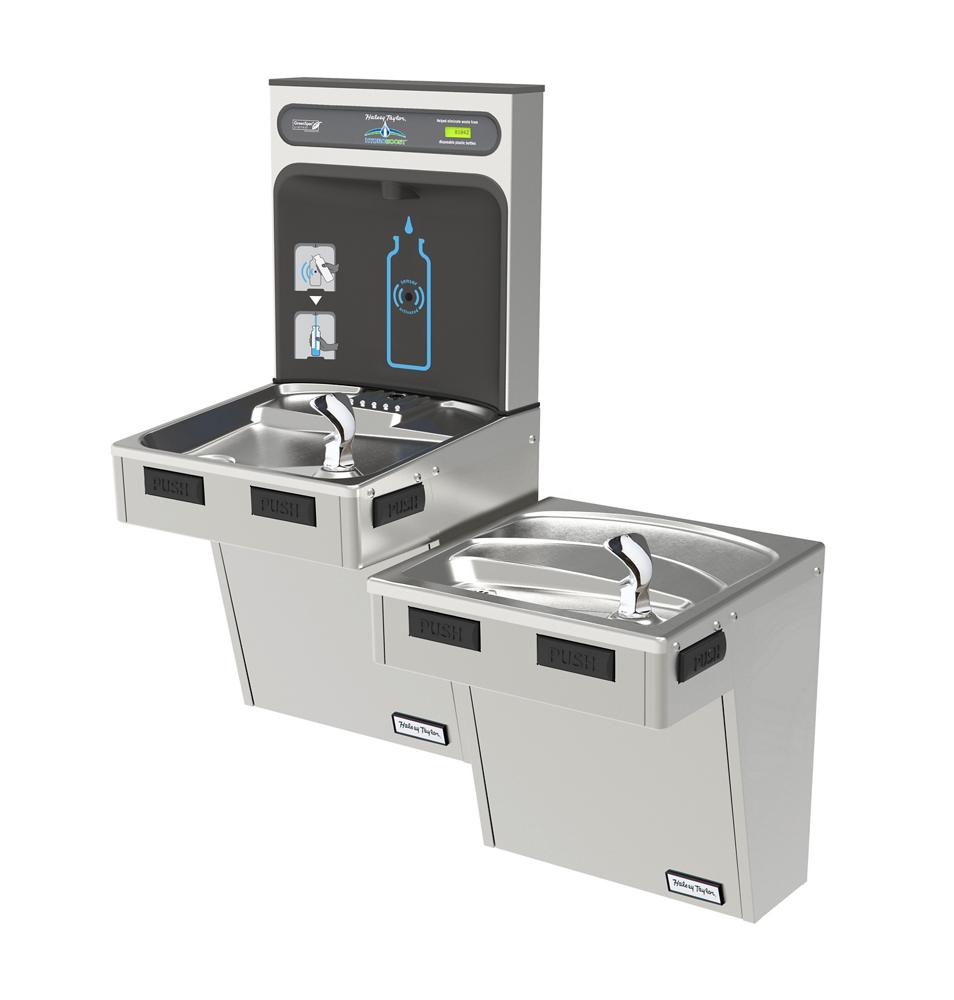

The Halsey Taylor HTHB-HAC8BLSS-NF HydroBoost® Bottle Filling Station and Bi-Level ADA Cooler delivers high-efficiency chilled water and hands-free bottle filling in a durable Stainless Steel finish. This model combines advanced sustainability features, antimicrobial protection, and ADA-compliant accessibility, making it ideal for schools, offices, and public spaces.
Key Specifications:
- Design: Wall-mounted HydroBoost® bi-level ADA cooler + bottle filler, serving 2 stations.
- Finish: Stainless Steel.
- Filtration: This model is non-filtered. For the filtered version, see HTHB-HAC8BLSS-WF.
- Chilling Capacity: 8.0 GPH of 50°F drinking water (ASHRAE 18 tested).
- Activation: Electronic bottle filler sensor with mechanical front and side bubbler pushbars.
- Bubbler Style: Exclusive Double Bubbler™ design for fuller, splash-free drinking streams.
Features & Benefits:
- HydroBoost® Bottle Filler: Sensor-activated for hygienic, touchless operation.
- Double Bubbler™: Projects two separate streams that converge for a fuller, more satisfying drink.
- Green Counter™: Displays the number of 20 oz. plastic bottles saved from waste, promoting sustainability.
- Laminar Flow: Provides clean fill with minimal splash.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- Real Drain System: Eliminates standing water for improved hygiene.
- Mechanically Activated Bubblers: Ensure water delivery even during power disruptions.
- Durability: Stainless Steel finish resists wear and tampering, ideal for high-traffic environments.
What's Included:
- HTHB-HAC8BLSS-NF Bottle Filling Station + bi-level ADA cooler (ships in multiple boxes)
- Exclusive Double Bubbler™ safety bubblers
- Mounting frame and hanger brackets
- Installation hardware and instructions
- Owner’s manual and warranty guide
FAQ
Q: Is this unit filtered?
A: No, the HTHB-HAC8BLSS-NF is a non-filtered model. For the filtered version, see HTHB-HAC8BLSS-WF.
Q: Is this unit ADA compliant?
A: Yes, the HydroBoost® HTHB-HAC8BLSS-NF is designed with a bi-level configuration to meet ADA compliance requirements for accessibility.
Q: What is the installation process like?
A: The unit requires wall mounting and connection to water supply and electrical power (115V/60Hz). Professional installation is recommended to ensure proper setup and compliance with local building codes.
Q: What warranty is included?
A: The HTHB-HAC8BLSS-NF comes with a 5-year limited warranty on the refrigeration system and a 1-year warranty on electrical components and water system (drinking water applications only).
Detailed Features & Benefits
Cooling System: Hermetically-sealed compressor with lifetime lubrication, fan-cooled condenser, and EPS foam insulation for efficient chilled water delivery. Refrigerant R-134a controlled by calibrated capillary tube.
Accessibility: ADA-compliant bi-level design ensures inclusive access when installed according to ADA & ICC A117.1 standards.
Sustainability: Green Counter™ encourages reusable bottle use, reducing single-use plastic waste.
Maintenance: Sensor-activated bottle filler with accessible panels simplifies service and ensures hygienic operation.
Warranty: 5-year limited warranty on refrigeration system; 1-year warranty on electrical components and water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
