Halsey Taylor HTHB-HAC8BLSS-WF | Wall-mounted Bi-Level Bottle Filli...

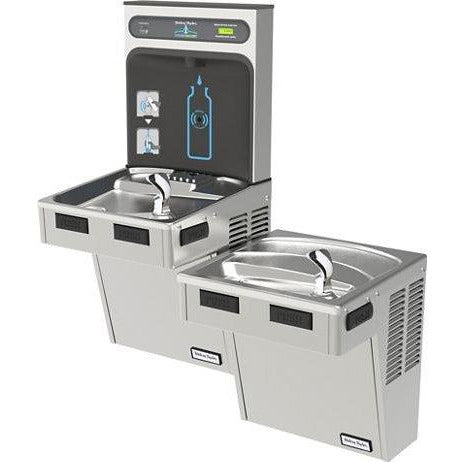

The Halsey Taylor HTHB‑HAC8BLSS‑WF HydroBoost® Bottle Filling Station combines a filtered, refrigerated bi‑level ADA cooler with a stainless steel finish. Designed for indoor use, it delivers 8.0 GPH of chilled drinking water with antimicrobial components, laminar flow, and a sanitary sensor‑activated bottle filler, serving two stations with advanced filtration and Green Counter™ technology.
Key Specifications:
- Design: Wall mount HydroBoost® bottle filling station with bi‑level ADA cooler
- Finish: Stainless Steel
- Filtration: Standard 55898C WaterSentry® Plus filter included. Certified to NSF/ANSI 42, 53, 372, and 401 for reduction of lead, microplastics, cysts, chlorine taste/odor, atrazine, and lindane.
- Refrigeration: 8.0 GPH chilling capacity
- Stations Served: 2 (Bi-level drinking fountains and bottle filler)
Features & Benefits:
- Filtered cooler certified to NSF/ANSI 42, 53, 372, and 401 for contaminant reduction
- Green Counter™ informs users of plastic bottles saved from waste
- Double Bubbler™ provides two converging streams for a fuller drink
- Antimicrobial components and Real Drain system for cleaner operation
Comparison With Other HTHB Bi‑Level Models:
| HTHB‑HAC8BLSS‑WF | HTHB‑HAC8BLSS‑NF | HTHB‑HAC8BLPV‑WF |
|---|---|---|
| Stainless steel finish | Stainless steel finish | Platinum Vynil finish |
| Filtered – includes 55898C WaterSentry® Plus | Non‑filtered | Filtered – includes 55898C WaterSentry® Plus |
| 8.0 GPH chilled water | 8.0 GPH chilled water | 8.0 GPH chilled water |
| 2 stations (bi‑level cooler + bottle filler) | 2 stations (bi‑level cooler + bottle filler) | 2 stations (bi‑level cooler + bottle filler) |
| Green Counter™, Double Bubbler™, antimicrobial components, Real Drain system | Green Counter™, Double Bubbler™, antimicrobial components, Real Drain system | Green Counter™, Double Bubbler™, antimicrobial components, Real Drain system |
What's Included:
- HTHB‑HAC8BLSS‑WF ADA cooler
- HydroBoost® bottle filler
- Standard 55898C WaterSentry® Plus filter cartridge
- Mounting hardware
FAQ
Q: How Often Should the HTHB‑HAC8BLSS‑WF Filter Be Replaced?
A: Every 3,000 gallons or 1 year after installation. For replacements, use the 55898C Replacement Filter.
Q: What Accessories Are Available for the HTHB‑HAC8BLSS‑WF?
A: Compatible accessories include the MLP200 In‑Wall Carrier, the 98324C Cane Apron for ADA compliance, and the 36292C Power Block for multi‑station installations.
Q: Is the HTHB‑HAC8BLSS‑WF ADA Compliant?
A: Yes. The HTHB‑HAC8BLSS‑WF meets ADA and ICC A117.1 accessibility requirements when installed correctly.
Q: Does the HTHB‑HAC8BLSS‑WF Provide Chilled Water?
A: Yes. The HTHB‑HAC8BLSS‑WF delivers 8.0 GPH of chilled drinking water at 50°F based on ASHRAE 18 testing.
Q: What Power Supply Is Required for the HTHB‑HAC8BLSS‑WF?
A: The HTHB‑HAC8BLSS‑WF requires 115V/60Hz electrical supply and uses 370 rated watts.
Q: What Is the Difference Between the HTHB‑HAC8BLSS‑WF, HTHB‑HAC8BLSS‑NF, and HTHB‑HAC8BLPV‑WF?
A: The HTHB‑HAC8BLSS‑WF is a filtered stainless steel model with the 55898C cartridge. The HTHB‑HAC8BLSS‑NF is the non‑filtered version, while the HTHB‑HAC8BLPV‑WF is a filtered stainless steel PV variant. All three deliver 8.0 GPH of chilled water and serve two stations.
NOTICE: The cooler must be connected to the water supply using a dielectric coupling. Installer‑provided drain traps should be plastic to isolate the cooler from building plumbing systems.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Ensure the wall is structurally sound to support the Halsey Taylor HTHB‑HAC8BLSS‑WF; install a fixture support carrier if required.

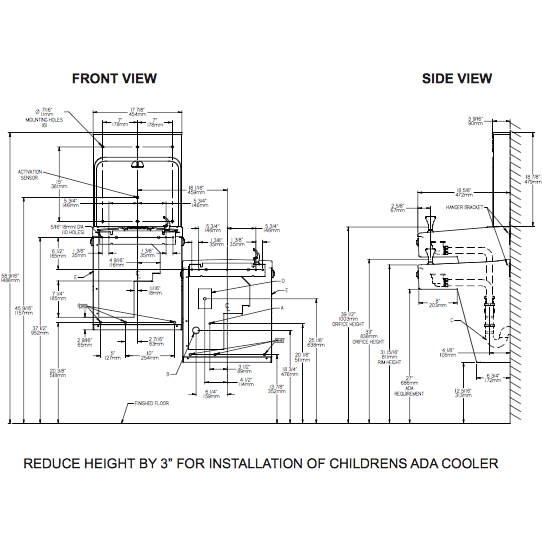

- Maintain proper clearances: 6" minimum from cabinet louvers to wall for ventilation; follow ADA height requirements (reduce by 3" for children’s cooler).
- Remove hanger bracket from back of cooler; mount securely to wall using all five 7/16" diameter holes. Maintain 6‑1/4" dimension from wall to trap centerline.
- Hang cooler on bracket, ensuring slots engage properly; remove front panel by loosening four screws.
- Connect water inlet line to 3/8" O.D. copper tube with shut‑off valve; purge line before connection.
- Connect cooler waste line to 1‑1/2" O.D. drain stub using slip nut and gasket; tighten securely.
- Install bottle filler: remove top cover, mount wall plate above basin, feed power cord and 3/8" water line through basin opening, and secure filler to angled tabs on wall plate.
- Install gasket and support bracket under bottle filler tower; reinstall top cover with screws.
- Connect bottle filler waterline inside cooler to tee fitting; install WaterSentry® Plus filter cartridge by inserting into filter head and rotating clockwise.
- Turn on water supply, inspect for leaks, and correct before restoring power.
- Plug cooler and bottle filler into grounded outlet; verify green LED filter status and LCD bottle counter display.
- Test dispensing by placing bottle or hand in front of sensor; purge air until flow is steady.
- For detailed steps, refer to the Halsey Taylor HTHB‑HAC8BLSS‑WF installation manual or contact a licensed plumber/electrician.
- Inspect water and drain connections regularly; reseal or tighten fittings as needed.
- Replace WaterSentry® Plus filter cartridge when LED indicator shows red or after rated capacity; reset filter monitor via program button.
- Clean exterior surfaces with mild soap and water; avoid abrasive cleaners that may damage finish.
- Check bubbler stream height; adjust regulator screw to maintain approximately 1‑1/2" above guard.
- Clean aerator and nozzle periodically to remove mineral deposits; replace regulator or aerator kit if flow is restricted.
- Disconnect power and water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified service representative.
