Halsey Taylor HAC8BLSS-NF | Bi-Level Wall Mount Water Cooler, Non-F...

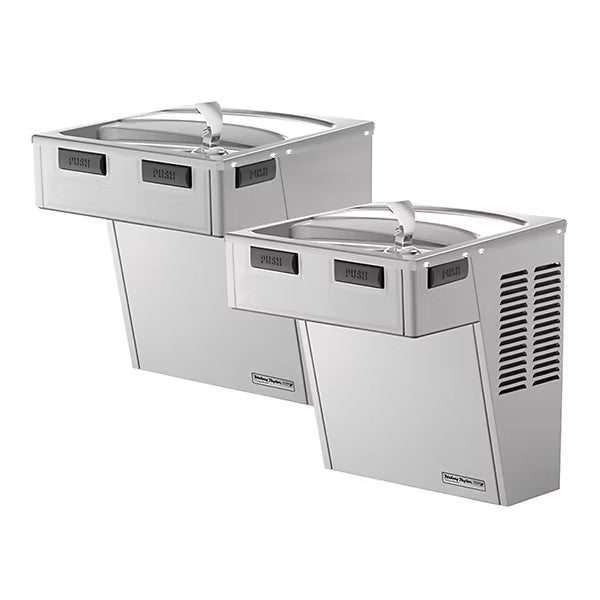

The Halsey Taylor HAC8BLSS‑NF is a bi‑level ADA wall mount cooler in stainless steel, delivering 8.0 GPH of chilled drinking water. Designed for indoor use, it provides reliable hydration with mechanical activation and durable construction.
Key Specifications:
| Design | Wall mount bi‑level ADA cooler with mechanical front and side pushbar activation |
| Finish | Stainless Steel |
| Filtration | Non‑filtered model (for filtered option, see HAC8BLSS‑WF) |
| Refrigeration | 8.0 GPH chilling capacity at 50°F based on ASHRAE 18 testing |
| Stations Served | 2 (bi‑level drinking fountains) |
Features & Benefits:
- Dependable Mechanical Activation: Pushbar bubblers provide water even during electrical service disruptions.
- Exclusive Double Bubbler™: Two converging streams deliver a fuller, more satisfying drink.
- Durable Stainless Steel Finish: Resists corrosion and damage in high‑traffic indoor environments.
- Efficient Cooling System: Hermetically‑sealed compressor, fan‑cooled condenser, and insulated copper tubing ensure reliable chilling.
- ADA Compliant: Meets ADA and ICC A117.1 standards when installed correctly.
What's Included:
- HAC8BLSS‑NF ADA cooler
- Double Bubbler™ drinking fountains
- Mounting hardware
Comparison of ADA Bi‑Level Coolers:
| Feature | HAC8BLSS‑NF | HTHB-HAC8BLSS-NF | Elkay EZSTL8LC |
|---|---|---|---|
| Capacity | 8.0 GPH | 8.0 GPH | 8.0 GPH |
| Best For | Non‑filtered indoor hydration | Spaces where people use reusable bottles or cups | Standard bi‑level drinking fountain |
| Filtration | Non‑filtered | Non-filtered | Non‑filtered |
| Stations Served | 2 | 2 + bottle filler | 2 |

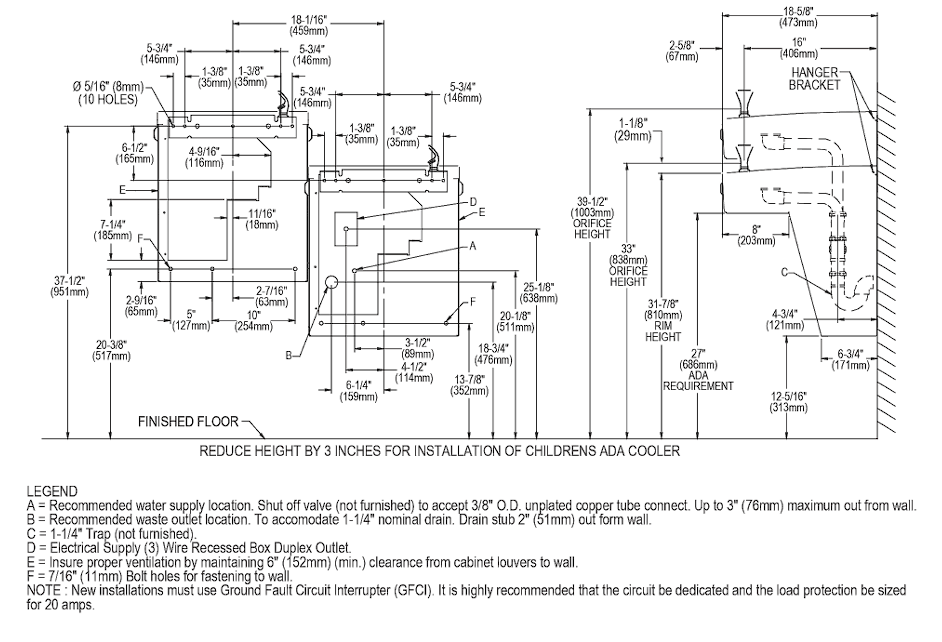

How to Install the HAC8BLSS‑WF:
- Prepare the mounting location by ensuring wall support and clearance per ADA requirements.
- Attach the hanger brackets securely to the wall using all designated bolt holes.
- Hang the cooler unit onto the brackets, making sure it locks into place properly.
- Connect the water supply line using a dielectric coupling and attach the drain trap with the provided gasket and slip nut.
- Connect electrical supply to a dedicated GFCI outlet, then flush the system and check for leaks.
How to Maintain the HAC8BLSS‑WF:
- Inspect the bubbler stream height regularly and adjust using the front panel screw if flow is too high or low.
- Clean the stainless steel surfaces with non‑abrasive cleaner to prevent corrosion and maintain appearance.
- Check the filter cartridge (Watersentry® Plus) and replace annually or when flow slows down.
- Examine the drain trap and tubing for clogs or leaks, tightening connections as needed.
- Test electrical and cooling performance periodically to ensure the compressor and fan are operating efficiently.
FAQ
Q: What is the Difference Between the HAC8BLSS-NF and the HTHB-HAC8BLSS-NF?
A: The HAC8BLSS-NF (current page) is a bi-level drinking fountain, whereas the HTHB-HAC8BLSS-NF includes a bi-level drinking fountain and a water bottle filler.
Q: What Applications Is the HAC8BLSS‑NF Designed For?

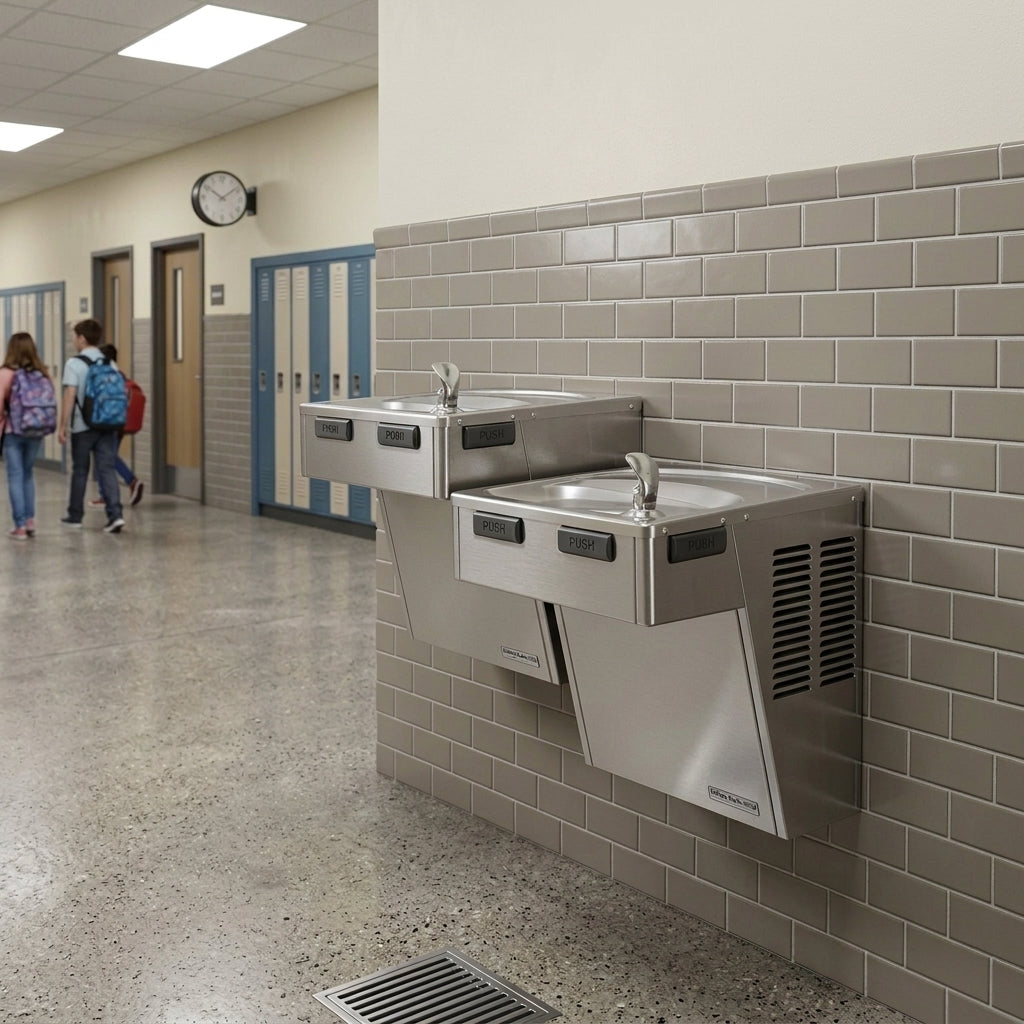

A: The HAC8BLSS‑NF is ideal for schools, offices, and public facilities requiring ADA‑compliant, bi‑level hydration without integrated filtration.
Q: What Water Pressure Is Required for the HAC8BLSS‑NF?
A: The HAC8BLSS‑NF operates on 20–105 psi supply line pressure. For simultaneous bubbler use, at least 50 psi is recommended.
Q: Is the HAC8BLSS‑NF ADA Compliant?
A: Yes. The HAC8BLSS‑NF meets ADA and ICC A117.1 accessibility standards when installed according to guidelines.
Q: What Warranty Coverage Is Provided With the HAC8BLSS‑NF?
A: The refrigeration system carries a 5‑year limited warranty, while electrical and water system components are covered for 12 months.
Q: Can Accessories Be Added to the HAC8BLSS‑NF?
A: Yes. Compatible accessories include the MLP200 in‑wall carrier, 98324C cane apron, and 96852CA gooseneck glass filler kit.
Q: How Does the HAC8BLSS‑NF Differ From the HAC8BLSS‑WF?
A: The HAC8BLSS‑NF is a non‑filtered model, while the HAC8BLSS‑WF includes integrated Watersentry® Plus filtration for treated water.
Q: What Cooling Capacity Does the HAC8BLSS‑NF Provide?
A: The HAC8BLSS‑NF delivers 8.0 GPH of chilled drinking water at 50°F, based on ASHRAE 18 testing.
NOTICE: The cooler must be connected to the water supply using a dielectric coupling. Installer‑provided drain traps should be plastic to isolate the cooler from building plumbing systems.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Remove hanger bracket from the back of the cooler and mount securely to the wall.
- Ensure bracket is properly supported; add a support carrier if the wall is not strong enough.
- Hang the cooler on the bracket, making sure it engages correctly in the slots.
- Remove the front panel to access connections; connect the water inlet line.
- Install the trap and gasket on the waste line, then tighten securely.
- Reinstall the front panel after plumbing connections are complete.
- Turn on water supply, check for leaks, and verify bubbler stream height (factory set at 45–50 psi).
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect bubbler and regulator periodically; adjust stream height if needed.
- Check fittings and tubing for leaks; reseat connections if necessary.
- Clean basin and exterior surfaces with mild, non‑abrasive cleaner.
- If taste, odor, or sediment issues occur, consider adding a compatible filter module.
- For service or repairs, consult the manual or a licensed technician.
