Halsey Taylor HTHB-HACG8BLSS-WF | Wall-mounted Bi-Level Bottle Fill...

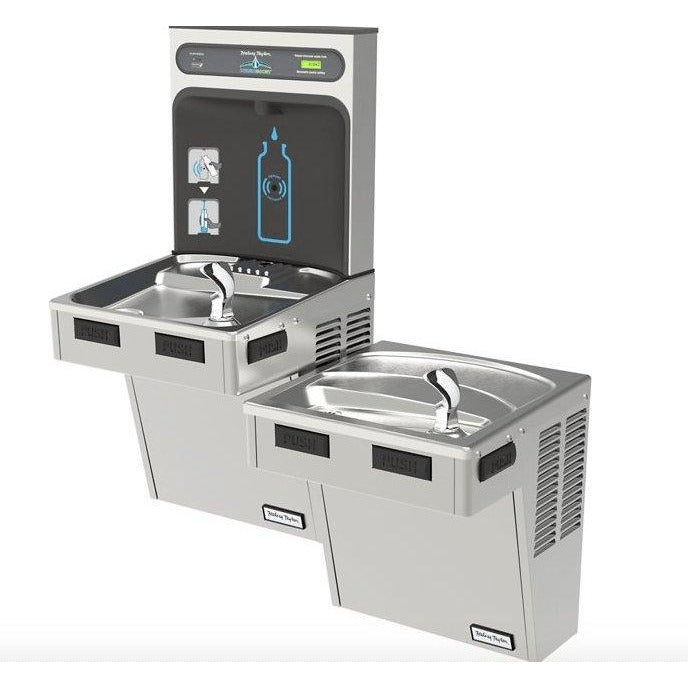

The Halsey Taylor HTHB-HACG8BLSS-WF is a high-efficiency HydroBoost® Bottle Filling Station with Bi-Level ADA Cooler, designed for indoor wall-mounted installation. Finished in sleek stainless steel, this filtered and refrigerated unit delivers chilled, clean water through hands-free activation and dual bubbler access, making it an ideal choice for schools, offices, and public facilities that prioritize sustainability and accessibility.
Key Specifications:
- Chilling Capacity: 8.0 gallons per hour at 50°F (based on 80°F inlet and 90°F ambient)
- Refrigeration: Hermetically-sealed compressor, fan-cooled condenser, and EPS-insulated copper tubing. Uses R-134a refrigerant with factory-preset thermostat.
- Filtration: Includes Halsey Taylor 55898C WaterSentry® Plus filter, NSF/ANSI 42, 53, 61, 372, and 401 certified; 3,000-gallon capacity
- Activation: Sensor-activated bottle filler with mechanical front and side pushbars for bubblers
- Dimensions: 36" L × 18-5/8" W × 46-1/16" H
Features & Benefits:
- Bi-Level ADA Design: Serves two stations with accessible heights for users of all abilities
- Green Counter™: Displays the number of 20 oz. plastic bottles saved from waste
- Antimicrobial Protection: Key plastic components resist microbial growth
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed
- Real Drain System: Prevents standing water, improving hygiene and reducing maintenance
- Double Bubbler™: Projects two converging streams for a fuller, more satisfying drink
What's Included:
- Halsey Taylor HTHB-HACG8BLSS-WF Bottle Filling Station & Bi-Level Cooler
- WaterSentry® Plus Filter (55898C)
- Wall mounting bracket and hardware
FAQ
Q: What is included in the Cooler Combo?
A: The Cooler Combo Bottle Filling Station includes both the Bottle Filler and Water Cooler, which will be delivered in two separate boxes.
Q: Does the shipment include everything for the installation? Does the plumber need anything else?
A: The following items are not included and must be supplied by the installer:
- Shut-off Valve (not furnished)
- 1-1/4” Trap (not furnished)
Q: Does this product come with a Mounting Frame?
A: Cooler Combos come with Hanger Brackets, which are sufficient for most installations. If additional structural support is needed, the In-Wall Carrier Mounting Frame (MLP200) can be ordered separately. Please refer to the Spec Sheet and Installation Instructions for more details.
Detailed Features & Benefits

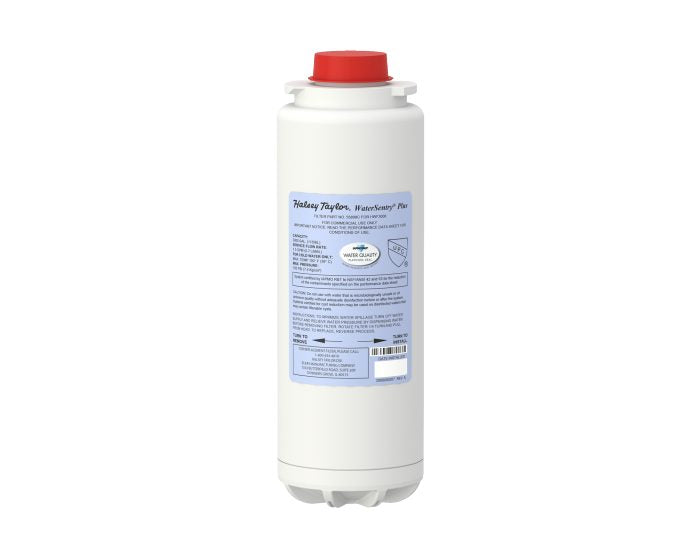

Advanced Filtration: The WaterSentry® Plus 55898C filter removes lead, chlorine, cysts, microplastics, and unpleasant tastes and odors. With a 3,000-gallon capacity and LED filter monitor, users are assured of consistent water quality and timely maintenance alerts.
HydroBoost® Performance: The sensor-activated bottle filler provides a touchless, hygienic experience with laminar flow for clean, splash-free filling. The Green Counter™ reinforces sustainability by showing users how many plastic bottles have been saved.
Energy-Efficient Cooling: The unit features a hermetically sealed compressor, fan-cooled condenser, and EPS-insulated copper tubing for efficient and quiet operation. The temperature is factory preset and adjustable for altitude.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).

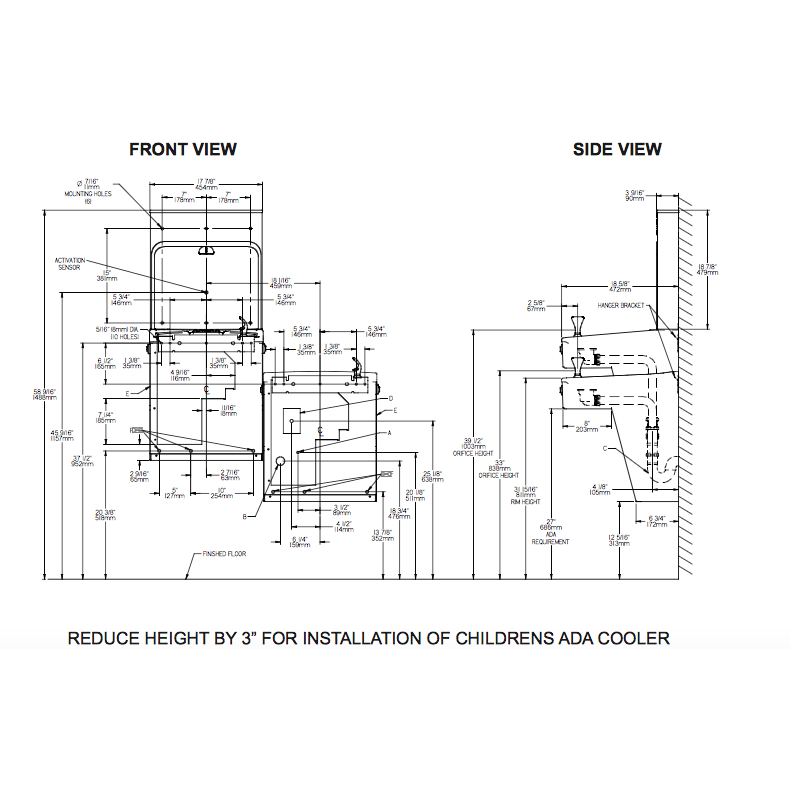

- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
