Elkay LZS8WSVRSK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, EZ-style Fountain Vandal-resistant Bubbler, Stainless Steel
Elkay LZS8WSVRSK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, EZ-style Fountain Vandal-resistant Bubbler, Stainless Steel is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZS8WSVRSK | Wall-mount Bottle Filling Station | Filtered, Re...

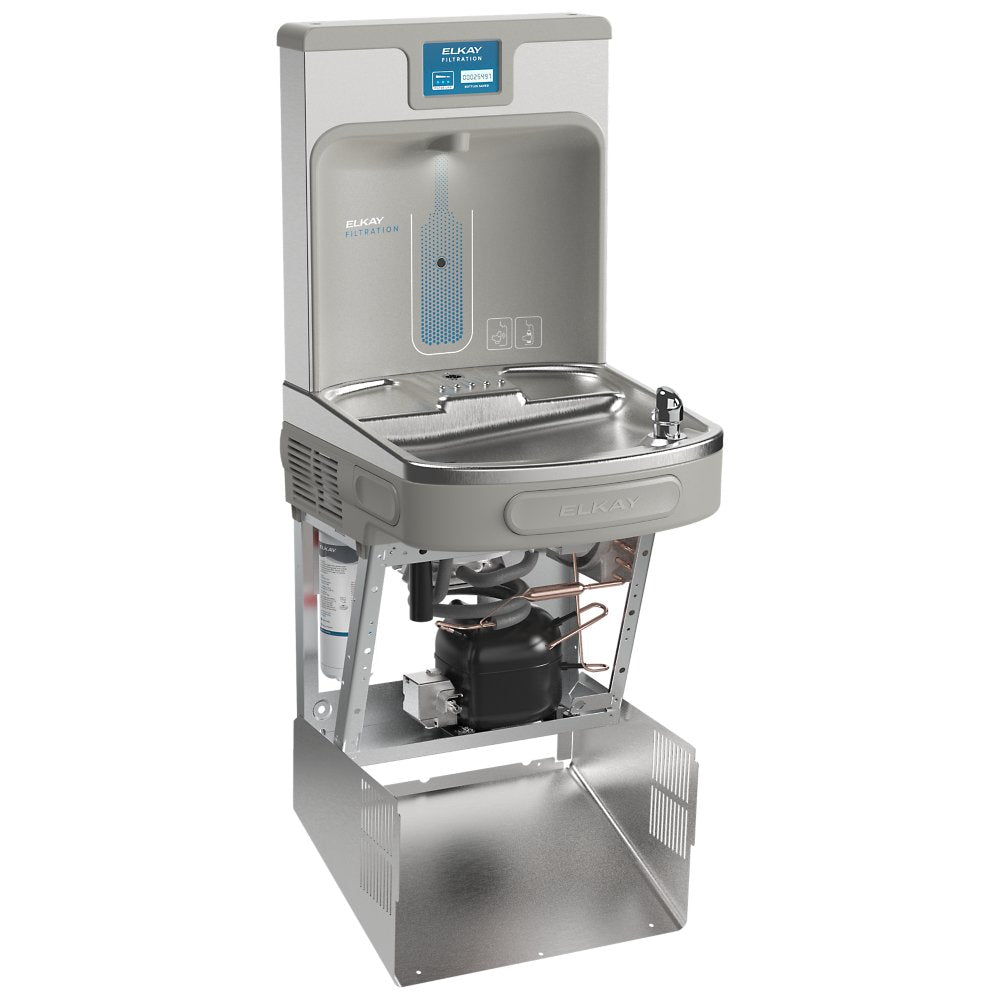

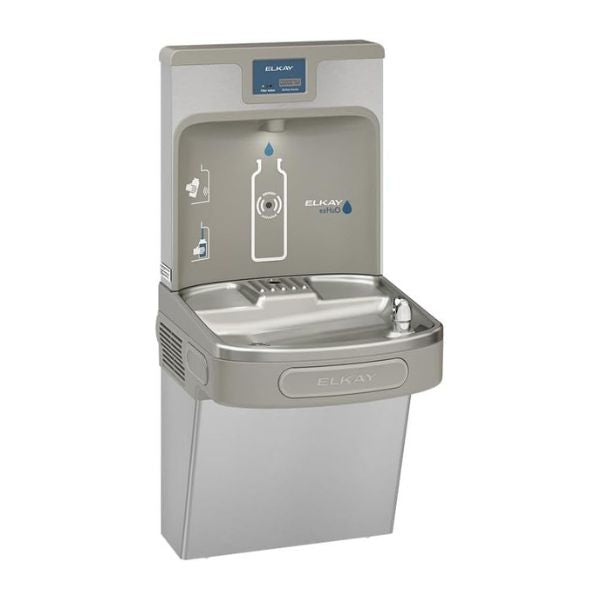

The Elkay LZS8WSVRSK ezH2O® Bottle Filling Station with Single ADA Cooler delivers filtered, refrigerated hydration in a durable stainless steel design. Featuring vandal-resistant bubblers, quick filter change access, and LED filter monitoring, this unit is ideal for schools, healthcare facilities, offices, and public spaces seeking reliable, ADA-compliant hydration solutions.
Key Specifications:
- Design: Single ADA cooler with integral bottle filling station, serving 1 station.
- Finish: Stainless Steel.
- Chilling Capacity: 8.0 GPH of 50°F drinking water (ASHRAE 18 tested, based on 80°F inlet and 90°F ambient).
- Activation: Electronic bottle filler sensor with electronic front and side bubbler pushbar.

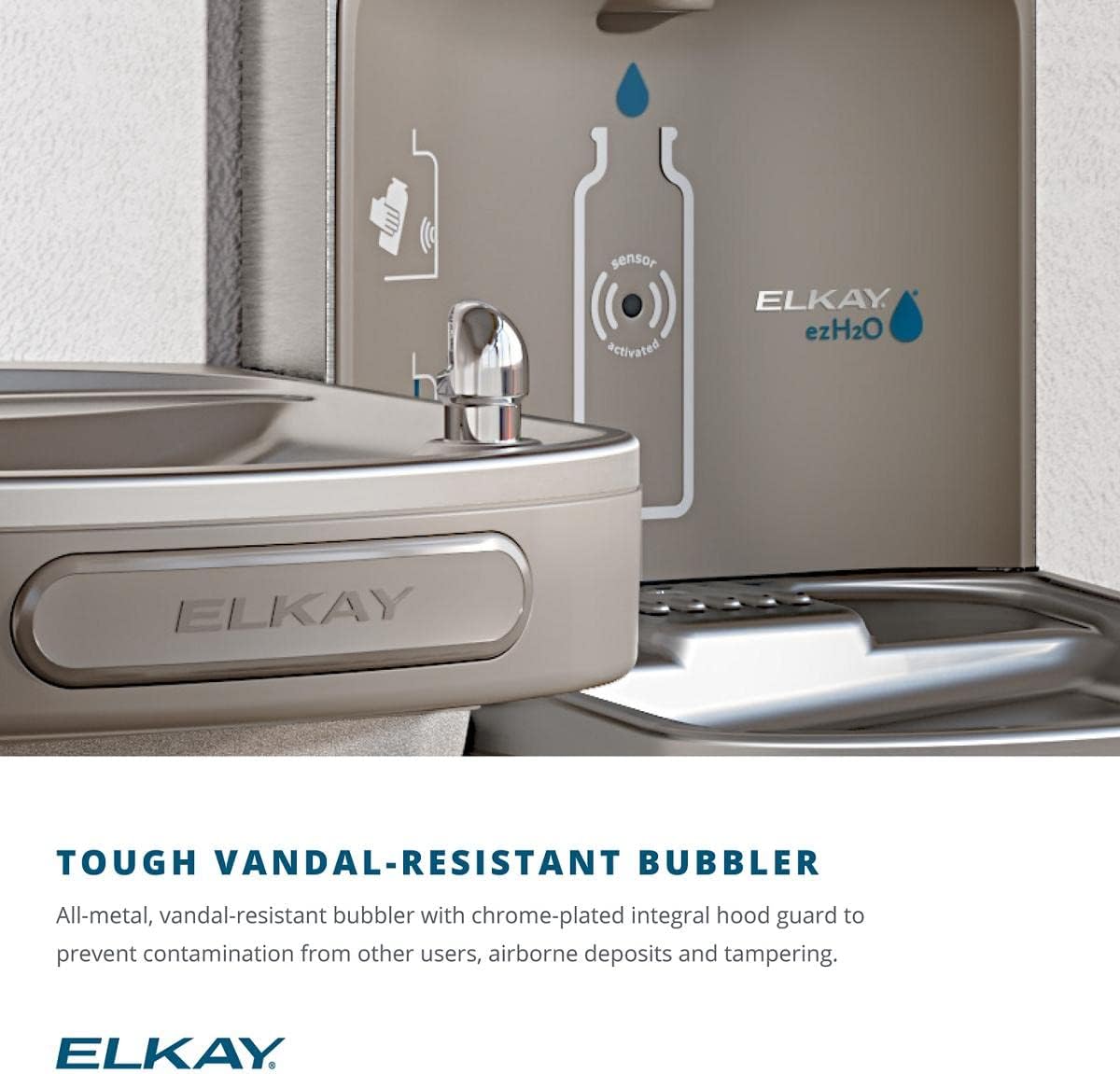

- Bubbler Style: Vandal Resistant.
- Power: 115V/60Hz, 370W, 5 full load amps.
- Filtration: Includes WaterSentry® Plus filter tested and certified to NSF/ANSI 42 & 53 for lead, particulates, chlorine taste and odor. Compatible replacement filters: Elkay 51600C (6,000-gallon capacity), Elkay 51300C (3,000-gallon capacity), and Elkay 71300C (PFAS reduction, 2,250-gallon capacity).
Features & Benefits:
- Filtered Hydration: Certified filter reduces lead, chlorine, particulates, and odors for cleaner, safer water.
- Quick Filter Change: Front-access wrapper design allows filter replacement in under a minute.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is needed.
- Automatic Filter Reset: FillSafe™ technology resets filter status automatically when a new filter is installed.
- Hands-Free Bottle Filling: Electronic sensor activation provides hygienic, touchless operation.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste.
- Energy Savings Mode: Reduces energy consumption during periods of non-use.
- Laminar Flow & Real Drain: Provides a clean, splash-free fill and eliminates standing water.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- ADA Accessibility: Single cooler design meets ADA requirements, providing inclusive access for all users.
What's Included:
- LZS8WSVRSK Bottle Filling Station & ADA Cooler
- WaterSentry® Plus Replacement Filter (included)
- Installation hardware
- Owner’s manual and warranty guide
FAQ
Q: How often should the filter be replaced?
A: The included WaterSentry® Plus filter should be replaced every 2,250–6,000 gallons or 12 months, depending on the filter used. Compatible replacements include the Elkay 51600C (6,000-gallon), the Elkay 51300C (3,000-gallon), and the Elkay 71300C (PFAS reduction, 2,250-gallon).
Q: Is this unit ADA compliant?
A: Yes, the LZS8WSVRSK meets ADA & ICC A117.1 accessibility requirements when installed according to standards.
Q: What warranty is included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components.
Q: Are there accessories available for this model?
A: Yes. Elkay offers optional accessories to enhance installation and usability, including the LKAPREZL Cane Apron for ADA compliance and the MLP100 In-Wall Carrier for secure mounting support.
Q: What makes this model different from other ezH2O® units?
A: The LZS8WSVRSK combines vandal-resistant bubbler design, quick filter change access, LED filter monitoring, and ADA compliance in a compact single-station configuration, making it ideal for high-traffic environments.
Detailed Features & Benefits
Advanced Filtration: The LZS8WSVRSK includes a WaterSentry® Plus filter certified to reduce lead, chlorine, particulates, and odors. Compatible with multiple replacement filters (51600C, 51300C, 71300C), it ensures cleaner, safer hydration for high-traffic environments.
Quick Filter Change: The enhanced wrapper design allows filters to be replaced in under a minute, minimizing downtime and simplifying maintenance.
Energy Efficiency: Built-in energy-savings mode reduces power consumption during periods of non-use, lowering operating costs and supporting sustainability goals.
ADA Accessibility: Designed to meet ADA requirements, the single cooler configuration provides accessible hydration for all users.
Durability: Stainless steel construction and vandal-resistant bubbler ensure long-lasting performance in demanding environments such as schools, hospitals, and public facilities.
Enhanced User Experience: LED lighting illuminates the bottle filler area, assisting with filling in low-light conditions and encouraging use.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
