Elkay LZS8WSVRSK | Vandal Resistant Wall-mount Bottle Filling Stati...

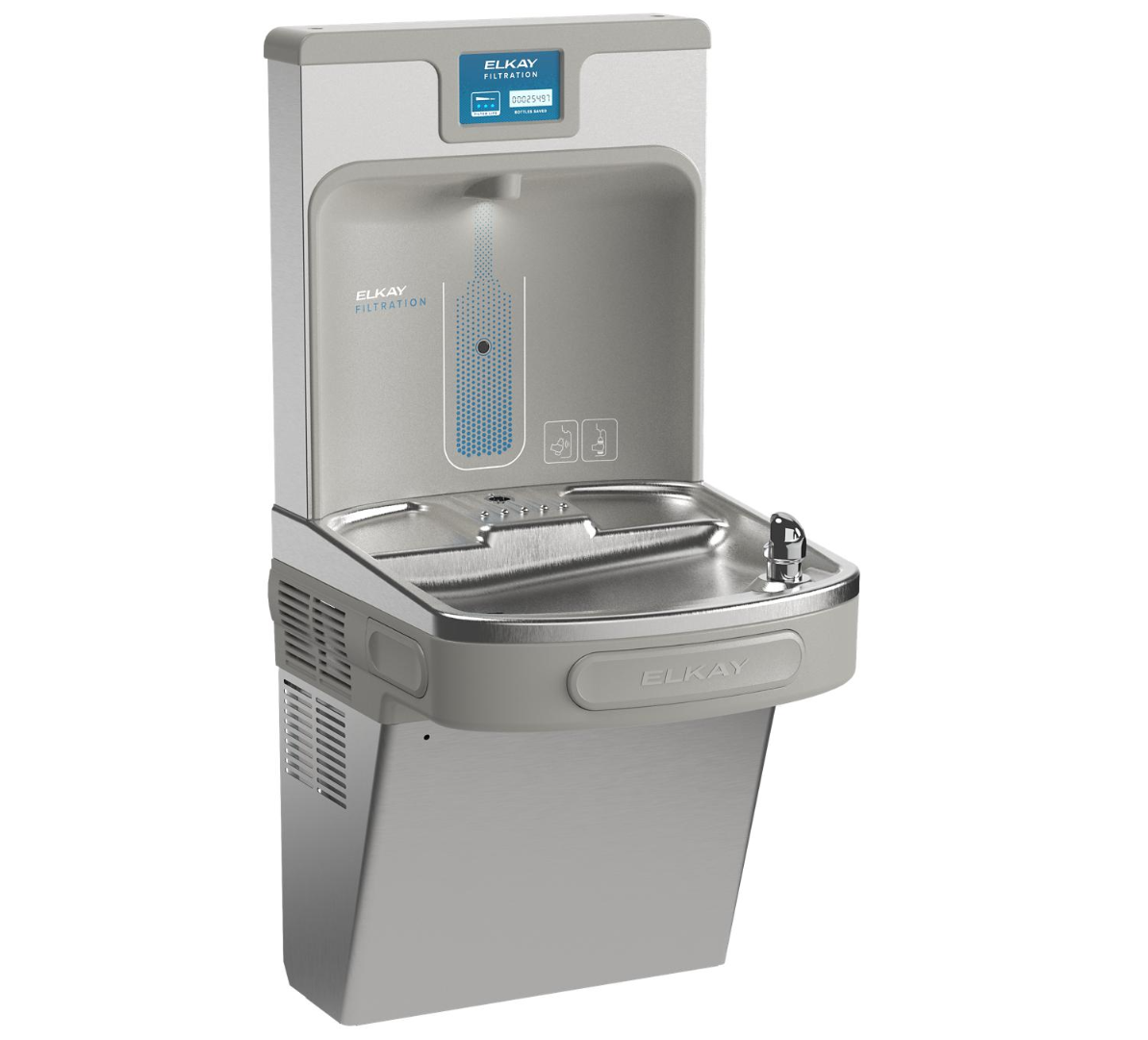

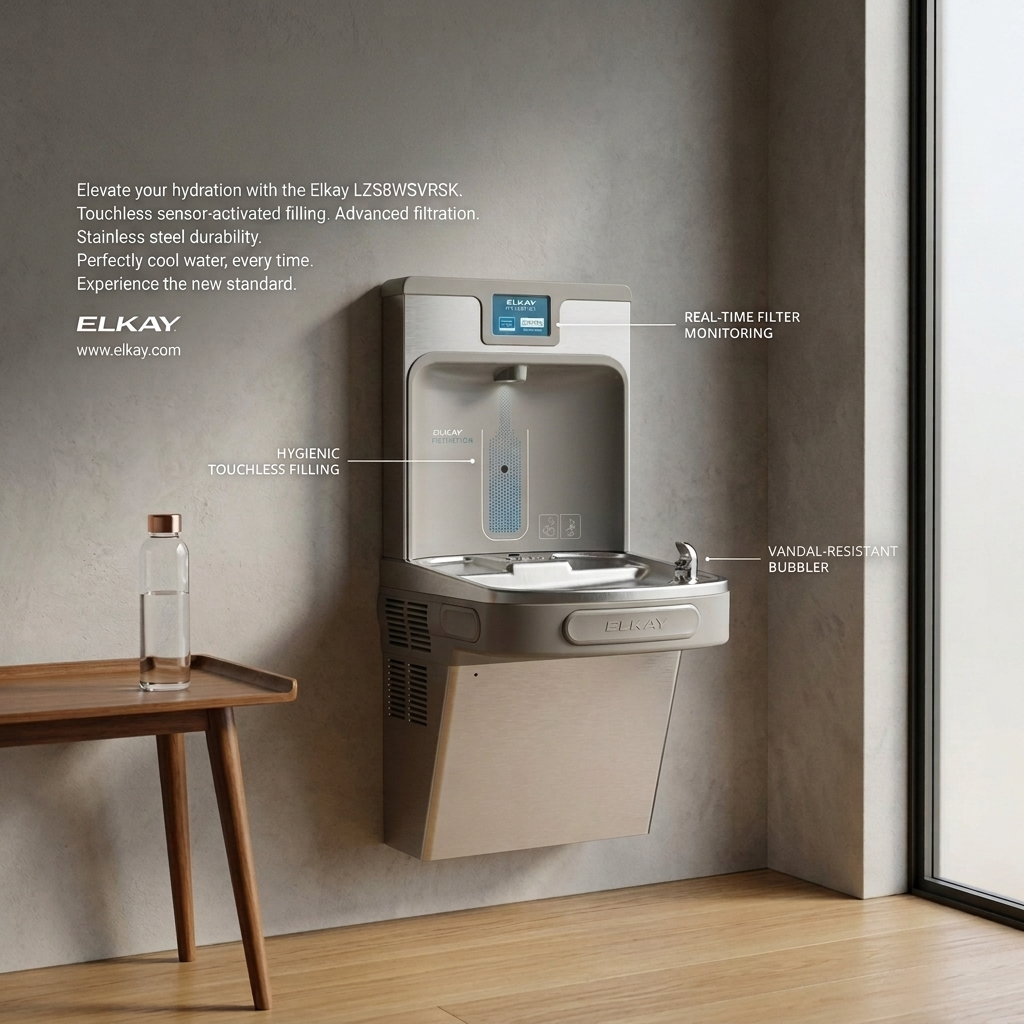

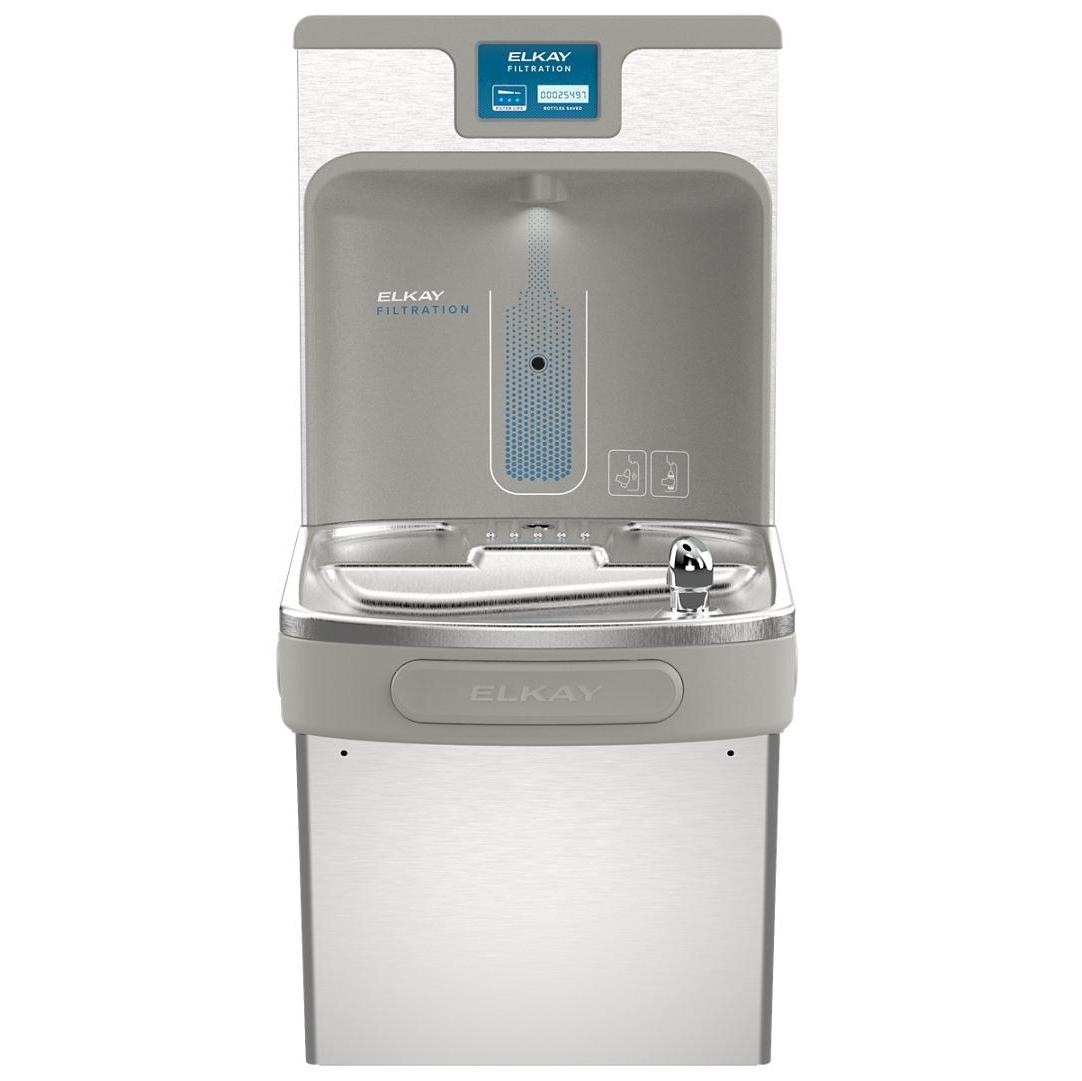

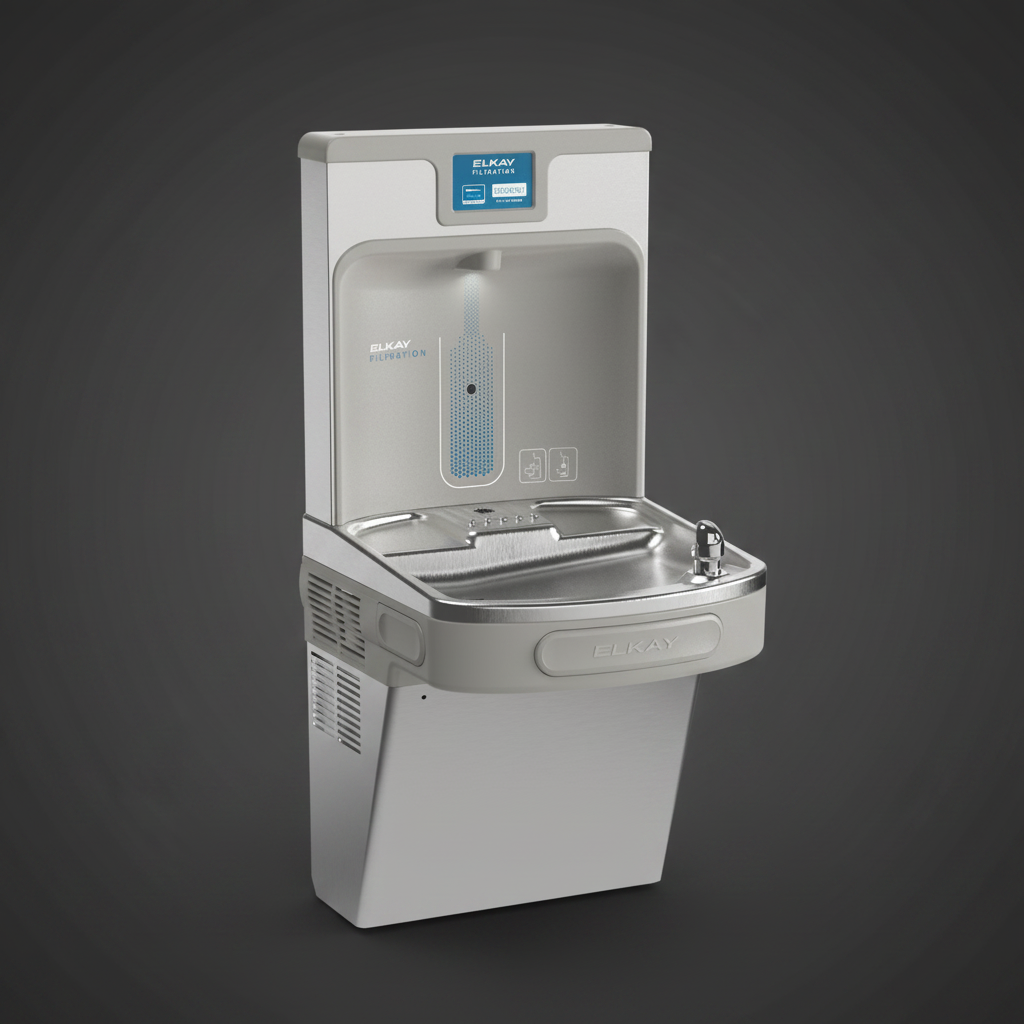

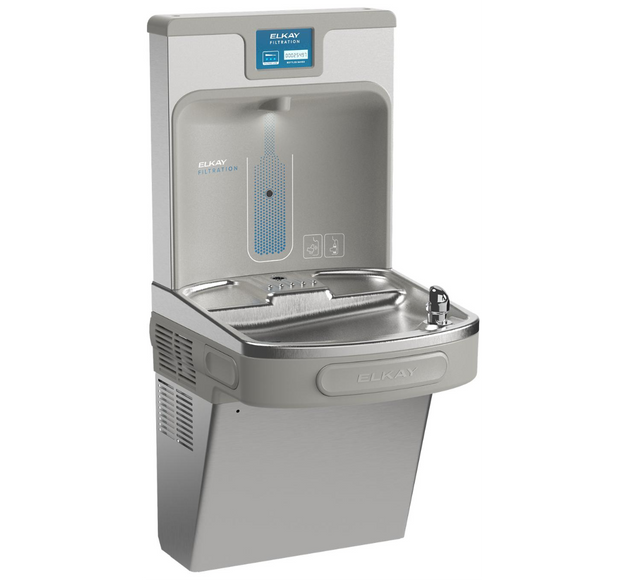

The Elkay LZS8WSVRSK ezH2O® Bottle Filling Station with Single ADA Cooler delivers filtered, refrigerated hydration in a durable stainless steel design. Featuring vandal-resistant bubblers, quick filter change access, and LED filter monitoring, this unit is ideal for schools, healthcare facilities, offices, and public spaces seeking reliable, ADA-compliant hydration solutions.
Key Specifications:
- Design: Single ADA cooler with integral bottle filling station, sensor activation, and vandal-resistant bubbler.
- Finish: Stainless Steel. Also available in Light Gray.
- Filtration: Includes 51600C WaterSentry® Plus Filter, 6,000-gallon capacity, NSF 42/53/401 certified for lead, microplastics, particulates, chlorine taste, and odor.
- Refrigeration: Provides 8.0 GPH of 50°F chilled water using R-134a refrigerant.
- Stations Served: 1 (Single ADA cooler plus bottle filler)
Features & Benefits:
- Filtered Hydration: Certified filter reduces lead, chlorine, particulates, and odors for cleaner, safer water.
- Quick Filter Change: Wrapper design allows filter replacement in under a minute.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is needed.
- Hands-Free Bottle Filling: Electronic sensor activation provides hygienic, touchless operation.
- ADA Accessibility: Single cooler design meets ADA requirements, providing inclusive access for all users.
What's Included:
- LZS8WSVRSK Bottle Filling Station & ADA Cooler
- 51600C WaterSentry® Plus Replacement Filter
- Installation hardware
- Owner’s manual and warranty guide
Comparison of Elkay Bottle Filling Stations:
| Feature | LZS8WSVRSK | LZS8WSSP | LZS8WSSPRO |
|---|---|---|---|
| Design | Single ADA cooler with vandal-resistant bubbler | Single-level cooler with standard bubbler | Single-level cooler with Pro Filtration system |
| Filtration | Includes 51600C WaterSentry® Plus Filter (6,000-gallon) | Includes 51600C WaterSentry® Plus Filter (6,000-gallon) | Includes FL10 Pro Filtration system with enhanced contaminant reduction |
| Best For | Schools, hospitals, offices, and public spaces needing vandal-resistant hydration | Indoor schools, gyms, and offices needing standard filtered hydration | Airports, universities, and healthcare facilities requiring advanced filtration and monitoring |
FAQ
Q: How Often Should the Filter Be Replaced?
A: The Elkay LZS8WSVRSK includes the 51600C WaterSentry Plus Filter, which should be replaced every 6,000 gallons or 12 months, whichever comes first. The LED monitor will indicate when replacement is needed.
Q: Is the Elkay LZS8WSVRSK ADA Compliant?
A: Yes. The Elkay LZS8WSVRSK meets ADA & ICC A117.1 accessibility requirements when installed according to standards.
Q: What Warranty Is Included with the Elkay LZS8WSVRSK?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components.
Q: What Accessories Are Compatible with the Elkay LZS8WSVRSK?
A: Optional accessories include the LKAPREZL Cane Apron for ADA compliance, the MLP100 In-Wall Carrier for secure mounting support, and the SSBFUP Universal Back Panel Assembly Kit.
Q: What Makes the Elkay LZS8WSVRSK Different from Other ezH2O Units?
A: The Elkay LZS8WSVRSK combines vandal-resistant bubbler design, quick filter change access, LED filter monitoring, and ADA compliance in a compact single-station configuration, making it ideal for high-traffic environments.
Q: What Is the Chilling Capacity of the Elkay LZS8WSVRSK?
A: The Elkay LZS8WSVRSK provides 8.0 gallons per hour of 50°F drinking water, based on 80°F inlet water and 90°F ambient air temperature, per ASHRAE 18 testing.
Q: How Is the Elkay LZS8WSVRSK Activated?
A: The bottle filler uses an electronic sensor for hands-free operation, while the bubbler is activated by electronic front and side pushbars. This dual activation ensures hygienic use and accessibility.
Q: Can the Elkay LZS8WSVRSK Be Upgraded with Connected Features?
A: Yes. The Elkay LZS8WSVRSK is compatible with the PLZSRK-W1 Connected Retrofit Kit, which adds cloud connectivity and enhanced filtration monitoring.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Elkay LZS8WSVRSK is a vandal‑resistant single level bottle filling station with integrated filtered cooler. Built for high‑traffic public areas, it delivers chilled, filtered water with hands‑free sensor activation and heavy‑duty construction for durability.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connection required for cooler and bottle filler basin
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Ensure sensor lens is unobstructed for accurate activation
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to meet vandal‑resistant requirements
Basic Installation Overview:
- Install mounting frame securely to support cooler and bottle filler weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Install filter head and cartridge into bracket, connect tubing per routing diagram
- Hang main panel on frame, ensuring wires and tubing are not pinched
- Connect drain line from cooler and bottle filler to building drain system
- Wire electrical supply to grounded outlet; verify LCD bottle counter illuminates
- Test bottle filler sensor activation and bubbler stream height; adjust regulator if needed
- Install bottom cover plates and tighten back panel screws
For complete specifications and installation guidelines, download the official LZS8WSVRSK Spec Sheet and the Installation & Maintenance Manual.
