Elkay

LZS8WSSP

Elkay LZS8WSSP | Wall-mount Enhanced EZH2o Bottle Filling Station | Filtered, Refrigerated, EZ-style fountain, Stainless Steel

MSRP: $1,915.00

Filter is certified to NSF 42 and 53 for lead, particulate class 1, chlorine, taste and odor reduction.
Elkay water chillers provide 50 degree drinking water and meet Federal and State low-lead requirements

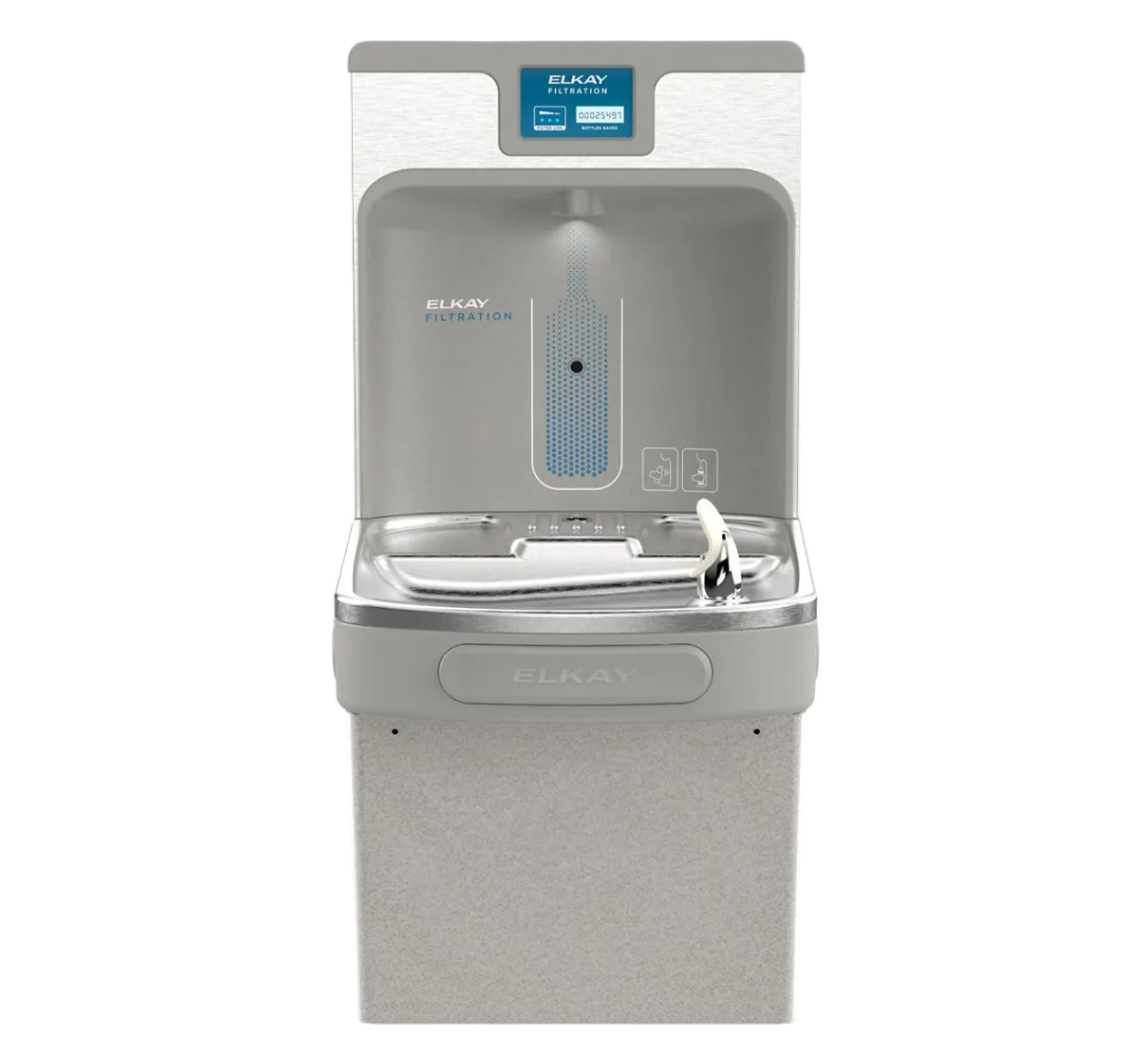

  • The Elkay LZS8WSSP is a wall-mounted, refrigerated unit that includes a bottle filler and a drinking fountain. This model has a Stainless Steel color finish.

    One of the most popular models, the Elkay LZS8WSSP Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

    The Elkay LZS8WSSP drinking fountain features a Flexi-Guard bubbler protected by a flexible antimicrobial mouth guard that helps to protect against injury and microorganisms.

    Being an 'Enhanced' EZH2o unit, the Elkay LZS8WSSP features a new visual monitor for the filter status light and the bottle counter. The 'Fillsafe recognition' technology allows the LZS8WSSP to automatically recognize new filters and to update the LED light back to green upon replacement.

    • New LED Screenshowcases Filter Status and Green Ticker™ that tracks each plastic bottle saved from waste.
    • Easier Filter Replacement- filter light automatically resets upon replacement.
    • Track Sustainability Impactwith Green Ticker™ that tracks each plastic bottle saved from waste.
    • Visually AppealingLED Light activates when bottle is full.
    • ADA compliant design

     Elkay LZS8WSSP resources:

    Elkay LZS8WSSP videos:

      Enhanced EZH2o installation:
      Elkay EZH2o Filter change:
      Elkay EZH2o Care & Cleaning:

      FILTERED?

      YES

      COOLER CABINET FINISH

      Stainless Steel

      POWER

      115V/60Hz

      BUBBLER OPTION

      FlexiGuard Safety

      MOUNTING DETAILS

      Wall Mount (On-Wall)

      CHILLING DETAILS

      8 GPH

      ElkayLZS8WSSP

      INSTALLATION LOCATION

      INDOOR

      NUMBER OF FOUNTAINS

      One fountain

      DIMENSIONS

      L: 18-3/8"

      W: 19"

      H: 39-7/16"

      SHIPPING WEIGHT

      71 lbs

      Elkay LZS8WSSP

      PRODUCT COMPLIANCE

      • GreenSpec
      • ADA Compliant
      • CAN/CSA 22.2 120
      • ASME A112.19.3/CSA B45.4
      • Buy American Act
      • UL 399
      • NSF 61
      • NSF 53
      • NSF 42
      • NSF 372 (no lead)

      ElkayLZS8WSSP Includes

      • Water Cooler
      • Water Bottle Filling Station
      • Filter

      Warranty

      Refrigeration System (IF APPLICABLE)

      Elkay LZS8WSSP refrigeration system includes 5 year limited warranty.

      Electrical Parts & Water System

      Elkay LZS8WSSP warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. View more warranty details here.

      Installation Notes

      • ElkayLZS8WSSP requires installation from licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
      • Requires access to electrical connection.
      • Product also includes physical copy of installation instructions in package.
      • View detailed Elkay LZS8WSSP MANUAL.

      Maintenance

      Cleaning

      It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

      View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

      FAQ

      Q: What new features have been added to the Enhanced Bottle Filling Stations?

      A: One of the main differences is the Energy Savings system, which can be set to power-off at certain times to lower electric bill. The systems also have new diagnostics built in the refrigeration system to track savings and help troubleshoot, if there is ever an issue. The filter replacement is much easier as the LED light automatically resets upon replacing the new filter. There are many new exciting features as well.

      View the Enhanced Bottle Filling Station OVERVIEW page here

      Q: What type of Filter goes with the Enhanced Bottle Filling Station? How much does it cost?

      A: The Elkay 51300C WaterSentry Replacement Filter matches with the new Enhanced EZH20 Water Bottle Filling Station. We currently have the following replacement packs on SALE:

      51300C

      51300C_3PK

      51300C_12PK

      51300C_24PK

      51300C_48PK

      Q: How long do filters last?

      A: The WaterSentry Filters have a 3,000 Gallon Capacity. Depending on usage and your water condition, this typically lasts from 6-12 months. It is recommended to replace filter at least once per year.

      Q: How long does delivery take?

      A: Lead time for the EZH20 Enhanced Bottle Filling Stations is 3-7 business days. Expedited shipping options are available. Contact us now.

      Q: Who can Install my Bottle Filling Station?

      A: Bottlefillingstations.com customers receive a free referral to a licensed professional in your area. Contact us now.

      Q: What maintenance is needed for the Water Bottle Filling Station?

      A: It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  See video here (jump to 0:48 min) It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.  See VIDEO here (jump to 2:35 min). Avoid using steel soap pads.

      Q: What water pressure is needed for the Enhanced Bottle Filling Station?

      A: Single-level Bottle Filling Stations require 20 psi to 105 psi supply line pressure.



      *MADE IN THE UNITED STATES.
