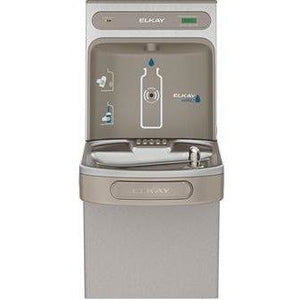

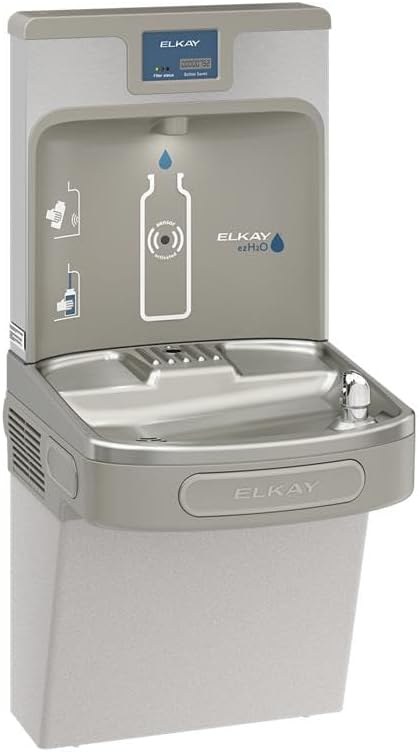

Elkay LZS8WSVRLK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, EZ-style Fountain Vandal-resistant Bubbler, Granite Gray
Elkay LZS8WSVRLK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, EZ-style Fountain Vandal-resistant Bubbler, Granite Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZS8WSVRLK | Wall-mount Bottle Filling Station | Filtered, Re...
One of the most popular models, the Elkay LZS8WSVRLK Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.
- ADA compliant design
- Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
- Filtered with 3000 gallon capacity WaterSentry
- Quick fill rate of 1 Gallons Per Minute
- Green Ticker™ tracks number of plastic bottles saved from waste.
VIEW SPEC SHEET HERE: Elkay LZS8WSVRLK
|
FILTERED? |
Yes |
|
COOLER CABINET FINISH |
Light-Gray granite |
|
POWER |
115V/60Hz |
|
BUBBLER OPTION |
Vandal-Resistant |
|
MOUNTING DETAILS |
Wall Mount (On-Wall) |
|
CHILLING DETAILS |
8 GPH |
|
INSTALLATION LOCATION |
INDOOR |
|
NUMBER OF STATIONS |
Single Station |
|
DIMENSIONS |
L: 18-3/8" W: 19" H: 39-1/16" |
|
SHIPPING WEIGHT |
72 lbs |
|
Elkay LZS8WSVRLK PRODUCT COMPLIANCE |
● GreenSpec ● ADA Compliant ● CAN/CSA 22.2 120 ● ASME A112.19.3/CSA B45.4 ● Buy American Act ● UL 399 ● NSF 61 ● NSF 53 ● NSF 42 ● NSF 372 (no lead) |
WARRANTY
Refrigeration System (IF APPLICABLE)
Elkay LZS8WSVRLK refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Elkay LZS8WSVRLK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. View more warranty details here.

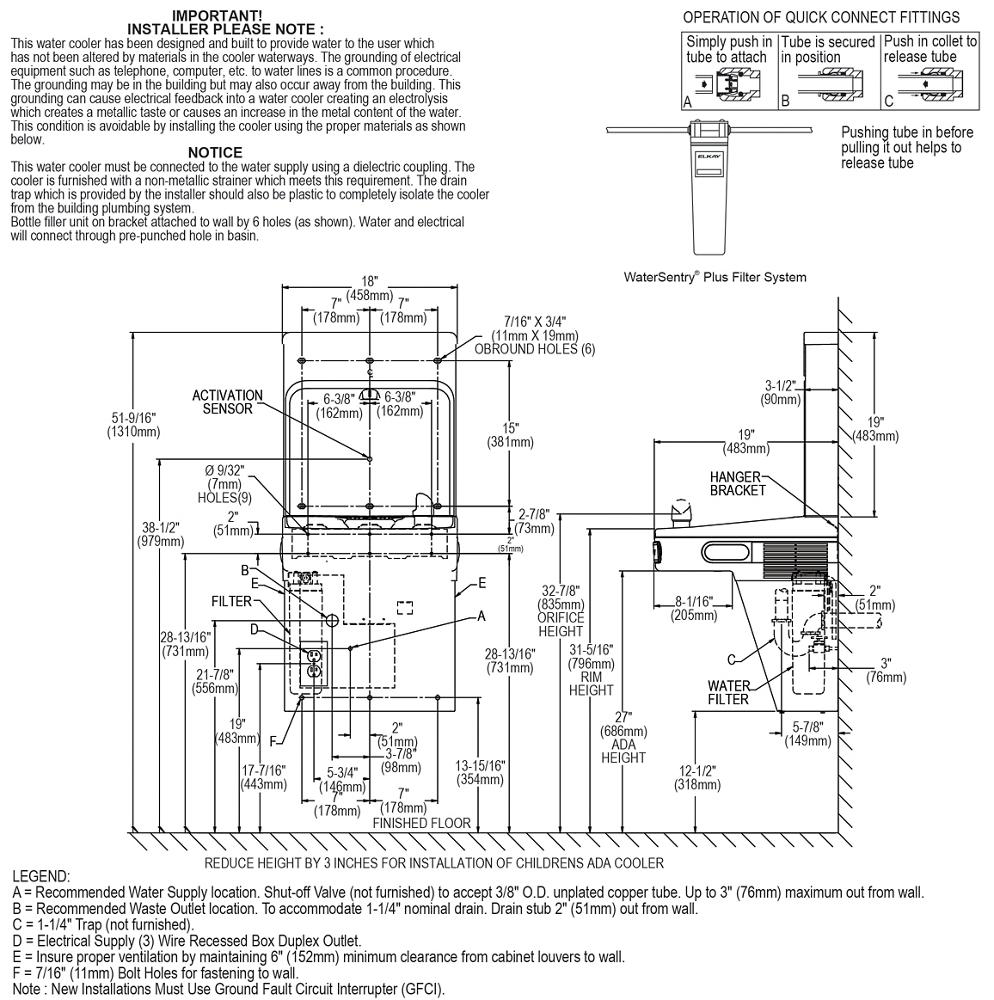

INSTALLATION NOTES
- Elkay LZS8WSVRLK requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
- View detailed Elkay LZS8WSVRLK INSTALLATION INSTRUCTIONS.
MAINTENANCE
Cleaning
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
Filter Replacement (IF APPLICABLE)
When filter status light turns to red, the filter needs to be changed. Follow these steps:
1) Remove the bottom access panel.
2) Unplug unit
3) Unscrew old filter
4) Install new WaterSentry Plus filter.
5) Reset filter light back to green by removing top cover and pressing the black reset button. Select reset filter. The light should appear as green. Detailed instructions on filter light reset are included in produce package.
View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.
FAQ
Q: Why is this Bottle Filling Station considered Vandal Resistant?
A: This Water Bottle Filling Station is considered Vandal Resistant due to the following Made in the U.S.A. construction specs:
- Vandal-resistant pushbutton
- Stainless steel construction bottle filler
- Stainless steel cooler panel
- Stainless steel constructed Cooler cabinet
- Heavy-duty, one-piece, Chrome plated bubble
Q: Do the Vandal Resistant Bottle Fillers include the Bottle Counter?
A: Yes.
Q: Do the Vandal Resistant Bottle Fillers include the sensor-activated, automatic bottle fill feature?
A: No. The Vandal Resistant Bottle Fillers offer a vandal-resistant pushbutton activation as opposed to sensor activation.
Q: Is this unit available in 220V/50-60Hz?
A: Yes, please contact us for a custom quote for 220v unit(s).
*MADE IN THE UNITED STATES.
