Elkay VRCTL8SC | Wall-mount Bi-level VRC-style Drinking Fountain | Filterless, Refrigerated, Fully Vandal-resistant
Elkay VRCTL8SC | Wall-mount Bi-level VRC-style Drinking Fountain | Filterless, Refrigerated, Fully Vandal-resistant is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay VRCTL8SC | Wall-mount Bi-level VRC-style Drinking Fountain | ...

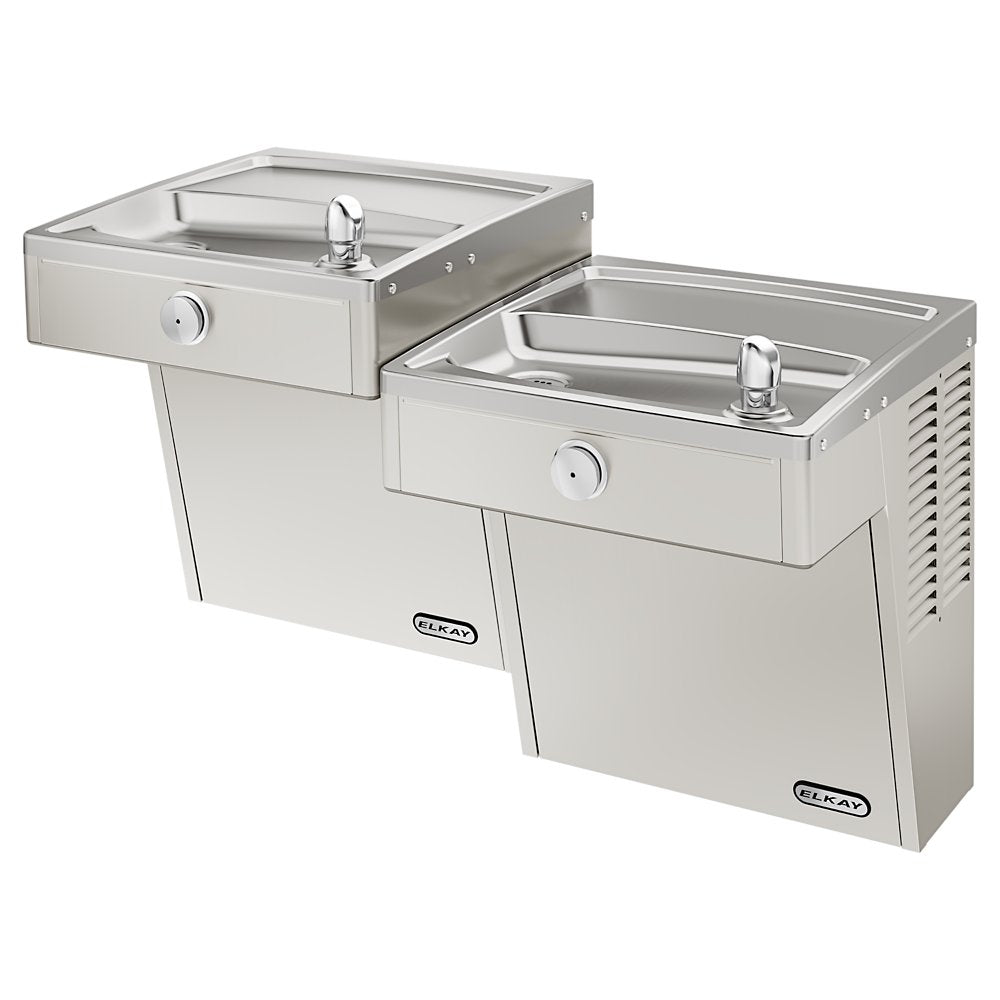

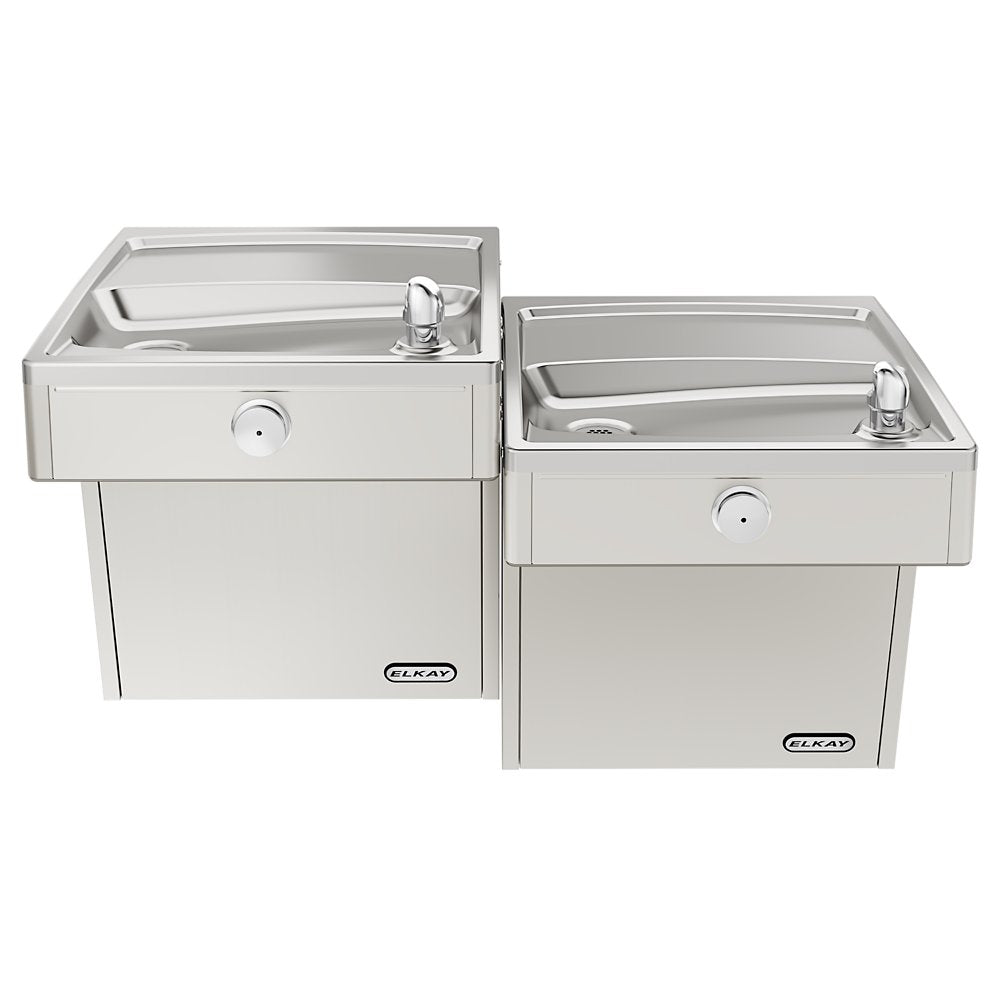

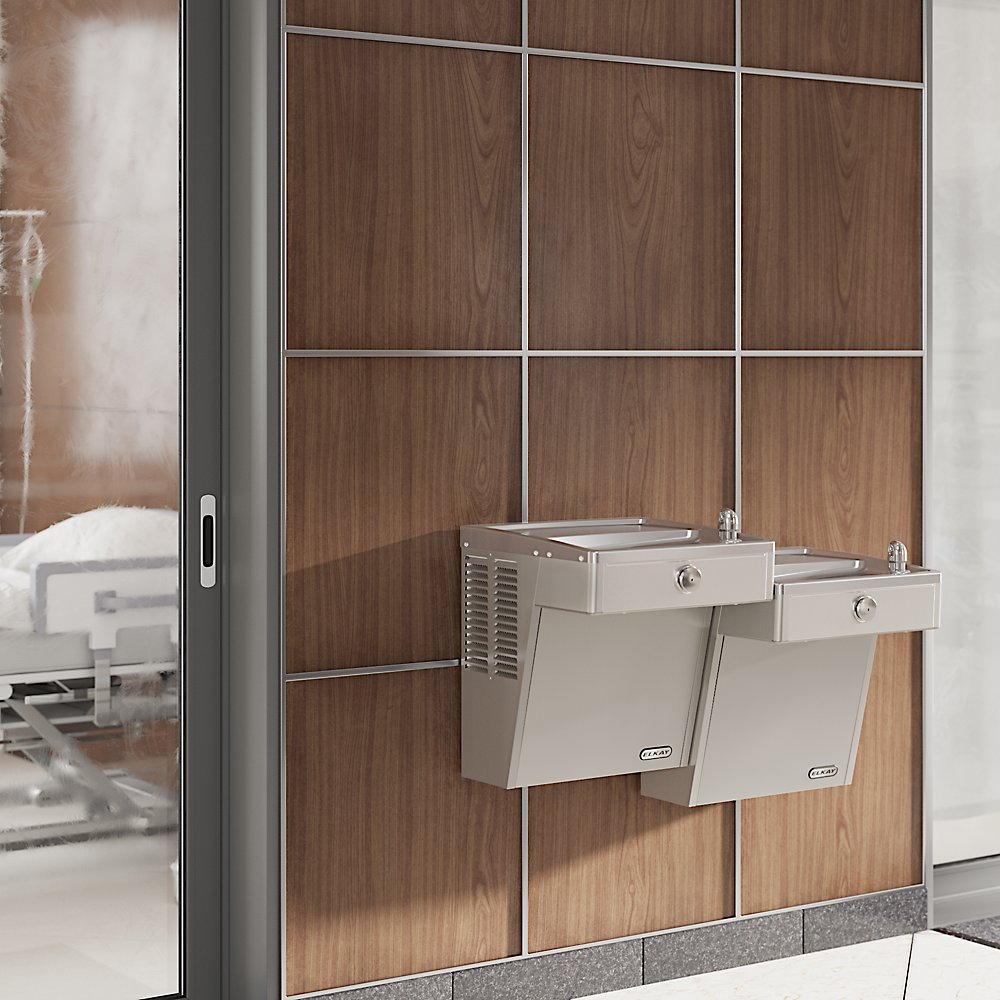

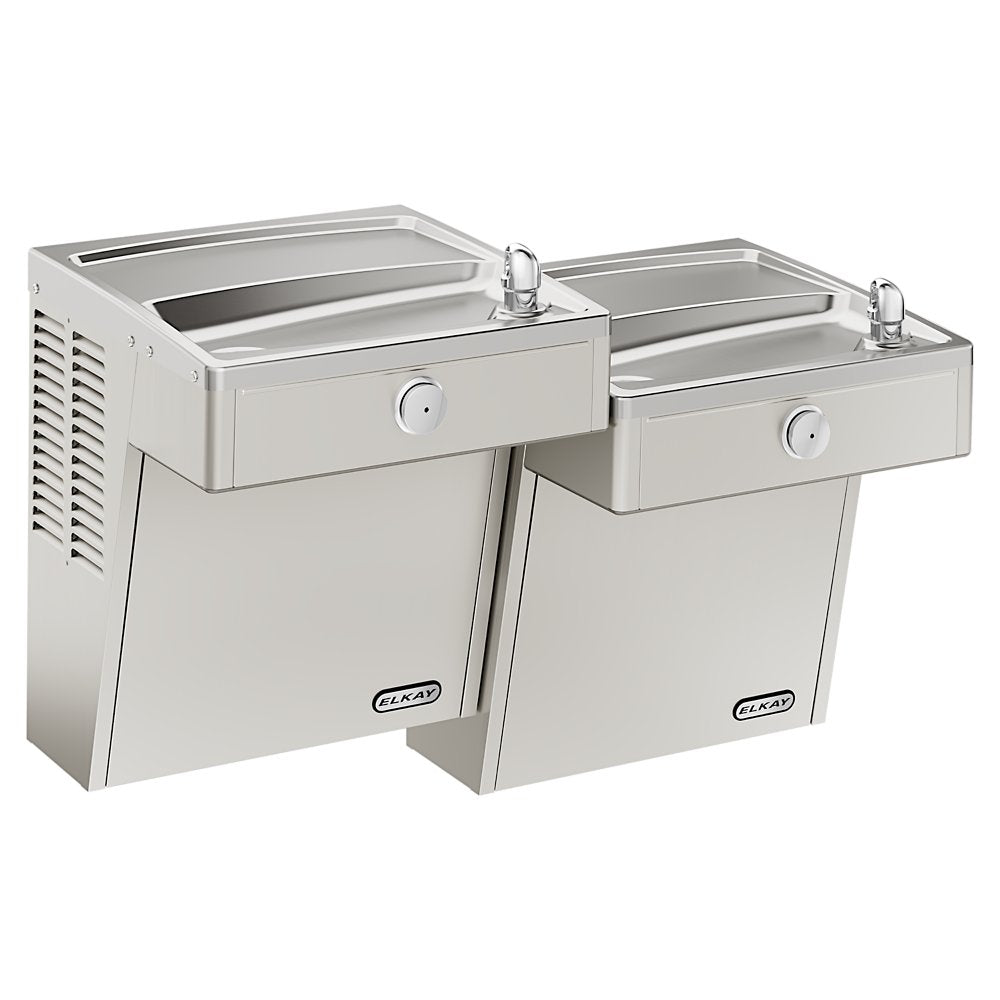

The Elkay VRCTL8SC is a wall-mount, vandal-resistant bi-level ADA cooler with a Stainless Steel finish. This model provides refrigerated, non-filtered drinking water and is designed for durability in high-traffic indoor or outdoor environments.
Key Specifications:
- Design: Wall-mounted bi-level ADA cooler, vandal-resistant.
- Finish: Stainless Steel.
- Filtration: This model is non-filtered. For the filtered version, see LVRCTL8SC.
- Chilling Capacity: 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient, ASHRAE 18 tested).
- Activation: Mechanical front bubbler button.
- Bubbler Style: Vandal-resistant bubblers.
- Power Requirements: 115V/60Hz, 370W, 5 full load amps.
- Dimensions (L × W × H): 36-5/16" × 18-5/8" × 27-1/8".
- Stations Served: 2.
- Compliance: ADA & ICC A117.1, UL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 61 (Q≤1), NSF/ANSI 372 (lead-free).
Features & Benefits:
- Vandal Resistant: Heavy-duty design with tamper-resistant components, ideal for schools, parks, and public facilities.
- Bi-Level ADA Design: Provides accessible drinking water for all users when installed according to ADA standards.
- Durable Stainless Steel Finish: Resists wear, corrosion, and tampering in high-traffic environments.
- Reliable Cooling System: Hermetically-sealed compressor, fan-cooled condenser, and EPS foam insulation deliver consistent chilled water.
- Mechanical Activation: Pushbutton bubblers ensure water delivery even during power disruptions.
- Real Drain System: Eliminates standing water for improved hygiene.
What's Included:
- VRCTL8SC vandal-resistant bi-level ADA cooler
- Vandal-resistant bubblers
- Mounting hardware and hanger bracket
- Installation instructions
- Owner’s manual and warranty guide
FAQ
Q: Is this unit filtered?
A: No, the VRCTL8SC is non-filtered. For the filtered version, see LVRCTL8SC.
Q: Is this unit ADA compliant?
A: Yes, the Elkay VRCTL8SC is designed with a bi-level configuration to meet ADA compliance requirements for accessibility.
Q: Where can this unit be installed?
A: The VRCTL8SC is suitable for both indoor and outdoor installation. In non-temperature-controlled environments, the unit must be adequately winterized and/or protected from extreme heat to prevent damage.
Q: What is the installation process like?
A: The unit requires wall mounting, connection to water supply, and electrical power (115V/60Hz). Professional installation is recommended to ensure proper setup and compliance with local building codes.
Q: What warranty is included?
A: The VRCTL8SC comes with a 5-year limited warranty on the refrigeration system and a 1-year warranty on electrical components and water system (drinking water applications only).
Detailed Features & Benefits
Cooling System: Hermetically-sealed compressor with lifetime lubrication, fan-cooled condenser, and EPS foam insulation for efficient chilled water delivery. Refrigerant R-134a controlled by calibrated capillary tube.
Accessibility: ADA-compliant bi-level design ensures inclusive access when installed according to ADA & ICC A117.1 standards.
Durability: Stainless Steel construction with vandal-resistant components ensures long service life in demanding environments.
Maintenance: Simple mechanical pushbutton activation and accessible panels make servicing straightforward.
Warranty: 5-year limited warranty on refrigeration system; 1-year warranty on electrical components and water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
