Elkay LVRCTL8SC | Vandal-Resistant Bi-Level Wall-Mount Drinking Fou...

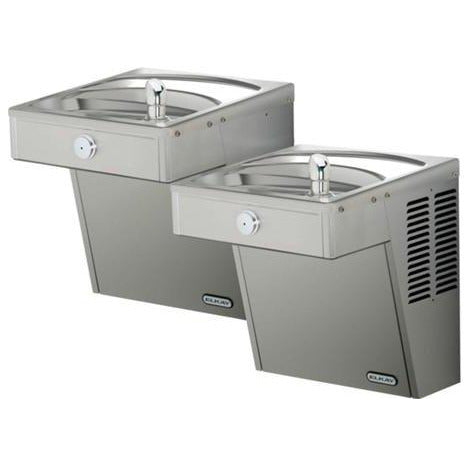

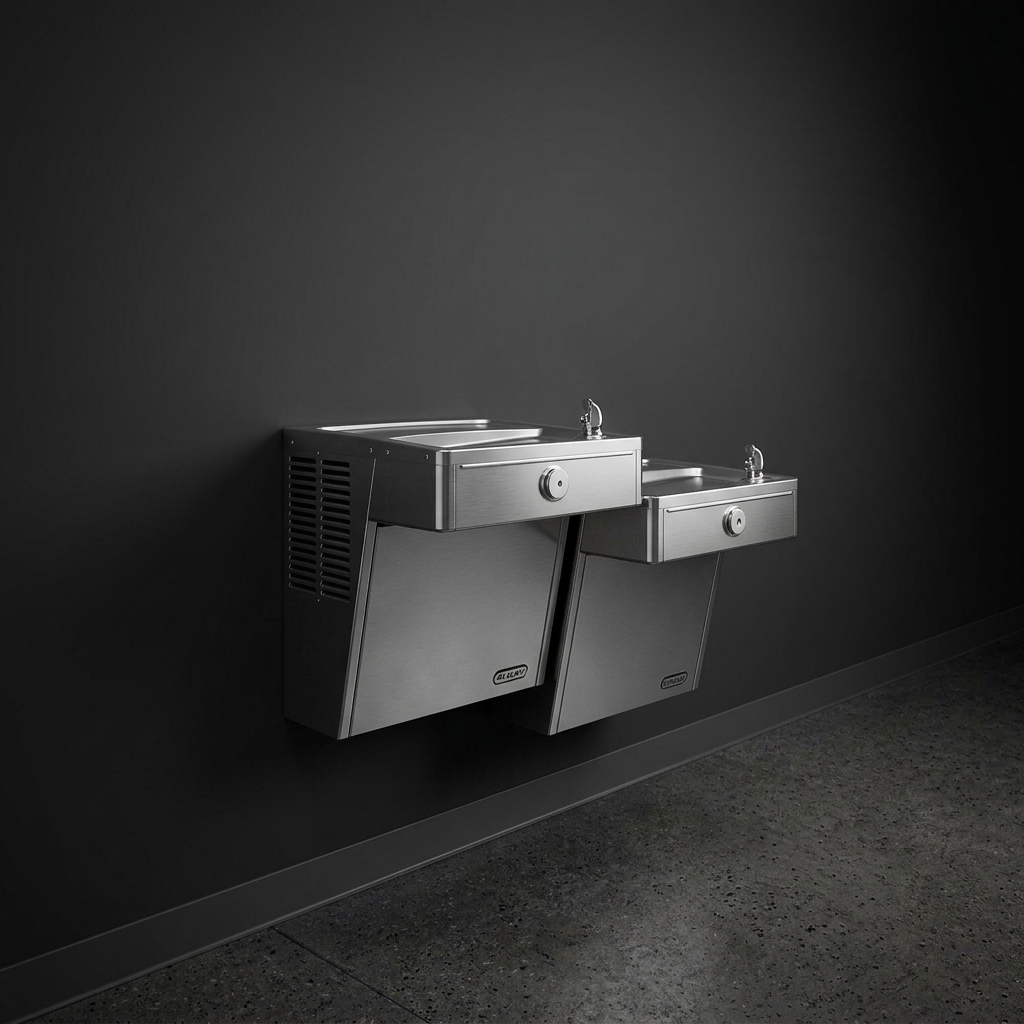

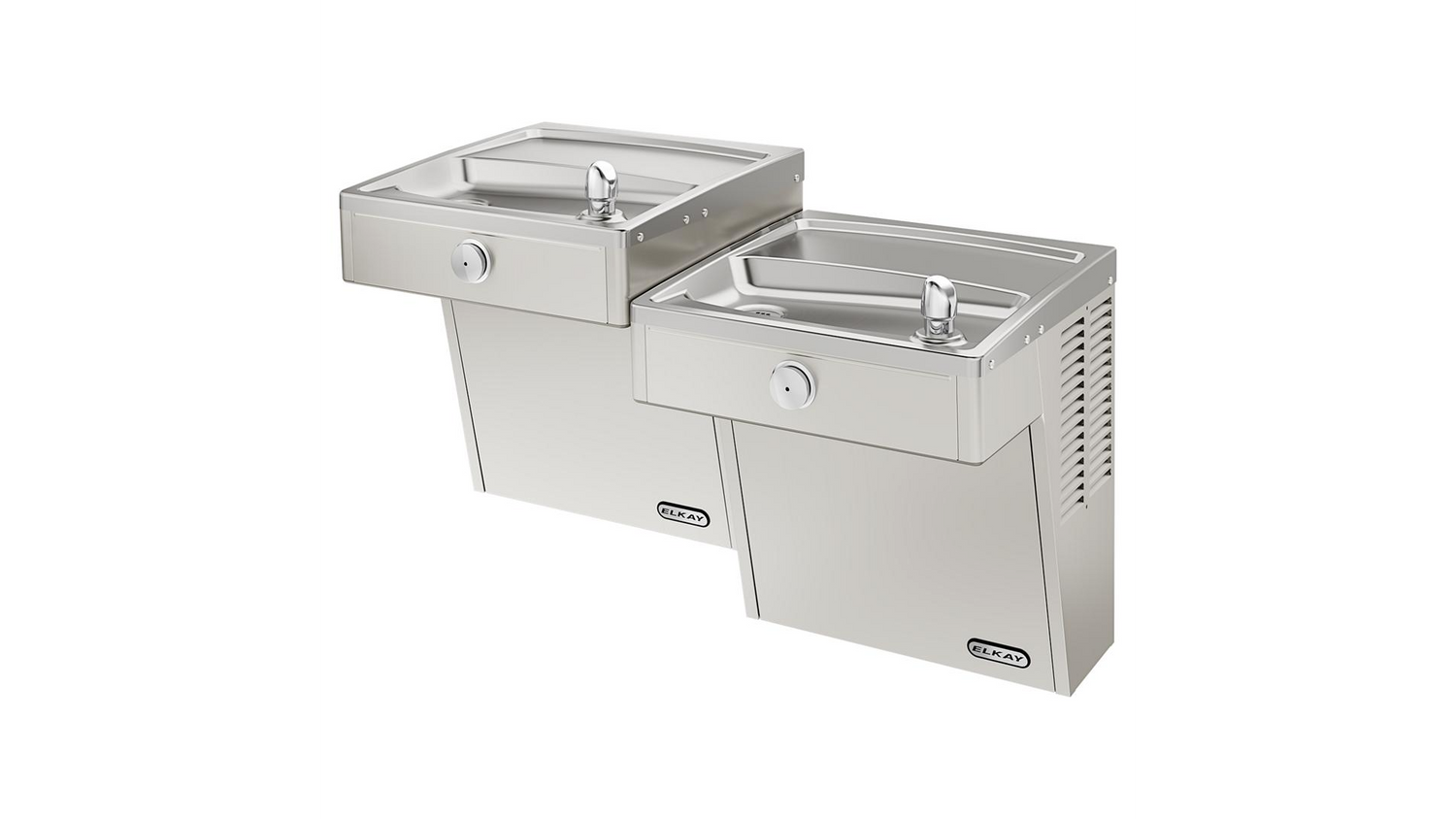

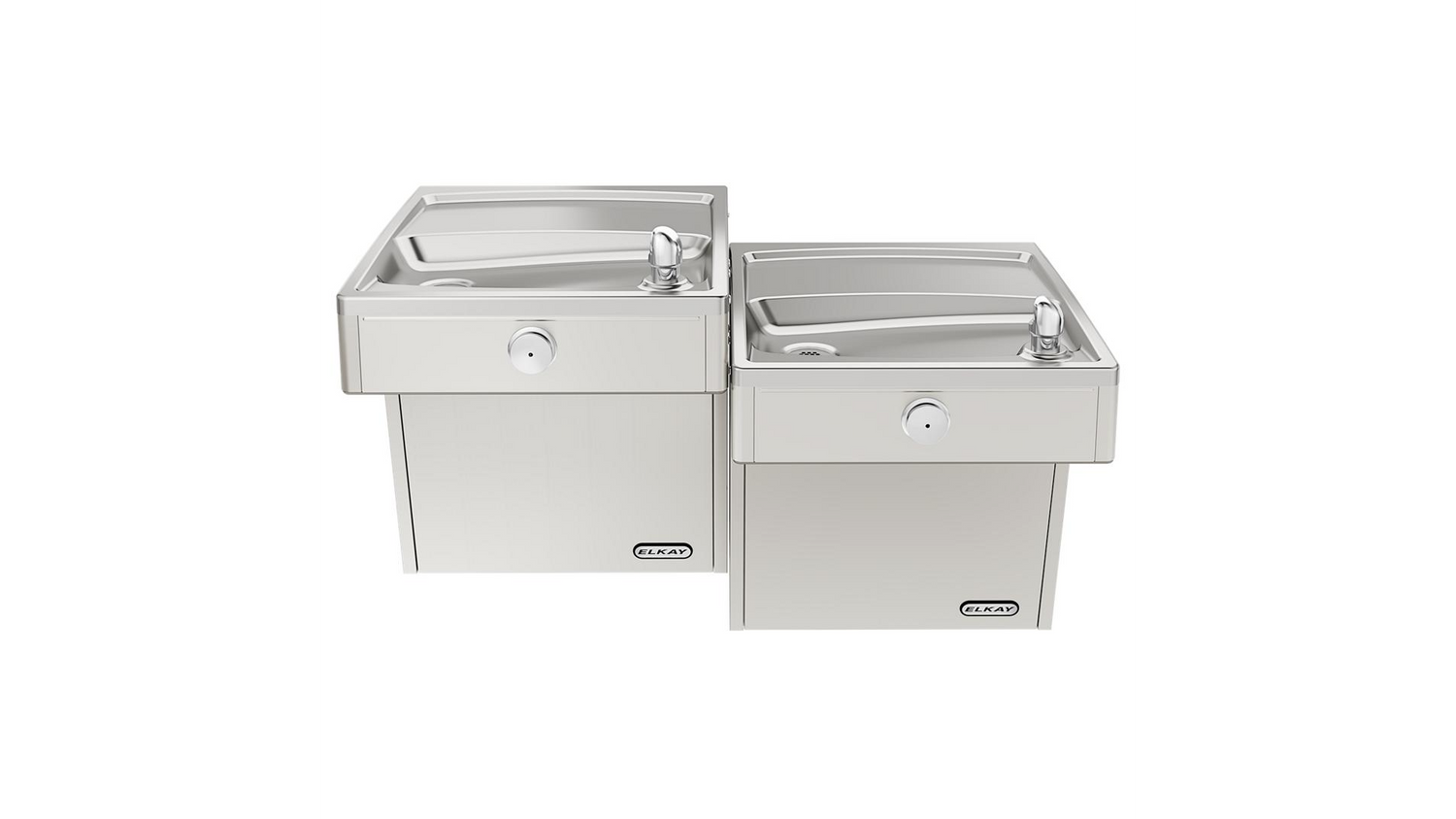

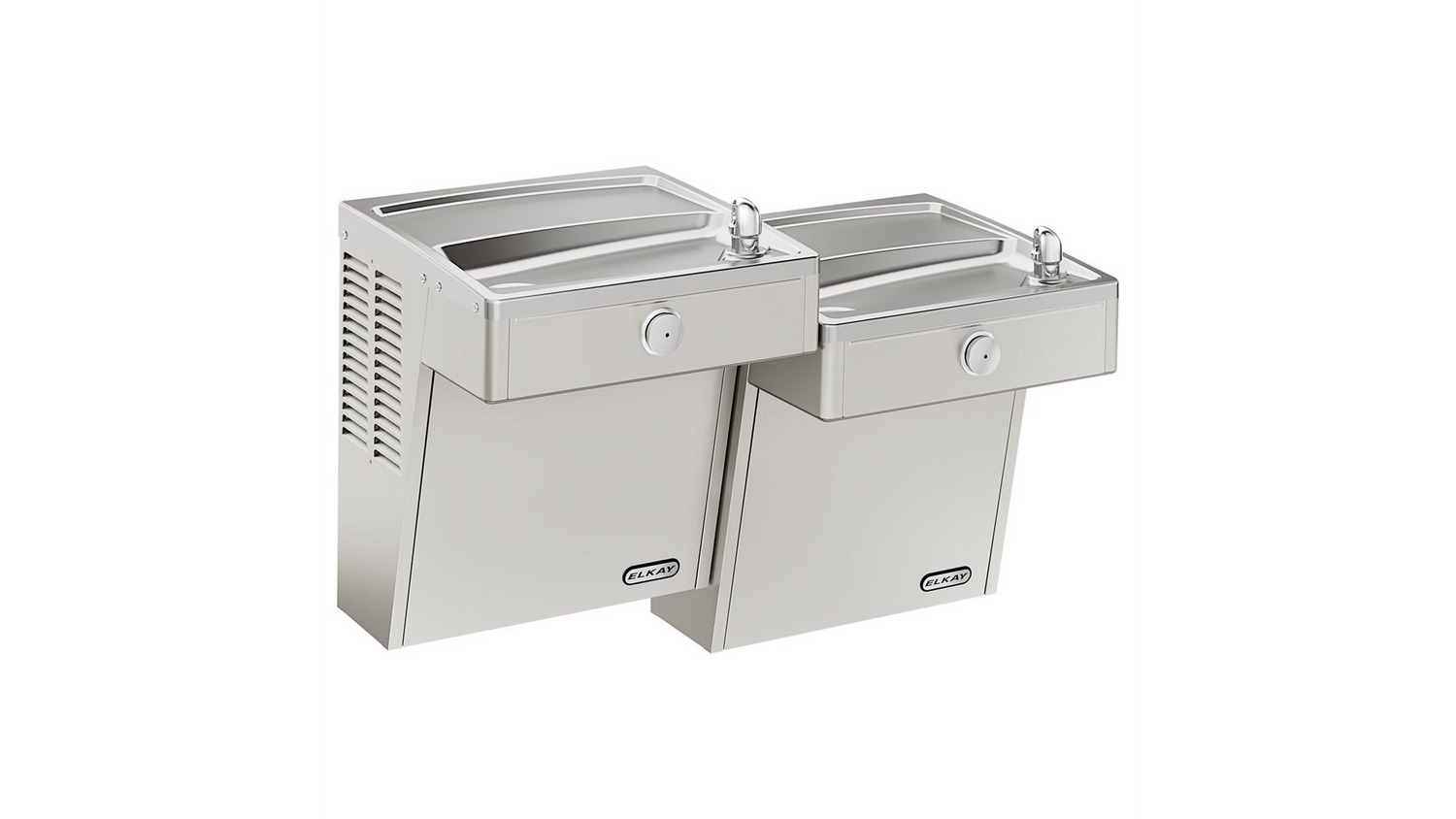

The Elkay LVRCTL8SC is a vandal‑resistant, filtered, refrigerated bi‑level ADA cooler designed for wall‑mount installation. With mechanical front push‑button activation and stainless steel construction, it delivers reliable chilled hydration for indoor and outdoor environments.
Key Specifications:
| Design | Wall‑mount bi‑level ADA cooler, vandal‑resistant bubblers |
| Finish | Stainless Steel |
| Filtration | Standard 51299C WaterSentry® filter 1,500 gallon capacity, NSF/ANSI 42, 53, 372 & 401 certified |
| Refrigeration | Refrigerated, 8.0 GPH chilled water |
| Stations Served | 2 (bi-level drinking fountains) |

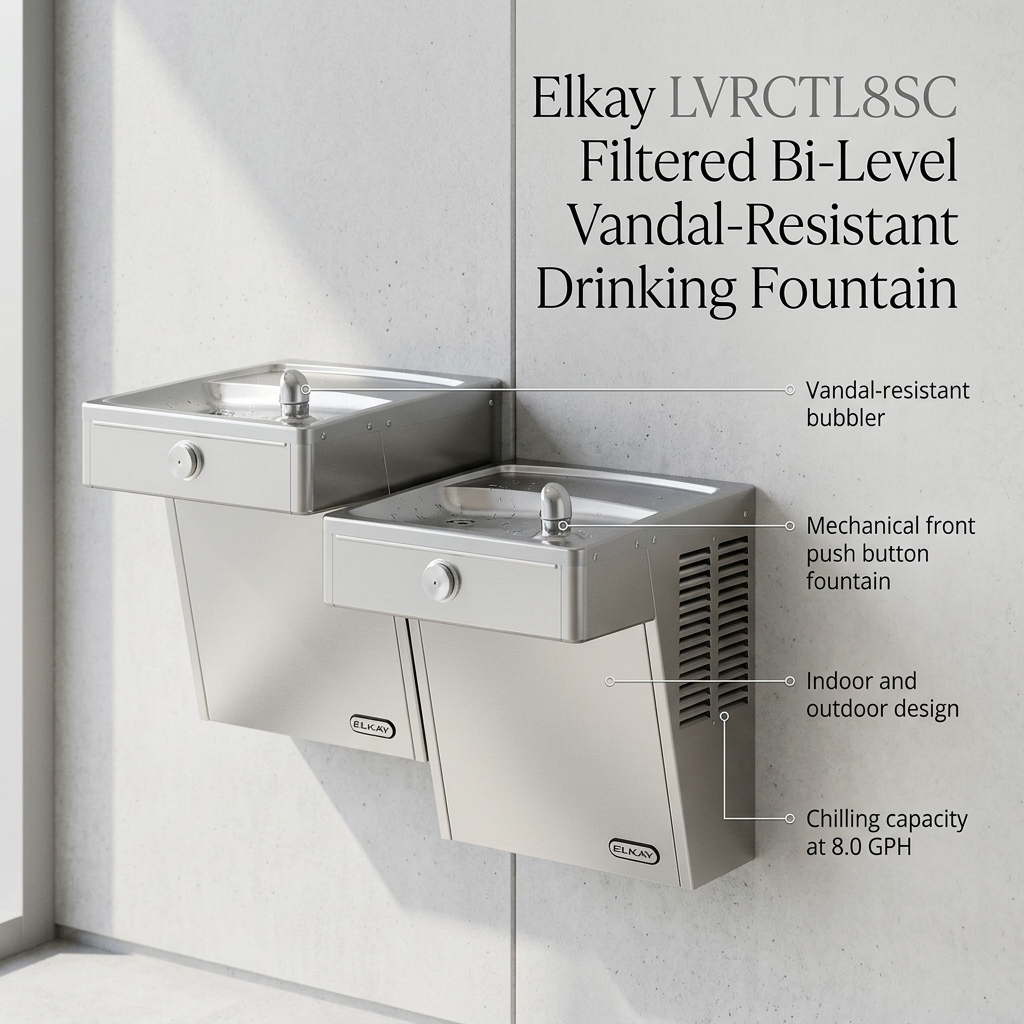

Features & Benefits:
- Filtered Hydration: Reduces lead, microplastics, chlorine taste/odor, and more.
- Vandal Resistant: Heavy‑duty bubblers and stainless steel finish withstand tough environments.
- Reliable Cooling: Provides 8.0 GPH of chilled water at 50°F based on ASHRAE 18 testing.
- ADA Compliant: Meets ADA & ICC A117.1 accessibility standards when properly installed.
- Certified Compliance: UL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 61 & 372.
What's Included:
- LVRCTL8SC Bi‑Level ADA Cooler
- Standard WaterSentry® Filter
- Installation instructions (PDF 98958C)
- Warranty documentation
Comparison of Elkay Coolers:
| Feature | LVRCTL8SC | LZSTLG8WSSK | LZSTLDWSSPRO |
|---|---|---|---|
| Design | Bi‑level ADA cooler, vandal‑resistant bubblers | Bi‑level ADA cooler with integrated bottle filler, high‑efficiency design | Bi‑level ADA cooler with integrated bottle filler, Pro Filtration system |
| Finish | Stainless Steel | Stainless Steel | Stainless Steel |
| Filtration | Standard 51299C WaterSentry® filter, NSF/ANSI certified | Standard 51300C WaterSentry® Plus filter (3,000‑gal. capacity) | FL10 Pro Filtration system with enhanced contaminant reduction |
| Best For | Indoor/outdoor facilities needing vandal‑resistant filtered hydration | Indoor facilities requiring high‑efficiency refrigerated hydration | Facilities needing advanced Pro Filtration with refrigerated hydration |
FAQ
Q: What Is Included with the Elkay LVRCTL8SC?
A: The Elkay LVRCTL8SC includes the bi‑level ADA cooler, vandal‑resistant bubblers, and a standard WaterSentry® filter. Components ship in one box.
Q: Does the Elkay LVRCTL8SC Ship with All Installation Parts?
A: No. A plumber must provide a shut‑off valve and a 1‑1/4” trap, which are not furnished.
Q: What Accessories Are Compatible with the Elkay LVRCTL8SC?
A: Recommended accessories include the Elkay MLP200 In‑Wall Carrier, the Elkay 98324C Cane Apron, and the Elkay 98481C StreamSaver® Vandal‑Resistant Bubbler.
Q: What Filtration Options Are Available for the Elkay LVRCTL8SC?
A: The Elkay LVRCTL8SC uses the Elkay 51299C WaterSentry® Replacement Filter, certified to NSF/ANSI 42, 53, 372, and 401 standards for reduction of lead, microplastics, chlorine taste/odor, and more.
Q: What Warranty Coverage Applies to the Elkay LVRCTL8SC?
A: The Elkay LVRCTL8SC includes a 5‑year limited warranty on the refrigeration system and 12‑month coverage on electrical components and water system.
Q: Can the Elkay LVRCTL8SC Be Installed Outdoors?
A: Yes. The Elkay LVRCTL8SC can be installed outdoors if properly winterized and protected from extreme climates.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Elkay LVRCTL8SC is a vandal‑resistant wall‑mount ADA cooler with bi‑level filtered bottle filling stations. Engineered for durability in high‑traffic environments, it delivers chilled, filtered water with hands‑free sensor activation and dual ADA‑compliant access points.

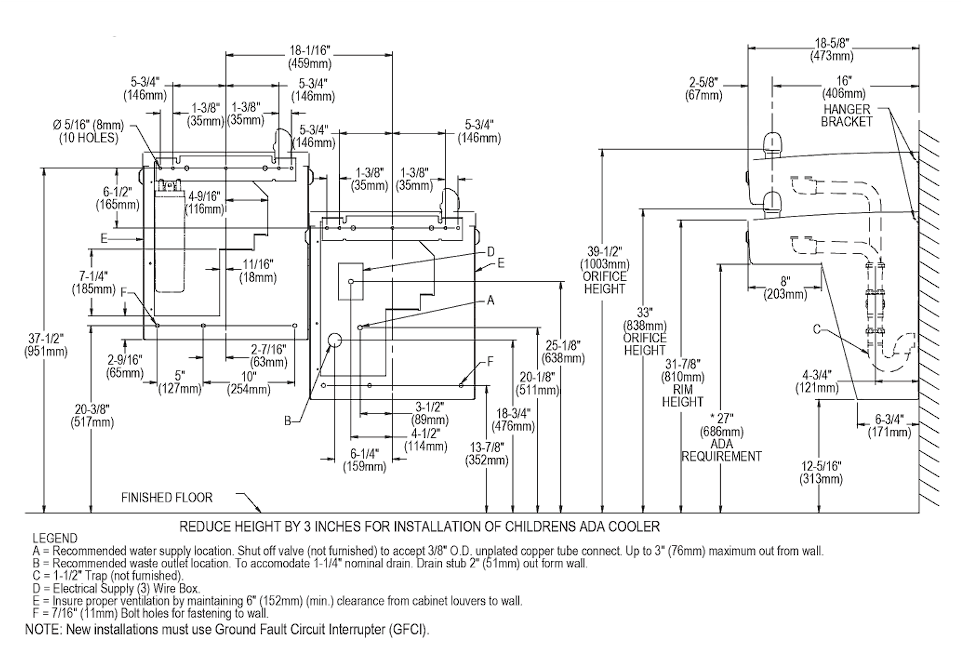

Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle fillers
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Ensure sensor lenses are unobstructed for accurate activation
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to meet vandal‑resistant requirements
Basic Installation Overview:
- Install in‑wall carrier securely to support cooler and bottle filler weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Install filter head and cartridge into bracket, connect tubing per routing diagram
- Mount cooler and bottle filler assembly to carrier, ensuring wires and tubing are not pinched
- Connect drain lines from both coolers and bottle fillers to building drain system
- Wire electrical supply to grounded outlet; verify LCD bottle counter illuminates
- Test bottle filler sensor activation and bubbler stream height; adjust regulator if needed
- Install bottom cover plates and tighten back panel screws
For complete specifications and installation guidelines, download the official LVRCTL8SC Spec Sheet and the Installation & Maintenance Manual.
