Elkay LZWSMDK | In-wall Bottle Filler | Filtered, Non-refrigerated,...

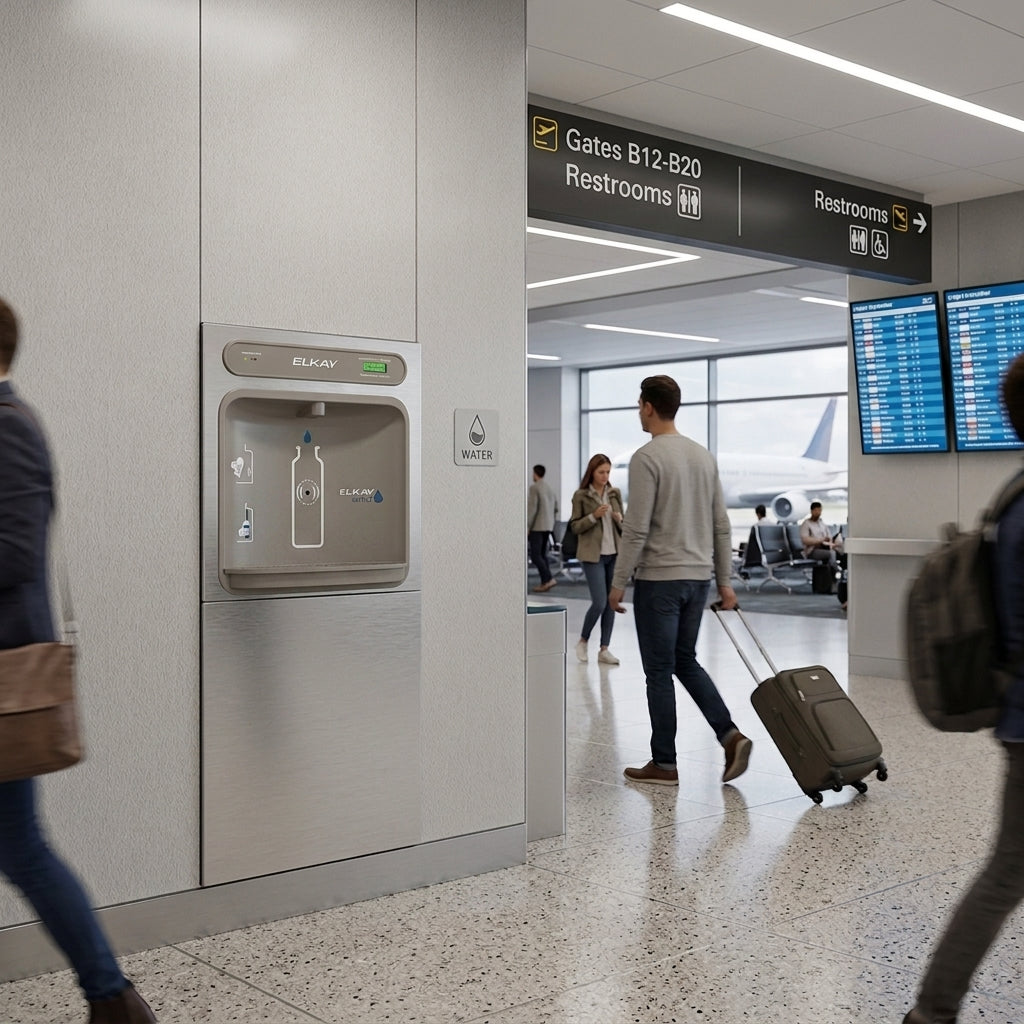

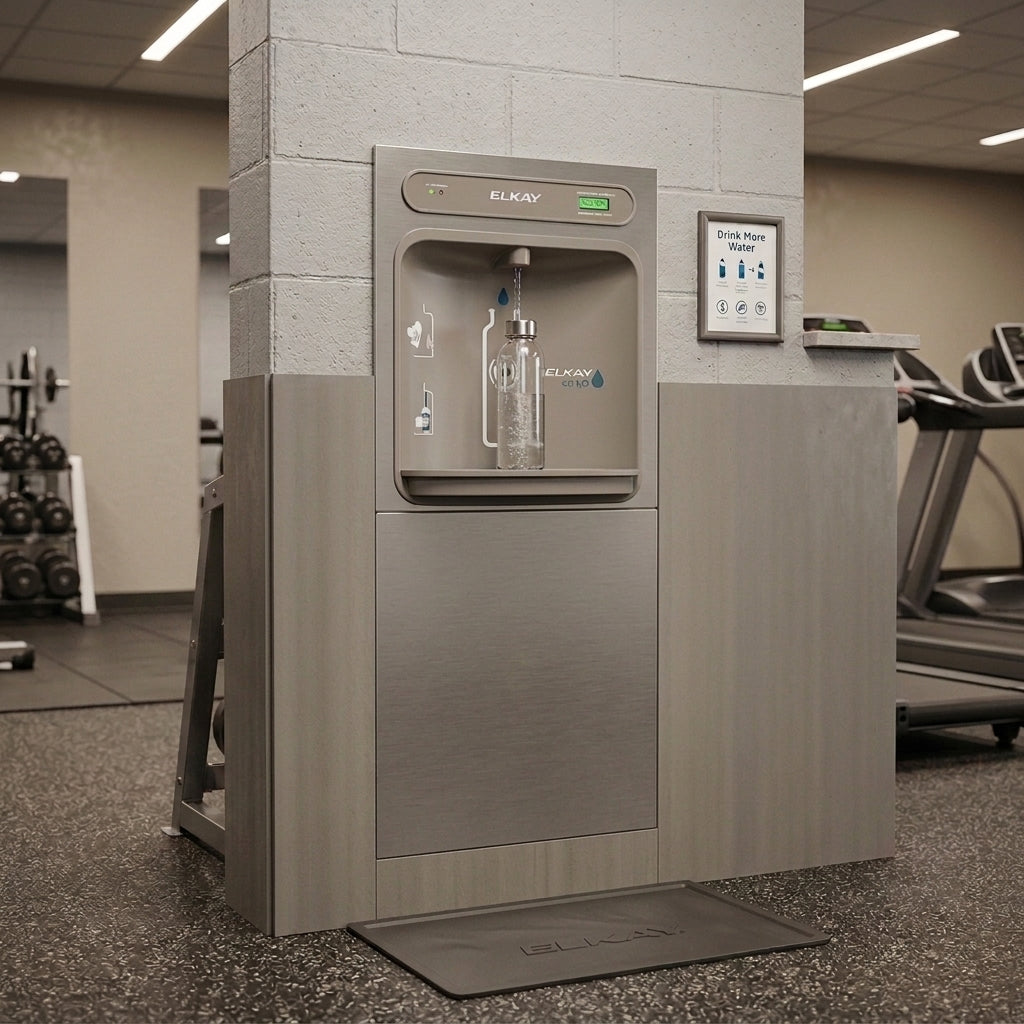

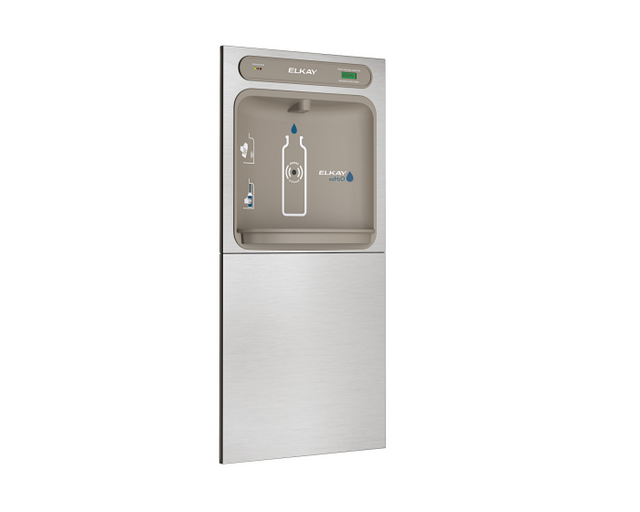

The LZWSMDK ezH2O® In‑Wall Bottle Filling Station with Mounting Frame delivers filtered, non‑refrigerated water in a sleek stainless steel design. This ADA‑compliant unit is ideal for schools, offices, and public spaces where space‑saving hydration solutions are needed. The LZWSMDK comes complete with the MFWS100 Mounting Frame for secure installation.
Key Specifications:
- Design: In‑wall bottle filling station with MFWS100 mounting frame
- Finish: Stainless Steel
- Filtration: Includes 51300C WaterSentry® Plus Filter, NSF/ANSI 42, 53, 372, and 401 certified for lead, microplastics, particulates, cysts, chlorine taste/odor. 3,000‑gallon capacity or 1 year after installation
- Refrigeration: Non‑refrigerated. For chilled water, choose the LZWSM8K.
- Stations Served: 1 (single bottle filler)

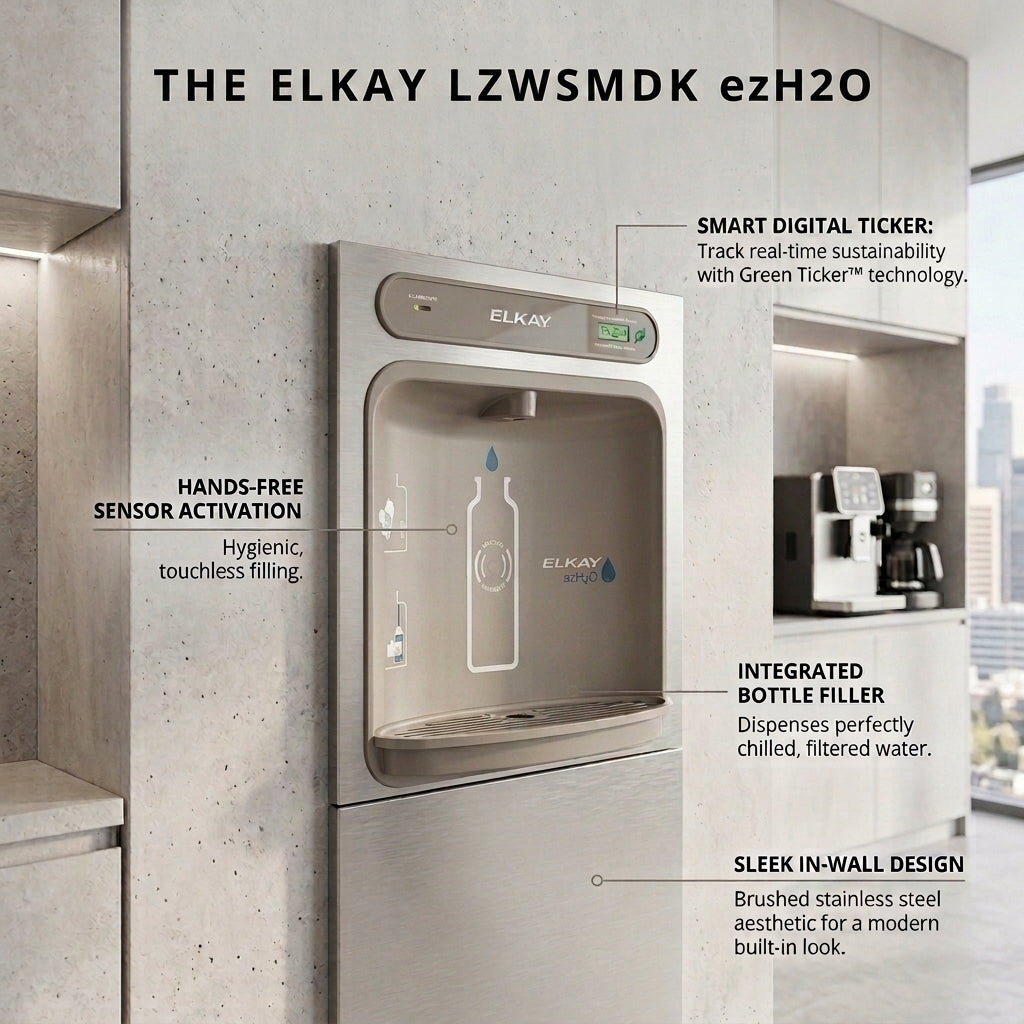

Features & Benefits:
- Hands‑Free Operation: Sensor‑activated bottle filler with laminar flow for hygienic, splash‑free filling
- Antimicrobial Protection: Key plastic components resist odors and staining, maintaining a cleaner appearance
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste
- Visual Filter Monitor: LED indicator shows filter status and replacement needs
- Real Drain System: Eliminates standing water for improved hygiene
Comparison With Other In‑Wall Bottle Filling Station Models:
| LZWSMDK | LZWSM8K | LBWDC00 |
|---|---|---|
| Finish: Stainless Steel | Finish: Stainless Steel | Finish: Commercial Built‑In Design Aspen White and Midnight Black |
| Refrigeration: Non‑refrigerated (ambient water) | Refrigeration: Refrigerated, 8.0 GPH chilled water | Refrigeration: Non‑refrigerated |
| Installation: In‑wall with MFWS100 mounting frame | Installation: In‑wall kit with cooler shelf | Installation: Built‑in commercial dispenser |
What's Included:
- LZWSMDK In‑Wall Bottle Filling Station
- MFWS100 Mounting Frame
- WaterSentry® Plus 51300C filter cartridge
- Installation hardware and instructions
FAQ
Q: Does the LZWSMDK Provide Chilled Water?
A: No. The LZWSMDK is a non‑refrigerated model. For chilled water, choose the LZWSM8K Refrigerated In‑Wall Kit.
Q: How Often Should the LZWSMDK Filter Be Replaced?
A: The included 51300C filter should be replaced every 3,000 gallons or 1 year after installation, whichever comes first.
Q: Is the LZWSMDK ADA Compliant?
A: Yes. The in‑wall design meets ADA and ICC A117.1 accessibility requirements when installed correctly.
Q: What Filter Options Are Available for the LZWSMDK?
A: The standard filter is the 51300C WaterSentry®.
Q: What Makes the LZWSMDK Different?
A: Unlike surface‑mount units, the LZWSMDK installs flush into the wall with the included MFWS100 mounting frame, providing a streamlined look and saving space in high‑traffic areas.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

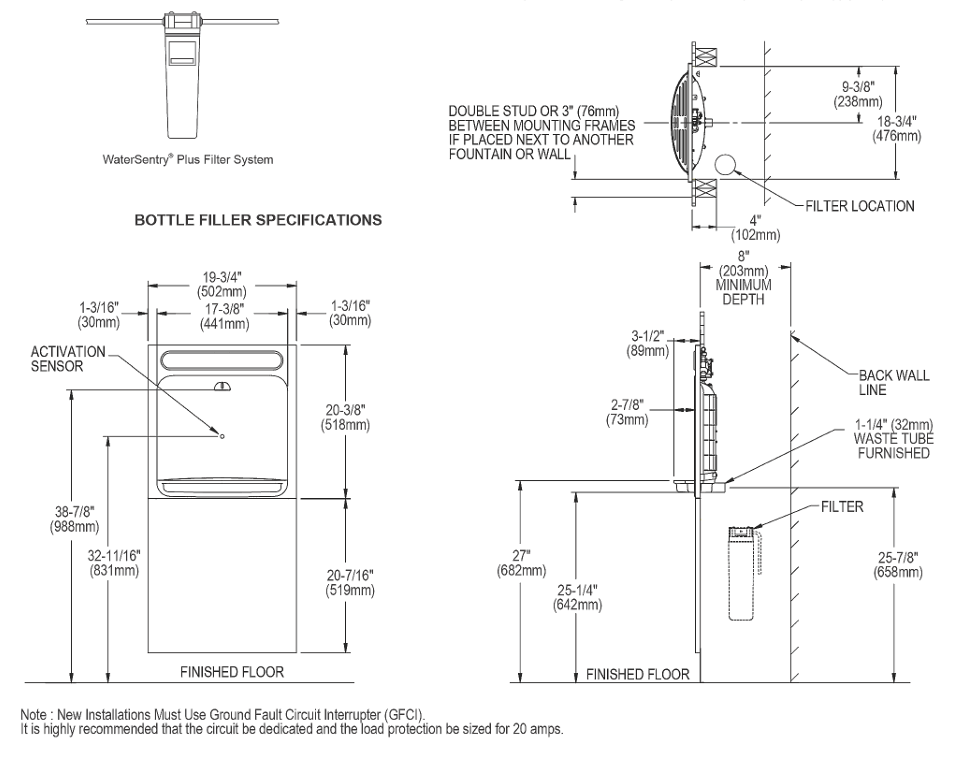

- Install the mounting frame and chiller shelf securely; verify wall cavity dimensions match rough‑in requirements.
- Mount the upper bottle filler panel to the frame using hinge brackets and screws; ensure lock brackets align with slots.
- Mount the lower chiller panel to the frame; adjust hinges if necessary and lock panels in place with set screws and bolts.
- Attach drain fittings to the furnished 1‑1/4" waste tube; connect elbow to P‑trap and cut tube to required length.
- Install remote chiller on shelf; maintain minimum 4" clearance on top/sides and 12" depth for service access.
- Connect building water supply to service stop valve (installer supplied); connect 3/8" copper tubing to filter head or strainer.
- For filtered units: mount WaterSentry® Plus EWF3000 filter head to chiller side panel; connect outlet to chiller inlet with 1/4" tubing.
- Insert filter cartridge into filter head; rotate clockwise until secure; label should face forward.
- For non‑filtered units: install in‑line strainer between valve and chiller inlet; flush line thoroughly before connection.
- Connect bottle filler water line from chiller outlet using 1/2" poly tubing union; connect electrical harness to wall box receptacle.
- Turn on water supply; flush at least 1 gallon through bottle filler to purge air and carbon particles; check all connections for leaks.
- Plug unit into grounded outlet; verify green LED filter status and LCD bottle counter display.
- Test dispensing by placing bottle or hand in front of sensor; confirm proper water flow.
- Close and lock lower panel with set screws; installation complete.
- For detailed steps, refer to the Elkay In‑Wall EZWSM/LZWSM installation manual or contact a licensed plumber/electrician.
- Inspect water and drain connections regularly; reseal or tighten fittings as needed.
- Replace WaterSentry® Plus filter cartridge when LED indicator shows red or after rated capacity; reset filter monitor via program button.
- Clean stainless steel panels with mild detergent and soft cloth; avoid abrasive cleaners or chloride‑based chemicals.
- Clean plastic components with mild detergent and soft cloth; antimicrobial properties will not be harmed.
- Check bubbler stream height; adjust regulator screw to maintain approximately 1‑1/2" above guard.
- Factory temperature control is set at 50°F ± 5°F; adjust cold control if needed for altitude or local conditions.
- Disconnect power and water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified Elkay service representative.
