Elkay LZWS-ERPB8-RF | Retrofit for In-wall SwirlFlo Bottle Filling ...

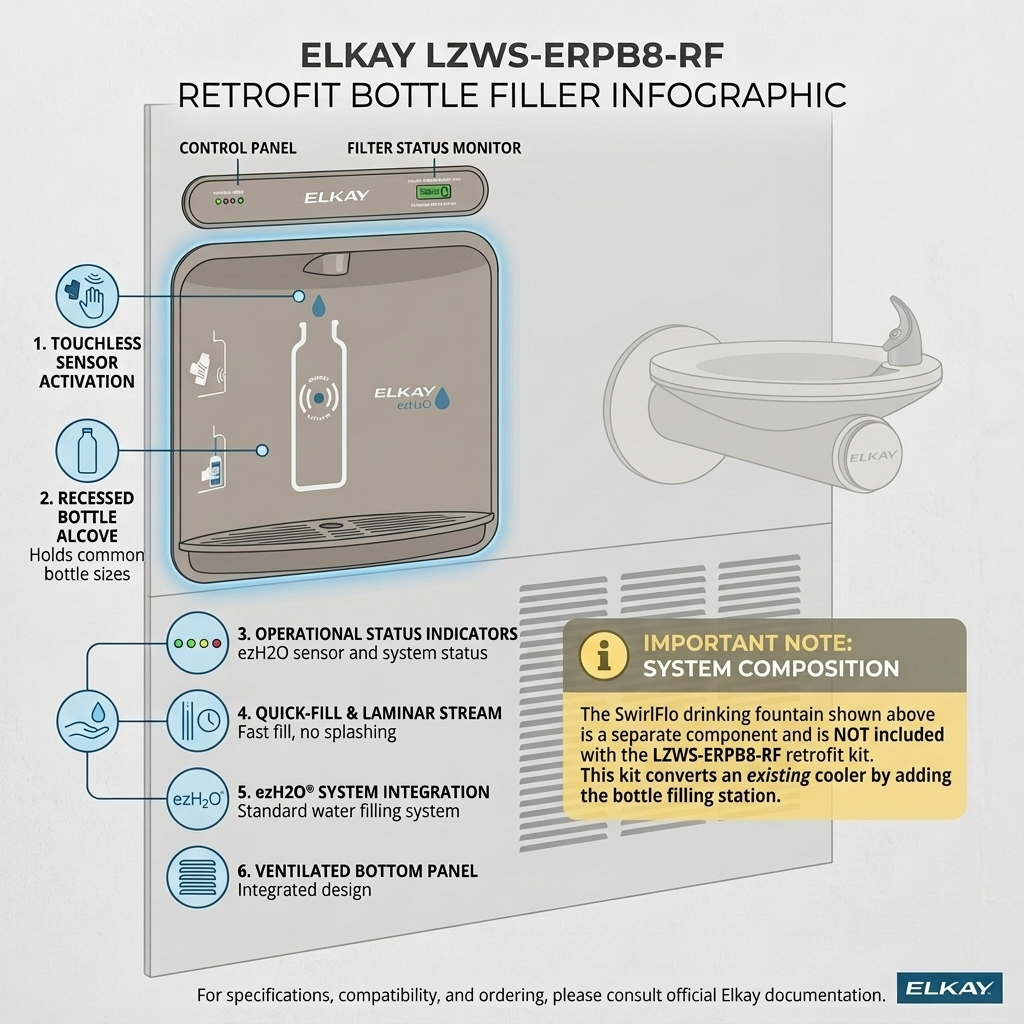

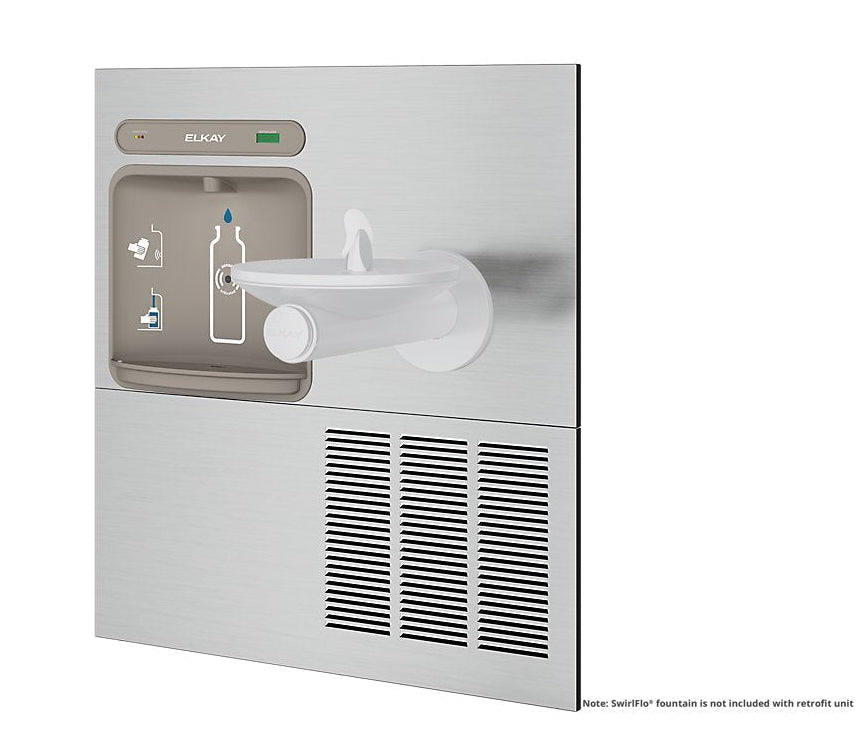

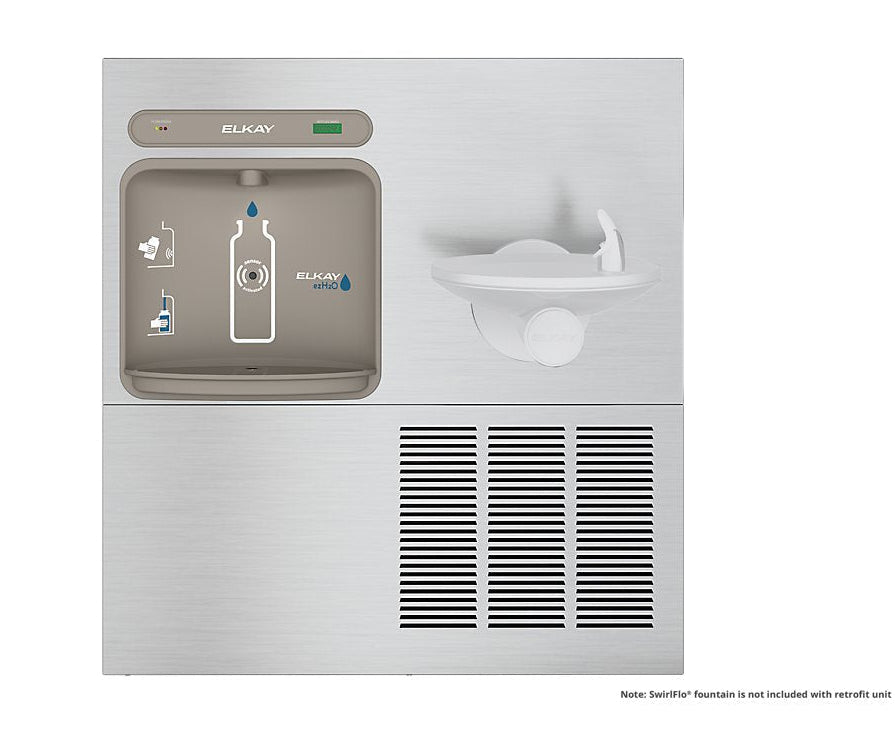

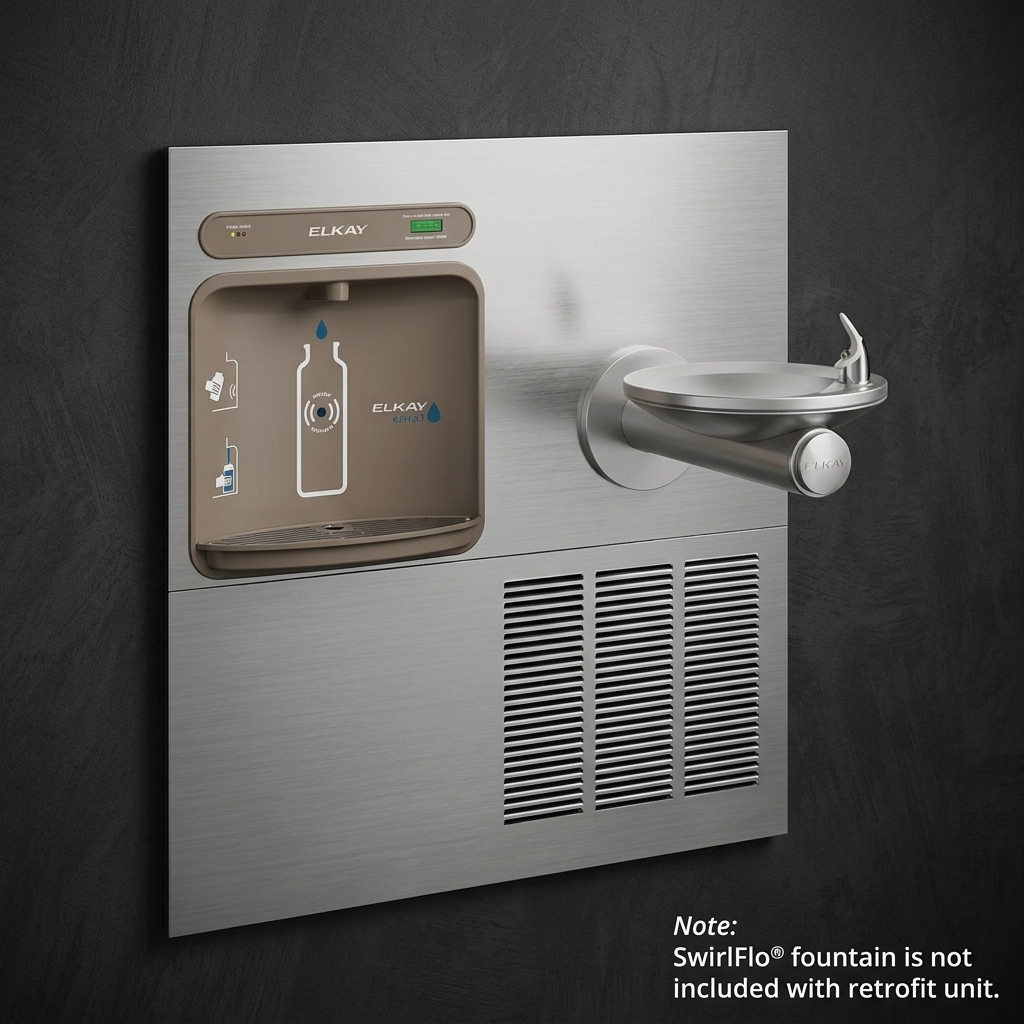

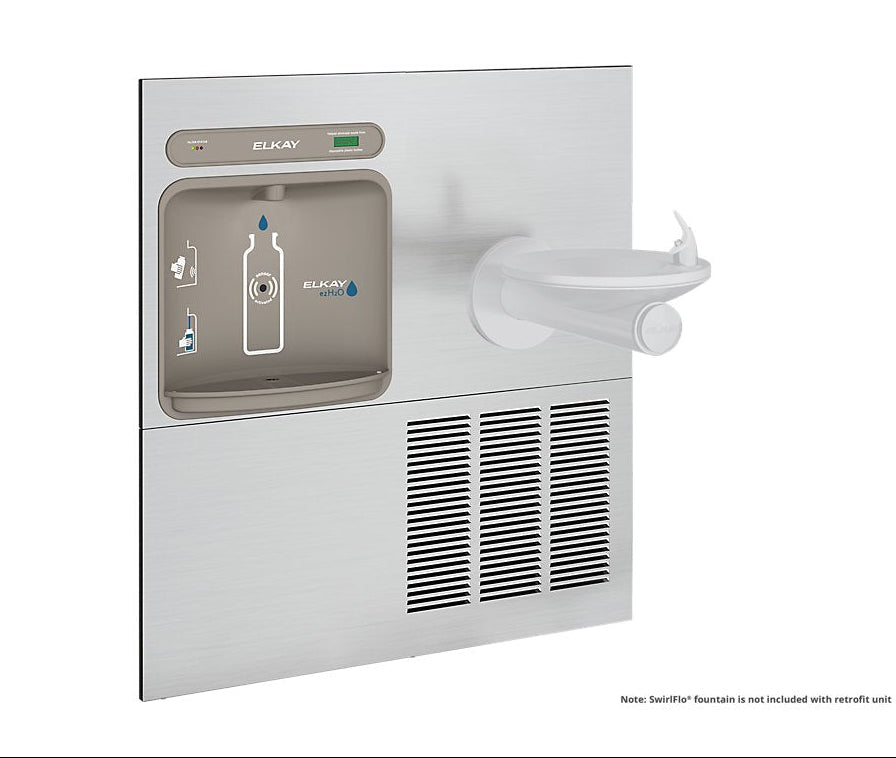

The Elkay LZWS-ERPB8-RF ezH2O® Retrofit Bottle Filling Station transforms existing SwirlFlo® refrigerated fountains into modern filtered hydration stations. Featuring hands-free activation, antimicrobial surfaces, laminar flow, and a visual filter monitor, it delivers chilled, safe, and sustainable drinking water while reducing contaminants.
Key Specifications:
| Design | Retrofit bottle filler for SwirlFlo® refrigerated fountains; includes panels and mounting frame |
| Finish | Stainless Steel (S) |
| Filtration | Standard 3,000-gallon 51300C WaterSentry® filter certified to NSF/ANSI 42, 53, 372, and 401 for reduction of lead, microplastics, chlorine taste/odor, cysts, and particulates. |
| Refrigeration | 8.0 GPH chilled water capacity at 50°F (based on 80°F inlet water and 90°F ambient) |
| Activation | Electronic bottle filler sensor with mechanical bubbler button |
Features & Benefits:
- Retrofit Design: Converts existing SwirlFlo® refrigerated fountains into modern bottle fillers.
-
Filtered Hydration: Certified filter reduces lead, microplastics, chlorine, and cysts.
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed.
- Green Ticker™: Displays number of plastic bottles saved from waste.
- Real Drain System: Eliminates standing water for cleaner operation.
What's Included:
- Integral bottle filling station
- WaterSentry® filter
- Panels
- Mounting frame
FAQ
Q: What Is The Elkay LZWS-ERPB8-RF ezH2O® Retrofit Bottle Filling Station Used For?
A: It retrofits existing SwirlFlo® refrigerated fountains to provide filtered, chilled hydration with modern features.
Q: What Filter Does The Elkay LZWS-ERPB8-RF Use?
A: It includes a 3,000-gallon WaterSentry® filter and is compatible with the 51300C Replacement Filter.
Q: How Is The Elkay LZWS-ERPB8-RF Activated?
A: It uses an electronic sensor for the bottle filler and a mechanical push button for the bubbler.
Q: Is The Elkay LZWS-ERPB8-RF Refrigerated?
A: Yes. It provides 8.0 GPH of chilled water at 50°F.
Q: What Accessories Are Available For The Elkay LZWS-ERPB8-RF?
A: Optional accessories include the 51300C WaterSentry® Filter, LKAPR1 Cane Apron, and ACCESS12X38-5 access panels.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Elkay LZWS‑ERPB8‑RF is a retrofit bottle filling station designed to upgrade existing Elkay EZ series coolers and fountains. Featuring filtered, refrigerated water delivery and touchless activation, it provides a modern hydration solution without replacing the entire unit.

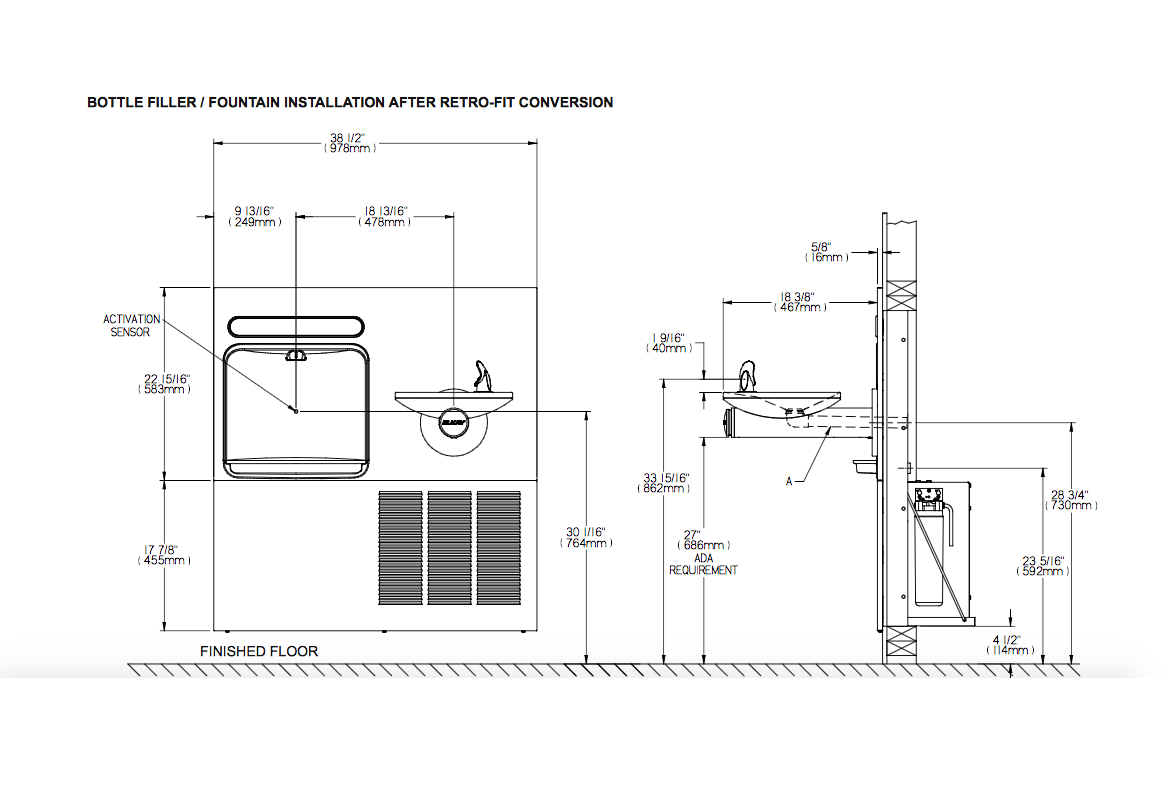

Key Installation Requirements:
- Retrofit installation onto compatible Elkay EZ series coolers
- Cold water line connection (35–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet
- Drain connection required for condensate
- Clearance for filter replacement and servicing
- Follow ADA guidelines for installation height
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Use only genuine Elkay filters to maintain certification and performance
- Ensure cooler is properly leveled before retrofit installation
- Secure retrofit kit firmly to prevent vibration or leaks
Basic Installation Overview:
- Shut off water supply and disconnect cooler from power
- Remove existing front panel and prepare cooler for retrofit
- Install retrofit bottle filler assembly onto cooler frame
- Connect cold water supply line to inlet; flush line thoroughly
- Install filter cartridge into housing and lock into place
- Connect drain line to building drain system
- Wire electrical supply to grounded outlet; verify refrigeration system powers on
- Test bottle filler activation and chilled water flow
- Reinstall cover panels and finish trim
For complete specifications and installation guidelines, download the official LZWS‑ERPB8‑RF Spec Sheet and the Installation Manual.
