Elkay LZSTL8SC | Wall-mount Bi-Level Versatile EZ-style Drinking Fo...

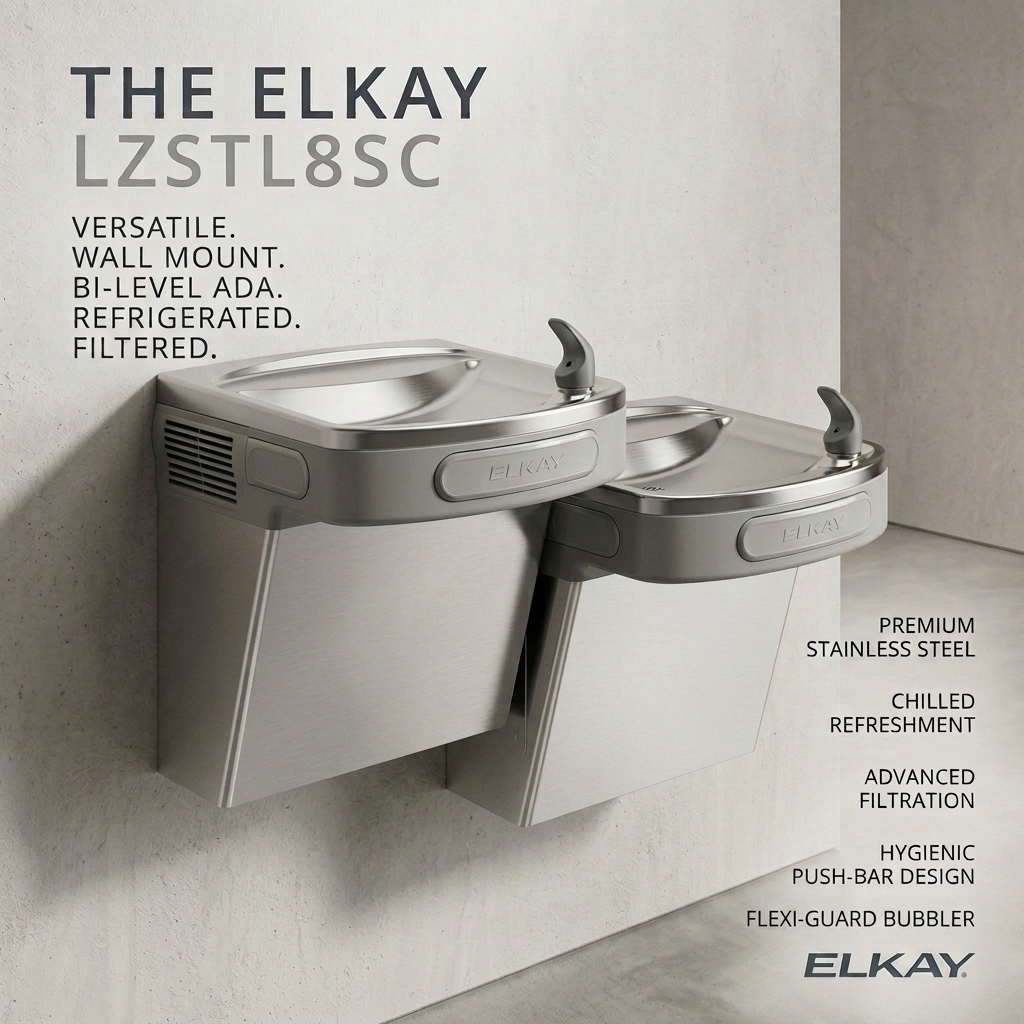

The Elkay LZSTL8SC is a versatile wall‑mount bi‑level ADA cooler with integrated filtration and refrigeration. Designed for indoor use, it combines accessibility, safety, and reliable chilled hydration in a stainless steel finish.
Key Specifications:
| Design | Wall‑mount bi‑level ADA cooler with Flexi‑Guard® Safety Bubblers |
| Finish | Stainless Steel. Also available in granite gray. |
| Filtration | Standard 51299C WaterSentry® filter, NSF/ANSI 42, 53, 372 & 401 certified |
| Refrigeration | Refrigerated, 8.0 GPH chilled water |
| Stations Served | 2 (drinking fountains) |
Features & Benefits:
- Filtered Hydration: Reduces lead, microplastics, chlorine taste/odor, and more.
- Flexi‑Guard® Safety Bubblers: Antimicrobial mouth guard reduces risk of injury and resists microorganisms.
- Reliable Cooling: Provides 8.0 GPH of chilled water at 50°F based on ASHRAE 18 testing.
- ADA Compliant: Meets ADA & ICC A117.1 accessibility standards when properly installed.
- Certified Compliance: UL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 61 & 372.
What's Included:
- LZSTL8SC Bi‑Level ADA Cooler
- Standard WaterSentry® Filter
- Installation instructions (PDF 1000003116)
- Warranty documentation
Comparison of Elkay Coolers:
| Feature | LZSTL8SC | LK4406 | LRPBM28K |
|---|---|---|---|
| Design | Bi‑level ADA cooler with Flexi‑Guard® Safety Bubblers | Outdoor bi‑level wall‑mounted drinking fountain | Bi‑level In-wall fountain with integrated filtered bottle filler |
| Finish | Stainless Steel | Stainless Steel, outdoor‑rated | Stainless Steel |
| Filtration | Standard 51299C WaterSentry® filter, NSF/ANSI certified | Non‑filtered | Standard 51299C WaterSentry® filter, NSF/ANSI certified |
| Refrigeration | Refrigerated, 8.0 GPH chilled water | Non‑refrigerated | Refrigerated, 8.0 GPH chilled water |
| Activation | Electronic front and side pushbar | Mechanical pushbutton bubblers | Electronic bottle filler sensor + mechanical bubbler button |
| Best For | Indoor facilities needing filtered refrigerated hydration with ADA compliance | Outdoor schools, parks, and public spaces needing durable non‑refrigerated fountains | Indoor facilities requiring refrigerated hydration with integrated bottle filling |
FAQ
Q: What Is Included with the Elkay LZSTL8SC?
A: The Elkay LZSTL8SC includes the bi‑level ADA cooler, Flexi‑Guard® Safety Bubblers, and a standard WaterSentry® filter. Components ship in one box.
Q: What Filtration Options Are Available for the Elkay LZSTL8SC?
A: The Elkay LZSTL8SC uses the Elkay 51299C WaterSentry® Replacement Filter, certified to NSF/ANSI 42, 53, 372, and 401 standards for reduction of lead, microplastics, chlorine taste/odor, and more.
Q: What Accessories Are Compatible with the Elkay LZSTL8SC?
A: Recommended accessories include the Elkay MLP200 In‑Wall Carrier, the Elkay LKAPREZL Cane Apron, and the Elkay 1000004539 Wall Plate for bi‑level installations.
Q: What Electrical Requirements Apply to the Elkay LZSTL8SC?
A: The Elkay LZSTL8SC requires 115V/60Hz power, rated at 370 watts with a full load of 5 amps. Installation must use a Ground Fault Circuit Interrupter (GFCI) for safety.
Q: Can the Elkay LZSTL8SC Be Installed Outdoors?
A: No. The Elkay LZSTL8SC is designed for indoor use only and must be installed in compliance with local plumbing and electrical codes.
Q: What Warranty Coverage Applies to the Elkay LZSTL8SC?
A: The Elkay LZSTL8SC includes a 5‑year limited warranty on the refrigeration system and 12‑month coverage on electrical components and the water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Elkay LZSTL8SC is a bi‑level drinking fountain with integrated filtered coolers. Designed for high‑traffic indoor environments, it delivers chilled, filtered water with dual ADA‑compliant access points and heavy‑duty construction for long‑lasting performance.

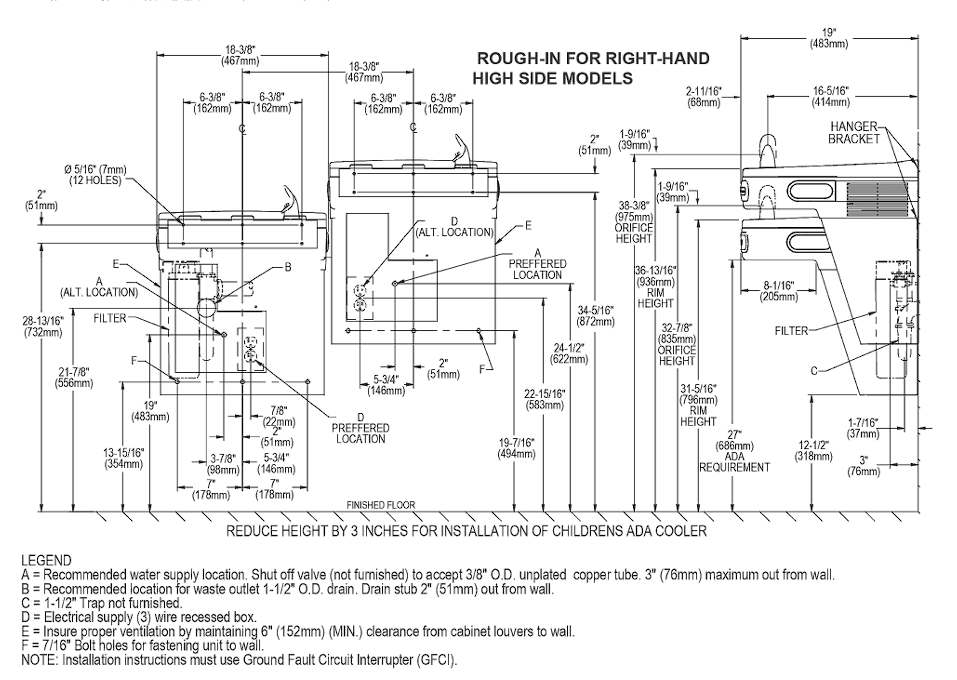

Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to meet bi‑level and vandal‑resistant requirements
- Outdoor installation requires winterization or protection in extreme climates
Basic Installation Overview:
- Install mounting frame securely to support dual cooler weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Install filter head and cartridge into bracket, connect tubing per routing diagram
- Mount cooler assembly to carrier, ensuring wires and tubing are not pinched
- Connect drain lines from both coolers to building drain system
- Wire electrical supply to grounded outlet; verify cooling system powers on
- Test bubbler stream height; adjust regulator if needed
- Install bottom cover plates and tighten back panel screws
For complete specifications and installation guidelines, download the official LZSTL8SC Spec Sheet and the Installation & Maintenance Manual.
