Elkay LRPBM28K | In-wall Bi-Level Swirlflo Drinking Fountain | Filt...

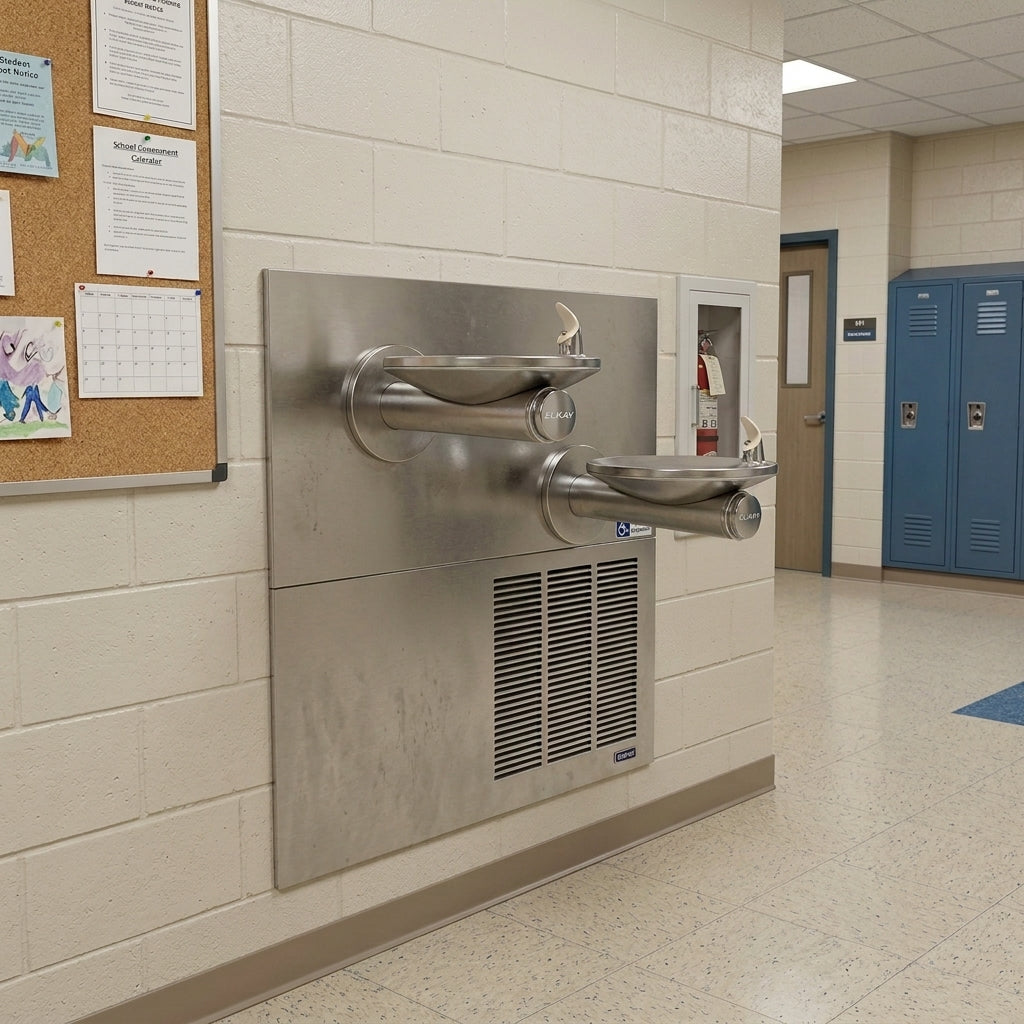

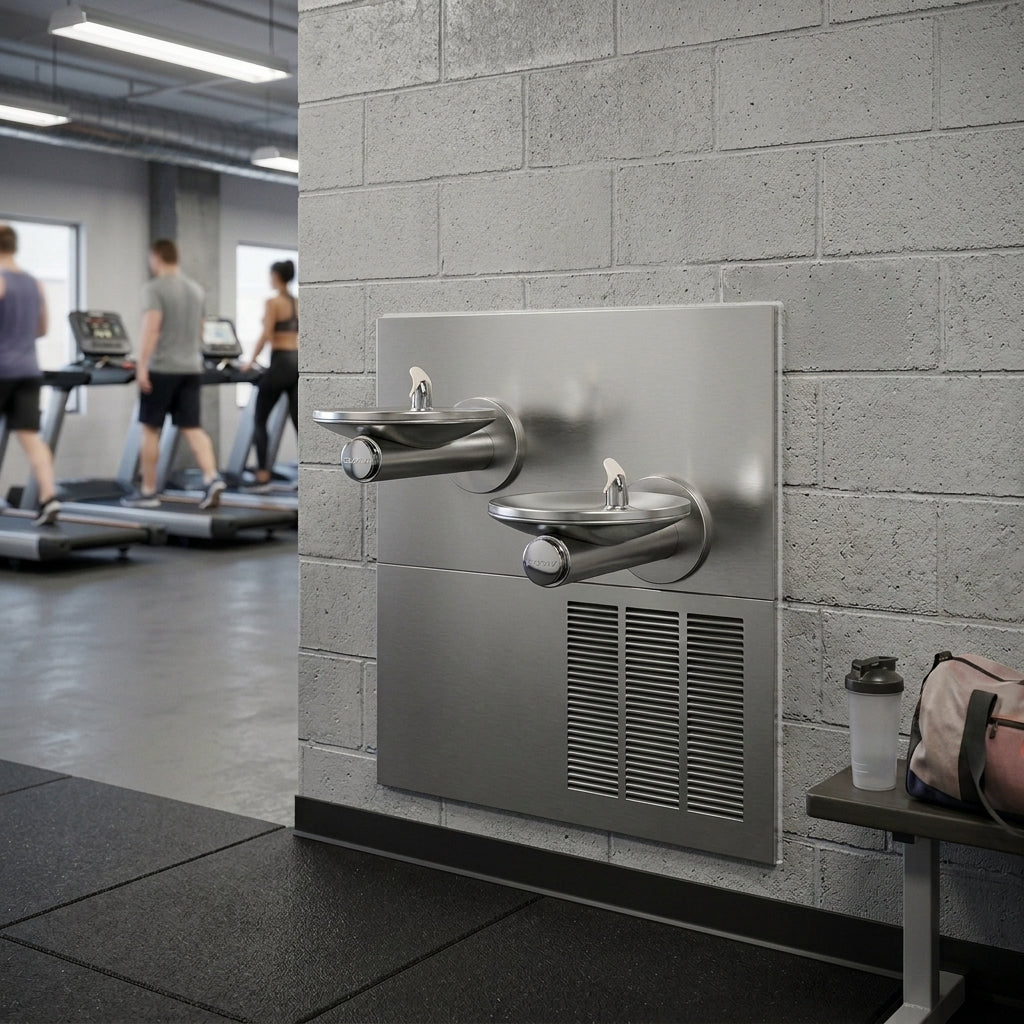

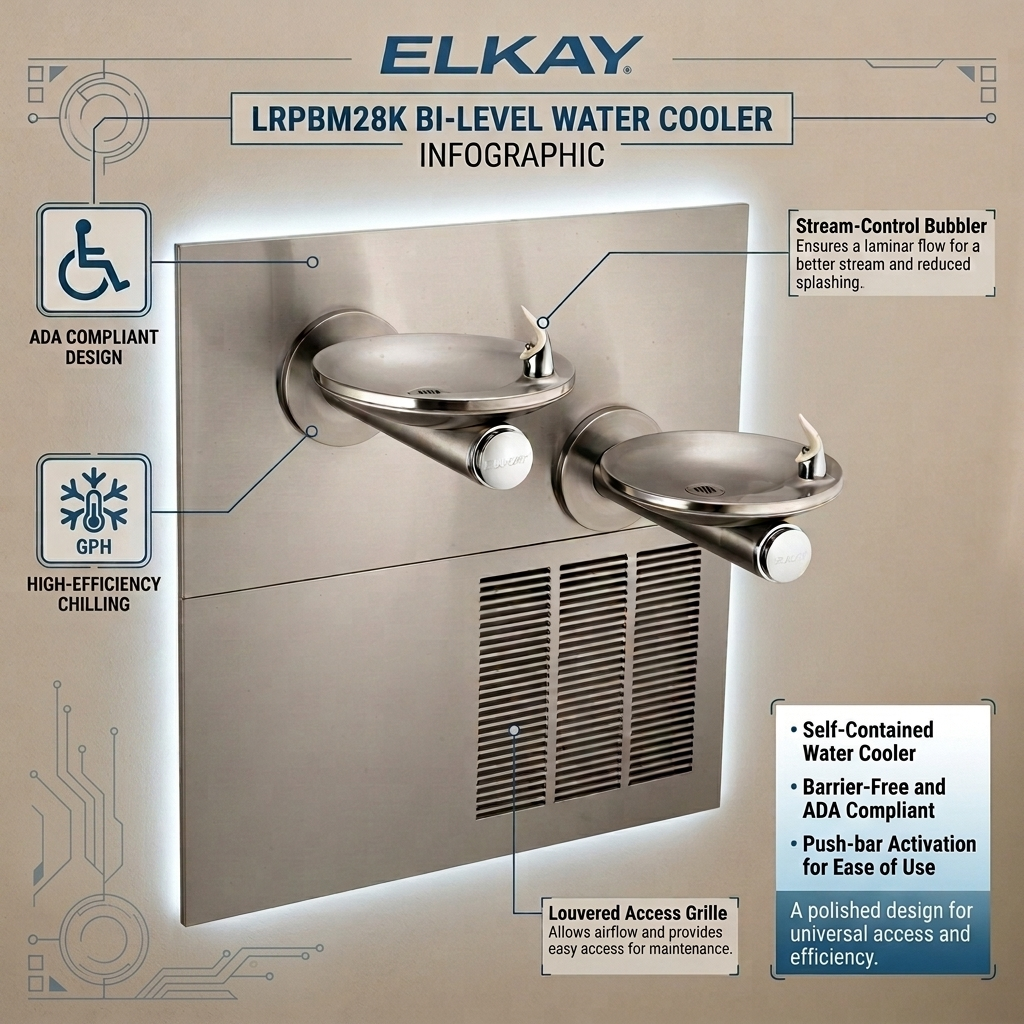

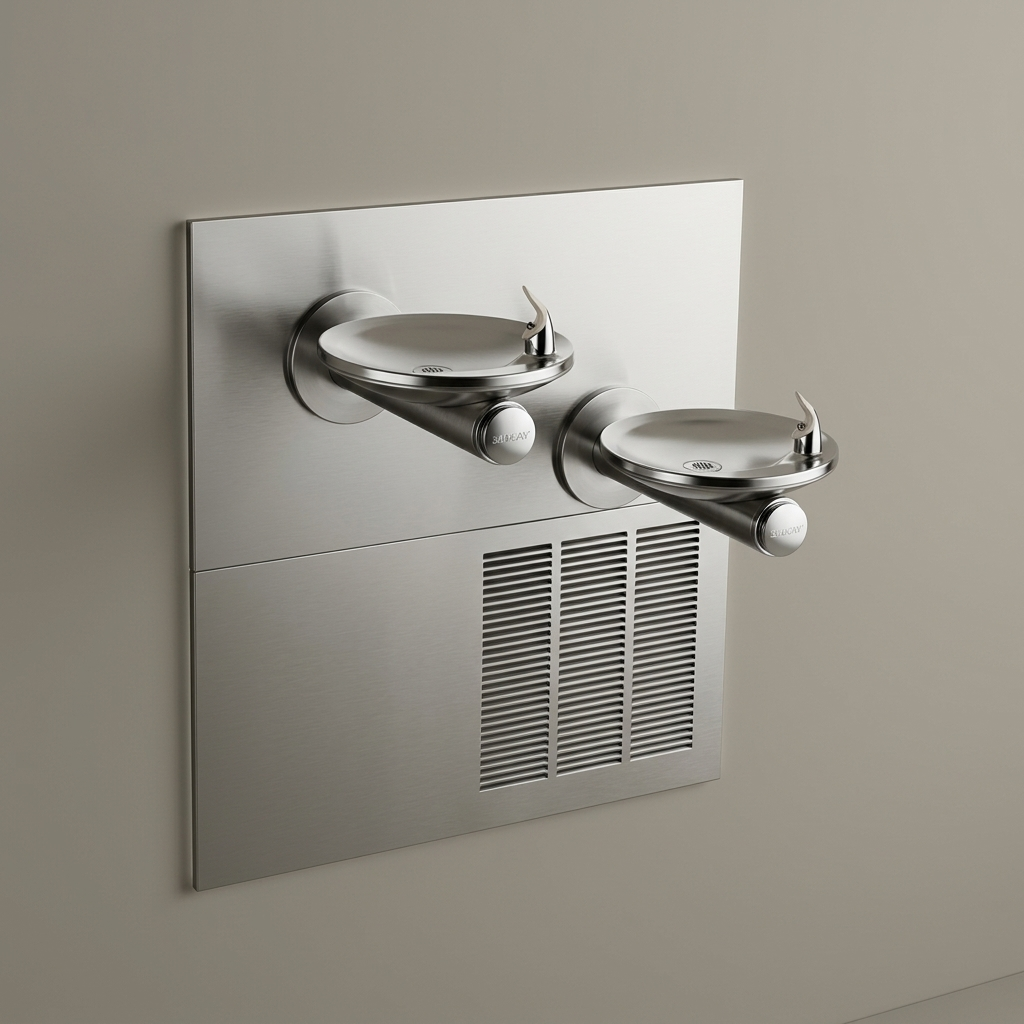

The Elkay LRPBM28K is a SwirlFlo® bi‑level ADA fountain with mounting frame, filtered and refrigerated. Designed for indoor wall‑mount installations, it delivers up to 8 gallons per hour of chilled drinking water and provides accessible hydration for two stations with Flexi‑Guard® safety bubblers.
Key Specifications:
| Design | SwirlFlo® bi‑level ADA fountain with in‑wall mounting frame |
| Finish | Stainless Steel |
| Filtration | Includes 51299C WaterSentry® filter, NSF/ANSI 42, 53, 372, and 401 certified |
| Refrigeration | 8.0 GPH chilled water capacity, hermetically‑sealed compressor, R‑134a refrigerant |
| Stations Served | 2 drinking fountains |
Features & Benefits:
- ADA Compliant: Meets ADA & ICC A117.1 accessibility standards when installed properly
- Filtered Hydration: Provides cleaner, better‑tasting water with NSF/ANSI certified filtration
- Durable Construction: Stainless steel cabinet with mounting frame for long service life
- Reliable Cooling: 8 GPH chilled water capacity with factory‑preset regulator
- Certified Compliance: UL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 42, 53, 61, 372, & 401
What's Included:
- LRPBM28K Bi‑Level ADA Fountain
- Remote chiller package
- Mounting frame
- WaterSentry® filter
- Installation instructions (PDF)
- Warranty documentation
Comparison of Bi‑Level Fountains:
| Feature | LRPBM28K | LRPBM28RAK | LZWS‑LRPBM28K |
|---|---|---|---|
| Design | SwirlFlo® bi‑level ADA fountain | SwirlFlo® bi‑level ADA fountain with cane apron | Bi‑level ADA fountain with integrated bottle filler |
| Filtration | Standard WaterSentry® filter included | Standard WaterSentry® filter included | Filtered bottle filler + fountain combination |
| Refrigeration | 8.0 GPH chilled water capacity | 8.0 GPH chilled water capacity | 8.0 GPH chilled water capacity |
| Stations Served | 2 fountains | 2 fountains | 2 fountains + 1 bottle filler |
| Best For | Schools, offices, healthcare facilities needing ADA fountains | Public spaces requiring ADA fountains with cane apron accessibility | High‑traffic areas needing both fountains and bottle filling stations |
How to Install the LRPBM28K:

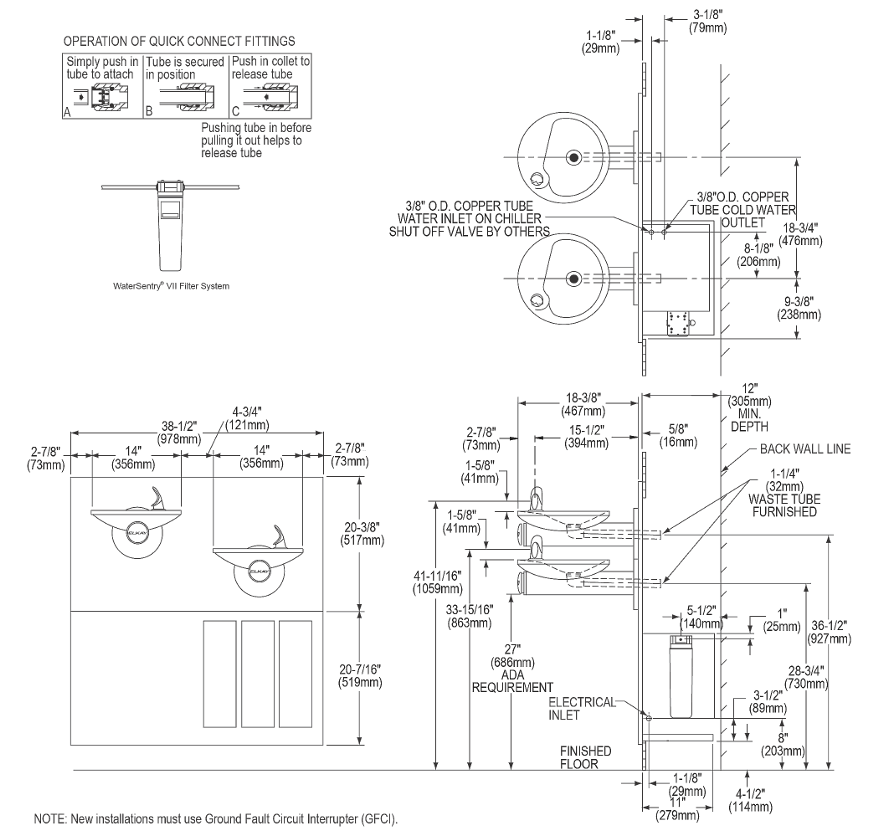

- Prepare Wall Opening: Cut a 37‑1/2" W x 37‑3/4" H opening, 4‑1/2" above floor line.
- Install Mounting Frame: Secure frame with bolts and hook rods; ensure proper depth clearance (12" minimum).
- Position Chiller: Place hermetically‑sealed chiller on shelf, connect water inlet and outlet tubes.
- Attach Panels: Hang upper panel, then mount fountains to frame using provided brackets and fasteners.
- Connect Plumbing: Attach waste tube to slip trap, connect water supply line (20–105 PSI).
- Make Electrical Connections: Connect to grounded 115V/60Hz supply with GFCI protection.
- Test Operation: Check bubbler stream height (factory set at 35 PSI), adjust regulator if needed.
How to Maintain the LRPBM28K:
- Filter Replacement: Replace WaterSentry® filter every 1,500–3,000 gallons or annually.
- Stream Adjustment: Periodically check bubbler stream height; adjust regulator screw if supply pressure changes.
- Cleaning: Wipe stainless steel surfaces with mild detergent; avoid harsh chemicals.
- Prevent Corrosion: Do not store bleach or chloride cleaners beneath the unit.
- Winterization: In cold climates, drain system if unit will be unused to prevent freeze damage.
- Routine Inspection: Check for leaks, ensure compressor fan is unobstructed, and verify cooling performance.
FAQ
Q: What Is the Recommended Supply Line Pressure?
A: The LRPBM28K is designed to operate on 20–105 PSI supply line pressure. If inlet pressure is above 105 PSI, a pressure regulator must be installed.
Q: How Is the Bubbler Stream Height Adjusted?
A: Stream height is factory set at 35 PSI. If supply pressure varies, remove the push button and adjust the screw on the regulator. Clockwise raises stream height, counterclockwise lowers it. For best adjustment, the stream should hit the basin approximately 6‑1/2" from the bubbler.
Q: What Filtration Is Included?
A: The LRPBM28K comes with a WaterSentry® filter tested and certified to NSF/ANSI 42, 53, 372, and 401 for reduction of lead, microplastics, cysts, chlorine taste, and odor.
Q: Can The Bubbler Be Upgraded?

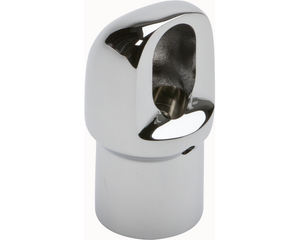

A: Yes. The Flexi‑Guard® bubbler can be replaced with the Elkay 97446C Vandal‑Resistant Bubbler Kit for added durability.
Q: What Accessories Are Available?
A: Optional accessories include cane aprons (LKAPR1), stainless steel ACCESS12X38‑5 access panels, and additional WaterSentry® filter kits.
Q: Is The LRPBM28K ADA Compliant?
A: Yes. When installed according to ADA & ICC A117.1 standards, the fountain complies with accessibility requirements for public spaces.
Q: How Often Should The Filter Be Replaced?
A: The WaterSentry® filter should be replaced every 1,500–3,000 gallons or at least once per year, depending on usage and water quality.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Elkay LRPBM28K is a SwirlFlo® bi‑level ADA fountain with integrated filtered bottle filler. Designed for indoor wall‑mount installations, it delivers chilled drinking water and touchless bottle filling, providing accessible hydration for two stations.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet
- Drain connection required for both fountain basins and bottle filler
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit must be installed indoors or in protected environments
- Always depressurize water line before servicing or replacing filter
- Provide adequate ventilation clearance around louvers
- Use only genuine Elkay filters to maintain certification and performance
- Ensure proper drainage to avoid water damage from spillage
Basic Installation Overview:
- Mount in‑wall carrier securely to support dual fountain and bottle filler weight
- Position fountain and bottle filler assembly, secure to wall structure
- Connect cold water supply line to inlet
- Connect drain lines from both basins and bottle filler to building drain system
- Wire electrical supply to grounded 115V outlet
- Install filter cartridge into filter head and rotate clockwise until seated
- Turn on water supply and flush system for 5 minutes
- Test both fountain stations and bottle filler for proper flow, cooling, and sensor activation
For complete specifications and installation guidelines, download the official LRPBM28K Spec Sheet and the Installation & Maintenance Manual.
