Elkay LZSTL8LC | Wall-mount Bi-Level Versatile EZ-style Drinking Fountain | Filtered, Refrigerated, Granite Gray
Elkay LZSTL8LC | Wall-mount Bi-Level Versatile EZ-style Drinking Fountain | Filtered, Refrigerated, Granite Gray is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZSTL8LC | Wall-mount Bi-Level Versatile EZ-style Drinking Fo...

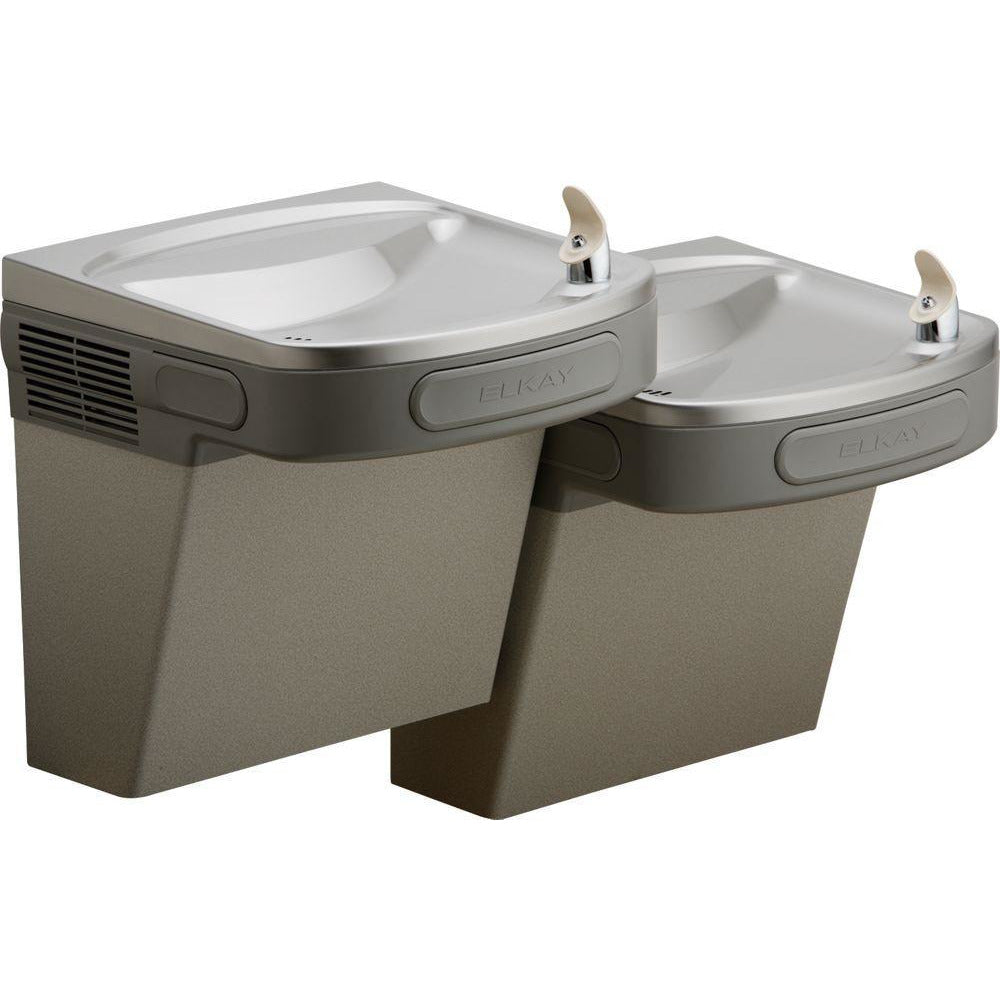

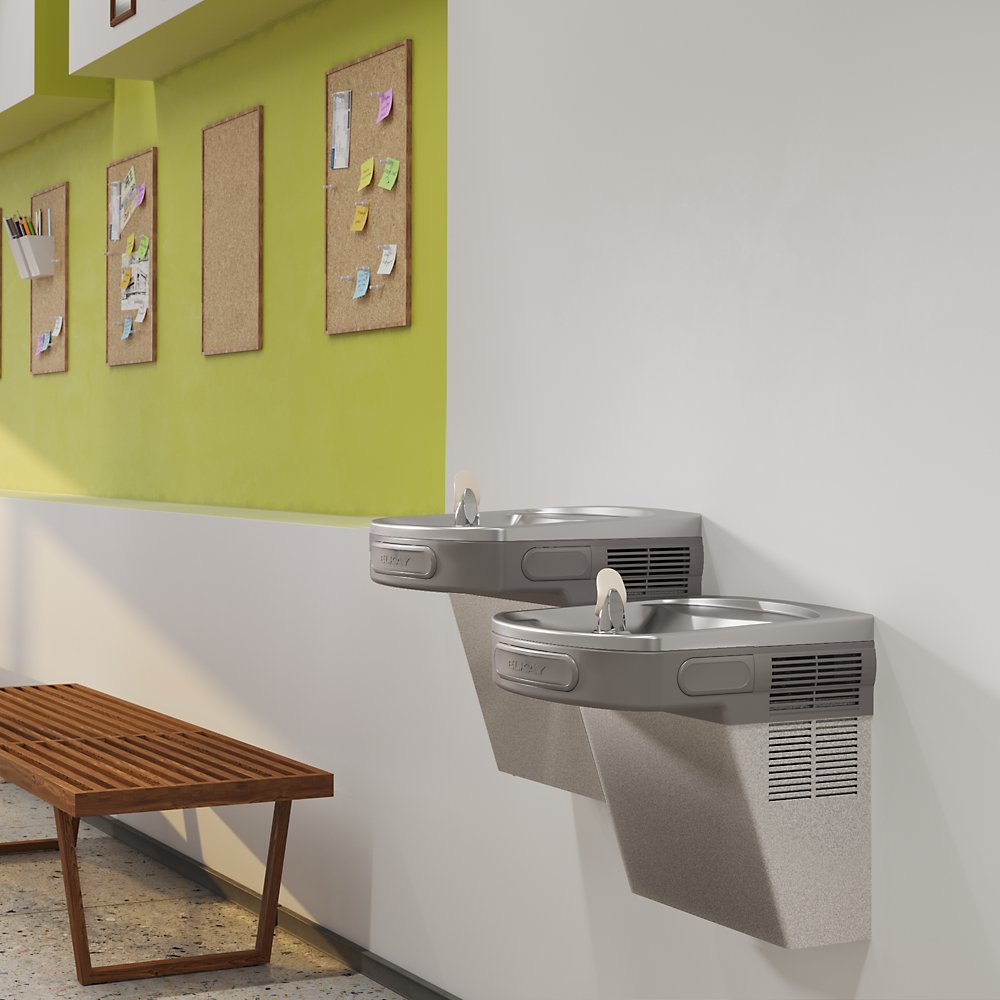

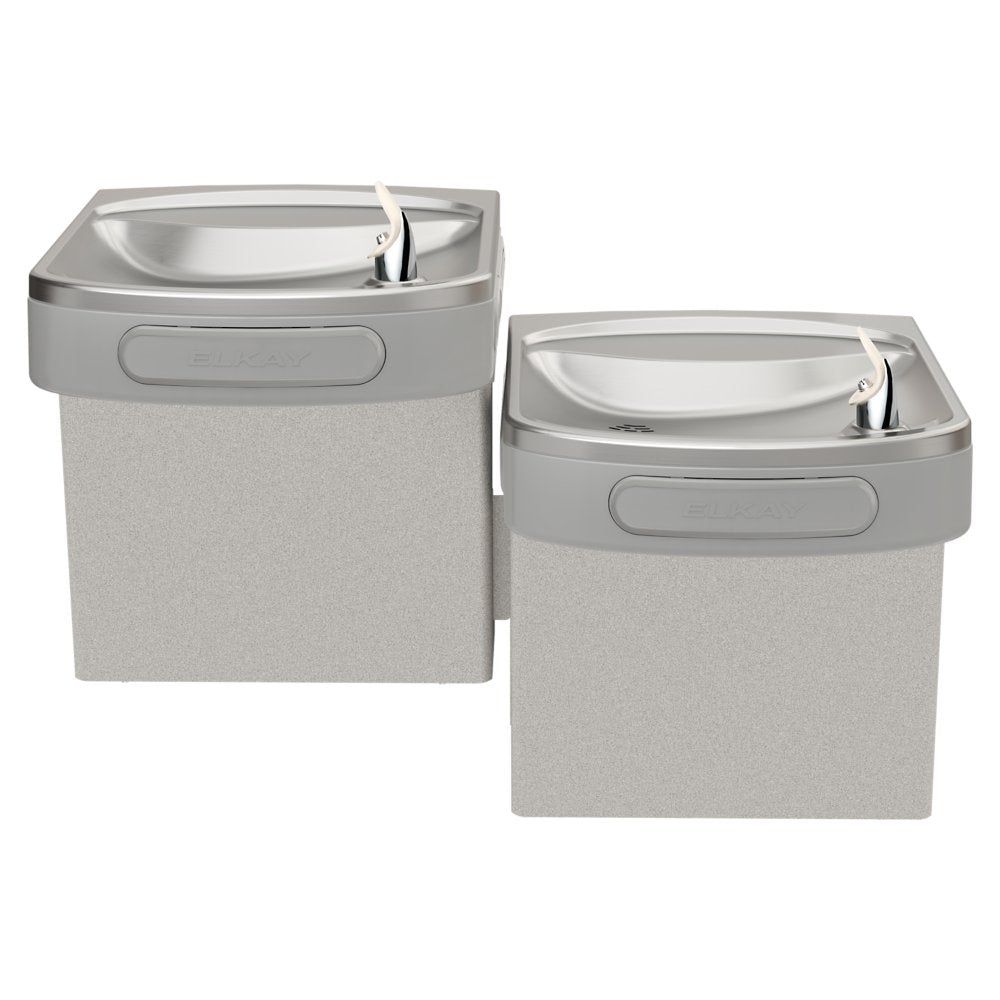

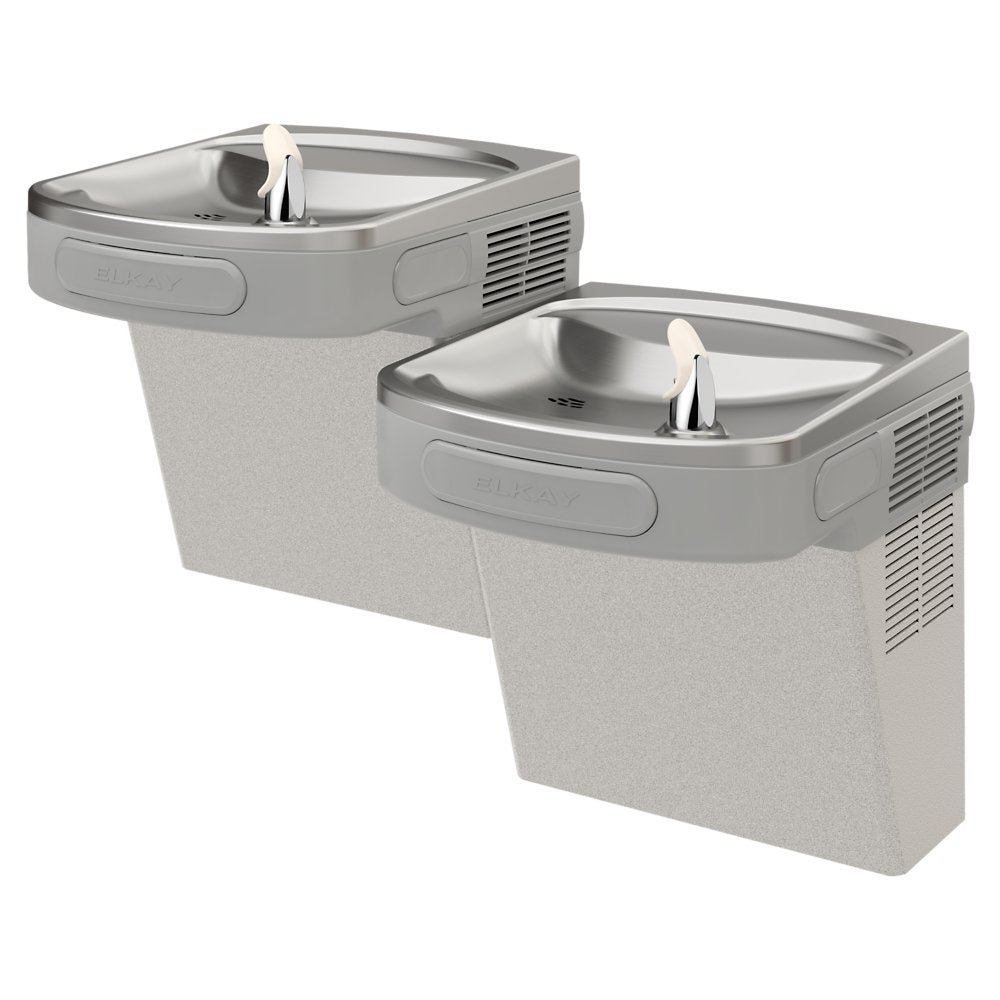

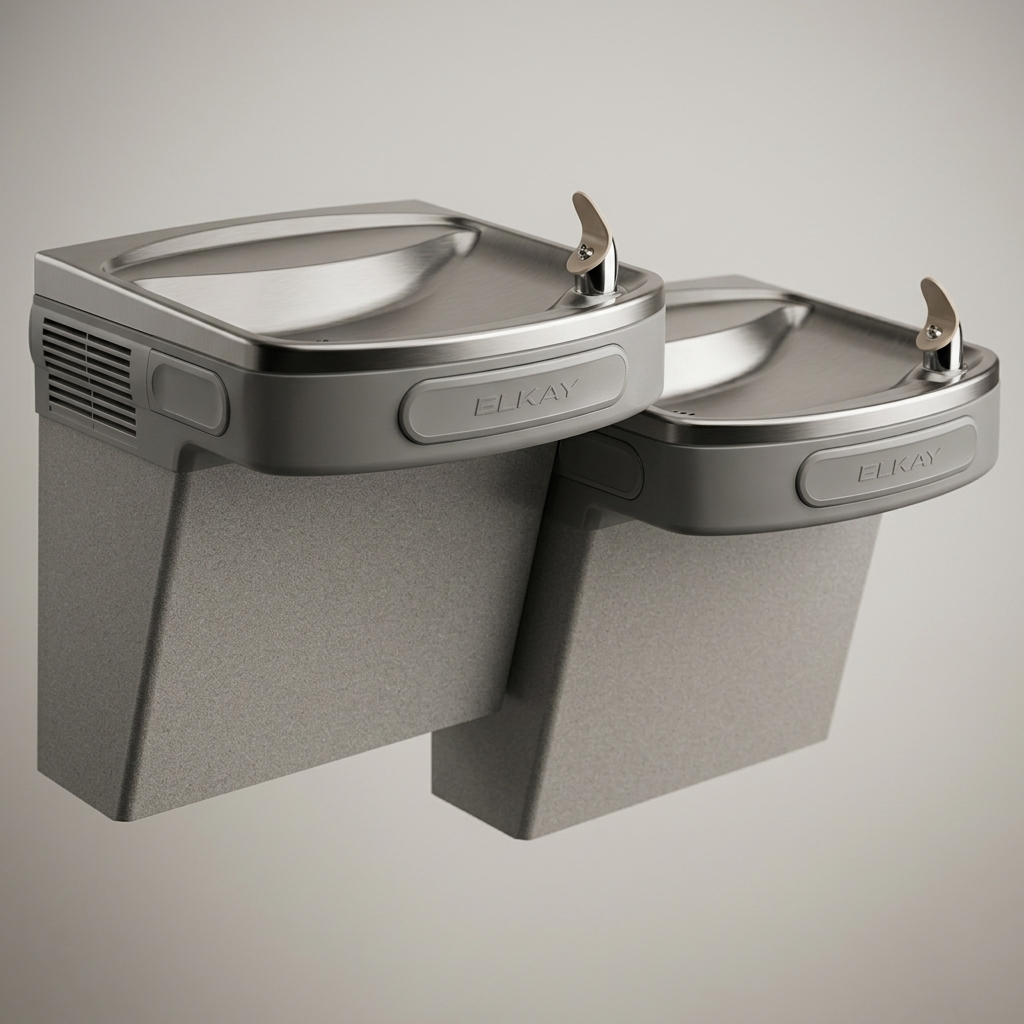

The Elkay LZSTL8LC Versatile Wall Mount Bi-Level ADA Cooler delivers high-efficiency chilled water in a durable Light Gray Granite finish. This filtered, refrigerated model combines advanced filtration, ADA-compliant accessibility, and long-lasting performance, making it ideal for schools, offices, and public spaces.
Key Specifications:
- Design: Wall-mounted bi-level ADA cooler, serving 2 stations.
- Finish: Light Gray Granite.
- Filtration: Includes WaterSentry® VII filter, NSF/ANSI 42, 53, 372, and 401 certified for lead, microplastics, particulates, cysts, and chlorine taste/odor. 1,500–3,000 gallon capacity or 1 year after installation.

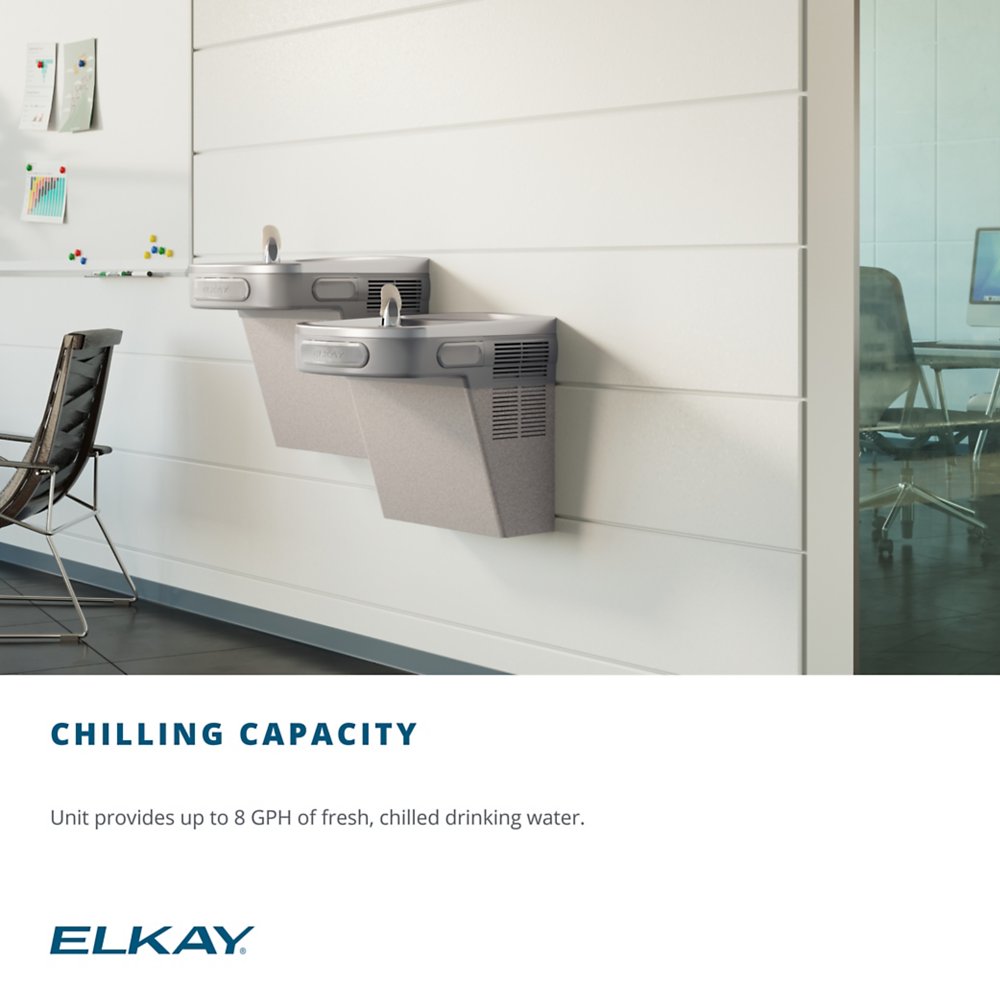

- Chilling Capacity: 8.0 GPH of 50°F drinking water (ASHRAE 18 tested).
- Activation: Electronic front and side bubbler pushbars with Flexi-Guard® Safety Bubblers.
- Power: 115V/60Hz, 370W, 5 full load amps.

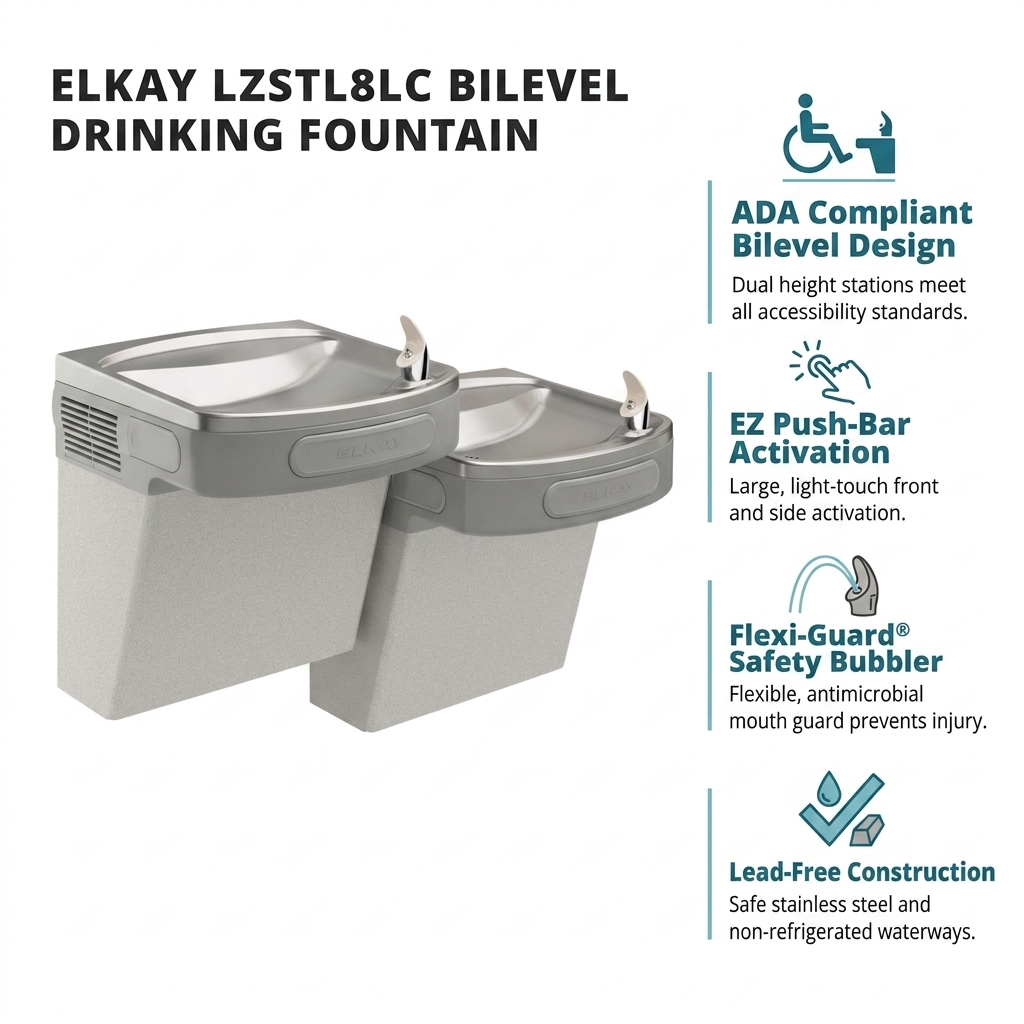

Features & Benefits:
- Filtered Water: Certified WaterSentry® VII filter reduces lead, microplastics, particulates, cysts, and chlorine taste/odor.
- Bi-Level ADA Design: Provides accessible drinking water for all users when installed according to ADA standards.

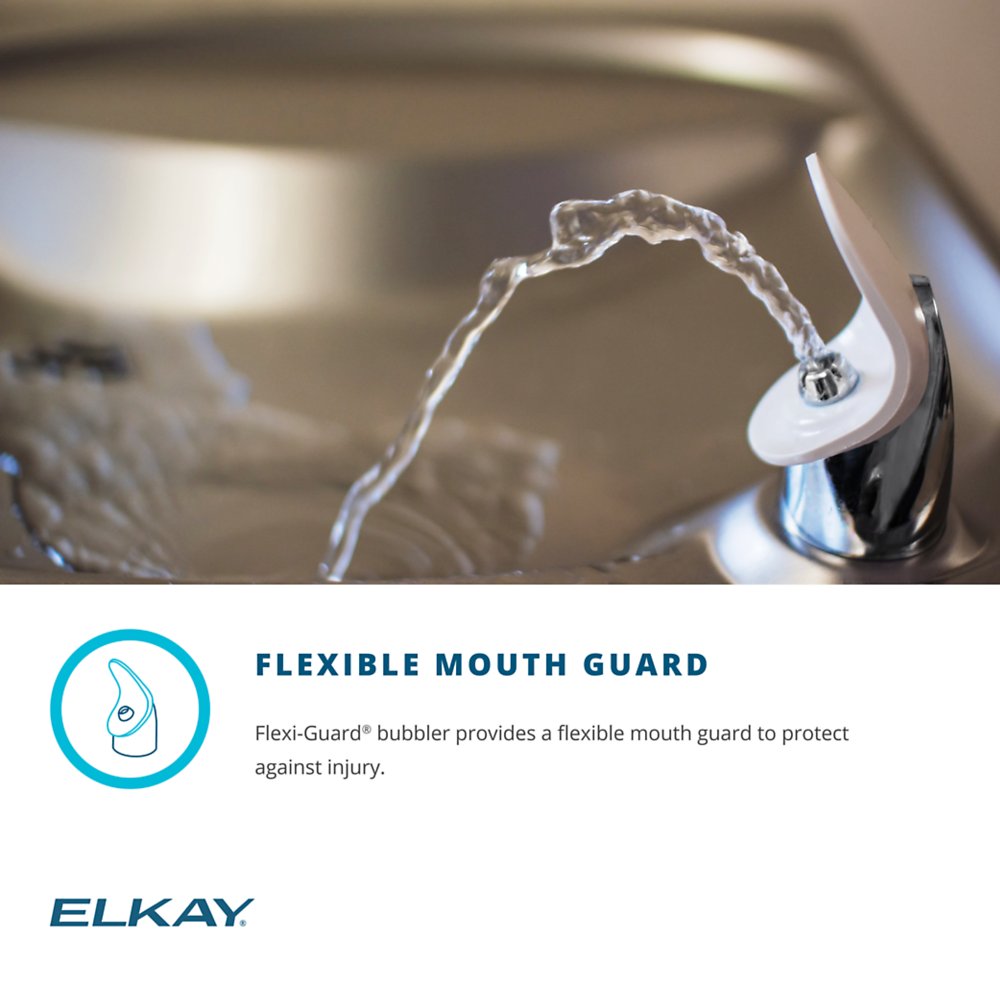

- Flexi-Guard® Safety Bubblers: Vandal-resistant bubblers protect against injury and contamination.
- Reliable Cooling System: Hermetically-sealed compressor, fan-cooled condenser, and EPS foam insulation deliver consistent chilled water.

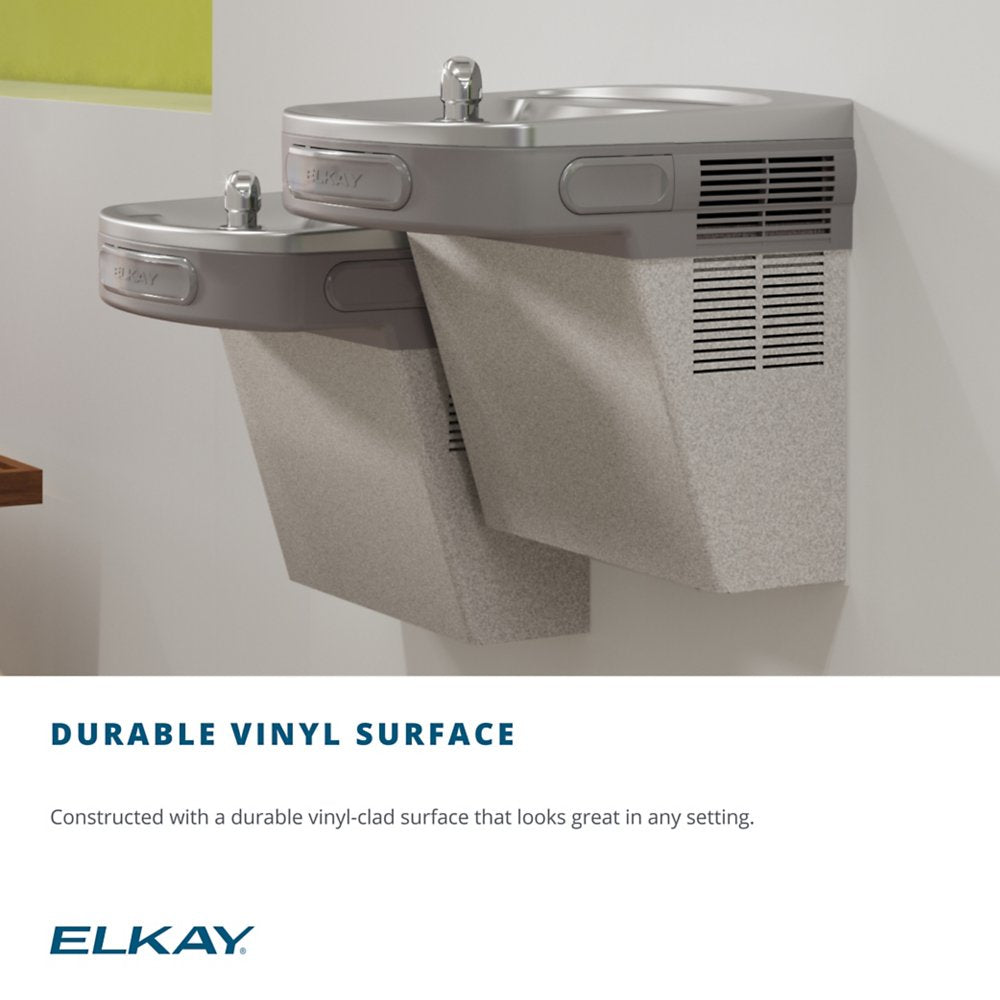

- Durability: Light Gray Granite finish resists wear and tampering, ideal for high-traffic environments.
- Real Drain System: Eliminates standing water for improved hygiene.
What's Included:
- LZSTL8LC bi-level ADA cooler
- WaterSentry® VII filter (51299C)
- Flexi-Guard® safety bubblers
- Mounting hardware and hanger bracket
- Installation instructions
- Owner’s manual and warranty guide
FAQ
Q: How often does the filter need to be replaced?
A: The filter should be replaced after 1,500–3,000 gallons of use or approximately once per year, depending on usage volume.
Q: Which filter cartridge does this unit use?
A: The Elkay LZSTL8LC uses the 51299C WaterSentry® VII replacement filter, certified to NSF/ANSI 42, 53, 372, and 401 standards.
Q: Is this unit ADA compliant?
A: Yes, the Elkay LZSTL8LC is designed with a bi-level configuration to meet ADA compliance requirements for accessibility.
Q: What is the installation process like?
A: The unit requires wall mounting, connection to water supply, and electrical power (115V/60Hz). Professional installation is recommended to ensure proper setup and compliance with local building codes.
Q: What warranty is included?
A: The LZSTL8LC comes with a 5-year limited warranty on the refrigeration system and a 1-year warranty on electrical components and water system (drinking water applications only).
Detailed Features & Benefits
Cooling System: Hermetically-sealed compressor with lifetime lubrication, fan-cooled condenser, and EPS foam insulation for efficient chilled water delivery. Refrigerant R-134a controlled by calibrated capillary tube.
Accessibility: ADA-compliant bi-level design ensures inclusive access when installed according to ADA & ICC A117.1 standards.
Sustainability: Filtered water encourages reusable bottle use, reducing single-use plastic waste.
Maintenance: Visual filter monitor and accessible panels simplify filter replacement and system service.
Warranty: 5-year limited warranty on refrigeration system; 1-year warranty on electrical components and water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
