Elkay LZS8S | Wall-mount EZ-style Drinking Fountain | Filtered, Ref...

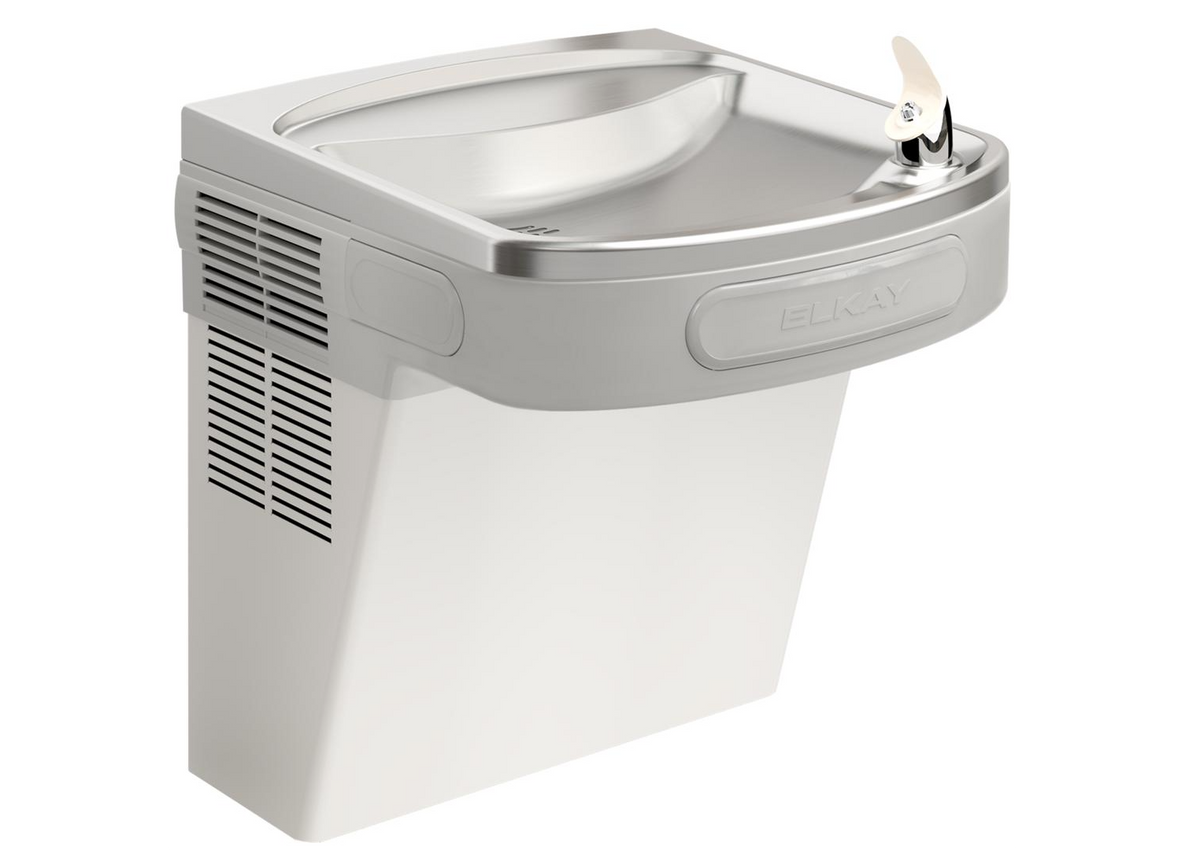

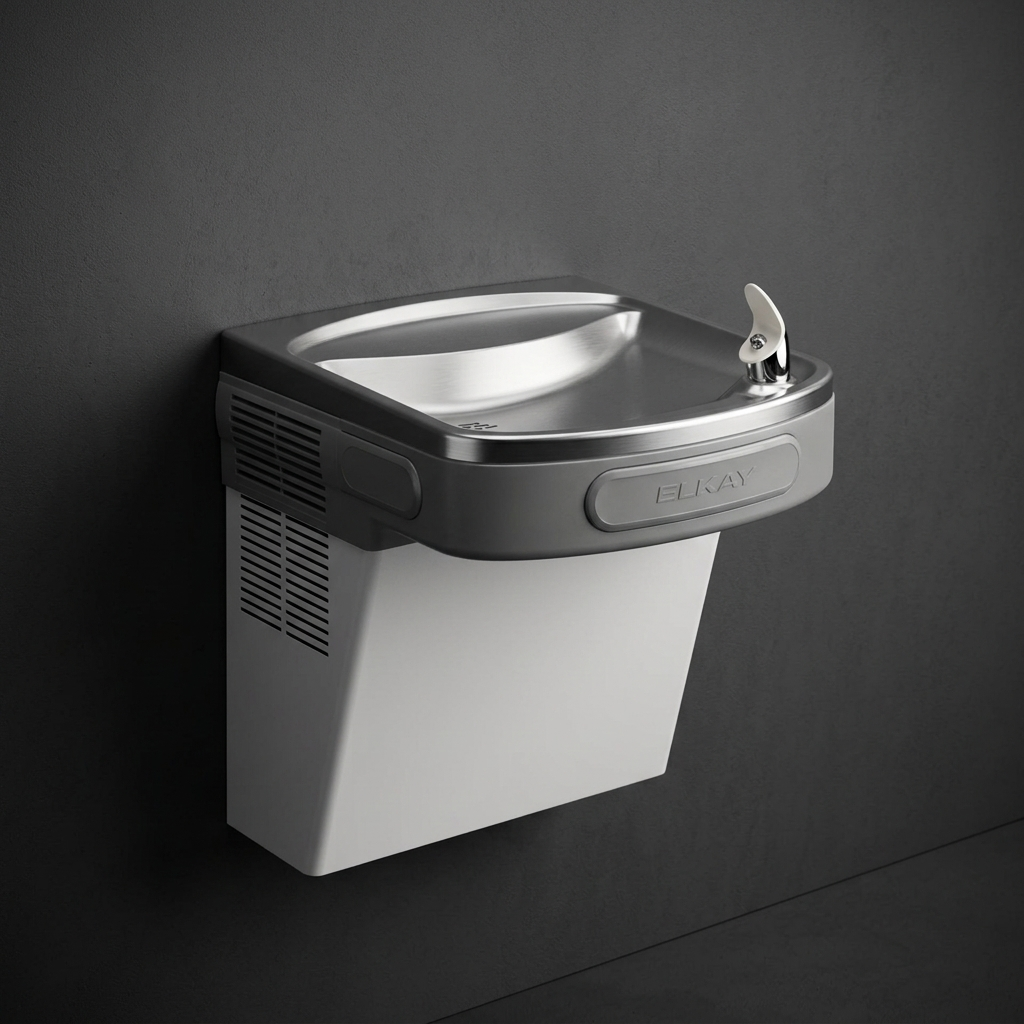

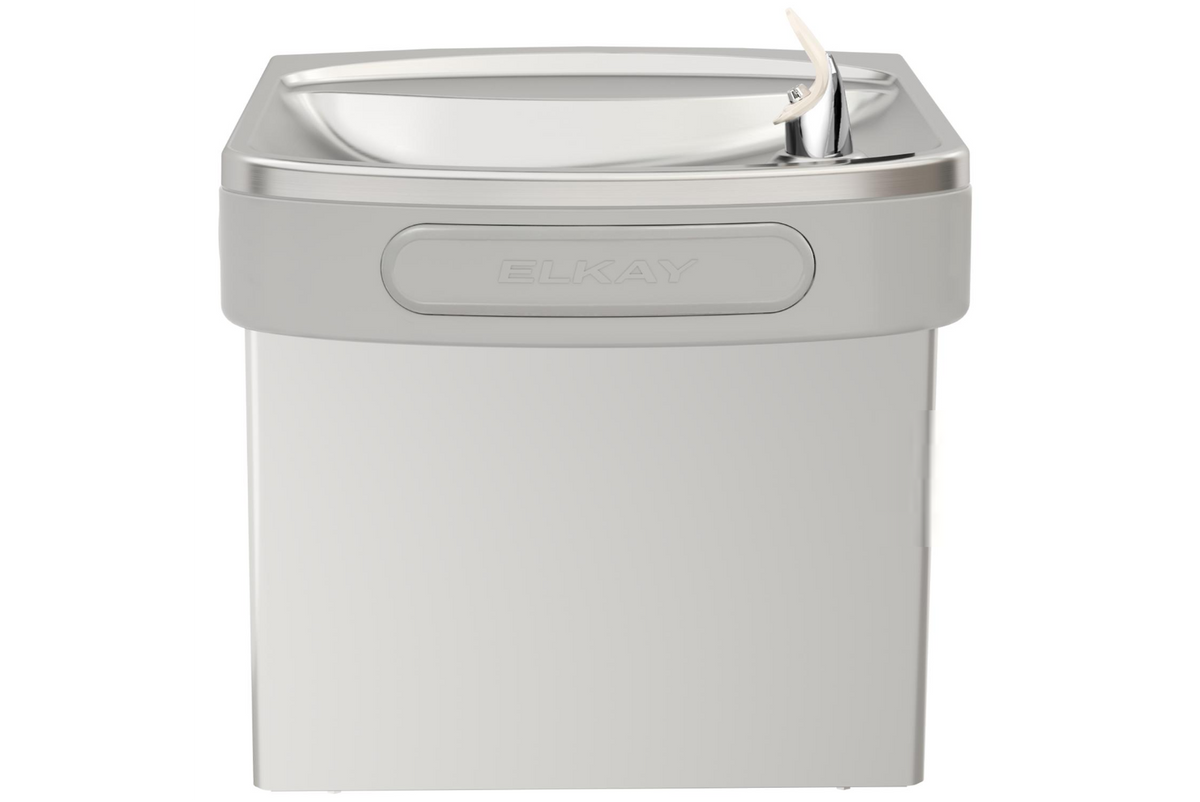

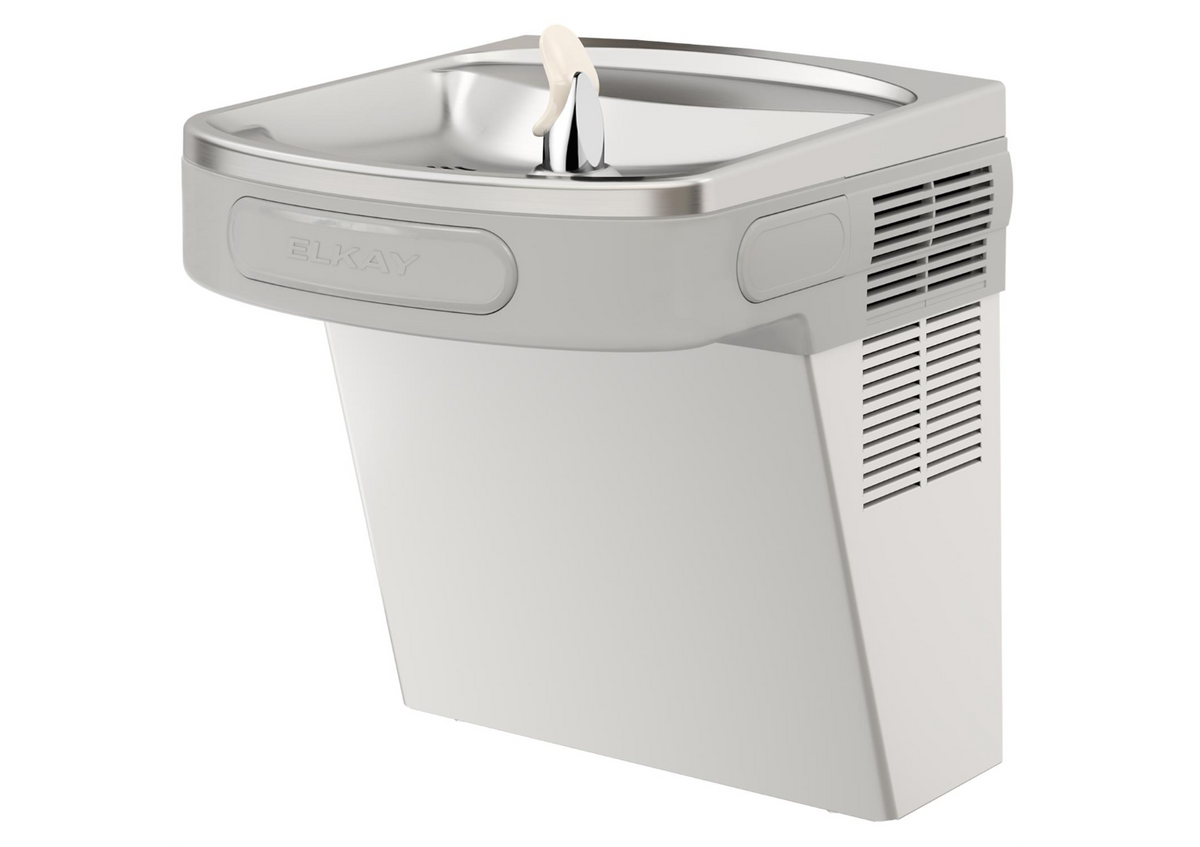

The Elkay LZS8S Wall Mount ADA Cooler is a filtered, refrigerated stainless steel drinking fountain designed for indoor use. With its Flexi-Guard® Safety Bubbler, electronic front and side pushbar activation, and ADA-compliant design, it delivers safe, chilled hydration in schools, offices, and public facilities.
Key Specifications:
| Design | Wall mount ADA cooler with single station |
| Finish | Stainless Steel |
| Filtration | Standard 51300c WaterSentry® filter included; NSF/ANSI 42, 53, 372, 401 certified |
| Refrigeration | 8.0 GPH chilled water capacity using R-134a refrigerant |
| Stations Served | 1 drinking fountain |

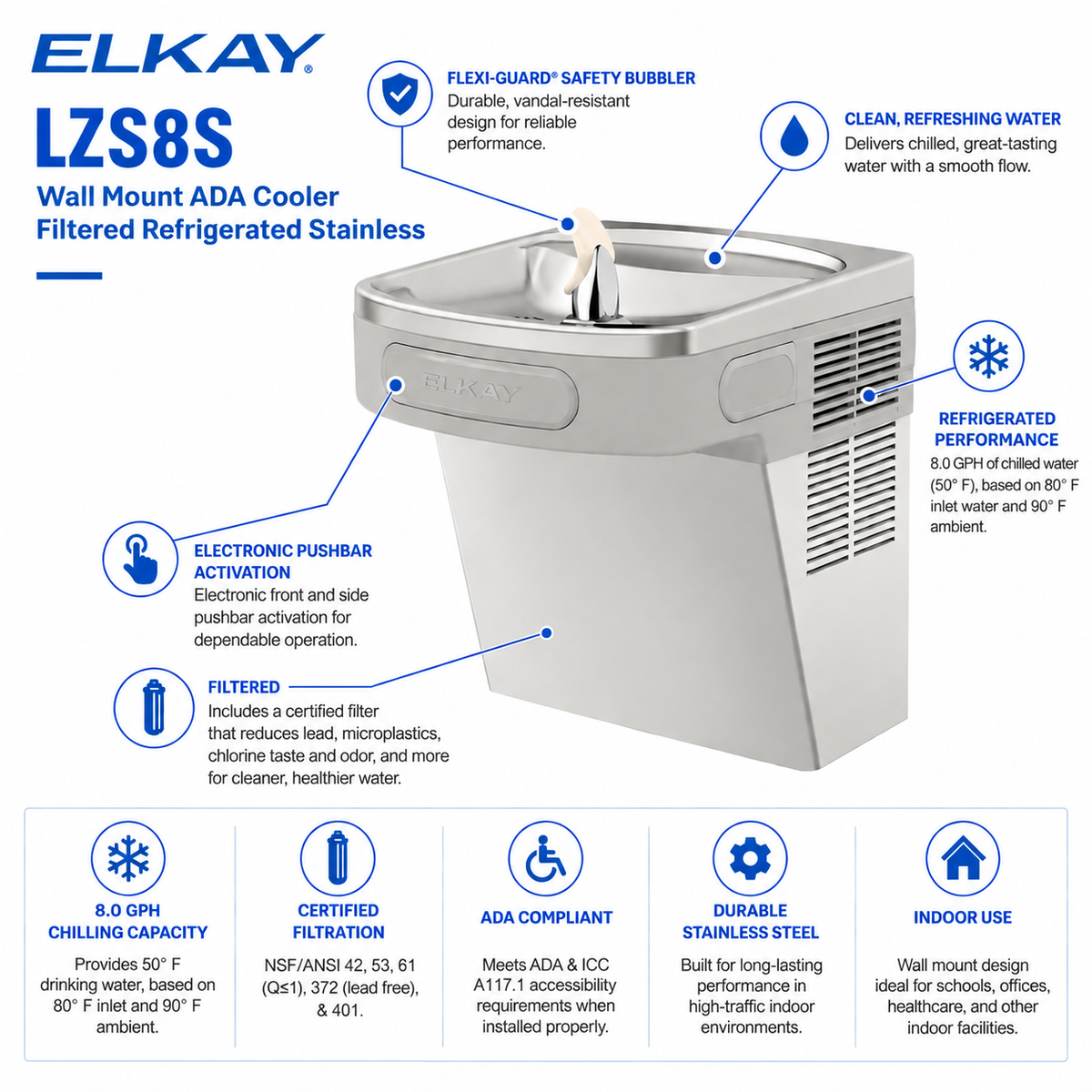

Features & Benefits:
- Filtered Hydration: Reduces lead, microplastics, cysts, chlorine taste and odor
- ADA Compliant: Meets ADA and ICC A117.1 accessibility standards
- Flexi-Guard® Safety Bubbler: Provides added protection against injury
- Reliable Cooling: Hermetically sealed refrigeration system delivers consistent chilled water
- Durable Build: Stainless steel body ensures long-term use in high-traffic environments
What's Included:
- LZS8S cooler unit
- WaterSentry® filter
- Flexi-Guard® Safety Bubbler
- Installation hardware and instructions
Comparison of Elkay ADA Coolers:
| Feature | LZS8S (This Model) | LZS8WSSK |
|---|---|---|
| Design | Single ADA cooler with bubbler | Single ADA cooler with integrated bottle filler |
| Finish | Stainless Steel | Stainless Steel |
| Filtration | Standard 51300c WaterSentry® filter, 3,000-gallon capacity | 51600c WaterSentry® Plus filter, 6,000-gallon capacity |
| Stations Served | 1 station | 1 station (cooler + bottle filler) |
| Best For | Facilities needing a simple filtered ADA cooler | Facilities requiring filtered ADA cooler with bottle filling capability |
How to Maintain Elkay LZS8S:
- Clean stainless steel surfaces with mild soap and water; avoid harsh chemicals
- Inspect and sanitize bubbler regularly
- Replace the WaterSentry® filter every 3,000 gallons or 12 months
- Check stream height and adjust regulator if supply pressure varies
- Vacuum condenser coils periodically to maintain refrigeration efficiency
FAQ
Q: How Often Should The Filter Be Replaced On The Elkay LZS8S?
A: The included WaterSentry® filter should be replaced every 3,000 gallons or 12 months, whichever comes first.
Q: Is The Elkay LZS8S ADA Compliant?
A: Yes. The design meets ADA and ICC A117.1 accessibility requirements when installed according to standards.
Q: What Accessories Are Available For The Elkay LZS8S?
A: Optional accessories include the LKAPREZL Cane Apron, the MLP100 In-Wall Carrier, and the 51300C Replacement Filter.
Q: How Do I Know When To Change The Filter On The Elkay LZS8S?
A: The filter should be replaced when water flow decreases or after 12 months of use. Elkay recommends following the 3,000-gallon capacity guideline.
Q: Can The Bubbler On The Elkay LZS8S Be Upgraded To A Vandal-Resistant Version?
A: Yes. The bubbler can be upgraded using the 97446C Vandal-Resistant Bubbler Replacement Kit, which enhances durability in high-traffic or public environments.
Q: What Warranty Coverage Is Provided For The Elkay LZS8S?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 12 months on electrical components and the water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

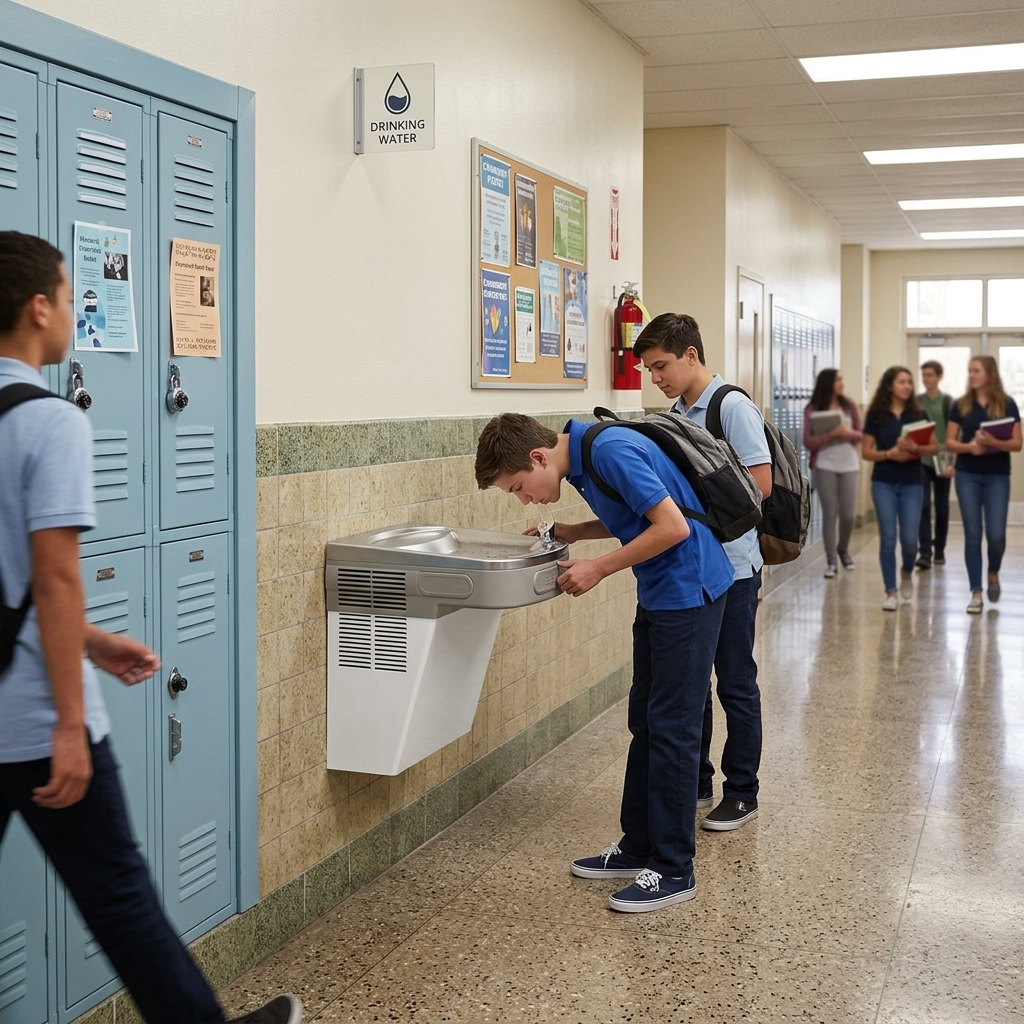

The Elkay LZS8S is a wall‑mounted, filtered drinking fountain designed for versatile installation in schools, offices, and public facilities. Delivering 8.0 GPH of chilled water, it combines ADA‑compliant access with hands‑free sensor activation and durable stainless steel construction.

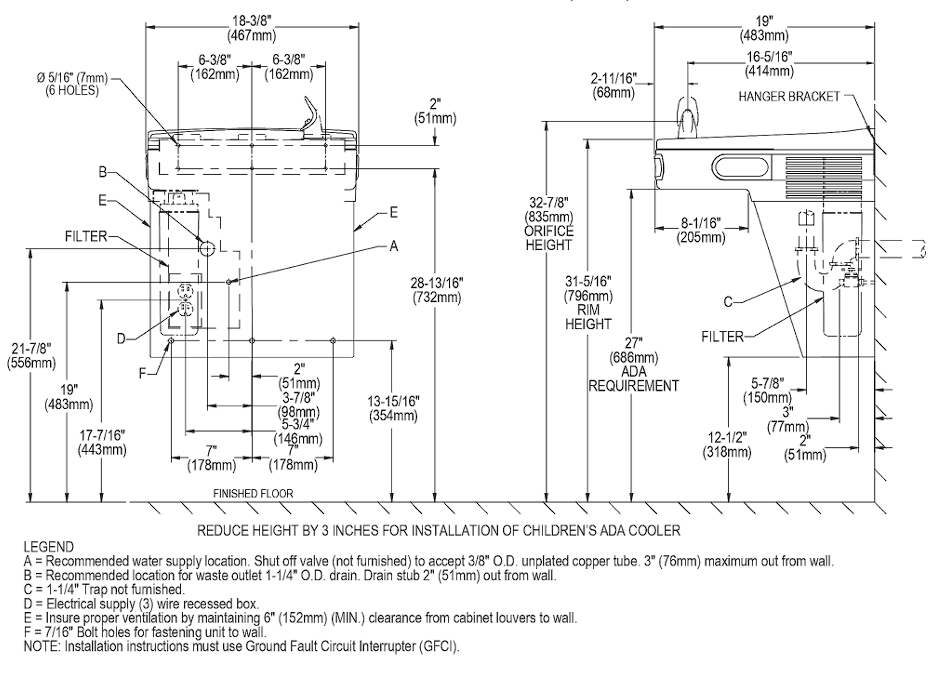

Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connection required for fountain basin
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Ensure sensor lenses are unobstructed for accurate activation
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to resist vandalism
Basic Installation Overview:
- Install in‑wall carrier securely to support fountain weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Install filter head and cartridge into bracket, connect tubing per routing diagram
- Mount fountain assembly to carrier, ensuring wires and tubing are not pinched
- Connect drain line from basin to building drain system
- Wire electrical supply to grounded outlet; verify cooling system powers on
- Test bubbler stream height and sensor activation; adjust regulator if needed
- Install cover plates and finish trim
For complete specifications and installation guidelines, download the official LZS8S Spec Sheet and the Installation Manual.
