Elkay  |  SKU: LZS8WSSK

Elkay LZS8WSSK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, Stainless Steel

$ 1,673.99

Shipping

🚚✨ Free Shipping in the Continental U.S.
All Products. No Minimums.


Estimated Shipping Times:


Important Note on Delivery Times

All shipping estimates provided are approximate only. While we always strive to meet or exceed your delivery expectations, we cannot guarantee the exact delivery times listed.

For time-sensitive orders, please contact us directly so we can provide a more accurate lead time estimate based on your specific requirements.

Same Day Shipping

All in stock orders received before 3PM EST will ship the same day. Orders received after 3PM EST will ship the following business day.

Water Filters, Hand Dryers, & Indoor Bottle Fillers are our most popular in stock items.

Outdoor Tubular Drinking Fountains

Evergreen normally ships in 5-15 days. Black, Gray and Blue ship in 2-4 weeks.

Ice Machines

In stock units ship within 48 hours. Other units normally ship in 2-4 weeks.

Other

Orders that ship directly from a manufacturer normally have a firm shipping estimate but those dates are subject to change due to manufacturer production, inventory or shipping. We do our best to estimate ship dates but orders shipping directly from the manufacturer can have unexpected delays. We will confirm tracking information when orders ship directly from a manufacturer but may not have updates or estimates beyond the original estimate. Once your order is placed with the manufacturer, it may not be able to be cancelled even if it hasn't shipped yet.

Please contact support@bottlefillingstations.com to confirm delivery time for a specific product or quantity. Or to inquire about an existing order.


Special Case Shipping Rates



Please note that shipping rates are subject to change at any time.  We reserve the right to charge an additional fee in addition to the regularly advertised shipping fee for shipping to remote areas not easily accessible by typical freight carrier means (i.e. islands only accessible by ferry). If your order falls into this category, you will be notified upon receipt of your order, and have the option to complete the purchase with additional fee or to cancel the order.  Please note, these instances are very rare, as most locations are reachable by regular freight. If you have any questions, please contact us!


Key Terms & Conditions



Exceptions may apply to islands and other remote territories.

All orders shipped by the carrier of our choice.














The Elkay LZS8WSSK ezH2O® Bottle Filling Station & Single ADA Cooler delivers filtered, refrigerated hydration in a stainless steel finish. Designed for high‑traffic indoor environments, it combines touchless bottle filling with a Flexi‑Guard® Safety Bubbler for accessibility and safety.


Key Specifications:

Design Single ADA cooler with integrated bottle filler, sensor activation, and Flexi‑Guard® Safety Bubbler
Finish Stainless Steel. its also available in Gray Granite.
Filtration Includes 51600C WaterSentry® Plus Filter, NSF 42/53/401 certified, 6,000‑gallon capacity
Refrigeration 8.0 GPH chilling capacity at 50°F using R‑134a refrigerant
Stations Served 1 (single ADA cooler plus bottle filler)

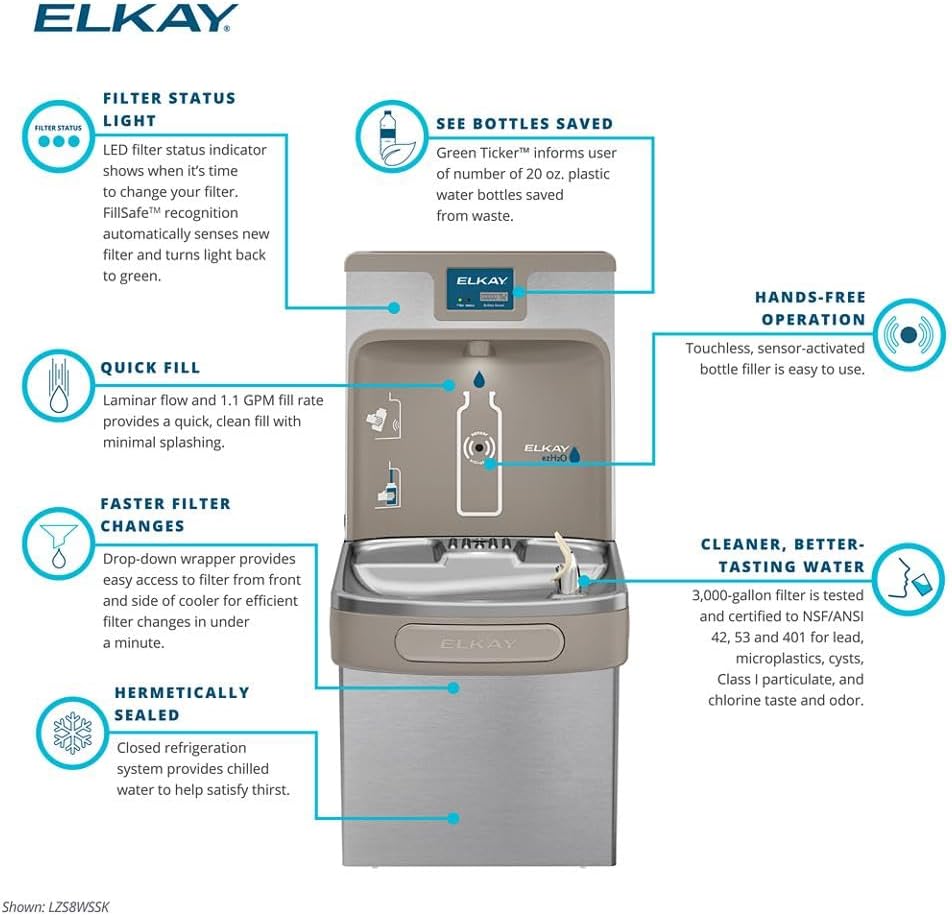

Features & Benefits:

  • Quick Filter Change: Wrapper design allows filter replacement in under a minute
  • Automatic Filter Recognition: System updates LED monitor when a new filter is installed
  • Visual Filter Monitor: LED indicator alerts when filter replacement is needed
  • Green Ticker™: Displays the number of plastic bottles saved from waste
  • LED Lighting: Low‑energy illumination assists with filling in dark spaces


What's Included:

  • LZS8WSSK Bottle Filling Station & Single ADA Cooler unit
  • 51600C WaterSentry® Plus Filter
  • Flexi‑Guard® Safety Bubbler
  • Installation hardware and guide


Comparison of Elkay Bottle Filling Stations:

Feature LZS8WSSK LZ8WSSSMC LZSTL8WSSK
Finish Stainless Steel Stainless Steel, surface‑mount design Stainless Steel, bi‑level cooler
Filtration 51600C Filter, NSF 42/53/401 certified 51600C Filter, NSF 42/53/401 certified 51600C Filter, NSF 42/53/401 certified
Best For Schools, offices needing ADA cooler + filler Facilities requiring surface‑mount installation High‑traffic areas needing dual‑level access
Features Flexi‑Guard® bubbler, Green Ticker™, LED lighting Hands‑free sensor, compact surface‑mount design Bi‑level ADA cooler, dual pushbar bubblers
Activation Hands‑free electronic sensor + pushbar bubbler Hands‑free electronic sensor Hands‑free electronic sensor + dual pushbar bubblers


How to Install the LZS8WSSK:

  1. Mount the unit: Secure the hanger bracket to wall studs using all designated bolt holes.
  2. Hang the cooler: Engage the cooler slots onto the bracket and ensure proper alignment.
  3. Connect water supply: Attach the shut‑off valve and connect the 3/8" O.D. copper tube inlet.
  4. Install the filter: Insert the 51600C WaterSentry® Plus Filter into the filter head and lock into place.
  5. Connect electrical supply: Plug into a dedicated GFCI outlet and check for leaks before startup.
  6. Test operation: Activate the sensor and bubbler to confirm proper water flow and cooling.


How to Maintain the LZS8WSSK:

  1. Replace the filter: Every 12 months or after 6,000 gallons, whichever comes first.
  2. Clean surfaces: Wipe stainless steel panels with mild soap and water; avoid abrasive cleaners.
  3. Check bubbler and sensor: Ensure proper flow and sensor activation; adjust stream height if needed.
  4. Inspect drain and trap: Confirm no leaks or blockages in the waste line.
  5. Service components: Electrical and refrigeration maintenance should be performed by authorized personnel.


FAQ


Q: How Often Should the Filter Be Replaced?
A: The Elkay LZS8WSSK includes one 51600C Filter. It should be replaced every 6,000 gallons or 12 months, whichever comes first.

Q: Is the Elkay LZS8WSSK ADA Compliant?
A: Yes. The single cooler design meets ADA accessibility requirements when installed according to standards.

Q: What Accessories Are Available for the Elkay LZS8WSSK?
A: Optional accessories include the MLP100 In‑Wall Carrier for secure mounting and support.

Q: Can the Elkay LZS8WSSK Be Connected for Smart Monitoring?
A: Yes. It can be paired with retrofit solutions such as the PLZSRK‑W1 Connected Retrofit Kit, enabling cloud‑connected monitoring and enhanced maintenance tracking.

Q: How Does the LZS8WSSK Differ From the LZSTL8WSSK?
A: The LZS8WSSK is a single ADA cooler with bottle filler, while the LZSTL8WSSK is a bi‑level design serving two stations. The LZS8WSSK emphasizes compact ADA accessibility, whereas the LZSTL8WSSK provides dual‑level hydration for higher traffic environments.


NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
