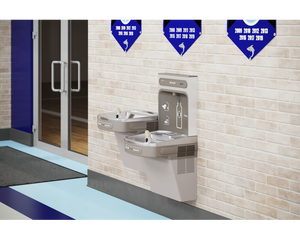

Elkay LZOOTL8WSLK | Wall-mount Bi-level Bottle Filling Station | Filtered, Refrigerated, EZ-style fountain, Hands-free (dual), Granite Gray

One of the most popular models, the Elkay LZOOTL8WSLK Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

The Elkay LZOOTL8WSLK is a wall-mounted, filtered, refrigerated unit that includes a bottle filler and a two drinking fountains. This model has a Granite Gray color finish.

Being a ‘hands-free’ unit, the LZOOTL8WSLK stands out as one of the most sanitary options for clean drinking water thanks to their hands-free sensor activation that minimizes the risks of spreading germs, bacteria, or viruses. Note that both fountains are sensor-activated.

The LZOOTL8WSLK's drinking fountains feature a Flexi-Guard bubbler protected by a flexible antimicrobial mouth guard that helps to protect against injury and microorganisms.

• ADA compliant design.
• Sanitary bottle fill created from hands-free sensor activation and recessed spout with a 20-second auto shut-off system.
• Quick fill rate of 1.1 Gallons Per Minute
• Green Ticker™ tracks the number of plastic bottles saved from waste.
• Hands-free (sensor-activated) fountains and bottle filler

Elkay LZOOTL8WSLK resources:

• Elkay LZOOTL8WSLK Spec Sheet HERE
• Elkay LZOOTL8WSLK Installation manual HERE
• Elkay LZOOTL8WSLK CAD symbols: TOP - FRONT - SIDE

Elkay LZOOTL8WSLK Includes

• Water Cooler
• Water Bottle Filling Station

Warranty

Refrigeration System (IF APPLICABLE)

Elkay LZOOTL8WSLK refrigeration system includes 5-year limited warranty.

Electrical Parts & Water System

Elkay LZOOTL8WSLK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor whichever date falls first. View more warranty details here.

Installation Notes

• Elkay LZOOTL8WSLK requires installation from a licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
• Requires access to electrical connections.
• Product also includes a physical copy of installation instructions in the package.
• View detailed Elkay LZOOTL8WSLK MANUAL.

Maintenance

Cleaning

It is recommended to use a soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

 Filter Replacement:

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing the top cover and pressing the black reset button.  Select reset filter.  The light should appear green.  Detailed instructions on filter light reset are included in product package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: What is included in the Cooler Combo?

A: The Cooler Combo Bottle Filling Stations includes both the Bottle Filler and Water Cooler, which will be delivered in two separate boxes.

Q: Does the shipment include everything for the installation? Does plumber need anything else?

A:  Does not include:

• Shut-off Valve (not furnished)
• 1-1/4” Trap (not furnished).

Q: Does this product come with a Mounting Frame?

A: Cooler Combos come with Hanger Brackets, which are adequate for almost every setup. If more structural integrity is needed, the In-Wall Carrier Mounting Frame (MLP100) can be ordered separately. Please find further details on Spec Sheet and/or Installation Instructions.

*MADE IN THE UNITED STATES.

Experience the benefits of the very popular Elkay LZOOTL8WSLK Water Bottle Filling Station. Best Support, Fast Shipping, & Low Prices. CONTACT US NOW!
