Elkay LZO8WSLK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, EZ-style fountain, Hands-free, Granite Gray
Elkay LZO8WSLK | Wall-mount Bottle Filling Station | Filtered, Refrigerated, EZ-style fountain, Hands-free, Granite Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZO8WSLK | Wall-mount Bottle Filling Station | Filtered, Refr...

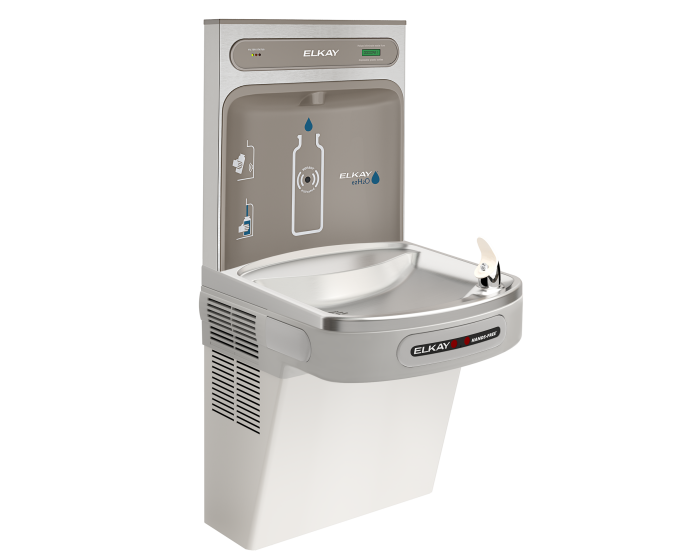

One of the most popular models, the Elkay LZO8WSLK Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.
The Elkay LZO8WSLK is a wall-mounted, filtered, refrigerated unit that includes a bottle filler and a drinking fountain. This model has a Granite Gray color finish.
Being a ‘hands-free’ unit, the LZO8WSLK stands out as one of the most sanitary options for clean drinking water thanks to their hands-free sensor activation that minimizes the risks of spreading germs, bacteria, or viruses.
The LZO8WSLK's drinking fountain features a Flexi-Guard bubbler protected by a flexible antimicrobial mouth guard that helps to protect against injury and microorganisms.
- ADA compliant design.
- Sanitary bottle fill created from hands-free sensor activation and recessed spout with a 20-second auto shut-off system.
- Quick fill rate of 1.1 Gallons Per Minute
- Green Ticker™ tracks the number of plastic bottles saved from waste.
- Hands-free (sensor-activated) fountain and bottle filler
Elkay LZO8WSLK Spec Sheet HERE
Elkay LZO8WSLK Installation manual HERE
|
FILTERED? |
YES |
|
COOLER CABINET FINISH |
Light Gray Granite Vinyl Clad Steel |
|
POWER |
115V/60Hz |
|
BUBBLER OPTION |
FlexiGuard |
|
MOUNTING DETAILS |
Wall Mount (On-Wall) |
|
CHILLING DETAILS |
8 GPH |
|
Elkay LZO8WSLK INSTALLATION LOCATION |
INDOOR |
|
NUMBER OF FOUNTAINS |
One fountain |
|
DIMENSIONS |
L: 18.375" W: 19" H: 39.06" |
|
SHIPPING WEIGHT |
85 lbs |
|
Elkay LZO8WSLK PRODUCT COMPLIANCE |
|
Elkay LZO8WSLK Includes
- Water Cooler
- Water Bottle Filling Station
Warranty
Refrigeration System (IF APPLICABLE)
Elkay LZO8WSLK refrigeration system includes 5-year limited warranty.
Electrical Parts & Water System
Elkay LZO8WSLK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor whichever date falls first. View more warranty details here.
Installation Notes
- Elkay LZO8WSLK requires installation from a licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
- Requires access to electrical connections.
- Product also includes a physical copy of installation instructions in the package.
- View detailed Elkay LZO8WSLK MANUAL.
Maintenance
Cleaning
It is recommended to use a soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
Filter Replacement:
When filter status light turns to red, the filter needs to be changed. Follow these steps:
1) Remove the bottom access panel.
2) Unplug unit
3) Unscrew old filter

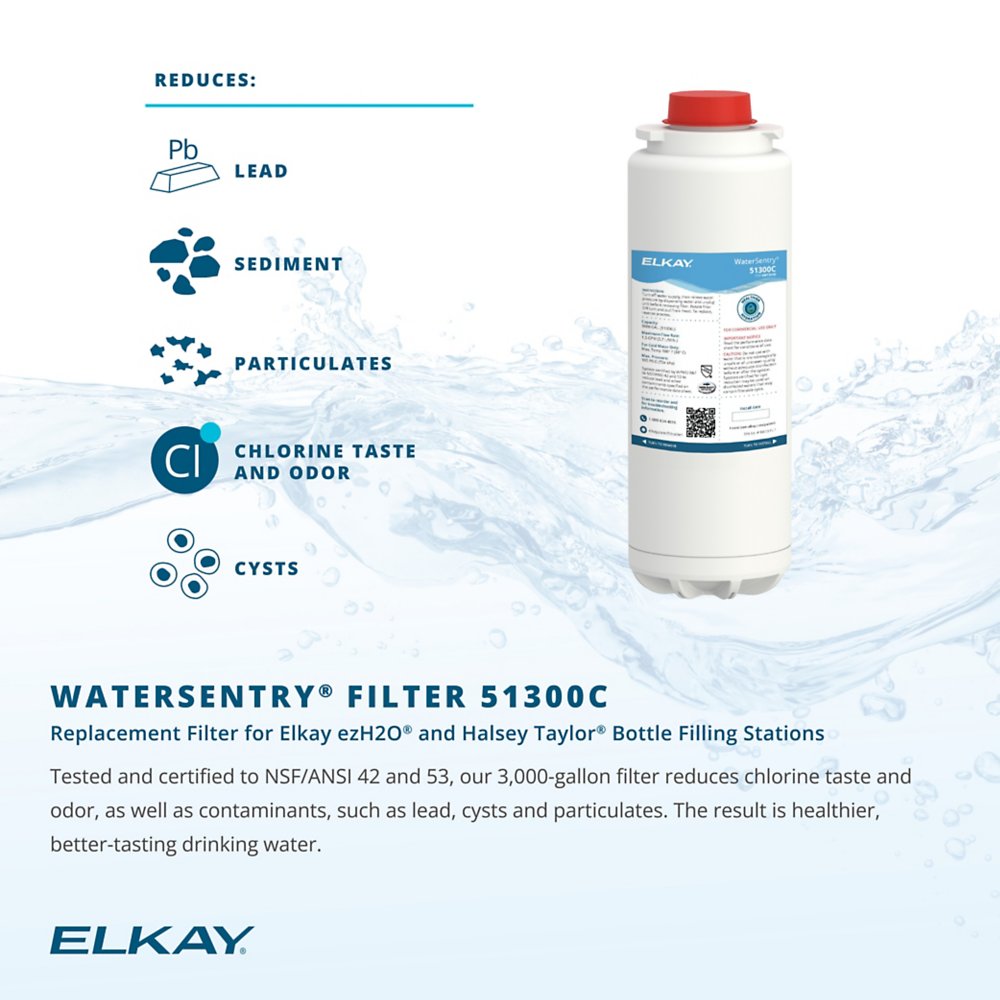

4) Install new WaterSentry Plus filter.
5) Reset filter light back to green by removing the top cover and pressing the black reset button. Select reset filter. The light should appear green. Detailed instructions on filter light reset are included in product package.
View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.
FAQ
Q: What is included in the Cooler Combo?
A: The Cooler Combo Bottle Filling Stations includes both the Bottle Filler and Water Cooler, which will be delivered in two separate boxes.
Q: Does the shipment include everything for the installation? Does plumber need anything else?
A: Does not include:
- Shut-off Valve (not furnished)
- 1-1/4” Trap (not furnished).
Q: Does this product come with a Mounting Frame?
A: Cooler Combos come with Hanger Brackets, which are adequate for almost every setup. If more structural integrity is needed, the In-Wall Carrier Mounting Frame (MLP100) can be ordered separately. Please find further details on Spec Sheet and/or Installation Instructions.
*MADE IN THE UNITED STATES.
Experience the benefits of the very popular Elkay LZO8WSLK Water Bottle Filling Station. Best Support, Fast Shipping, & Low Prices. CONTACT US NOW!
*FREE SHIPPING ON ALL ORDERS IN THE CONTINENTAL U.S. Limited time only!!
