Elkay LZ8WSSPRO Series | Pro Filtration plumbSMART Bottle Filler | ...

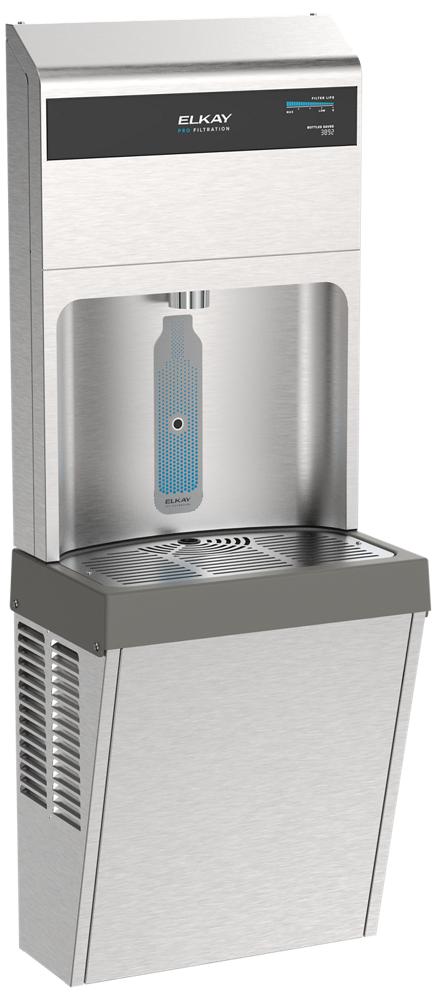

The Elkay LZ8WSSPRO Series delivers filtered, chilled drinking water with smart connectivity for reliable, low-maintenance hydration.
Key Specifications:
| Finish | Stainless Steel |
| Filter Performance | Reduces Lead, Total PFAS, Microplastics, Copper, Asbestos |
| Filter Capacity | Up to 20,000 Gal. (dual filter configuration) |
| Refrigeration | 8.0 GPH Water Chiller Included |
| Power | 115V/60Hz, 5 Full Load Amps, 15 Rated Watts |
Water Filter Options:
- LZ8WSSPRO: (1) FL10 Ultra-Capacity Filter (10,000 Gal.)
- LZ8WSSPRO-2FL10: (2) FL10 Ultra-Capacity Filter (20,000 Gal. if Combined)
- LZ8WSSPRO-2FLP4: (2) FLP4 Total PFAS and Lead Filter (8,000 Gal. if Combined)
- LZ8WSSPRO-FLP4: (1) FLP4 Total PFAS and Lead Filter (4,000 Gal.)
- LZ8WSSPRO-FSR5: (1) FL10 Ultra-Capacity Filter with (1) FSR5 Sediment Prefilter

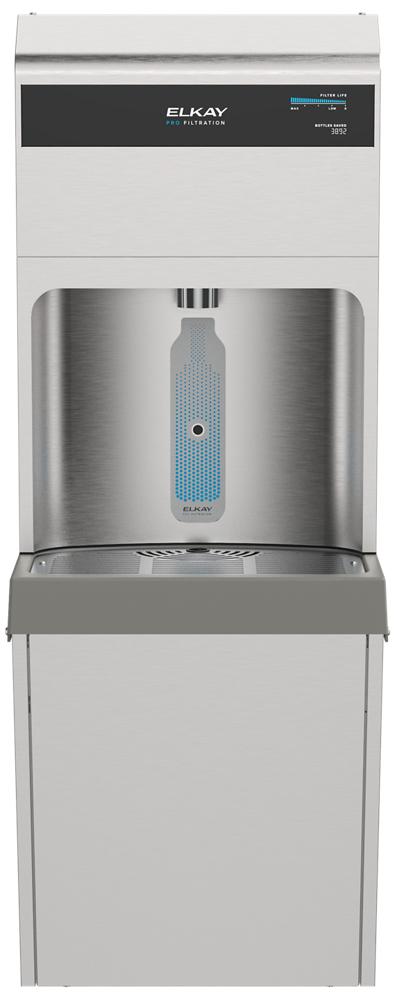

- LZ8WSSPRO-UV: (1) FL10 Ultra-Capacity Filter with built-in UV Protection
Features & Benefits:
- Advanced Filtration: The Elkay LZ8WSSPRO Series is certified to reduce lead, total PFAS, microplastics, copper, and asbestos, delivering cleaner water at every fill.
- Smart Monitoring: Cloud-connected capability lets facility managers remotely track filter status, flush the unit, and monitor bottles saved for sustainability reporting.
- Effortless Maintenance: Top-access filter replacement and automated filter startup reduce service time and labor, keeping the unit running with minimal downtime.

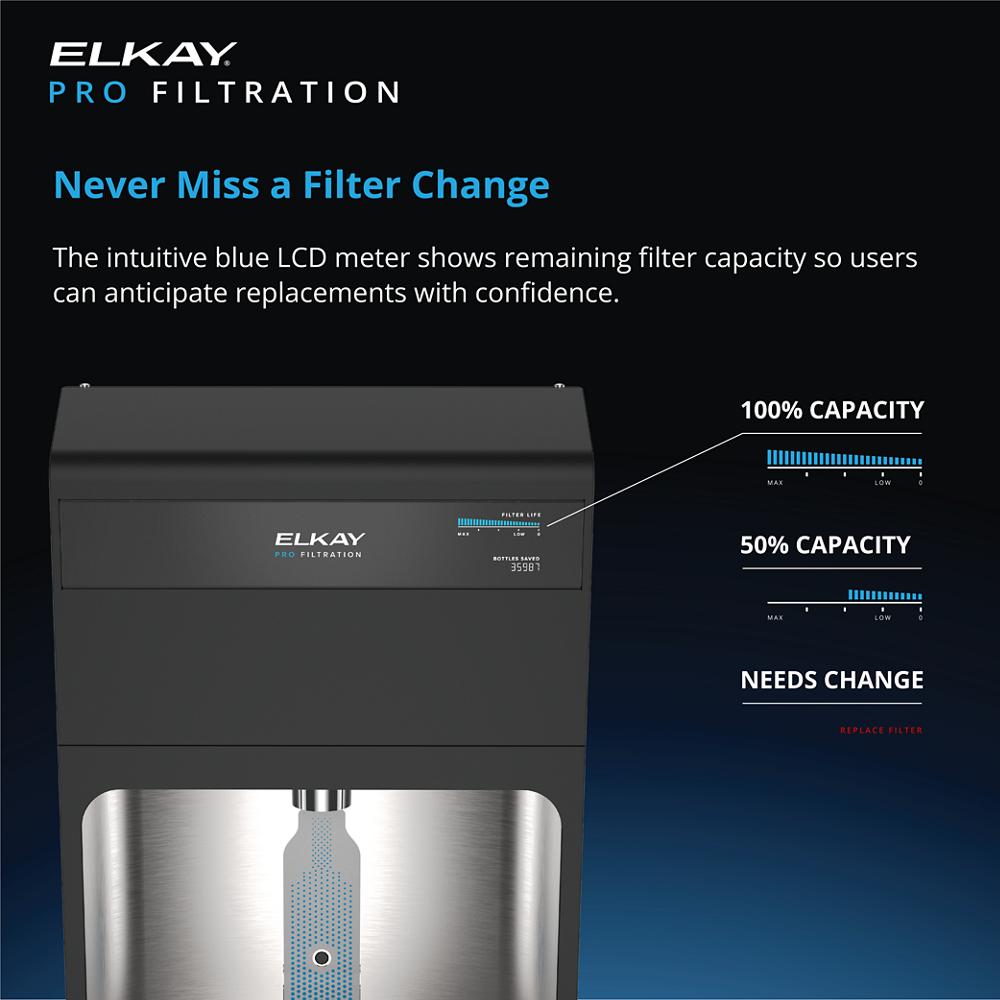

- Sustainability Impact: The interactive LCD display tracks 20oz bottles saved, helping reduce single-use plastic waste while promoting hydration station usage.
FAQ
Q: What contaminants does the Elkay LZ8WSSPRO Series filter reduce?
A: It is certified to NSF/ANSI 42, 53 & 401 standards, reducing lead, total PFAS, microplastics, copper, asbestos, and more.
Q: Does the Elkay LZ8WSSPRO Series require additional equipment for remote monitoring?
A: Yes, a plumbSMART Gateway and Account are required to enable cloud-connected filter tracking and bottle-saved monitoring.
Q: How is the Elkay LZ8WSSPRO Series installed?
A: It is a wall-mounted unit designed for indoor installation, serving a single station.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

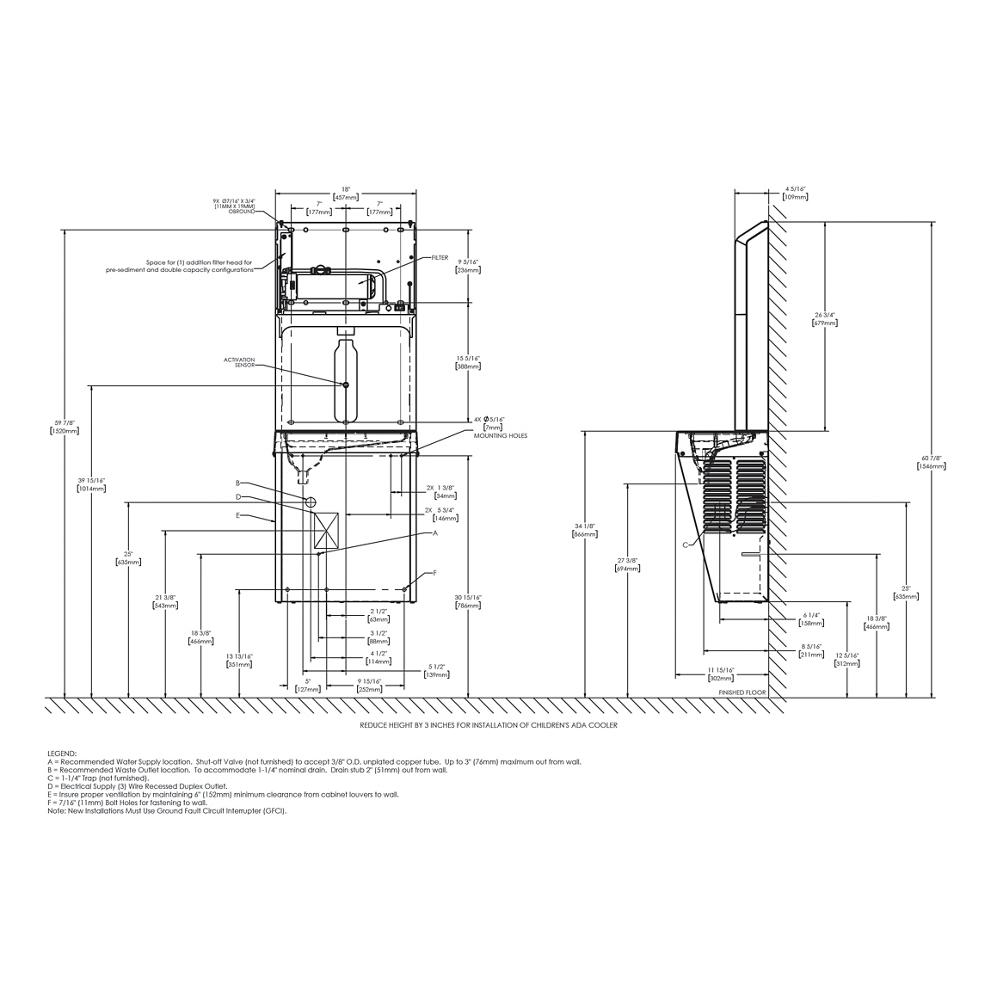

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

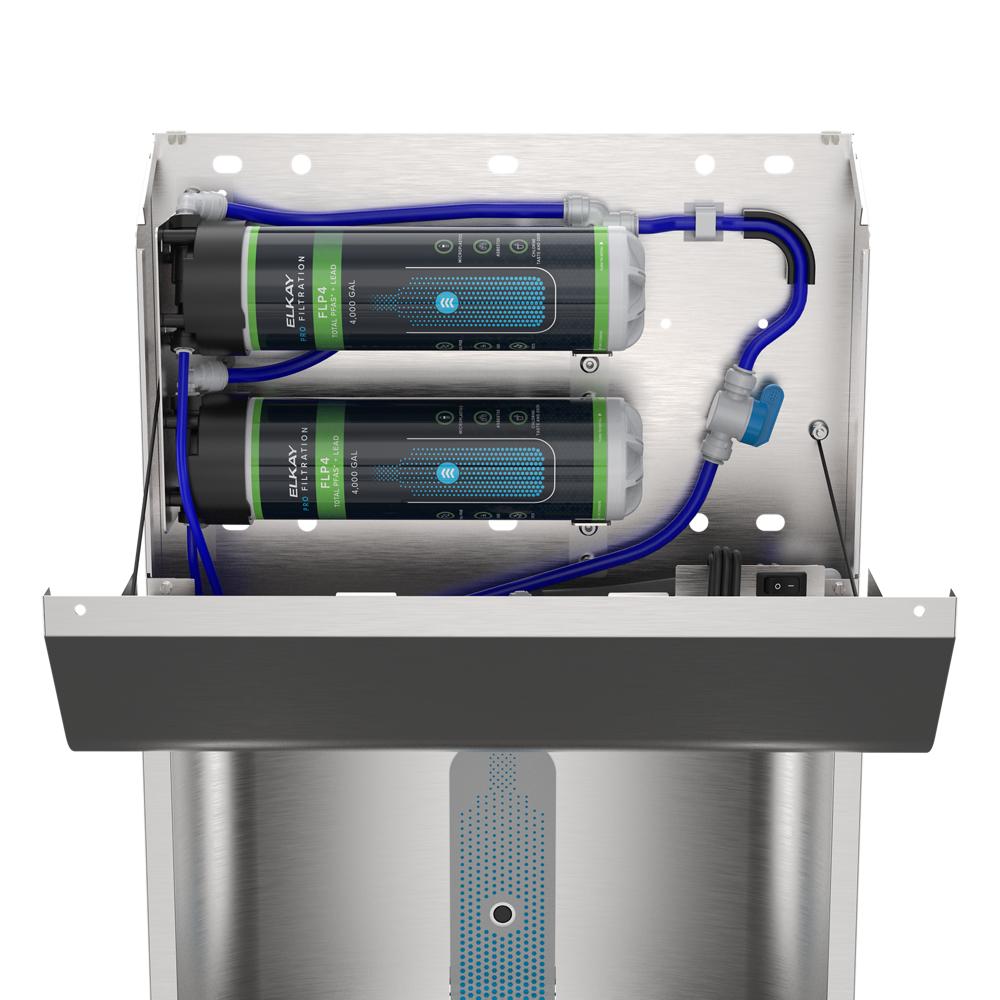

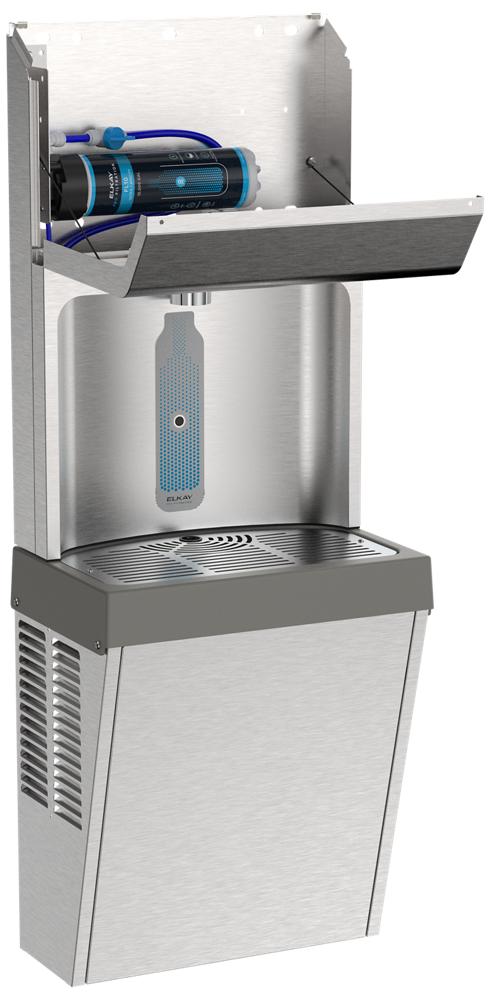

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
