Elkay LZ8WSSPRO-UV | Pro Filtration Bottle Filler w/ UV-LED | 10,00...

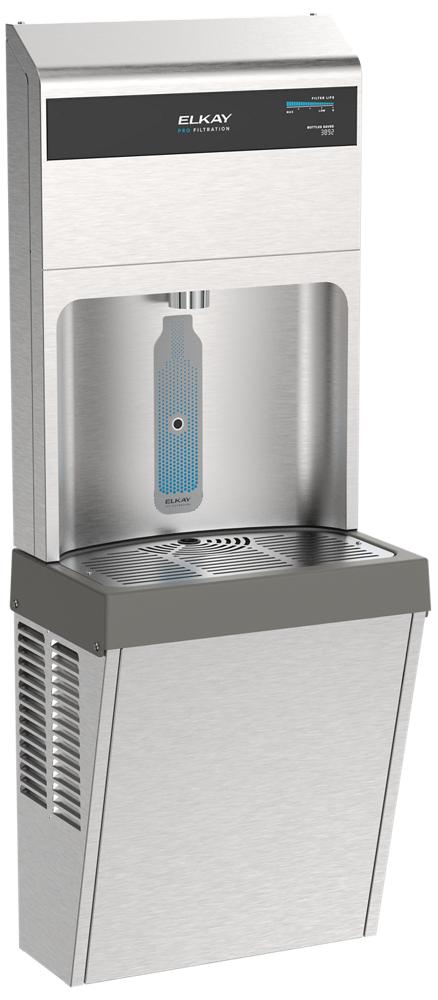

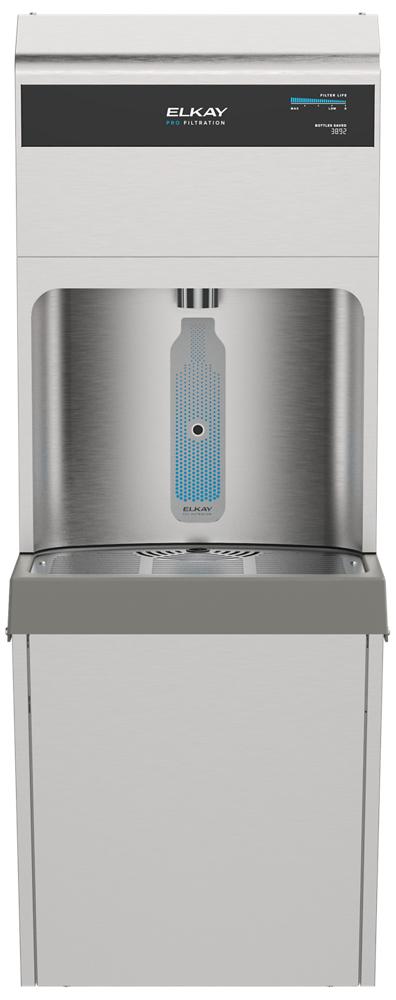

The Elkay LZ8WSSPRO-UV delivers filtered, chilled drinking water with built-in UVC-LED disinfection for enhanced hygiene at the dispense point.
Key Specifications:
| Finish | Stainless Steel |
| Filter Performance | Lead, Microplastics & More (NSF/ANSI 42, 53, 401) |
| Filter Capacity | 10,000 Gal. (FL10 Ultra-Capacity Filter) |
| Refrigeration | 8.0 GPH Water Chiller Included |
| Power | 115V/60Hz, 15 Rated Watts |
Features & Benefits:
- UVC-LED Disinfection: The Elkay LZ8WSSPRO-UV features a built-in UVC-LED at the dispense point, providing an added layer of disinfection for safer water access.
- High-Capacity Filtration: Equipped with an FL10 Ultra-Capacity filter rated for 10,000 gallons, the LZ8WSSPRO-UV reduces lead, microplastics, and other contaminants, making it ideal for high-traffic environments.
- Smart Connected Monitoring: With plumbSMART connectivity, the LZ8WSSPRO-UV allows remote tracking of filter status and remote flush capability, reducing on-site maintenance visits.
- Effortless Maintenance: Top-access filter replacement and automated filter startup streamline servicing, minimizing downtime and labor for facility teams.
FAQ
Q: Does the LZ8WSSPRO-UV require special installation for the UV feature?
A: No, the UVC-LED is integrated into the dispense point and operates automatically once the unit is installed and powered.
Q: How often does the filter need to be replaced?

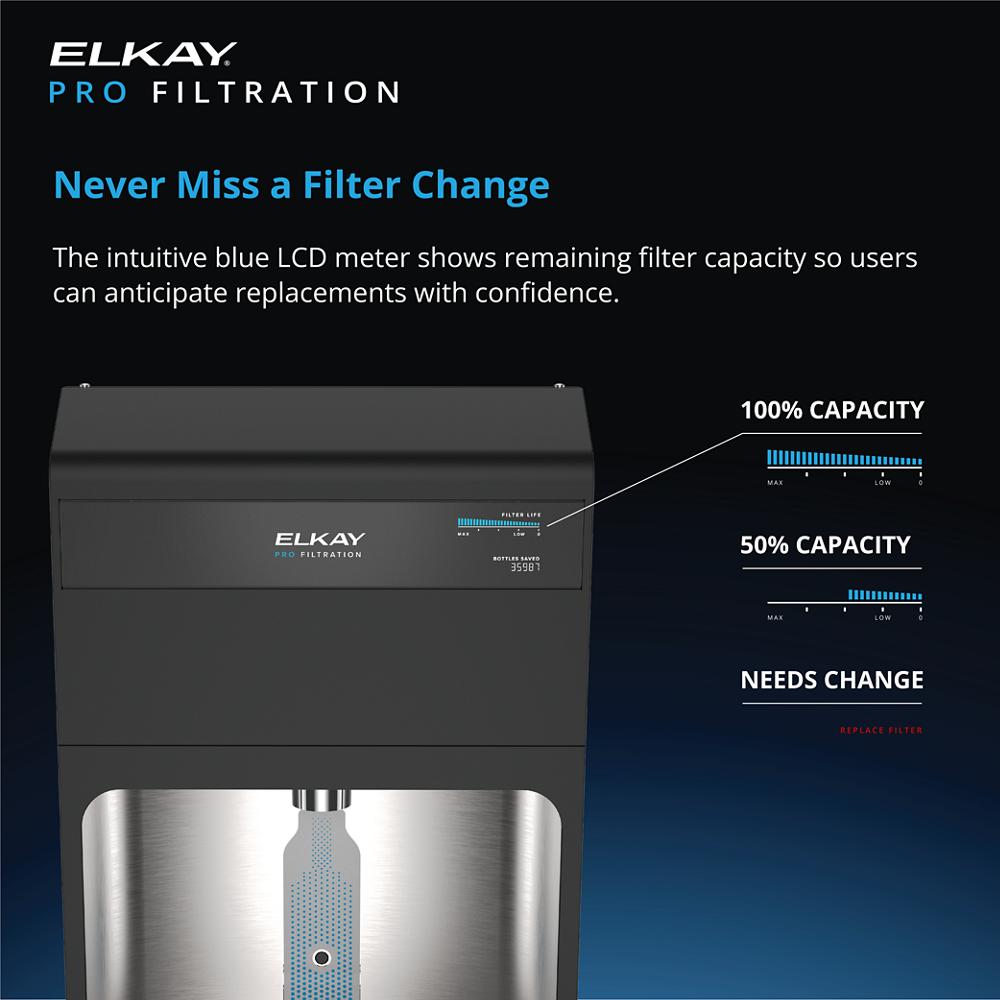

A: The included FL10 filter is rated for 10,000 gallons; the interactive display tracks remaining capacity and alerts when replacement is needed.
Q: Is remote monitoring available out of the box?
A: Smart Connected features require a plumbSMART Gateway and Account to enable remote filter status tracking and flush functionality.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation

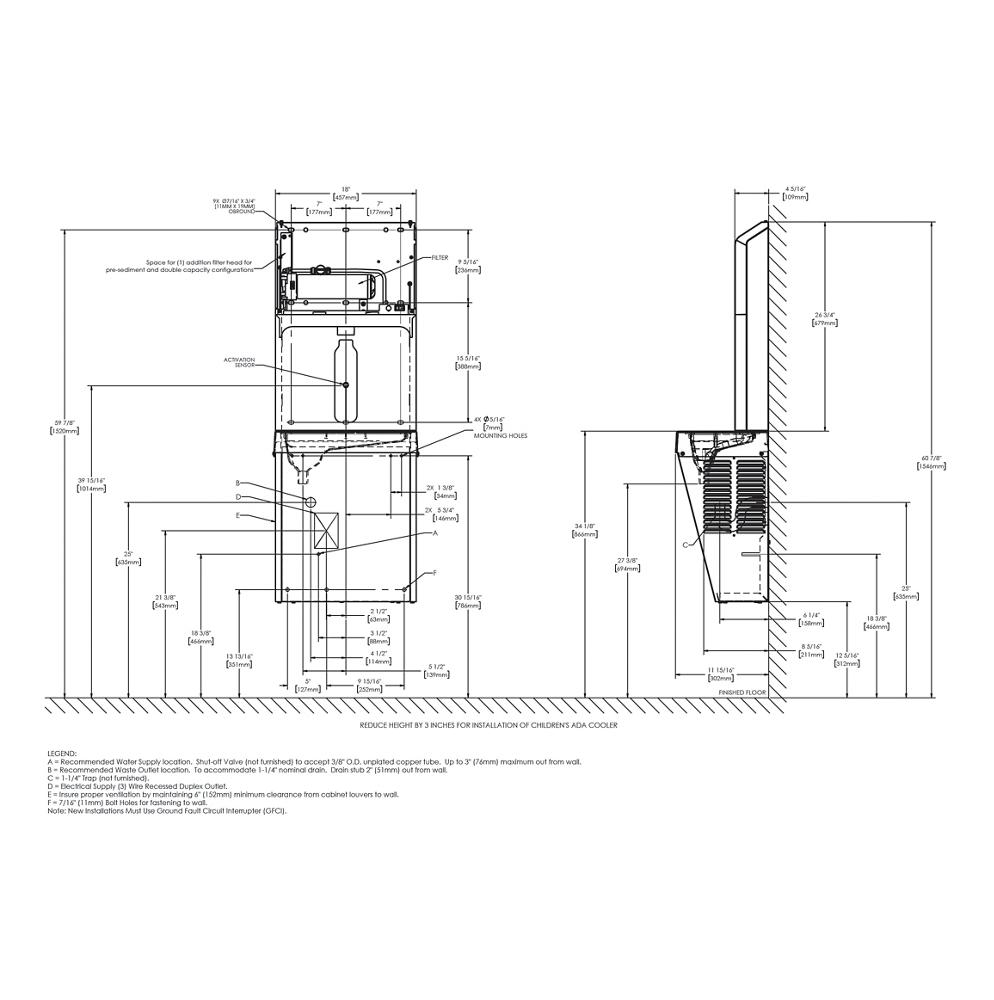

To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

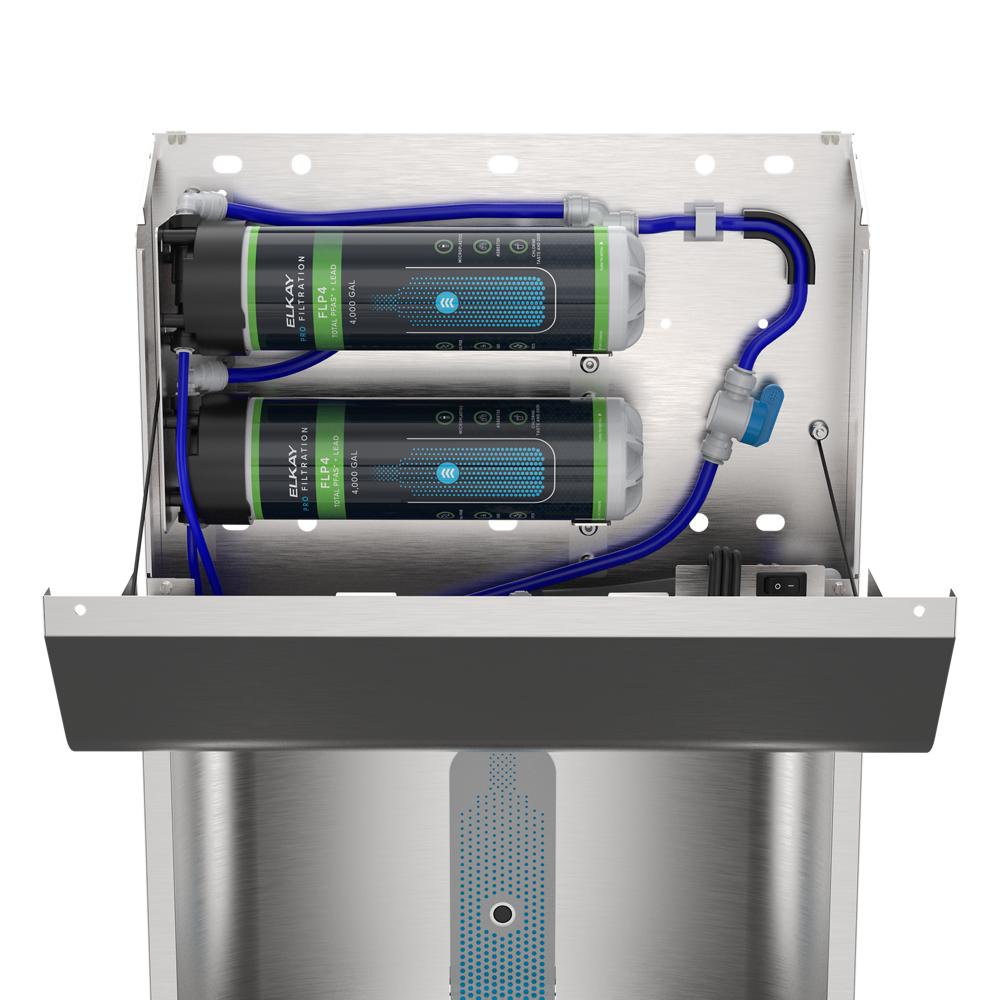

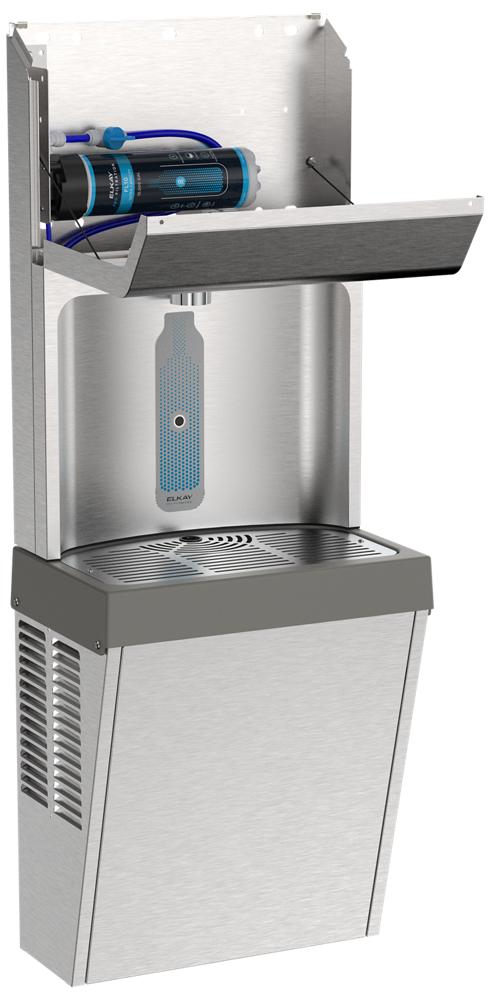

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
