Elkay LZ8WSSPRO-2FLP4 | Wall Mount Bottle Filler w/ Pro Filtration ...

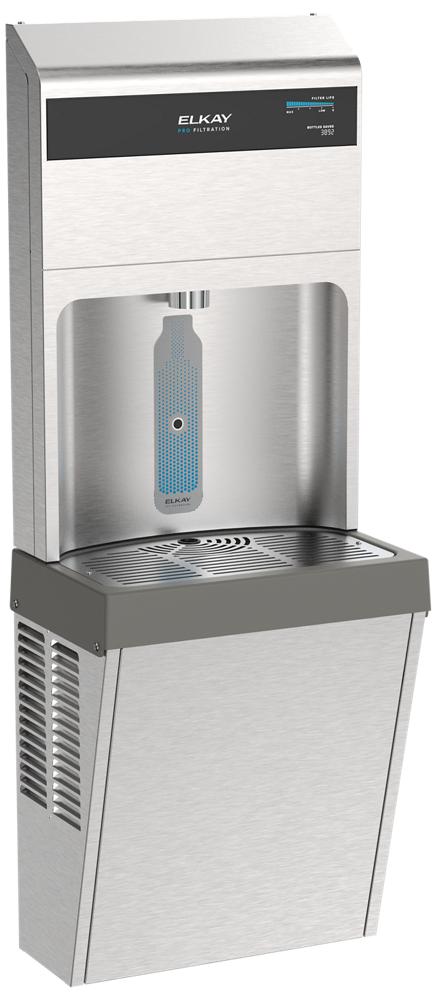

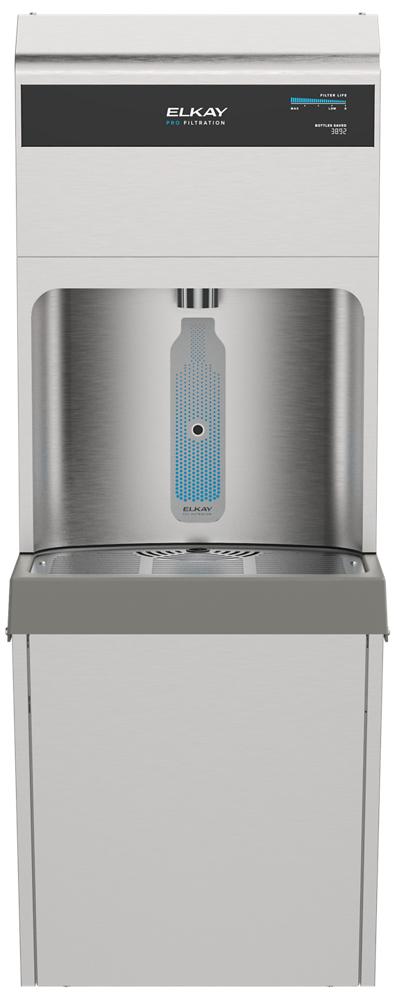

The Elkay LZ8WSSPRO-2FLP4 is a wall-mounted, refrigerated bottle filling station with dual Pro Filtration for cleaner, chilled drinking water.
Key Specifications:
| Finish | Stainless Steel |
| Filter Performance | Reduces Total PFAS, Lead, Microplastics & More |
| Filter Capacity | 8,000 Gal. Combined (2 FLP4 Filters) |
| Refrigeration | 8.0 GPH Water Chiller Included |
| Power | 115V/60Hz, 15 Rated Watts |
Features & Benefits:
- Pro Filtration System: The Elkay LZ8WSSPRO-2FLP4 features dual FLP4 filters certified to reduce Total PFAS, lead, and microplastics for safer hydration.
- Smart Connected Monitoring: Remote filter status tracking and flushing capabilities help reduce maintenance downtime and improve system longevity.
- Sustainability Tracking: The Green Ticker™ display shows bottles saved, encouraging reduced single-use plastic waste.
- Hands-Free Operation: Electronic sensor activation on the Elkay LZ8WSSPRO-2FLP4 provides touchless, hygienic dispensing for all users.
FAQ
Q: How often do the filters need to be replaced on the Elkay LZ8WSSPRO-2FLP4?
A: Each FLP4 filter offers a 4,000-gallon capacity, providing a combined total of 8,000 gallons before replacement is needed.
Q: Does the Elkay LZ8WSSPRO-2FLP4 require special connectivity for smart features?
A: Yes, a plumbSMART Gateway and Account are required for remote filter status tracking and flush capabilities.
Q: What is included with the Elkay LZ8WSSPRO-2FLP4 unit?
A: The unit ships in one box and includes the bottle filler along with two FLP4 filters.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation

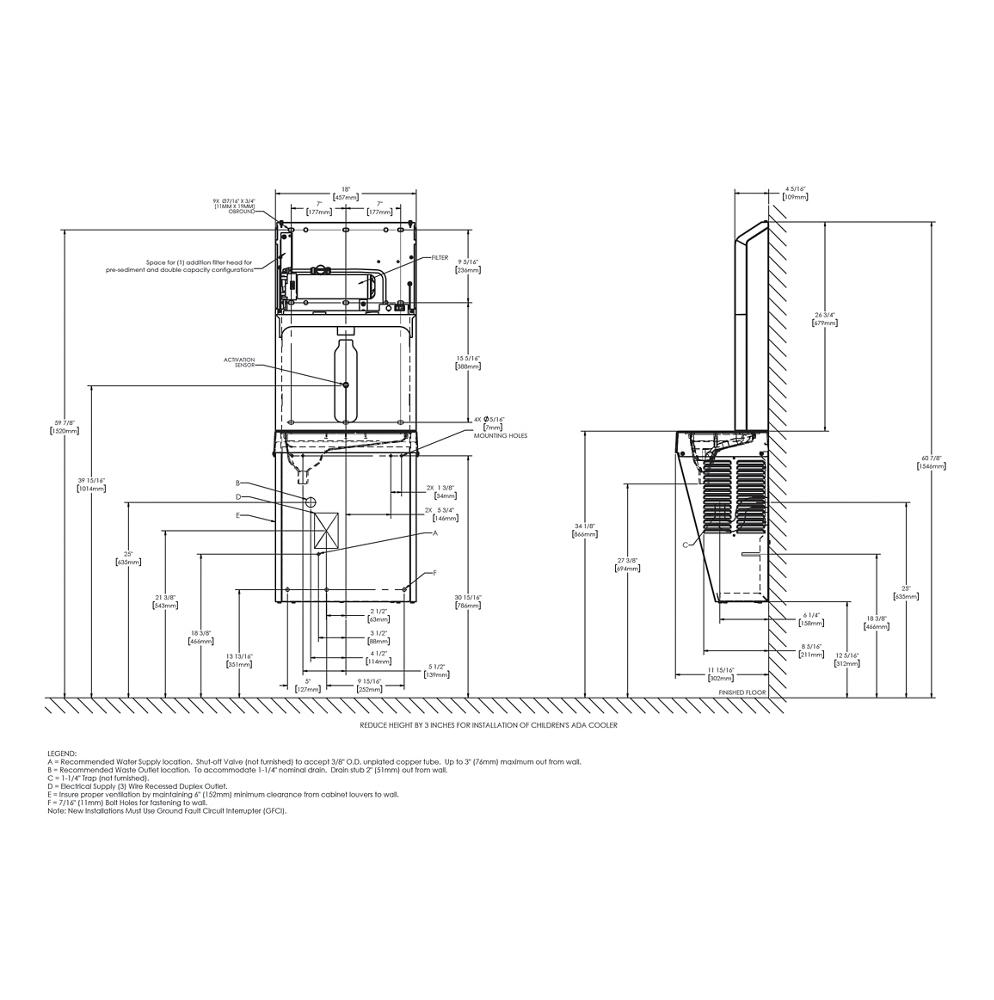

To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

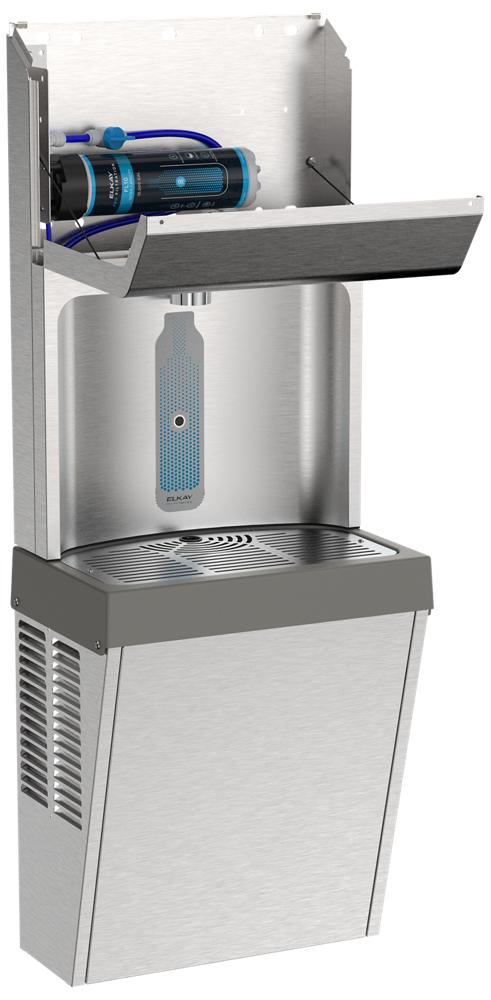

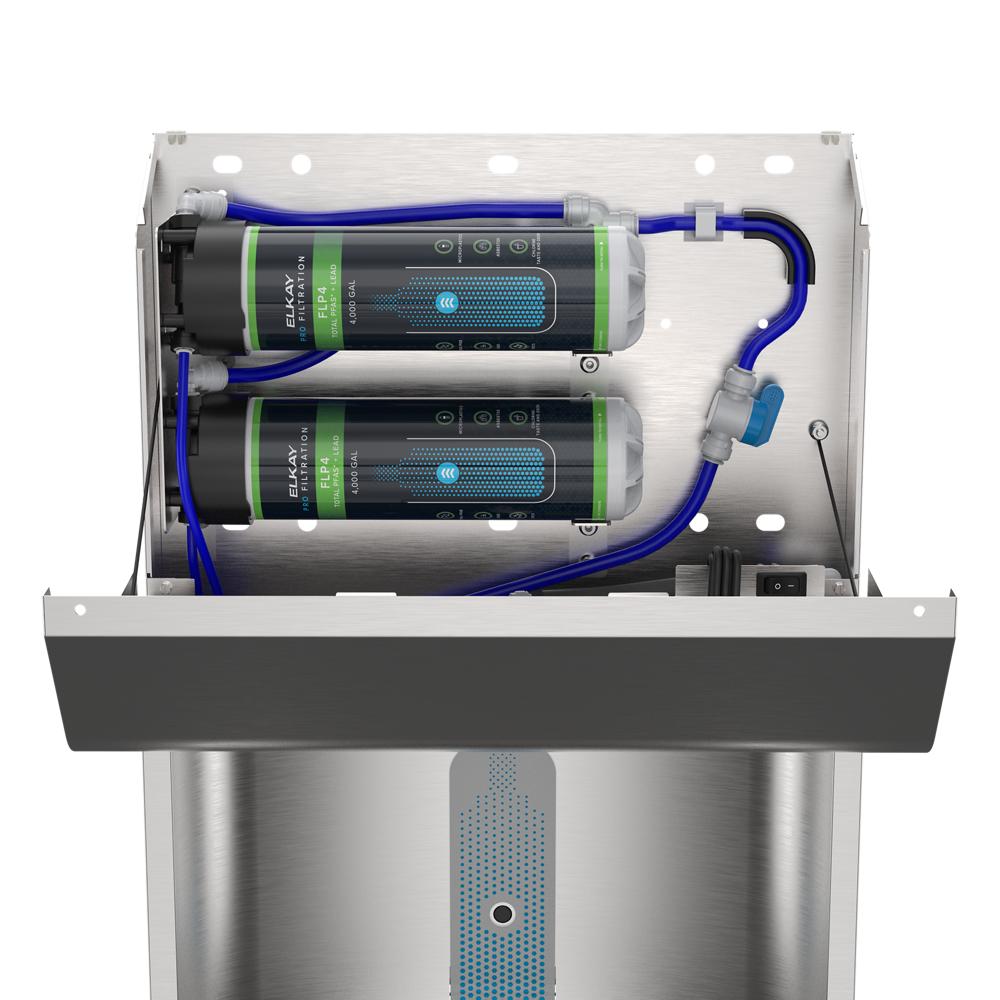

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
