Elkay

LRPBGRNM28K

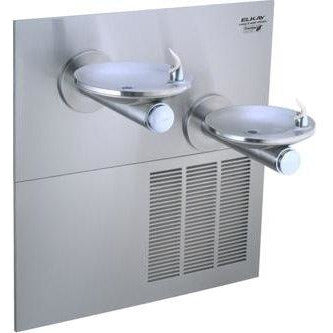

Elkay LRPBGRNM28K | In-wall Bi-Level Swirlflo Drinking Fountain | Filtered, High-efficiency chiller, (comes with Mounting Frame)

MSRP: $5,198.00

Free shipping on all orders over $1500 (mainland US)
Filter is certified to NSF 42 and 53 for lead, particulate class 1, chlorine, taste and odor reduction.
Elkay water chillers provide 50 degree drinking water and meet Federal and State low-lead requirements
  • Requires a minimum of 12" of wall depth for installation.

    One of the most popular models, theElkay LRPBGRNM28K Water Fountain makes drinking water more practical, safe, and appealing than ever before.

    • ADA compliant design
    • Energy saving design
    • Filtered

    VIEW SPEC SHEET HERE:Elkay LRPBGRNM28K

    FILTERED?

    Yes

    COOLER CABINET FINISH

    Stainless Steel

    POWER

    115V/60Hz

    BUBBLER OPTION

    FlexiGuard Safety

    MOUNTING DETAILS

    Wall Mount (In-Wall)

    CHILLING DETAILS

    8 GPH

    ElkayLRPBGRNM28K

    INSTALLATION LOCATION

    INDOOR

    NUMBER OF STATIONS

    Two Stations

    DIMENSIONS

    L: 38-1/2"

    W: 19"

    H: 40-13/16"

    SHIPPING WEIGHT

    141 lbs

    ElkayLRPBGRNM28K

    PRODUCT COMPLIANCE

    • UL 399
    • NSF 61
    • NSF 53
    • NSF 42
    • NSF 372 (lead free)
    • GreenSpec
    • CAN/CSA 22.2 120
    • Buy American Act
    • Ada Compliant
    • ASME A112.19.3/CSA B45.4



    WARRANTY

    Refrigeration System (IF APPLICABLE)

    Elkay LRPBGRNM28K refrigeration system includes 5 year limited warranty.

    Electrical Parts & Water System

    Elkay LRPBGRNM28K warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

    INSTALLATION NOTES

    • Elkay LRPBGRNM28K requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
    • Requires access to electric connection.
    • Product also includes physical copy of installation instructions in package.
    • View detailed Elkay LRPBGRNM28K INSTALLATION INSTRUCTIONS.

    Maintenance

    Cleaning

    It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

    Filter Replacement (IF APPLICABLE)

    When filter status light turns to red, the filter needs to be changed.  Follow these steps:

    1) Remove the bottom access panel.

    2) Unplug unit

    3) Unscrew old filter

    4) Install new WaterSentry Plus filter.

    5) Reset filter light back to green by removing the top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

    View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

    FAQ

    Q: How long does it take to install this retrofit?

    A: It varies, but the typical Bottle Filling Station retrofit install takes 1-2 hours.

    Q: Does the retrofit come with a chiller?

    A: No. The retrofit will utilize the compressor from your existing fountain (if applicable).

    Q: How do I know if this is the most appropriate retrofit for my setup?

    A: Please send the serial # of your existing fountain tosupport@bottlefillingstations.com. If you’re unable to locate, please email us a picture of your existing fountain.



    *ASSEMBLED IN THE UNITED STATES.

    Experience the benefits of the very popular Elkay LRPBGRNM28K Water Fountain. Best Support, Fast Shipping, & Low Prices.CONTACT US NOW!
