Elkay LK4420BF1UBLK | Outdoor Bi-Level Bottle Filler Pedestal | Black

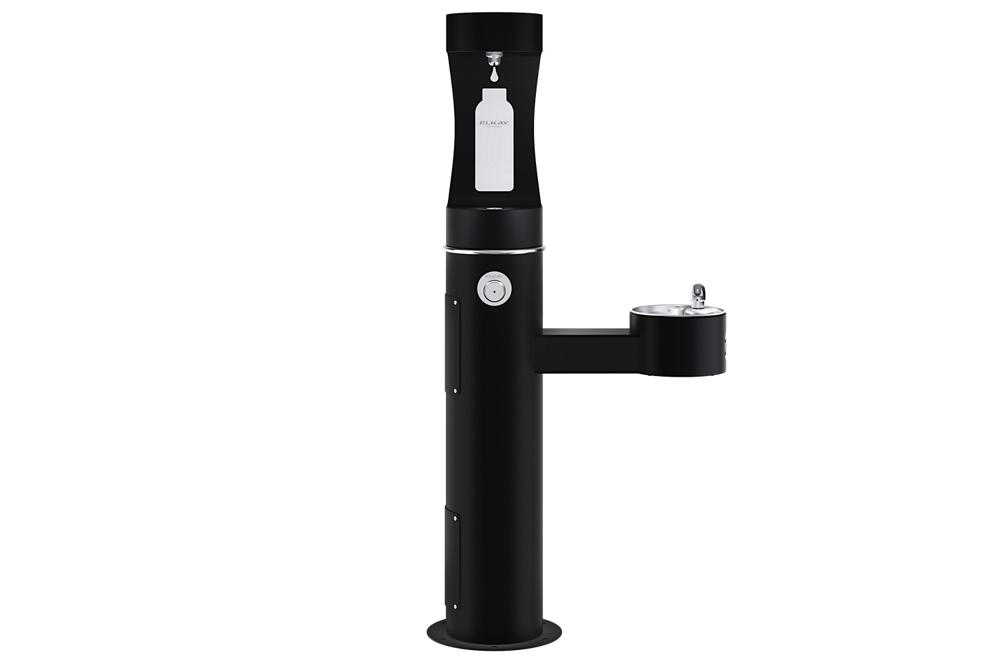

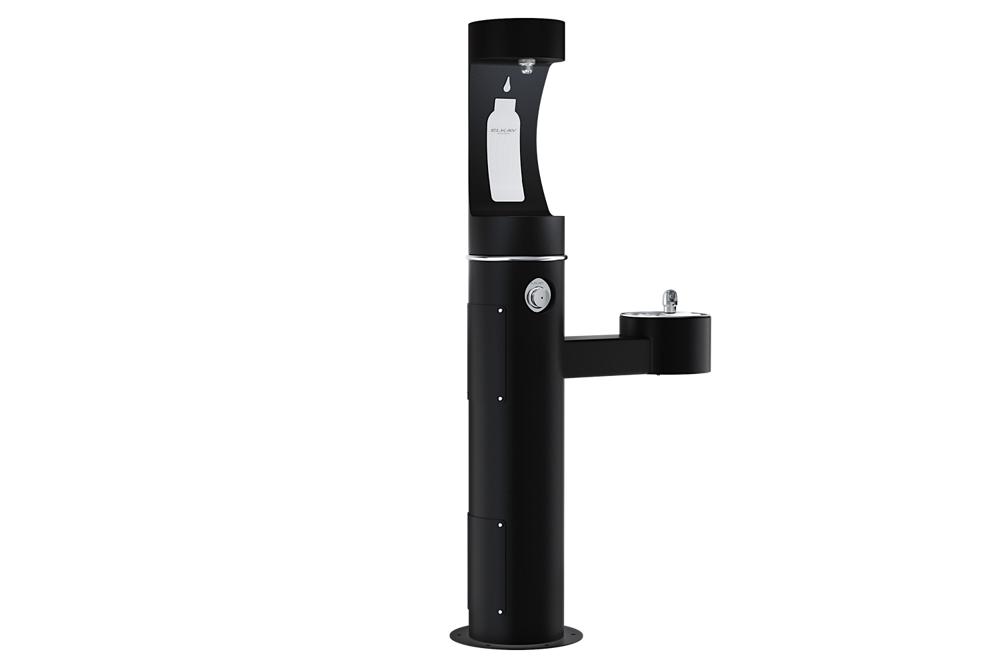

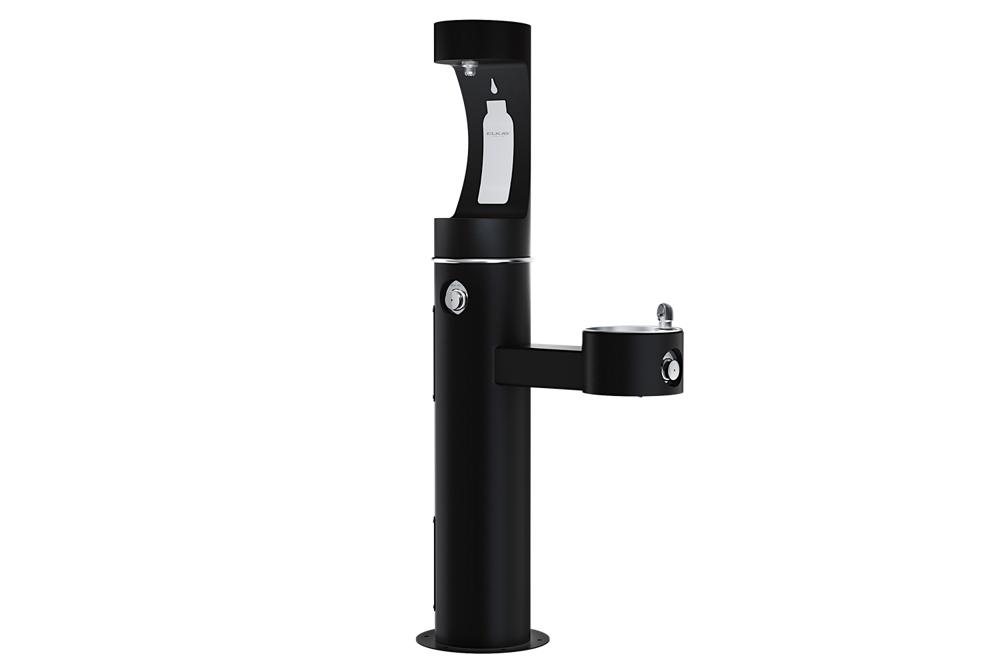

The Elkay LK4420BF1UBLK is a Black-finish outdoor pedestal bottle filling station and bubbler, built for heavy-duty vandal-resistant durability.
Key Specifications:
| Finish | Black (BK), 300 Series Stainless Construction |
| Filtration | Non-Filtered |
| Refrigeration | Not Included; Non-Refrigerated Unit |
| Power | No Electrical Required; Mechanical Button Activation |
| Dimensions | 14" x 31" x 64" (L x W x H) |
Features & Benefits:
- Reliable Water Access: The LK4420BF1UBLK continues supplying water even during service disruptions thanks to its mechanical activation, requiring no electrical connection.
- Clean, Splash-Free Filling: Laminar flow technology on the LK4420BF1UBLK ensures a clean bottle fill with minimal splash for users.

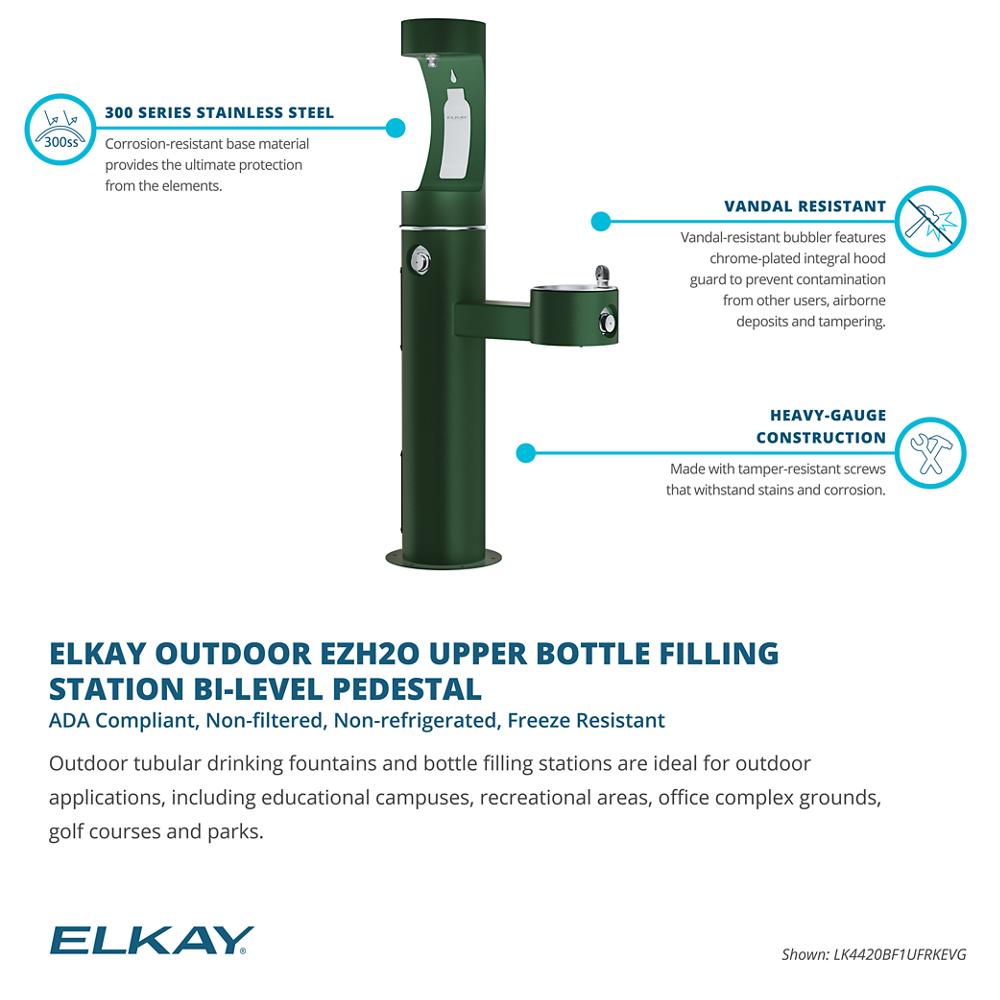

- Built to Last Outdoors: Constructed from heavy-duty, vandal-resistant 300 Series Stainless Steel, this unit is designed to withstand outdoor use and high-traffic environments.
- Dual Service Points: The pedestal serves two stations — an upper bottle filler and a lower vandal-resistant bubbler — maximizing hydration access in one footprint.
FAQ
Q: What's the difference between LK4420BF1U and LK4420BF1UBLK?
A: Both models are functionally identical, non-filtered and non-refrigerated outdoor bi-level pedestal units. The only difference is the finish — the LK4420BF1UBLK comes in a Black (BK) color option, while the base LK4420BF1U model can be selected in Black, Blue, Evergreen, or Gray.
Q: Does the LK4420BF1UBLK require electricity to operate?
A: No, the LK4420BF1UBLK uses mechanical button activation and requires no electrical connection, allowing it to continue supplying water during power outages or service disruptions.
Q: Can the LK4420BF1UBLK be installed in any outdoor climate?
A: The unit is designed for outdoor installation, but in non-temperature-controlled environments it must be adequately winterized and/or protected from extreme heat to prevent damage.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).

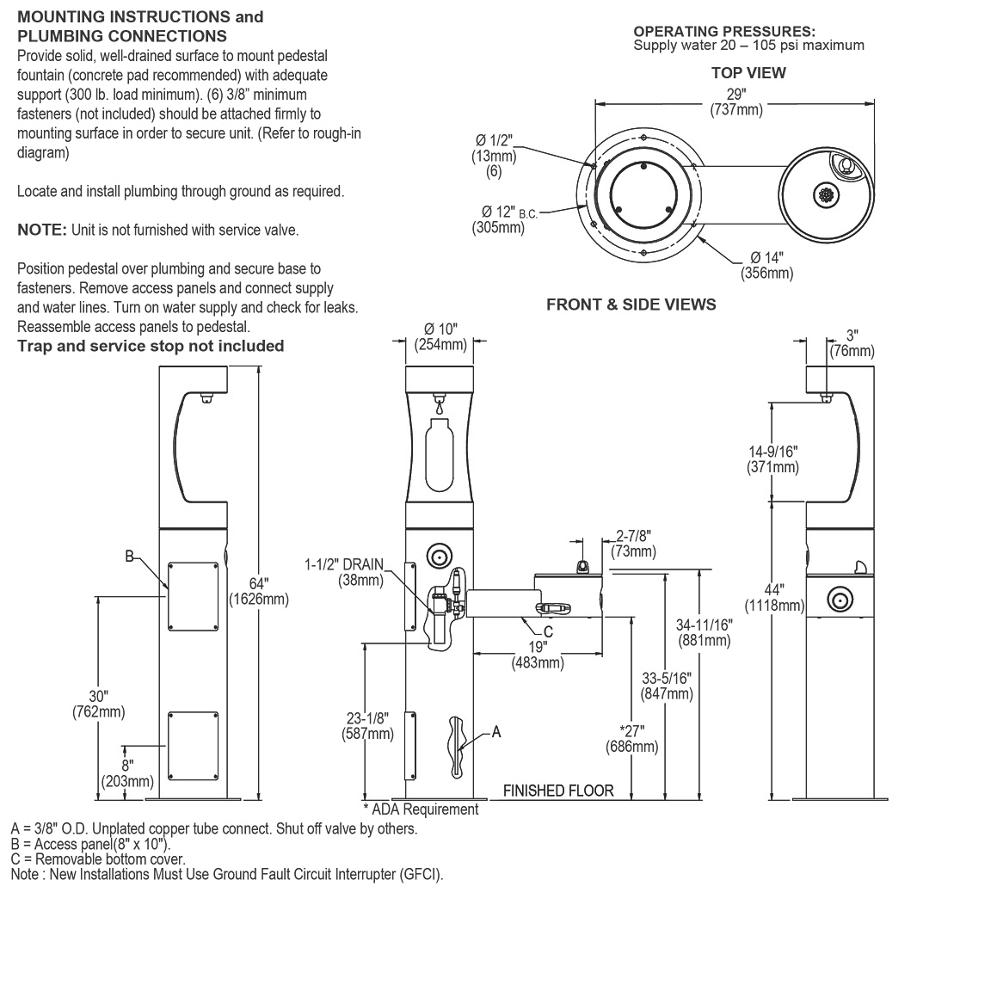

- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
