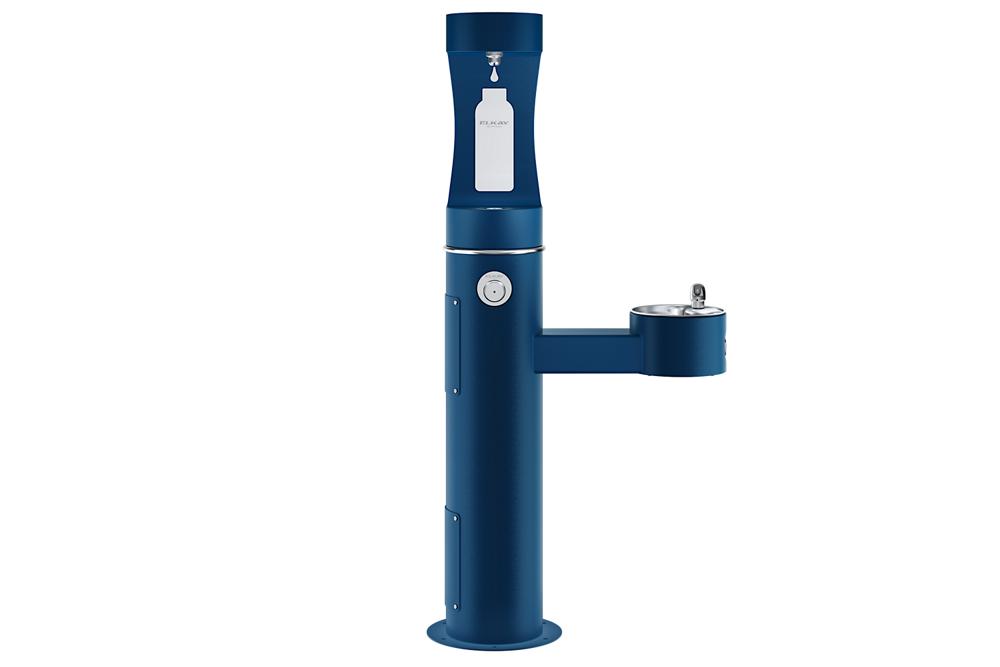

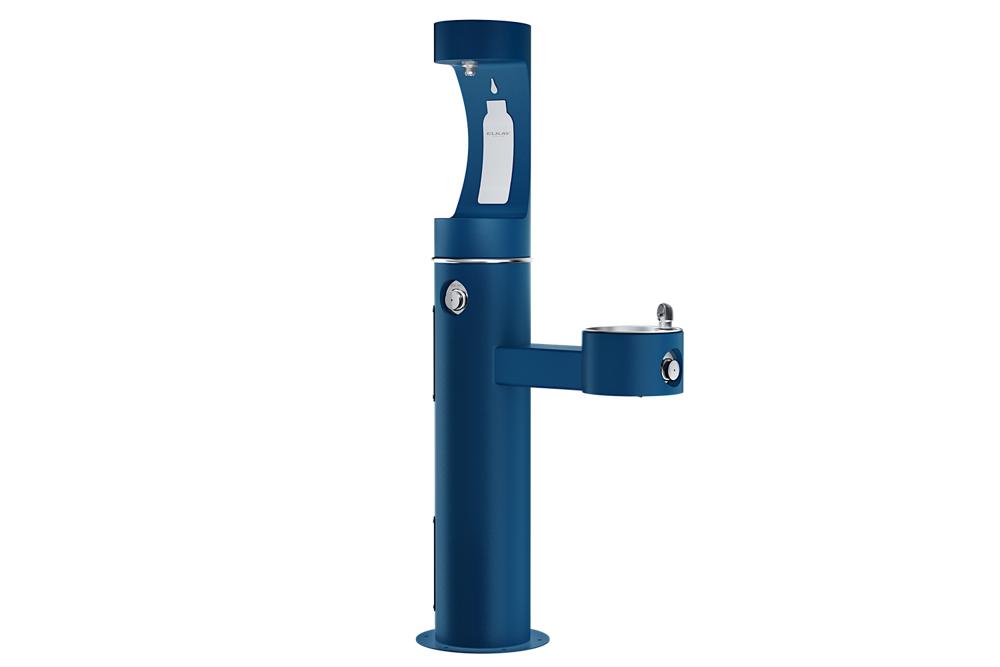

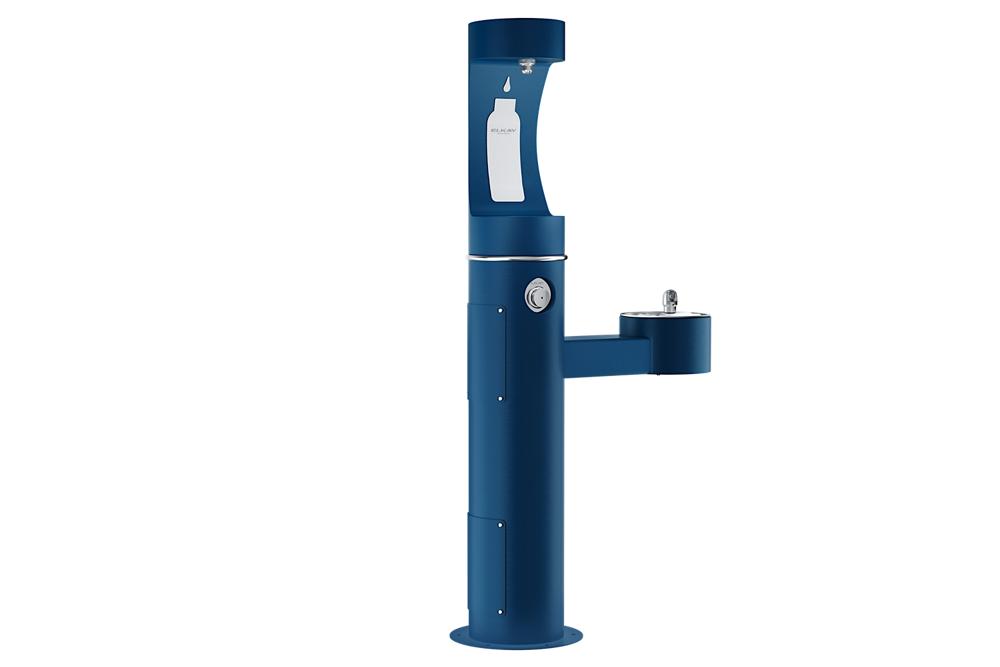

Elkay LK4420BF1UBLU | Outdoor Bi-Level Bottle Filler Pedestal | Blue

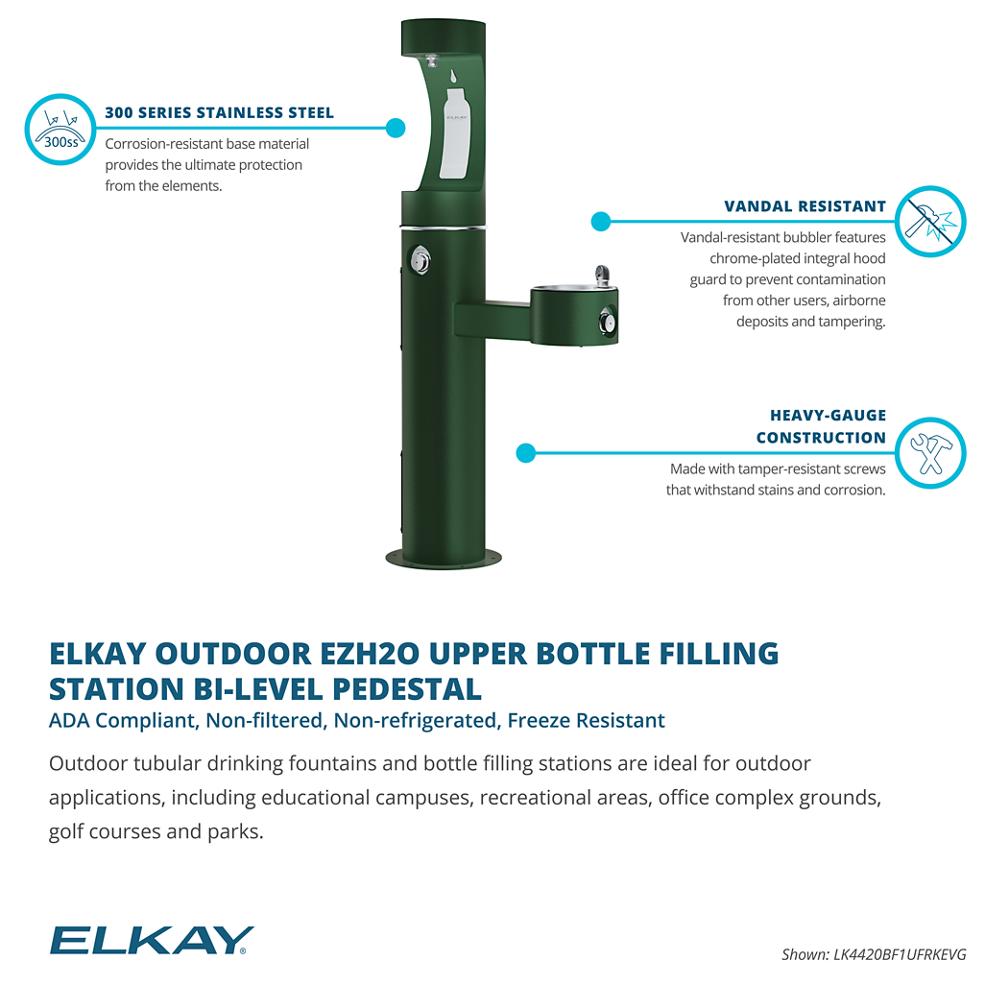

The Elkay LK4420BF1UBLU is a Blue-finish outdoor bi-level pedestal fountain offering mechanically-activated bottle filling and drinking access.
Key Specifications:
| Finish | Blue (BLU), 300 Series Stainless |
| Filtration | Non-Filtered |
| Refrigeration | Not Included; Non-refrigerated unit |
| Power | No Electrical Required; Mechanical Button |
| Dimensions | 14" x 31" x 64" | 147 lbs. |
Features & Benefits:
- Reliable Water Access: The LK4420BF1UBLU continues supplying water even during service disruptions thanks to its mechanical activation.
- Clean, Splash-Free Fill: Laminar flow technology on the LK4420BF1UBLU ensures a clean bottle fill with minimal splash.
- Durable Outdoor Construction: Heavy duty, vandal-resistant 300 series stainless steel construction makes the LK4420BF1UBLU suitable for high-traffic outdoor environments.
- No Electrical Needed: Mechanical button activation eliminates the need for electrical hookup, simplifying installation of the LK4420BF1UBLU.
FAQ
Q: What's the difference between LK4420BF1U and LK4420BF1UBLU?
A: The LK4420BF1U and LK4420BF1UBLU are the same model, differing only in finish color; the "BLU" designation indicates the Blue color option, while the base model is available in Black, Evergreen, and Gray as well.
Q: Does this unit require electricity to operate?
A: No, the unit uses mechanical button activation and requires no electrical connection.
Q: Can this unit be installed in cold climates?
A: Yes, but in non-temperature-controlled environments the unit must be adequately winterized and/or protected from extreme heat to prevent damage.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).

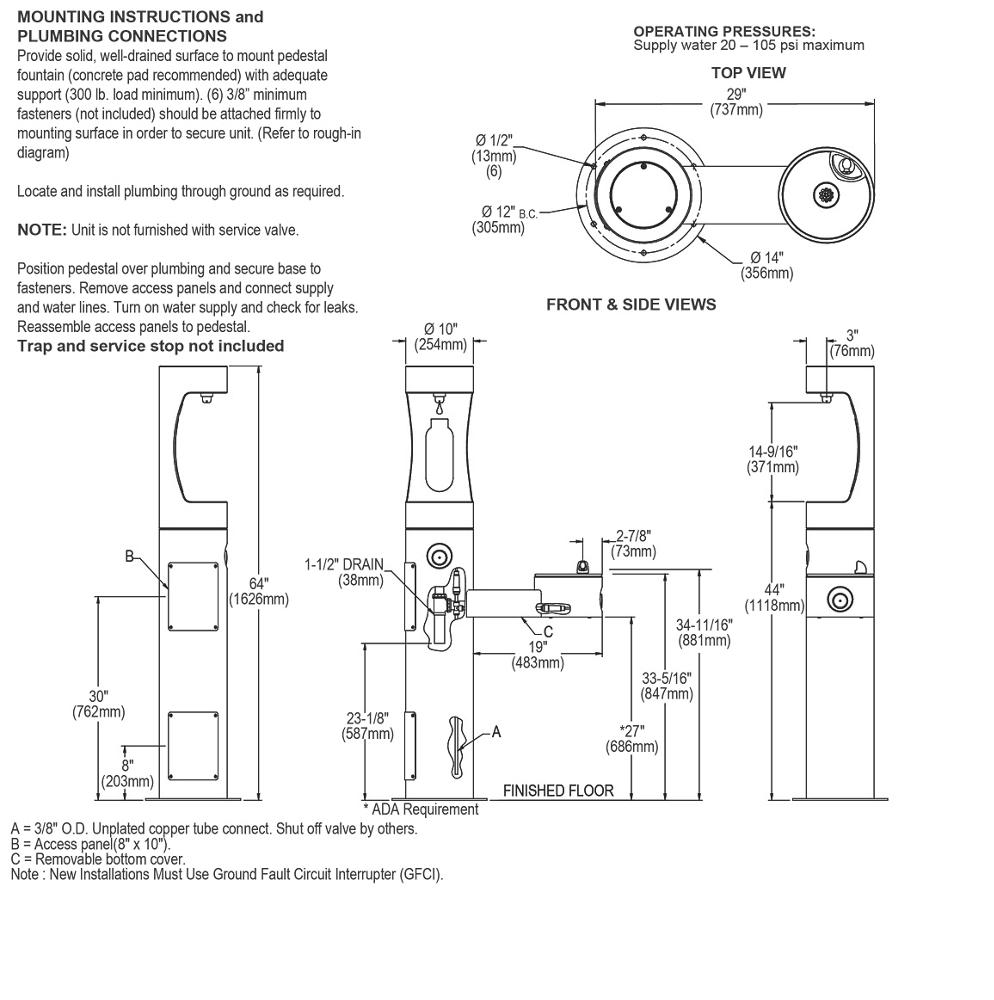

- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
