Elkay LK4420BF1UGRY | Outdoor Bi-Level Bottle Filler Pedestal | Grey

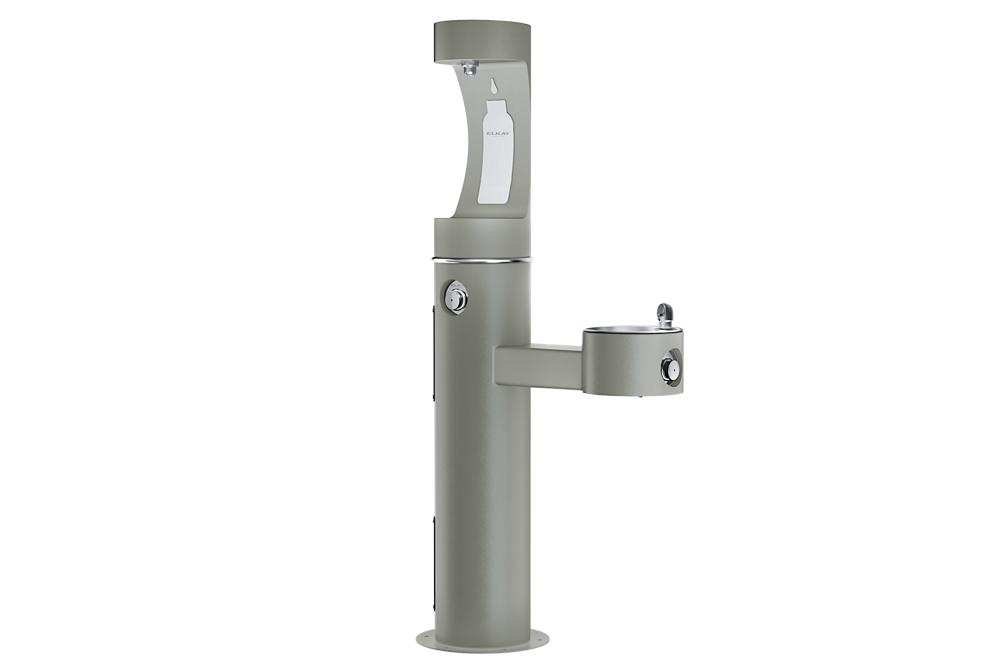

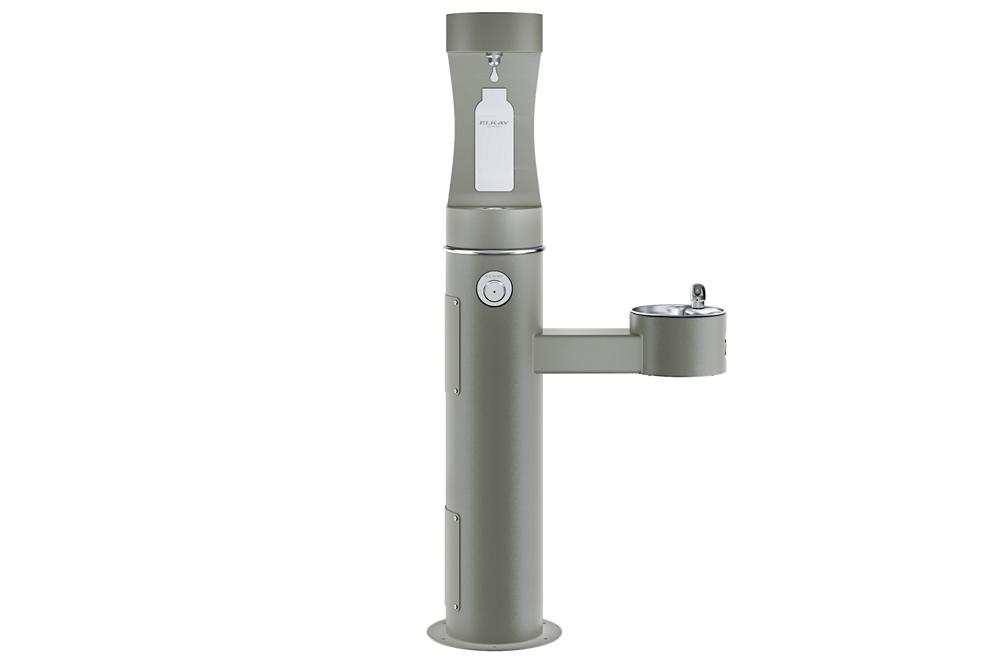

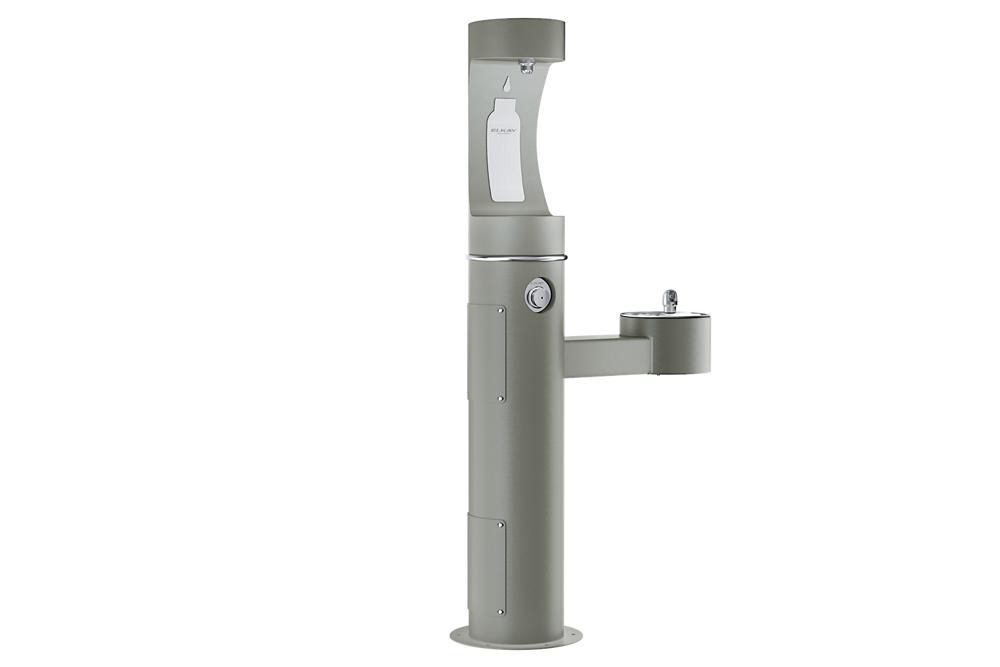

The Elkay LK4420BF1UGRY is a Gray-finished outdoor bi-level pedestal bottle filling station with vandal-resistant, mechanically-activated bubbler for reliable hydration access.
Key Specifications:
| Finish | Gray (GRY) |
| Filtration | Non-Filtered |
| Refrigeration | Not Included, Non-Refrigerated Unit |
| Power | No Electrical Required; Mechanical Button Activation |
| Mounting Type | Floor Mount/Freestanding |
Features & Benefits:
- Reliable Outdoor Hydration: The Elkay LK4420BF1UGRY offers a Gray-finished, heavy-duty design suited for continuous outdoor use.
- Uninterrupted Water Access: Mechanically-activated operation on the LK4420BF1UGRY ensures water flow even during power outages.
- Clean, Splash-Free Fill: Laminar flow technology on the LK4420BF1UGRY minimizes splashing while filling bottles.
- Vandal-Resistant Durability: Constructed with 300 Series Stainless Steel, the LK4420BF1UGRY withstands high-traffic public environments.
FAQ
Q: What's the difference between LK4420BF1U and LK4420BF1UGRY?
A: The LK4420BF1U is the base model available in four finishes, while the LK4420BF1UGRY specifically denotes the Gray color option of that same unit.
Q: Does the LK4420BF1UGRY require electrical power to operate?
A: No, this unit uses mechanical button activation and does not require any electrical connection.
Q: Can the LK4420BF1UGRY be installed in cold climates?
A: Yes, but it must be properly winterized or protected from extreme temperatures when installed in non-temperature-controlled environments.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install Elkay & Halsey Taylor Freestanding, Outdoor Bottle Filling Stations, ensure the surface is smooth, flat, and finished, capable of supporting at least 300 lbs. Protect the unit from extreme temperatures if it’s in a non-temperature-controlled environment. A licensed plumber should perform the installation, and a shut-off valve must be installed on the water supply (not included).

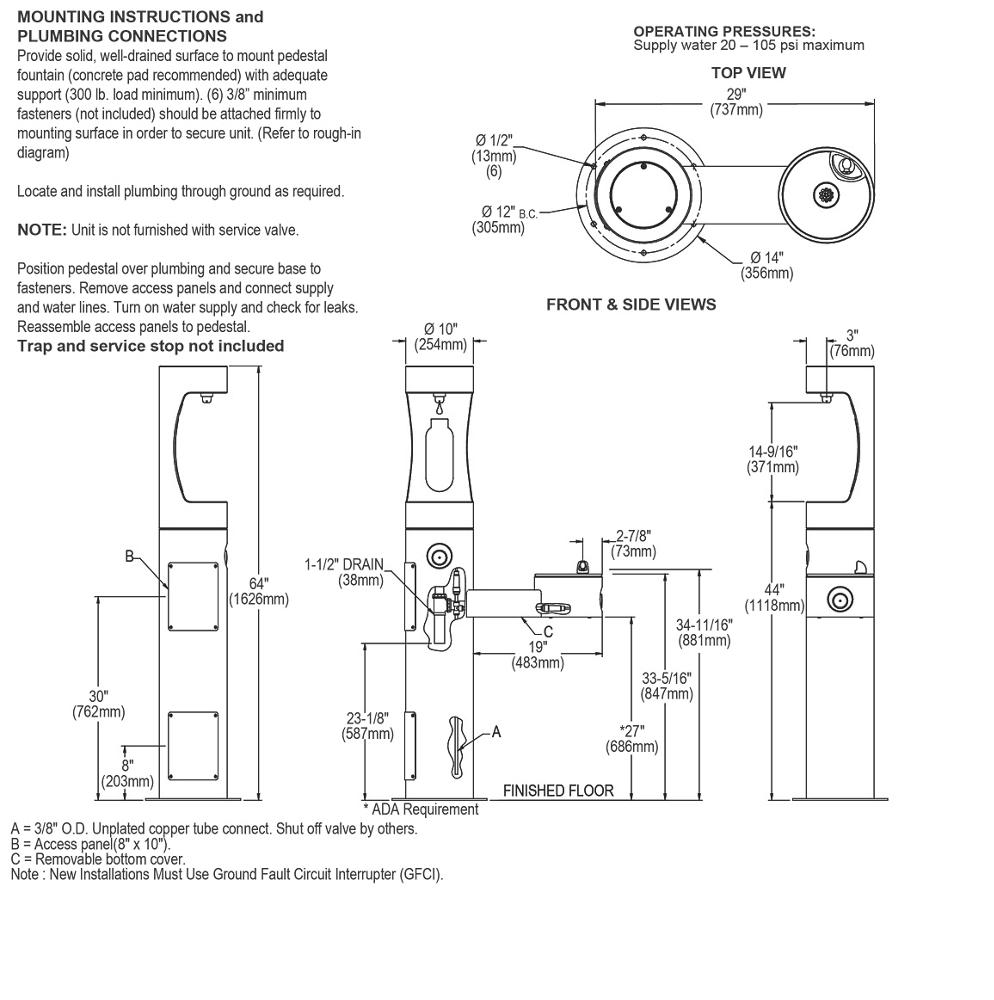

- Refer to the rough-in for plumbing.
- Secure the unit with 3/8" fasteners (not included).
- Connect the water supply and drain lines, adhering to local codes. Use a 3/8" O.D. unplated copper tube for the water supply and a 1-1/2" IPS for waste.
- Flush the copper lines to remove debris before connecting. Push tubes straight into fittings without soldering.
- Position the drain pipe and aesthetic collar correctly, then secure the bottle filler with the provided hardware.
Maintenance
To keep your Elkay & Halsey Taylor Bottle Filling Station in optimal condition:
- Clean the exterior regularly with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Inspect water connections for leaks regularly.
- Ensure the water inlet pressure is between 20-105 PSI. Use a pressure-reducing regulator if it exceeds 105 PSI.
- Winterize the unit if it’s in a non-temperature-controlled environment.
- Flush the supply lines regularly to prevent sediment buildup.
Refer to the product manual for detailed installation and maintenance tips.
