Elkay EZWS-ERPBM28K | In-wall Bi-Level Bottle Filling Stations l Filterless, Refrigerated, SwirlFlo fountains, Stainless Steel (comes with a Mounting Frame)
Elkay EZWS-ERPBM28K | In-wall Bi-Level Bottle Filling Stations l Filterless, Refrigerated, SwirlFlo fountains, Stainless Steel (comes with a Mounting Frame) is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EZWS-ERPBM28K | In-wall Bi-Level Bottle Filling Stations l Fi...

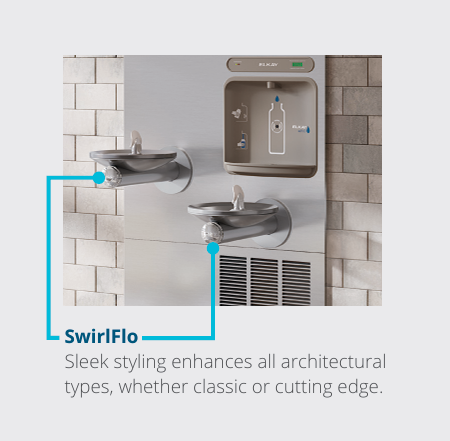

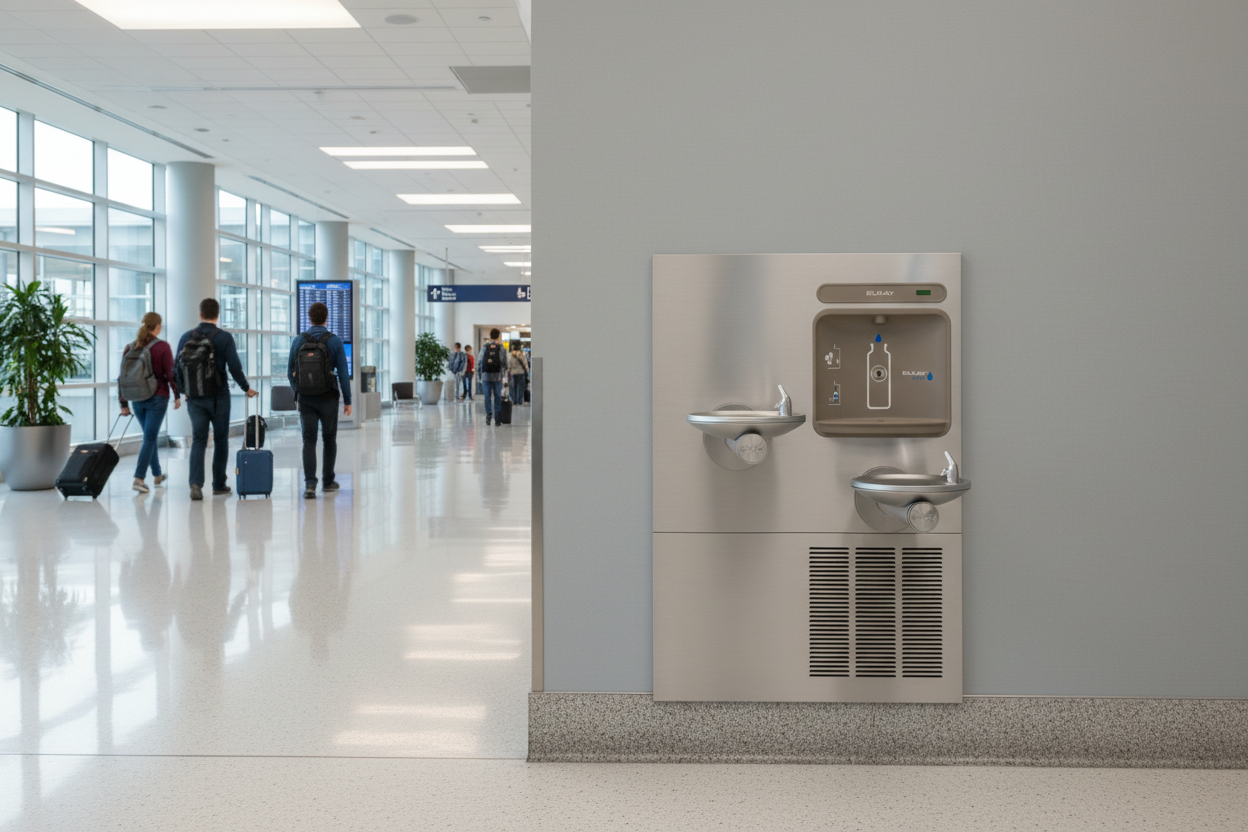

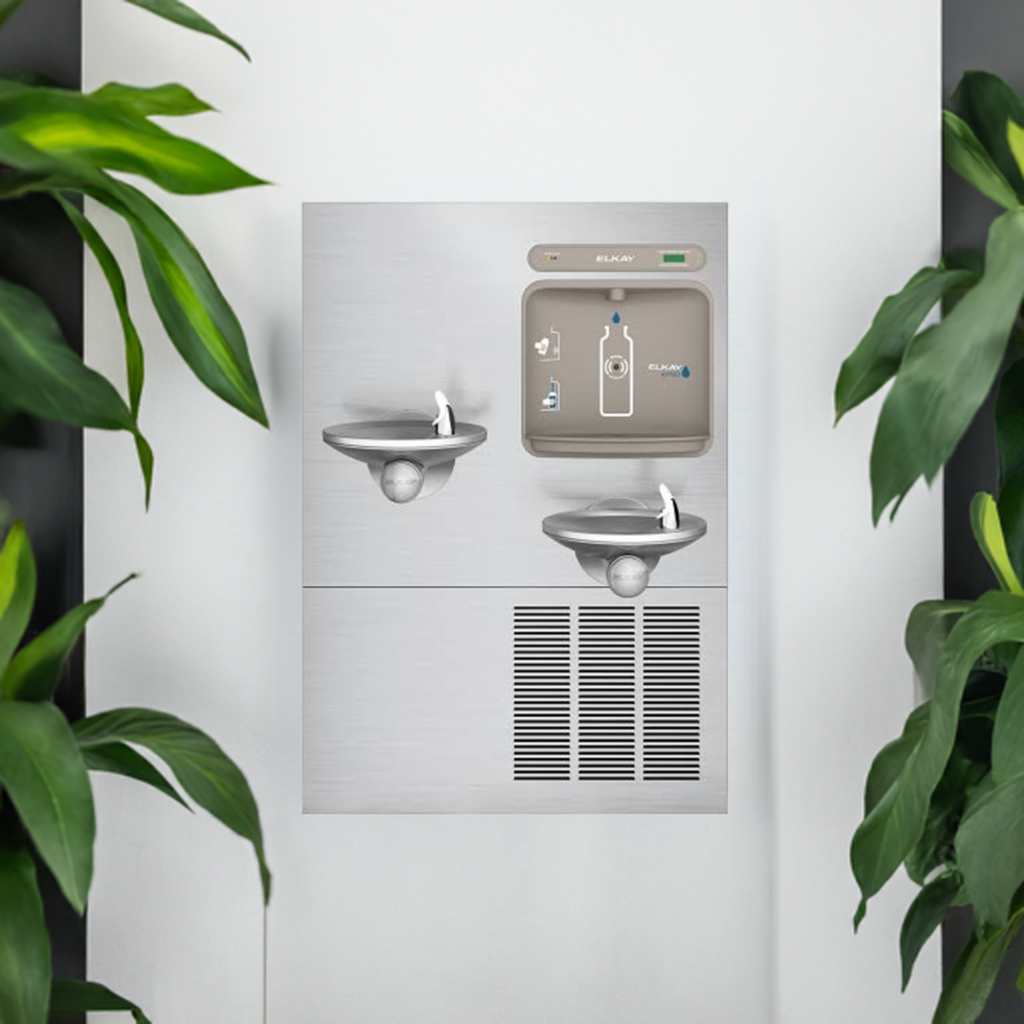

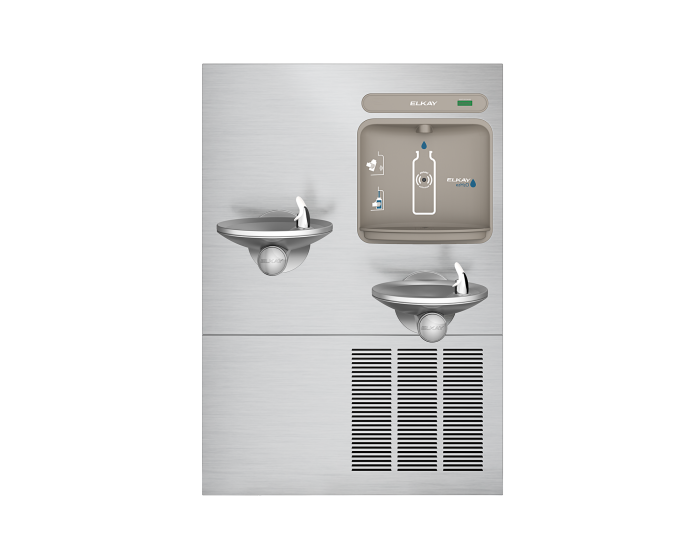

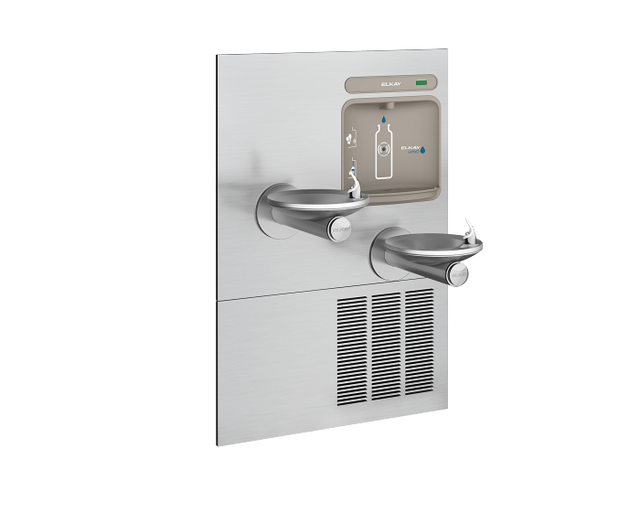

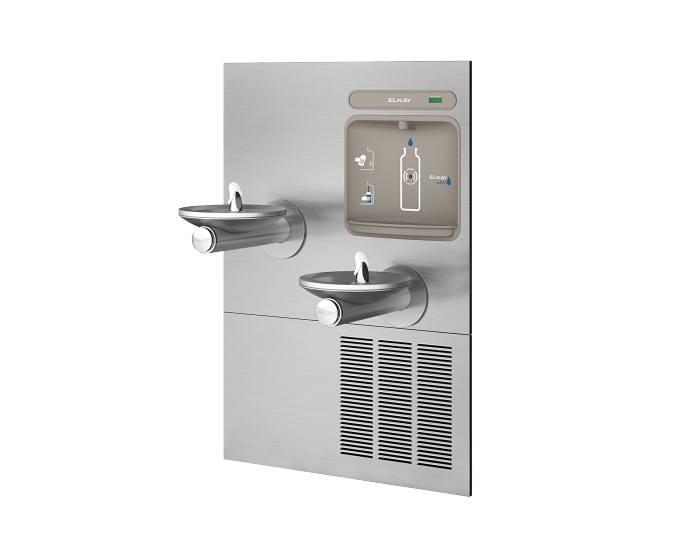

The Elkay EZWS-ERPBM28K is a bi-level ezH2O® bottle filling station with integral SwirlFlo® fountains, designed for high-traffic indoor environments. This refrigerated, non-filtered stainless steel unit delivers up to 8.0 gallons per hour of chilled drinking water and combines hands-free bottle filling with mechanical bubbler activation. With its ADA-compliant design, antimicrobial surfaces, and Green Ticker™ sustainability feature, the EZWS-ERPBM28K provides a hygienic and efficient hydration solution for schools, offices, and public facilities.
Key Specifications:
- Chilling Capacity: 8.0 GPH of 50°F drinking water, based on 80°F inlet water and 90°F ambient.
- Filtration: Non-filtered standard model; filtered version available as LZWS-ERPBM28K.
- Electrical: 115V/60Hz, 370 watts, 1 full load amp.
- Stations Served: Bi-level design serves 2 stations simultaneously.
- Installation Requirement: Requires a minimum of 12" wall depth for installation.
Features & Benefits:
- Hands-Free Bottle Filling: Electronic sensor activation provides hygienic, touch-free operation.
- Mechanical Bubbler Activation: Flexi-Guard® safety bubbler with front push button ensures reliable water access.
- Antimicrobial Protection: Key plastic components manufactured with silver ion antimicrobial agents for cleaner surfaces.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste.
- Laminar Flow: Provides a clean, splash-free fill.
- Real Drain System: Eliminates standing water for improved sanitation.
What's Included:
- EZWS-ERPBM28K Bottle Filling Station with Bi-Level SwirlFlo® Fountains
- Mounting Frame (MFWS210)
- Chiller (ECH8)
- Installation instructions and warranty documentation
FAQ
Q: Does the EZWS-ERPBM28K include filtration?
A: The EZWS-ERPBM28K is a non-filtered model. For filtered applications, choose the LZWS-ERPBM28K. Facilities can also add the EWF3000 WaterSentry® Plus Filter Kit for advanced contaminant reduction.
Q: What is the required installation depth?
A: Installation requires a minimum of 12" wall depth to accommodate the recessed mounting frame and chiller.
Q: Is the unit ADA compliant?
A: Yes, the EZWS-ERPBM28K meets ADA and ICC A117.1 accessibility requirements when installed properly.
Q: What accessories are available?
A: Elkay offers several accessories for customization, including the LKAPR1 SwirlFlo® Cane Apron for ADA compliance, and the ACCESS12X38-5 Access Panel for bi-level architectural fountains.
Q: What is the warranty coverage?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 1-year warranty on electrical and water system components.
Detailed Features & Benefits
Sustainable Hydration: The Green Ticker™ feature tracks the number of disposable plastic bottles saved, promoting sustainability and reducing environmental impact. Combined with hands-free operation, the unit encourages reusable bottle use in busy facilities.
Durable Stainless Steel Construction: Built with stainless steel finish and antimicrobial components, the EZWS-ERPBM28K ensures long-lasting durability and cleaner surfaces. The Flexi-Guard® safety bubbler adds protection against accidental injury.
Efficient Cooling System: The hermetically-sealed compressor and fan-cooled condenser deliver reliable 8.0 GPH chilling capacity. The Real Drain system prevents standing water, improving sanitation and reducing maintenance needs.
Flexible Options: Available in non-filtered (EZWS-ERPBM28K) and filtered (LZWS-ERPBM28K) versions, allowing facilities to choose the best fit for their water quality needs.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
