Elkay EZWS-ERPBM28K | SwirlFlo In-wall Bi-Level Bottle Filler l Fil...

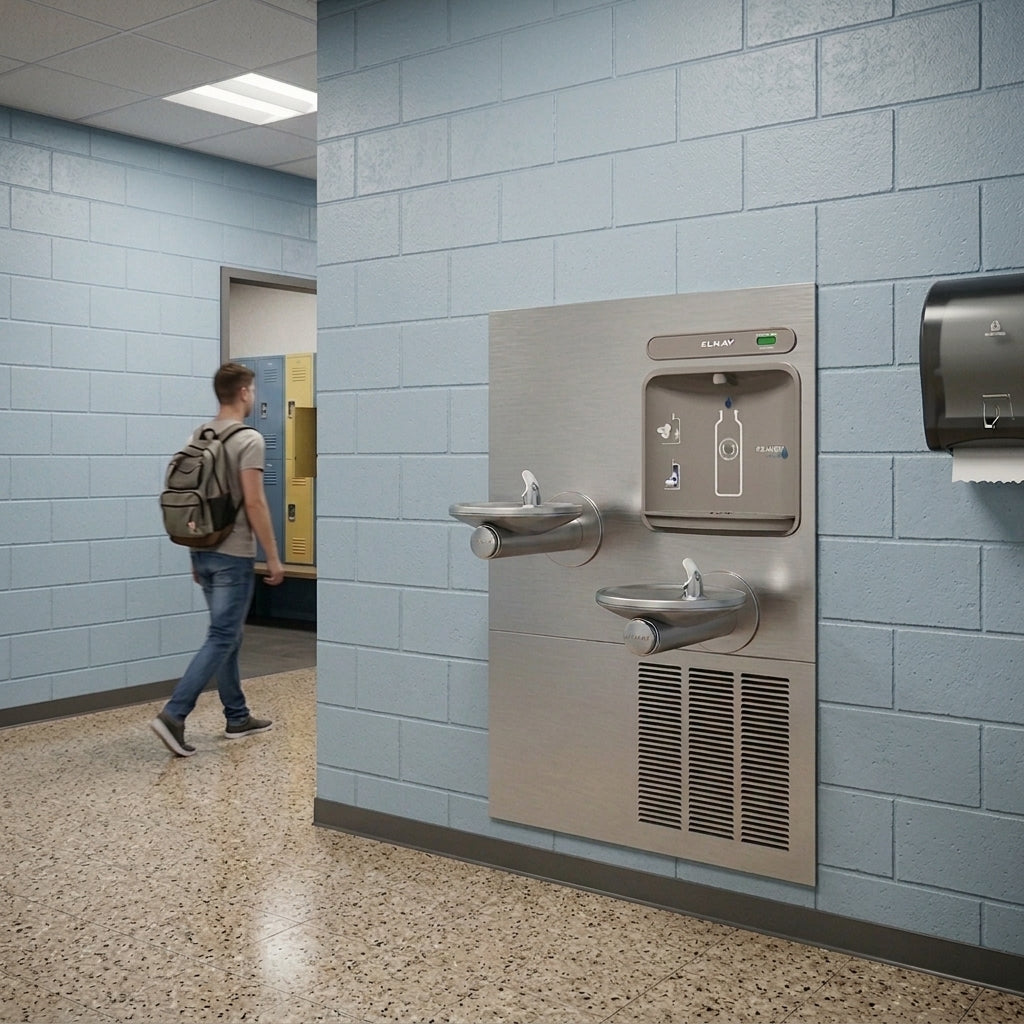

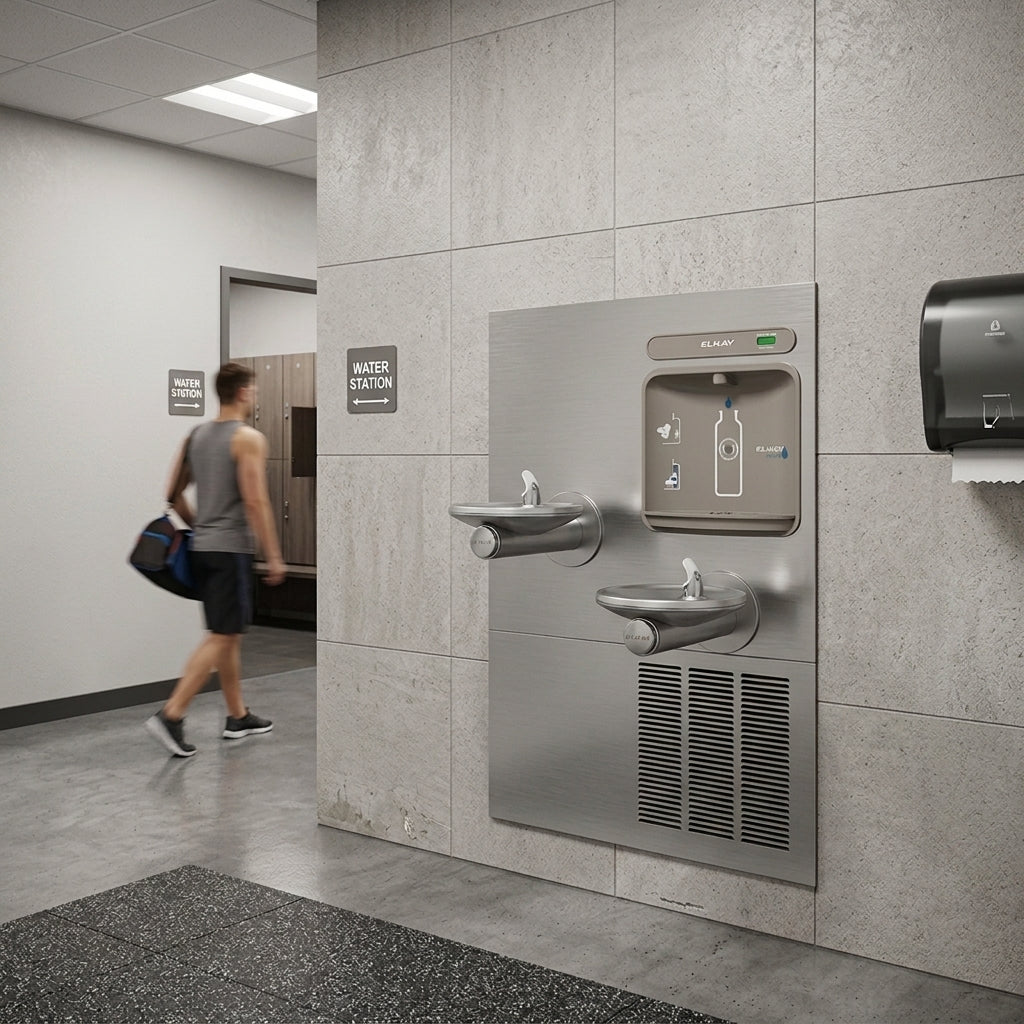

The Elkay EZWS‑ERPBM28K is a bi‑level ezH2O® bottle filling station with integral SwirlFlo® fountains, built for high‑traffic indoor environments. This stainless steel, refrigerated, non‑filtered unit delivers up to 8.0 gallons per hour of chilled drinking water with ADA‑compliant design and sustainability features.
Key Specifications:
| Design | Bi‑level bottle filling station with integral SwirlFlo® fountains |
| Finish | Stainless Steel |
| Filtration | Non‑filtered; filtered version available as LZWS‑ERPBM28K |
| Refrigeration | 8.0 GPH of 50°F chilled water, 115V/60Hz, 370W |
| Stations Served | Bi‑level, 2 drinking fountains & 1 bottle filler |
Features & Benefits:
- Hands‑Free Bottle Filling: Electronic sensor activation for hygienic use
- Flexi‑Guard® Bubbler: Mechanical push button for reliable water access
- Antimicrobial Protection: Silver ion components keep surfaces cleaner
- Green Ticker™: Displays bottles saved from waste
- Real Drain System: Eliminates standing water for improved sanitation
What's Included:
- EZWS‑ERPBM28K Bottle Filling Station with Bi‑Level SwirlFlo® Fountains
- Mounting Frame (MFWS210)
- Chiller (ECH8)
- Installation instructions and warranty documentation
Comparison With Other Bottle Filling Station Models:
| EZWS‑ERPBM28K | LZWS‑EDFP217K | LZSTL8WSLK | |
|---|---|---|---|
| Finish | Stainless Steel | Stainless Steel | Light Gray Granite |
| Filtration | Non‑filtered | 51300C WaterSentry® Plus Filter, 3,000 gal | 51300C WaterSentry® Plus Filter, 3,000 gal |
| Features | Bi‑level In-wall refrigerated fountain, mechanical bubbler | Soft Sides®in-wall fountain, non‑refrigerated, Flexi‑Guard® bubbler | Bi‑level on wall ADA cooler, refrigerated 8.0 GPH, Flexi‑Guard® bubbler |
FAQ
Q: Does the EZWS‑ERPBM28K Include Filtration?
A: No. It’s a non‑filtered model. For filtered applications, choose the LZWS‑ERPBM28K or add the EWF3000 Filter Kit.
Q: What Is the Required Installation Depth?
A: Installation requires a minimum of 12" wall depth to accommodate the recessed mounting frame and chiller.
Q: Is the Unit ADA Compliant?
A: Yes. The EZWS‑ERPBM28K meets ADA and ICC A117.1 accessibility requirements when installed properly.
Q: What Accessories Are Available?
A: Options include the LKAPR1 SwirlFlo® Cane Apron and the ACCESS12X38‑5 Access Panel.
Q: What Is the Warranty Coverage?
A: Elkay provides a 5‑year limited warranty on the refrigeration system and a 1‑year warranty on electrical and water system components.
Q: What Maintenance Is Required?
A: Routine cleaning of exterior surfaces, checking for leaks, and filter replacement if upgraded with the EWF3000 kit. The Green Ticker™ and LED indicators help track usage and filter status.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

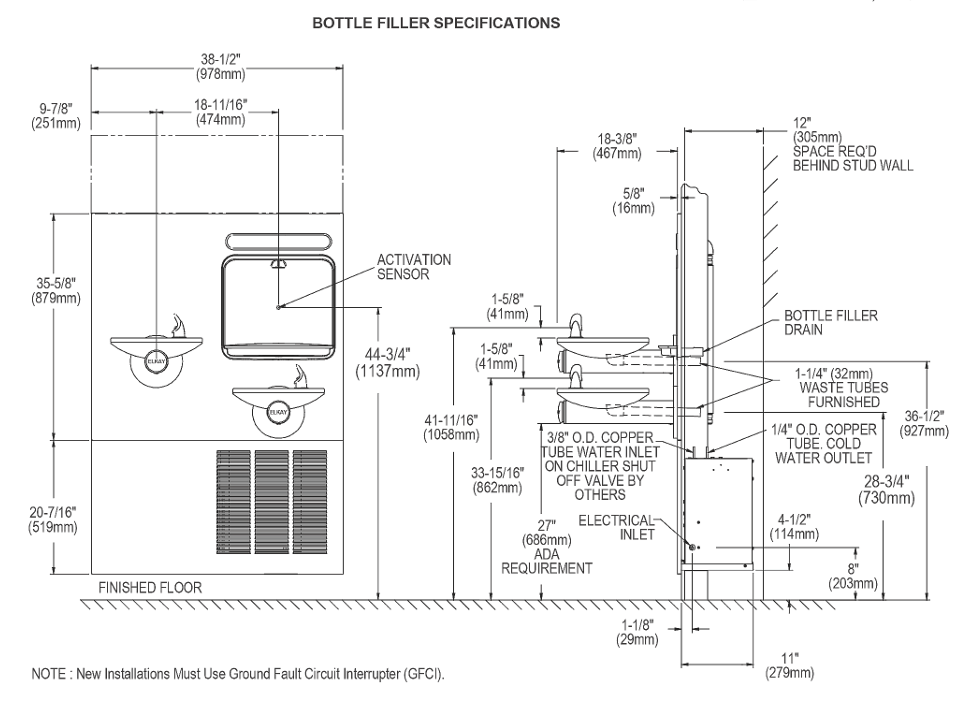

- Prepare wall framing to support unit weight and follow rough‑in dimensions provided in the package manual.
- Install water inlet and drain line per rough‑in guide.
- Mount back panel securely using hanger bracket or wall plate assembly.
- Attach fountain body with supplied hardware and tighten securely.
- Connect water supply line, flush thoroughly, and check for leaks.
- Adjust bubbler stream height as needed; factory set at 35 psi.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect bubbler orifice periodically; clean if flow is irregular.
- Adjust stream regulator as needed to maintain proper flow.
- Check quick‑connect fittings for leaks and reseat tubing if necessary.
- Clean basin and exterior surfaces with non‑abrasive cleaner.
- For service or repairs, consult the manual or a licensed plumber.
