Elkay EZSTLG8WSSK | Wall-mount Versatile Bi-level Bottle Filling St...

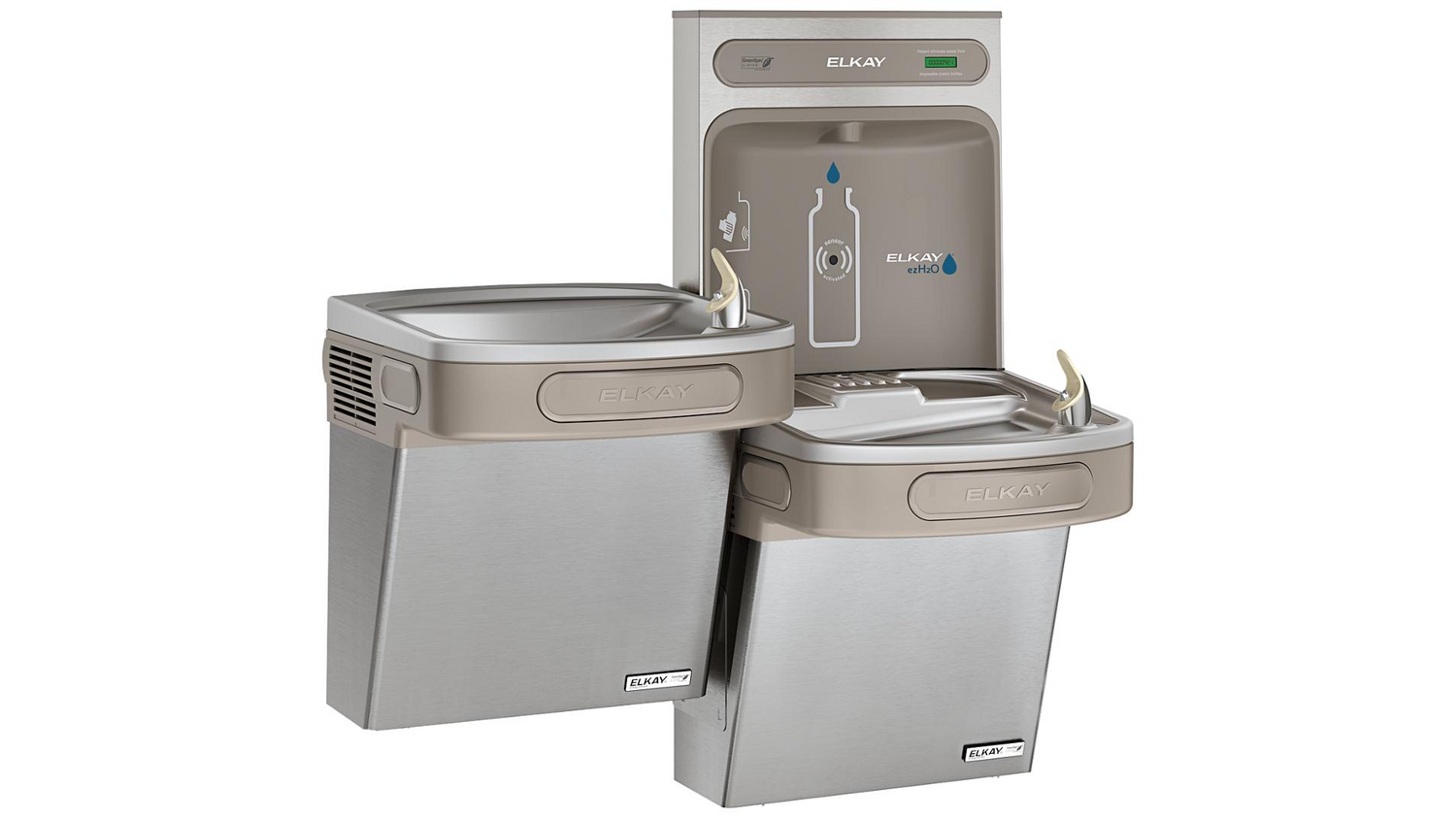

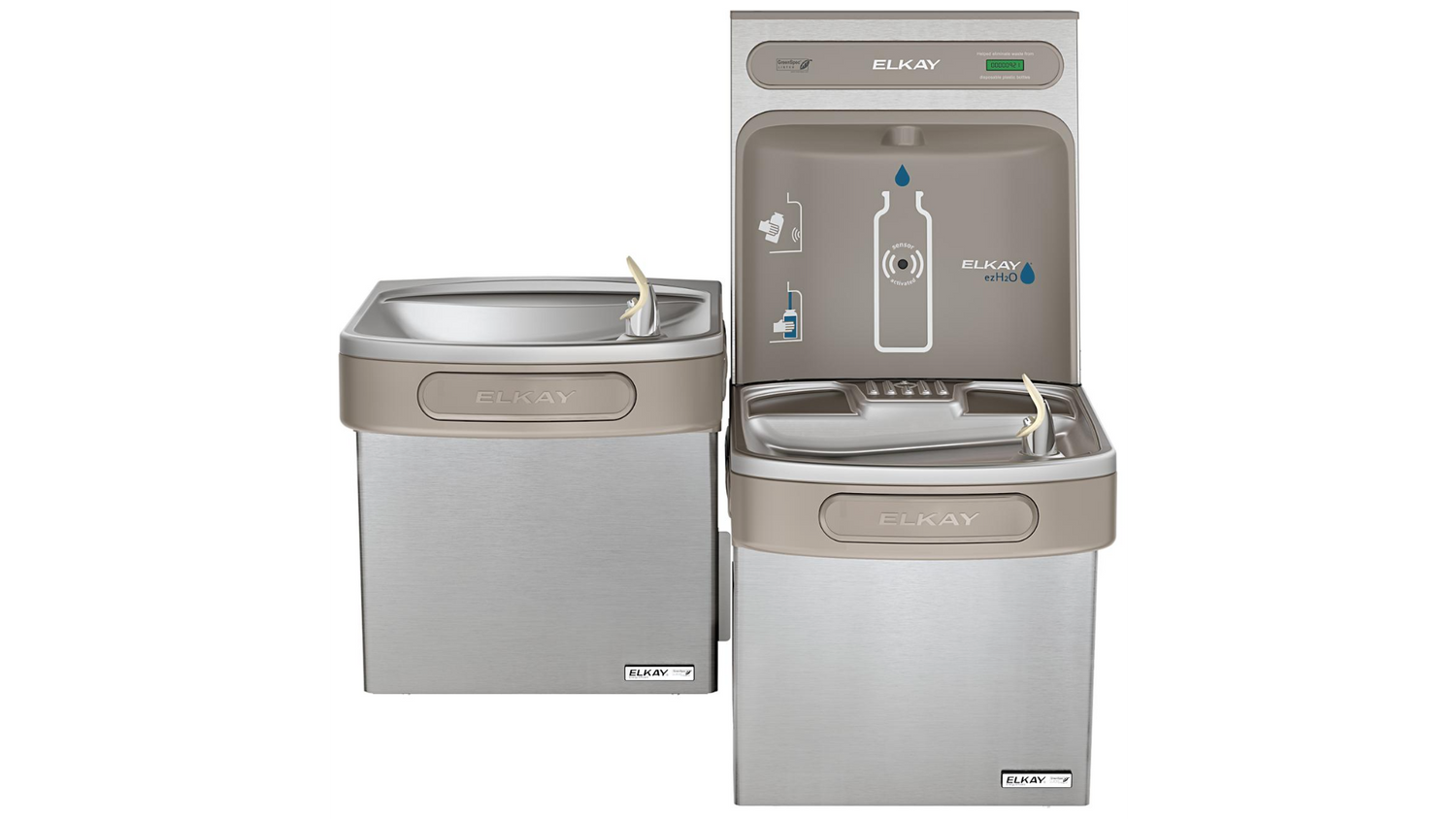

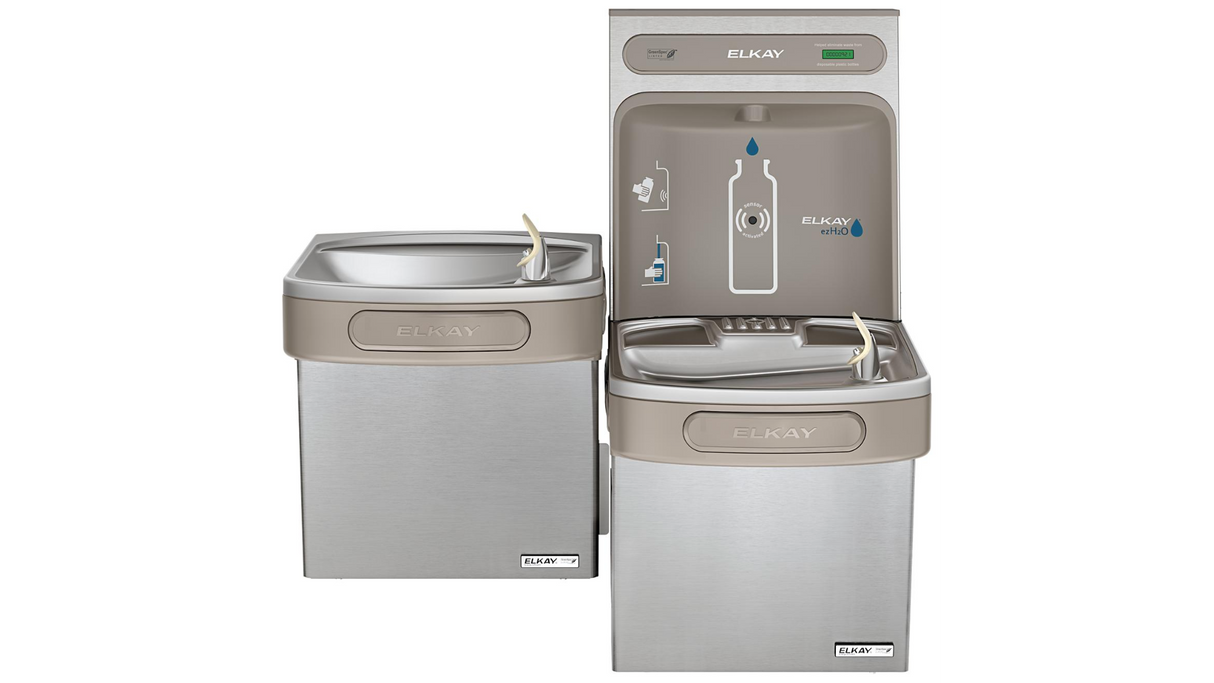

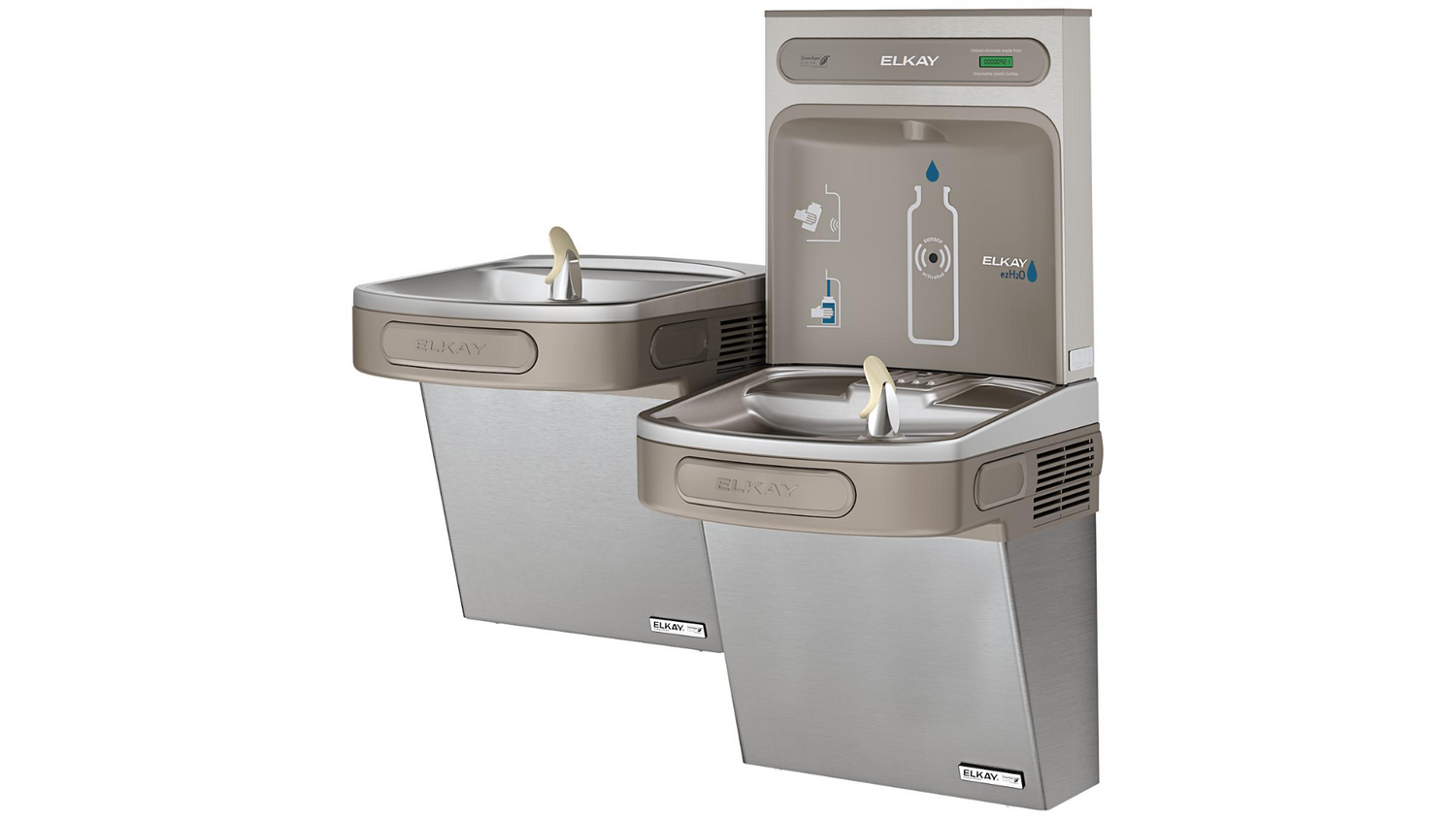

The Elkay EZSTLG8WSSK is a versatile bi‑level ADA cooler with integrated ezH2O® bottle filling station. This high‑efficiency stainless steel model delivers 8.0 GPH of chilled water, combining hands‑free bottle filling with bubbler activation for reliable indoor hydration.
Key Specifications:
| Design | Wall mount bi‑level ADA cooler with electronic bottle filler sensor and bubbler pushbar activation |
| Finish | Stainless Steel. For Granite Gray option, see EZSTLG8WSLK. |
| Filtration | Non‑filtered model. For filtered option, see LZSTLG8WSSK. Also compatible with EWF3000 filtration kit. |
| Refrigeration | 8.0 GPH chilling capacity at 50°F based on ASHRAE 18 testing |
| Stations Served | 2 (bi‑level coolers + bottle filler) |
Features & Benefits:
- Hands‑Free Bottle Filling: Sensor‑activated bottle filler reduces touchpoints and improves hygiene.
- Flexi‑Guard® StreamSaver™ Bubbler: Provides safe, efficient drinking with reduced splash.
- Green Ticker™: Displays the number of plastic bottles saved from waste.
- Antimicrobial Protection: Key plastic components include silver ion antimicrobial agents.
- ADA Compliant: Meets ADA and ICC A117.1 accessibility standards when installed correctly.
What's Included:
- EZSTLG8WSSK ADA cooler with bi‑level design
- ezH2O® bottle filling station
- Flexi‑Guard® StreamSaver™ bubbler
- Mounting hardware
Comparison of ADA Bottle Filling Coolers:
| Feature | EZSTLG8WSSK | LZWS‑LRPBM28K | LZSTLDWSSPRO |
|---|---|---|---|
| Finish | Stainless Steel (Granite Gray option available) | Stainless Steel | Stainless Steel |
| Filtration | Non‑filtered (filtered option: LZSTLG8WSSK) | Filtered, 51300C 3,000 gallon capacity | FL10 Pro Filtration, 10,000 gallon capacity |
| Best For | Indoor environments such as schools, offices, and healthcare facilities needing bi‑level hydration with bottle filling | High‑traffic public spaces like airports, universities, and gyms requiring filtered hydration | Large commercial buildings and institutions needing advanced filtration and dual‑station service |
| Features | Hands‑free bottle filler, Green Ticker™, antimicrobial components | Filtered bottle filler, dual activation, ADA compliant | Pro Filtration system, refrigerated cooling, ADA compliant |
How to Install the EZSTLG8WSSK:
- Prepare the mounting location by ensuring wall support and ADA clearance requirements.
- Attach the hanger brackets securely to the wall using all designated bolt holes.
- Hang the cooler unit onto the brackets, making sure it locks into place properly.
- Connect the water supply line using a dielectric coupling and attach the drain trap with the provided gasket and slip nut.
- Connect electrical supply to a dedicated GFCI outlet, then flush the system and check for leaks.
How to Maintain the EZSTLG8WSSK:
- Inspect the bubbler stream height regularly and adjust using the front panel screw if flow is too high or low.
- Clean the stainless steel surfaces with mild soap and water; avoid abrasive cleaners to protect the finish.
- Check the bottle filler sensor periodically to ensure hands‑free activation is functioning properly.
- Examine the drain trap and tubing for clogs or leaks, tightening connections as needed.
- Test electrical and cooling performance periodically to ensure the compressor and fan are operating efficiently.
FAQ
Q: What Applications Is the EZSTLG8WSSK Designed For?

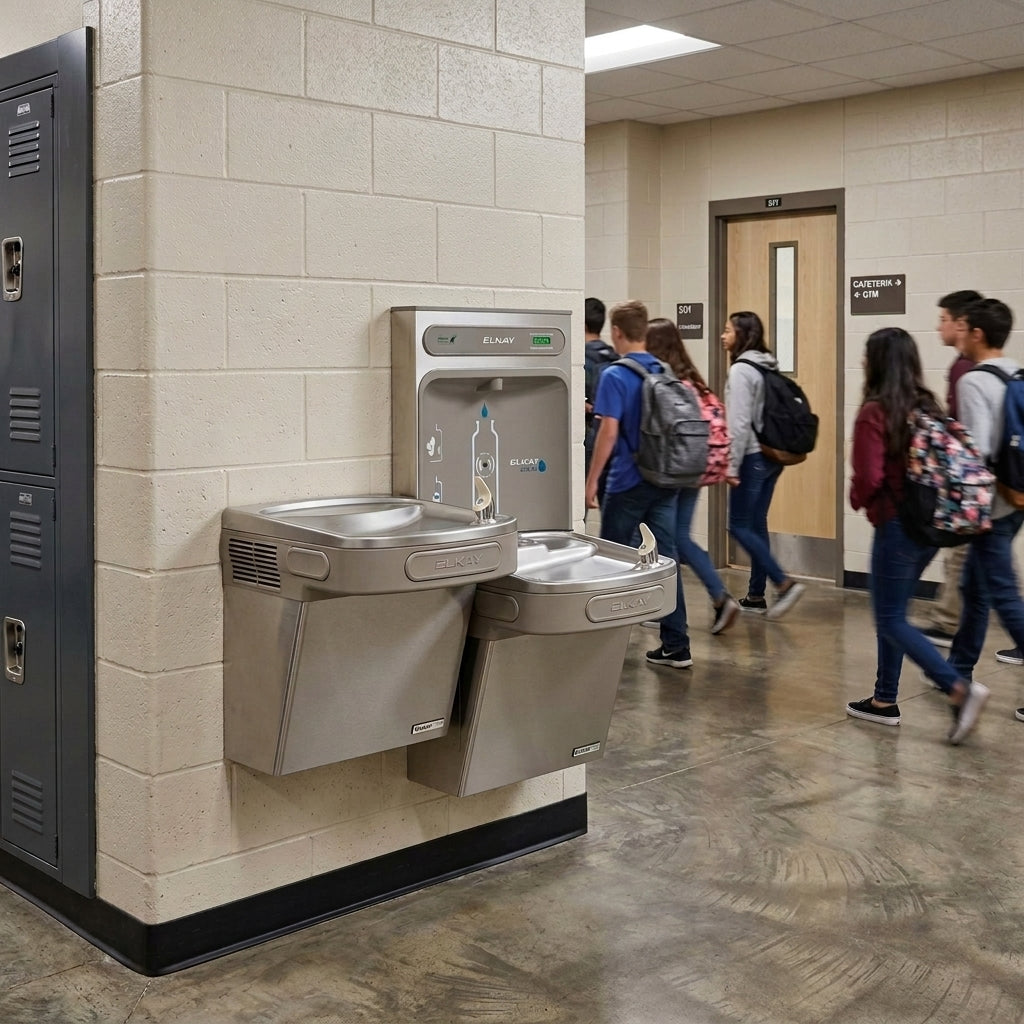

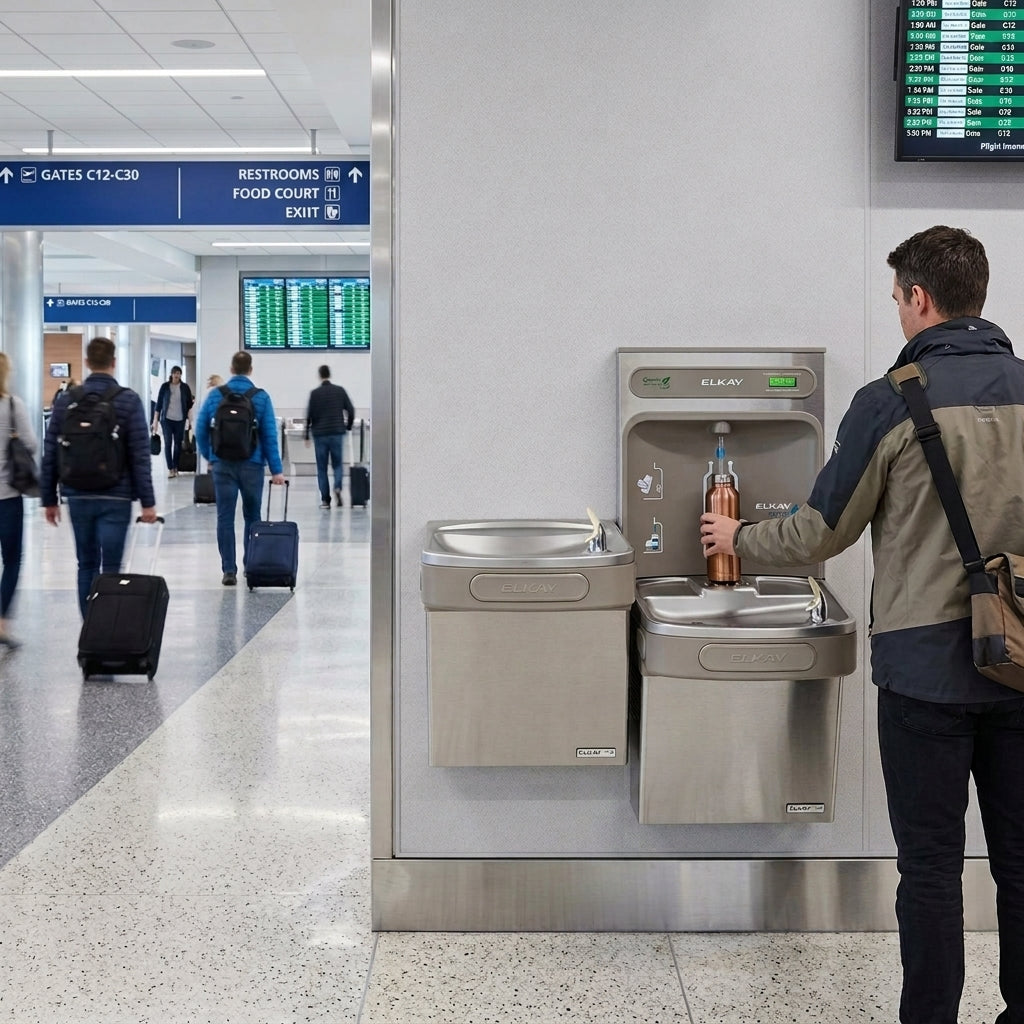

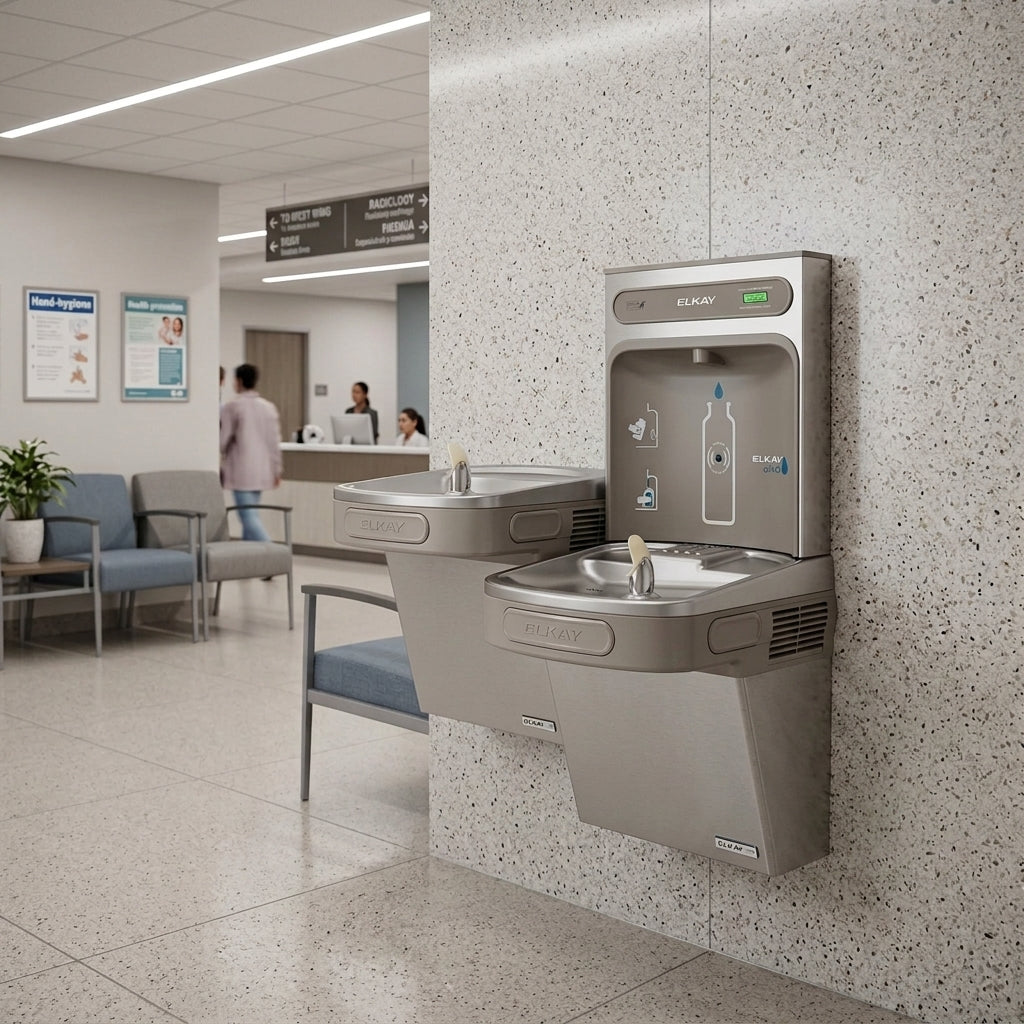

A: The EZSTLG8WSSK is ideal for schools, offices, healthcare facilities, and public spaces requiring ADA‑compliant hydration with bottle filling.
Q: What Water Pressure Is Required for the EZSTLG8WSSK?
A: The EZSTLG8WSSK operates on 20–105 psi supply line pressure for proper flow.
Q: Is the EZSTLG8WSSK ADA Compliant?
A: Yes. The EZSTLG8WSSK meets ADA and ICC A117.1 accessibility standards when installed according to guidelines.
Q: What Warranty Coverage Is Provided With the EZSTLG8WSSK?
A: The refrigeration system carries a 5‑year limited warranty. Electrical and water system components are covered for 12 months.
Q: Can Accessories Be Added to the EZSTLG8WSSK?
A: Yes. Compatible accessories include the EWF3000 universal filtration kit, LKAPREZL cane apron, MLP200 in‑wall carrier, and 36292C power block.
Q: How Does the EZSTLG8WSSK Differ From the LZSTLG8WSSK?
A: The EZSTLG8WSSK is a non‑filtered model, while the LZSTLG8WSSK includes integrated filtration for treated water.
Q: What Are the Dimensions of the EZSTLG8WSSK?
A: The EZSTLG8WSSK measures 36‑3/4" L × 19" W × 39‑1/16" H and weighs approximately 101 lbs.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Confirm wall structure can support the Elkay EZ™ & LZ™ Versatile Bottle Filling Station; install a fixture support carrier if required.
- Choose configuration: left‑hand high/right‑hand low or left‑low/right‑high. Refrigerated unit must be installed on the right‑hand side.
- Mount hanger brackets securely to wall using all six 7/16" obround holes; maintain proper ADA heights (reduce by 3" for children’s cooler).
- Hang cooler on bracket, ensuring slots engage properly; remove lower front panel by loosening four screws.
- Connect water inlet line to 3/8" O.D. copper tube with shut‑off valve; purge line before connection.
- Install trap: attach slip nut and gasket to cooler waste line; fit into 1‑1/2" O.D. drain stub and tighten securely.
- Install bottle filler: mount wall plate above basin, feed power cord and waterline through basin opening, and secure filler to angled tabs.
- Install WaterSentry® Plus filter cartridge (filtered models) by inserting into filter head and rotating clockwise until secure.
- Turn on water supply; flush at least 1 gallon through bottle filler to purge air and carbon particles; check all connections for leaks.
- Plug cooler and bottle filler into grounded outlet; verify green LED filter status and LCD bottle counter display.
- Adjust bubbler stream height if needed: regulator screw clockwise raises stream, counter‑clockwise lowers stream; target ~6‑1/2" above basin slope.
- Replace lower front panel and secure with screws; ensure wrapper is properly seated inside upper shroud.
- For detailed steps, refer to the Elkay EZ™ & LZ™ Versatile installation manual or contact a licensed plumber/electrician.
- Inspect water and drain connections regularly; reseal or tighten fittings as needed.
- Replace WaterSentry® Plus filter cartridge when LED indicator shows red or after rated capacity; reset filter monitor via program button.
- Clean stainless steel panels with mild soap and water or glass cleaner; avoid abrasive or petroleum‑based cleaners.
- Clean plastic components with mild detergent and soft cloth; antimicrobial properties will not be harmed.
- Check bubbler stream height; adjust regulator screw to maintain approximately 1‑1/2" above guard.
- Disconnect power and water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified service representative.
