Elkay EZSTLDDWSSK | Wall-mount Versatile Bi-Level Bottle Filling St...

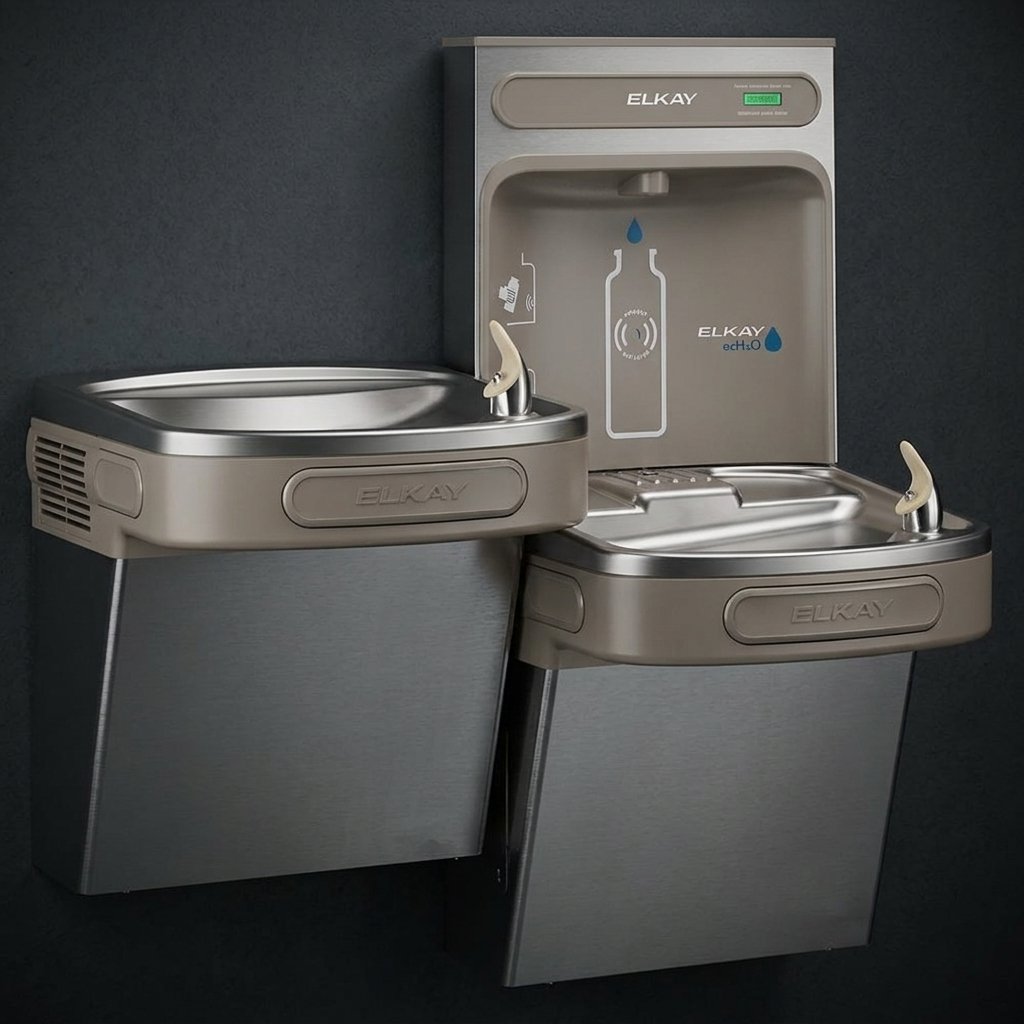

The Elkay EZSTLDDWSSK ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler delivers non-filtered, non-refrigerated hydration in a durable stainless steel finish. This ADA-compliant unit is ideal for schools, offices, and public spaces where reliable ambient-temperature drinking water and hands-free bottle filling are desired.
Key Specifications:
| Design | Bi-Level Bottle Filling Station with Dual Bubblers, Serving 2 Stations |
| Finish | Stainless Steel. Also available in Granite Gray as EZSTLDDWSLK. |
| Filtration | Non-Filtered. For filtered performance, choose the LZSTLDDWSSK. Also compatible with the EWF3000 WaterSentry® Plus Filter Kit. |
| Refrigeration | Non-Refrigerated. For chilled water, choose the LZSTL8WSSK Refrigerated Model. |
| Stations Served | 2 (Bi-Level ADA Coolers with Integrated Bottle Filler) |

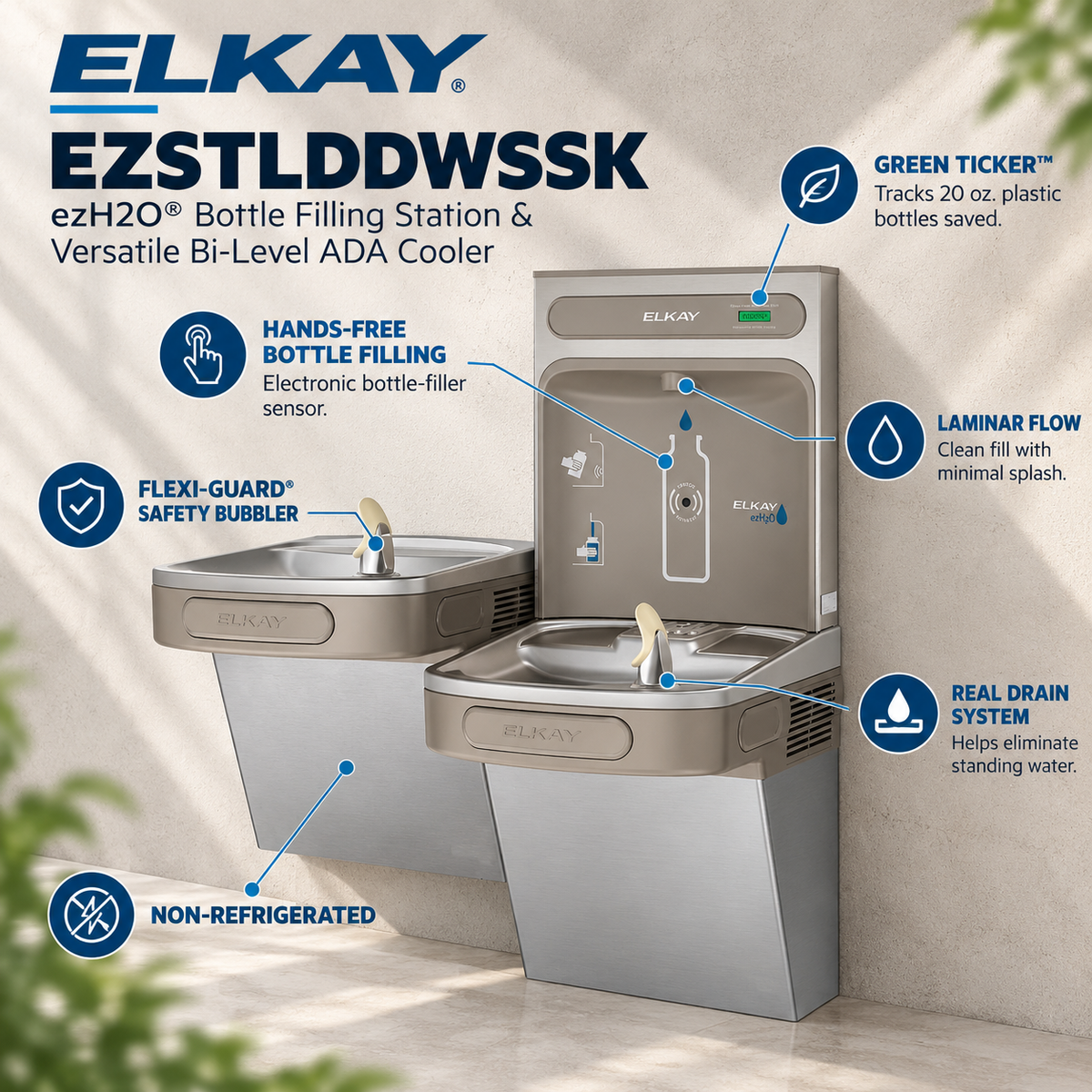

Features & Benefits:
- Hands-Free Operation: Sensor-activated bottle filling provides convenient touchless hydration.
- Antimicrobial Protection: Key plastic components help resist stains and odors for cleaner surfaces.
- Green Ticker™: Displays the number of disposable plastic bottles diverted from landfills.
- Flexi-Guard® Safety Bubblers: Flexible bubblers help reduce injury risks and withstand impact.
- Real Drain System: Eliminates standing water to help maintain a cleaner basin.
What's Included:
- EZSTLDDWSSC Bi-Level ADA Cooler
- EZWSR ezH2O® Bottle Filling Station
- Flexi-Guard® Safety Bubblers
- Installation Instructions
- Ships in Multiple Boxes
FAQ
Q: Does the EZSTLDDWSSK Provide Chilled Water?
A: No. The EZSTLDDWSSK is a non-refrigerated model, providing ambient-temperature drinking water. For chilled water, choose the LZSTL8WSSK Refrigerated Model.
Q: Does the EZSTLDDWSSK Include Filtration?
A: No. This model is non-filtered. For filtered performance, choose the LZSTLDDWSSK or add the optional EWF3000 WaterSentry® Plus Filter Kit.
Q: Is the EZSTLDDWSSK ADA Compliant?
A: Yes. The bi-level design complies with ADA and ICC A117.1 accessibility requirements when installed according to applicable standards.
Q: Can the EZSTLDDWSSK Be Installed Outdoors?
A: No. Elkay specifies this model for indoor applications only.
Q: What Accessories Are Available for the EZSTLDDWSSK?
A: Optional accessories include the LKAPREZL Cane Apron for accessibility applications, the MLP200 In-Wall Carrier for additional wall support, and the EWF3000 WaterSentry® Plus Filter Kit for retrofit filtration.
Q: How Does the EZSTLDDWSSK Operate During a Power Outage?
A: The bottle filler requires electrical power for sensor activation. The drinking fountain bubblers continue to provide drinking water during a power interruption.
Q: What Warranty Coverage Is Included?
A: Elkay provides a 12-month warranty on electrical components and the water system for drinking water applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Elkay EZSTLDDWSSK is a bi‑level, filterless bottle filling station with integrated coolers designed for high‑traffic commercial environments. Featuring touchless bottle filling technology and dual ADA‑compliant drinking stations, it delivers chilled water while providing a durable and low‑maintenance hydration solution.

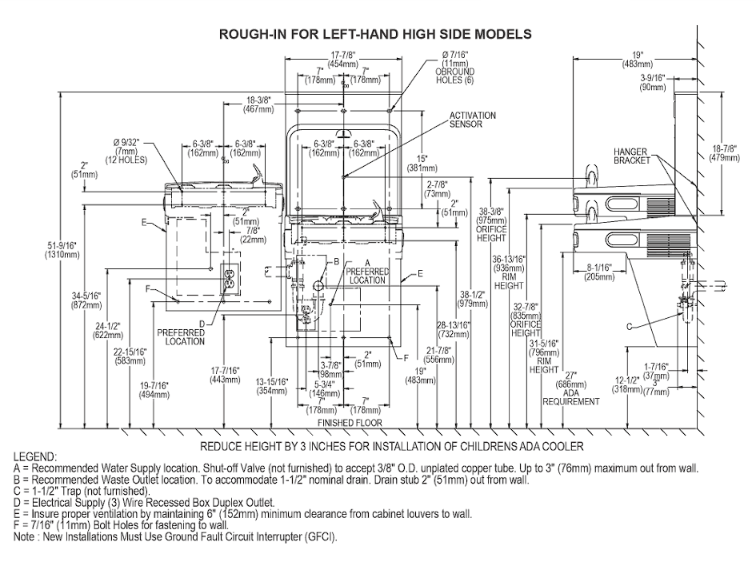

Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Provide adequate clearance for refrigeration service and maintenance
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless and delivers chilled water only
- Always depressurize water line before servicing
- Ensure sensor area remains unobstructed for reliable bottle filler activation
- Provide adequate ventilation clearance around louvers
- Inspect all plumbing and electrical connections before placing the unit into service
Basic Installation Overview:
- Install the in‑wall carrier securely to support the fountain and bottle filler assembly
- Connect the cold water supply line and flush plumbing thoroughly
- Connect drain lines from both fountain basins to the building drainage system
- Mount the cooler and bottle filler assembly to the carrier
- Connect electrical power to a grounded outlet
- Pressurize the system and inspect all connections for leaks
- Test bottle filler sensor activation and water flow performance
- Install access panels and complete final adjustments
For complete specifications and installation guidelines, download the official EZSTLDDWSSK Spec Sheet and the Installation Manual.
