Elkay EZSTLDDWSLK | Bi-Level Wall-mounted Bottle Filling Station |...

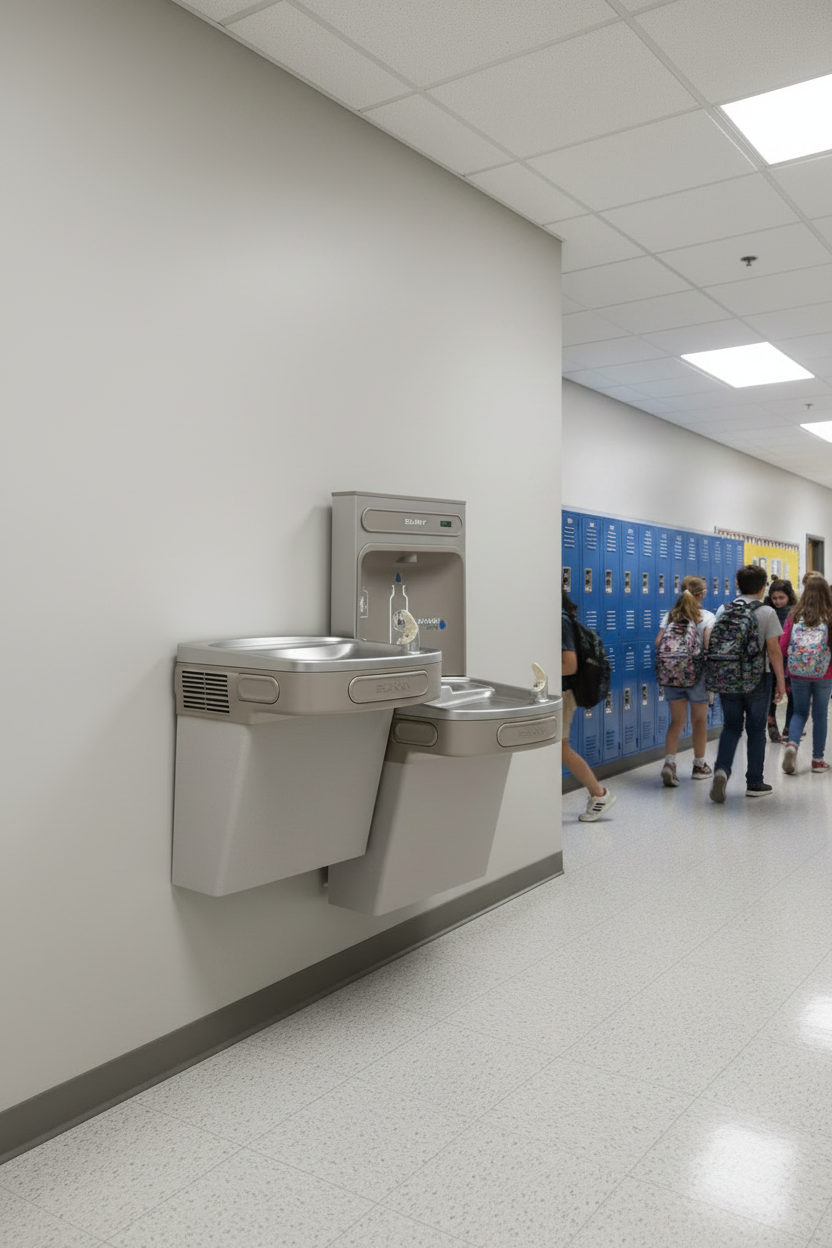

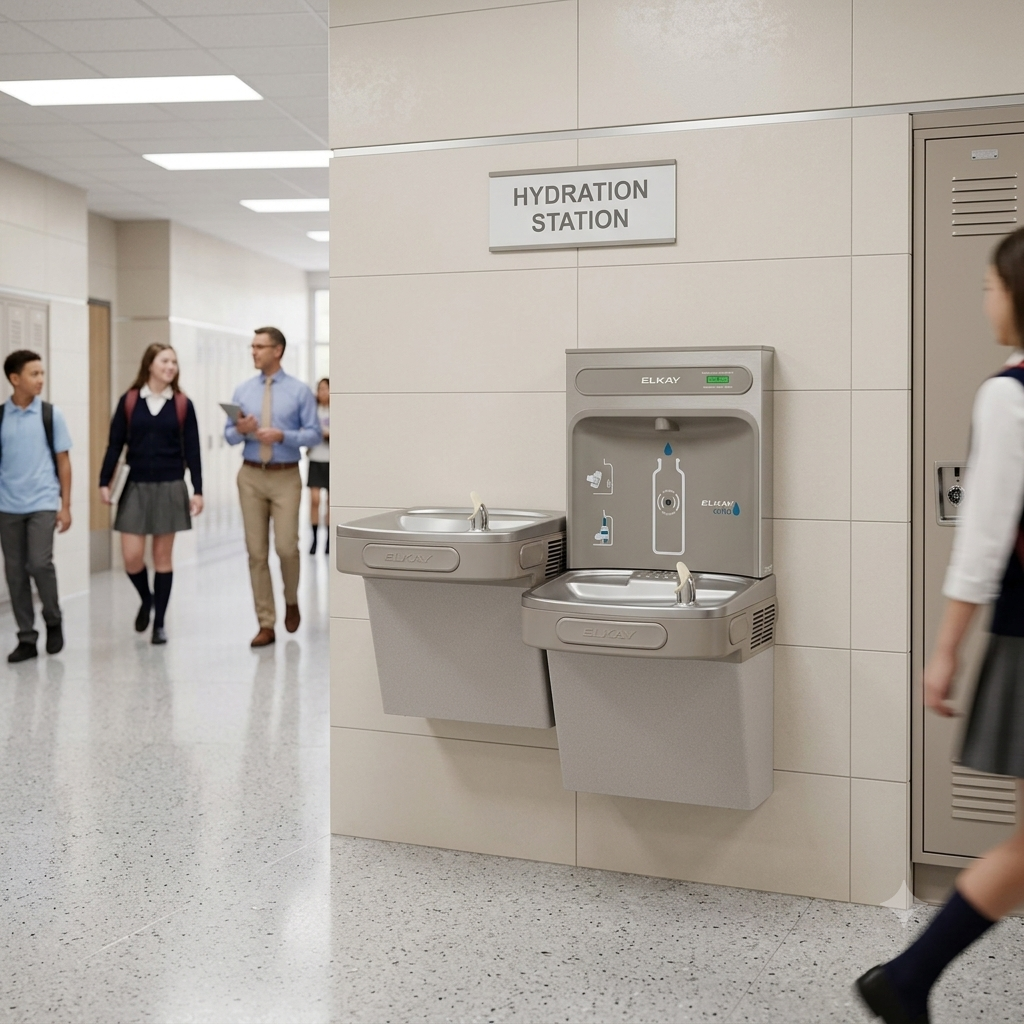

The Elkay EZSTLDDWSLK is a non-filtered, non-refrigerated ezH2O® Bottle Filling Station with versatile bi-level ADA cooler, designed for hygienic and accessible hydration in busy indoor environments. This unit features hands-free electronic bottle filler activation, mechanical pushbars for bubblers, antimicrobial protection, and a real drain system, making it ideal for schools, offices, and public spaces.
Key Specifications:
- Design: ezH2O® bi-level cooler with integrated bottle filler and electronic sensor activation
- Finish: Light Gray Granite (also available in Stainless Steel EZSTLDDWSSK)
- Filtration: Non-filtered. For filtered option choose the LZSTLDDWSLK.
- Refrigeration: None (ambient water). For refrigerated option choose the EZSTL8WSLK.
- Stations Served: 2 (bi-level ADA coolers with integrated bottle filler)
Features & Benefits:
- Hands-Free Bottle Filler: Electronic sensor activation promotes hygiene and ease of use.
- Mechanical Bubblers: Front and side pushbars provide reliable water dispensing even during power outages.
- Green Ticker™: Tracks plastic bottles saved, encouraging sustainability.
- Antimicrobial Protection: Silver ion treatment on key plastics reduces odors and microbial growth.
- Real Drain System: Eliminates standing water to maintain cleanliness.
Comparison of Elkay Bi-Level Bottle Filling Station Models:
| EZSTLDDWSLK | LZSTLDDWSLK | LZSTL8WSLK |
|---|---|---|
| Filtration: Non‑filtered | Filtration: Filtered, 3,000‑gallon capacity | Filtration: Filtered, 3,000‑gallon capacity |
| Refrigeration: Non‑refrigerated | Refrigeration: Non‑refrigerated | Refrigeration: Refrigerated, 8.0 GPH chilled water |
| Special Features: Antimicrobial, Green Ticker™, Hands Free, Laminar Flow, Real Drain | Special Features: Adds Visual Filter Monitor + Filtered Performance | Special Features: Adds Refrigeration + Visual Filter Monitor |
What’s Included:
- Elkay EZSTLDDWSLK Bottle Filling Station & Bi-Level Cooler unit
- Flexi-Guard® Safety Bubbler
- Mounting hardware and instructions
FAQ
Q: Does the EZSTLDDWSLK Provide Chilled Water?
A: No. The EZSTLDDWSLK is a non‑refrigerated model, providing ambient temperature water suitable for indoor environments. For chilled water, consider the LZSTL8WSLK Refrigerated Model.
Q: How Does the EZSTLDDWSLK Operate During Power Outages?
A: The bottle filler requires power for sensor activation. However, the mechanical bubblers continue to function without electricity, ensuring water access even during service disruptions.
Q: Is the EZSTLDDWSLK ADA Compliant?
A: Yes. The bi‑level design meets ADA & ICC A117.1 accessibility standards when installed at the proper mounting height, providing inclusive hydration for all users.
Q: Can the EZSTLDDWSLK Be Upgraded With Filtration?
A: Yes. For filtration, choose the LZSTLDDWSLK Filtered Model, or retrofit with the EWF3000 WaterSentry® Plus Filter Kit.
Q: What Accessories Are Available for the EZSTLDDWSLK?
A: Optional accessories include the LKAPREZL Cane Apron for ADA compliance, and the MLP200 In‑Wall Carrier for secure installation support.
Q: Where Can I Find Replacement Filters and Filtration Upgrades?
A: Visit the Elkay Pro Filtration Collection to explore compatible filter kits and upgrades that keep your station performing at its best.
Q: How Does the EZSTLDDWSLK Differ From Other Bi‑Level Models?
A: The EZSTLDDWSLK is a non‑filtered, non‑refrigerated unit. The LZSTLDDWSLK adds filtration, while the LZSTL8WSLK adds both filtration and refrigeration.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Confirm wall structure can support the Elkay EZ™ & LZ™ Versatile Bottle Filling Station; install a fixture support carrier if required.
- Choose configuration: left‑hand high/right‑hand low or left‑low/right‑high. Refrigerated unit must be installed on the right‑hand side.
- Mount hanger brackets securely to wall using all six 7/16" obround holes; maintain proper ADA heights (reduce by 3" for children’s cooler).
- Hang cooler on bracket, ensuring slots engage properly; remove lower front panel by loosening four screws.
- Connect water inlet line to 3/8" O.D. copper tube with shut‑off valve; purge line before connection.
- Install trap: attach slip nut and gasket to cooler waste line; fit into 1‑1/2" O.D. drain stub and tighten securely.
- Install bottle filler: mount wall plate above basin, feed power cord and waterline through basin opening, and secure filler to angled tabs.
- Install WaterSentry® Plus filter cartridge (filtered models) by inserting into filter head and rotating clockwise until secure.
- Turn on water supply; flush at least 1 gallon through bottle filler to purge air and carbon particles; check all connections for leaks.
- Plug cooler and bottle filler into grounded outlet; verify green LED filter status and LCD bottle counter display.
- Adjust bubbler stream height if needed: regulator screw clockwise raises stream, counter‑clockwise lowers stream; target ~6‑1/2" above basin slope.
- Replace lower front panel and secure with screws; ensure wrapper is properly seated inside upper shroud.
- For detailed steps, refer to the Elkay EZ™ & LZ™ Versatile installation manual or contact a licensed plumber/electrician.
- Inspect water and drain connections regularly; reseal or tighten fittings as needed.
- Replace WaterSentry® Plus filter cartridge when LED indicator shows red or after rated capacity; reset filter monitor via program button.
- Clean stainless steel panels with mild soap and water or glass cleaner; avoid abrasive or petroleum‑based cleaners.
- Clean plastic components with mild detergent and soft cloth; antimicrobial properties will not be harmed.
- Check bubbler stream height; adjust regulator screw to maintain approximately 1‑1/2" above guard.
- Disconnect power and water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified service representative.
