Elkay EMABFTL8WSLK | Wall-mount Bi-level Bottle Filling Station | F...

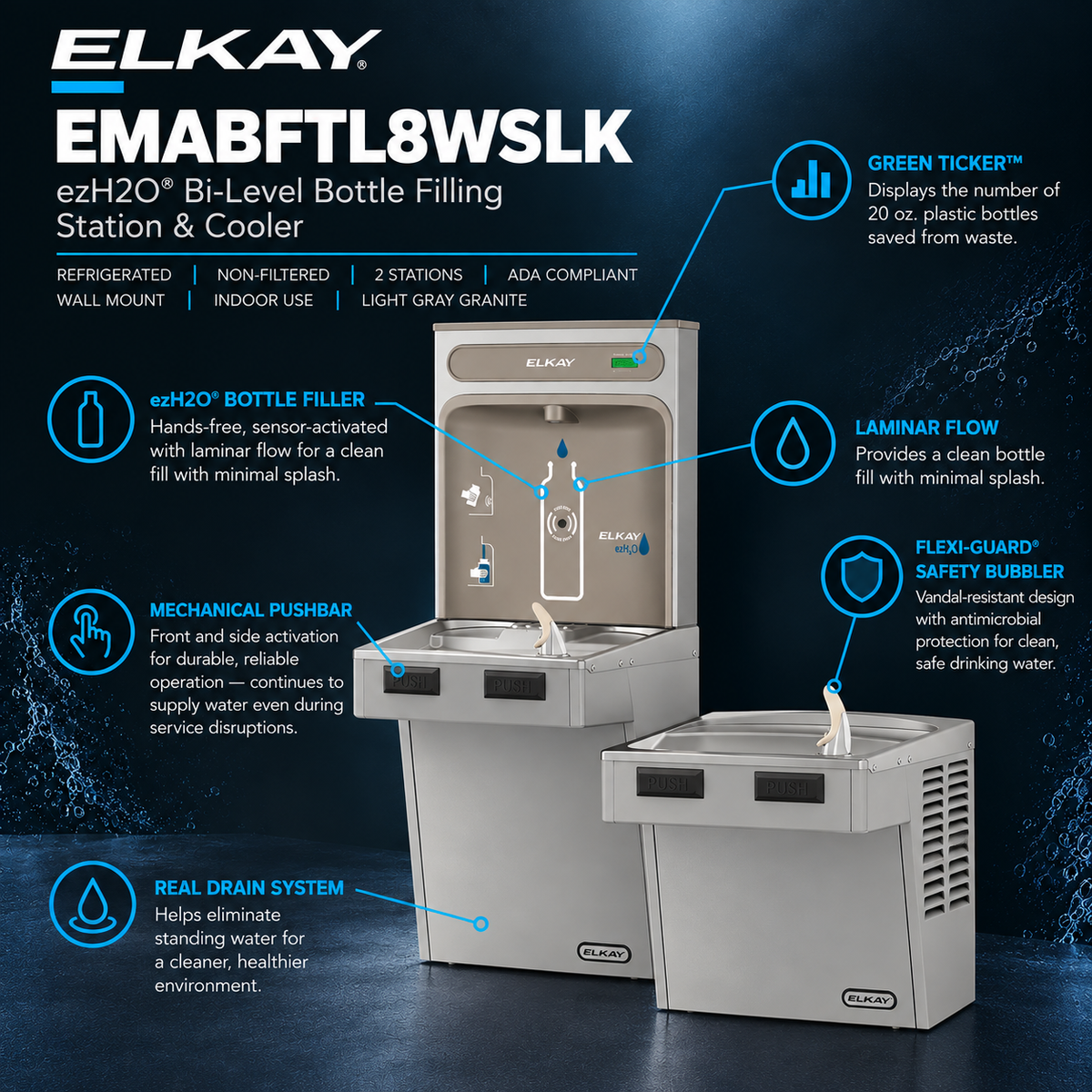

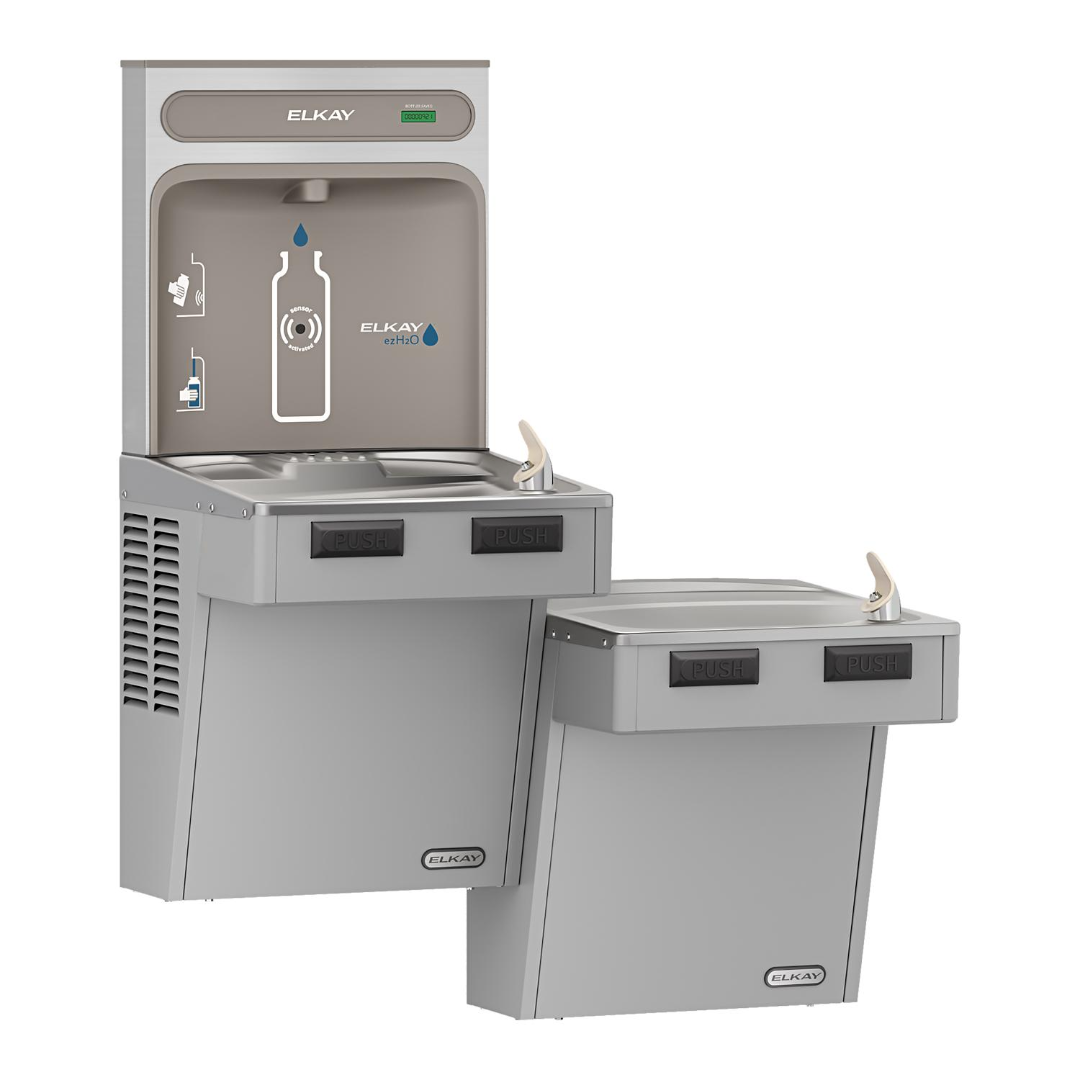

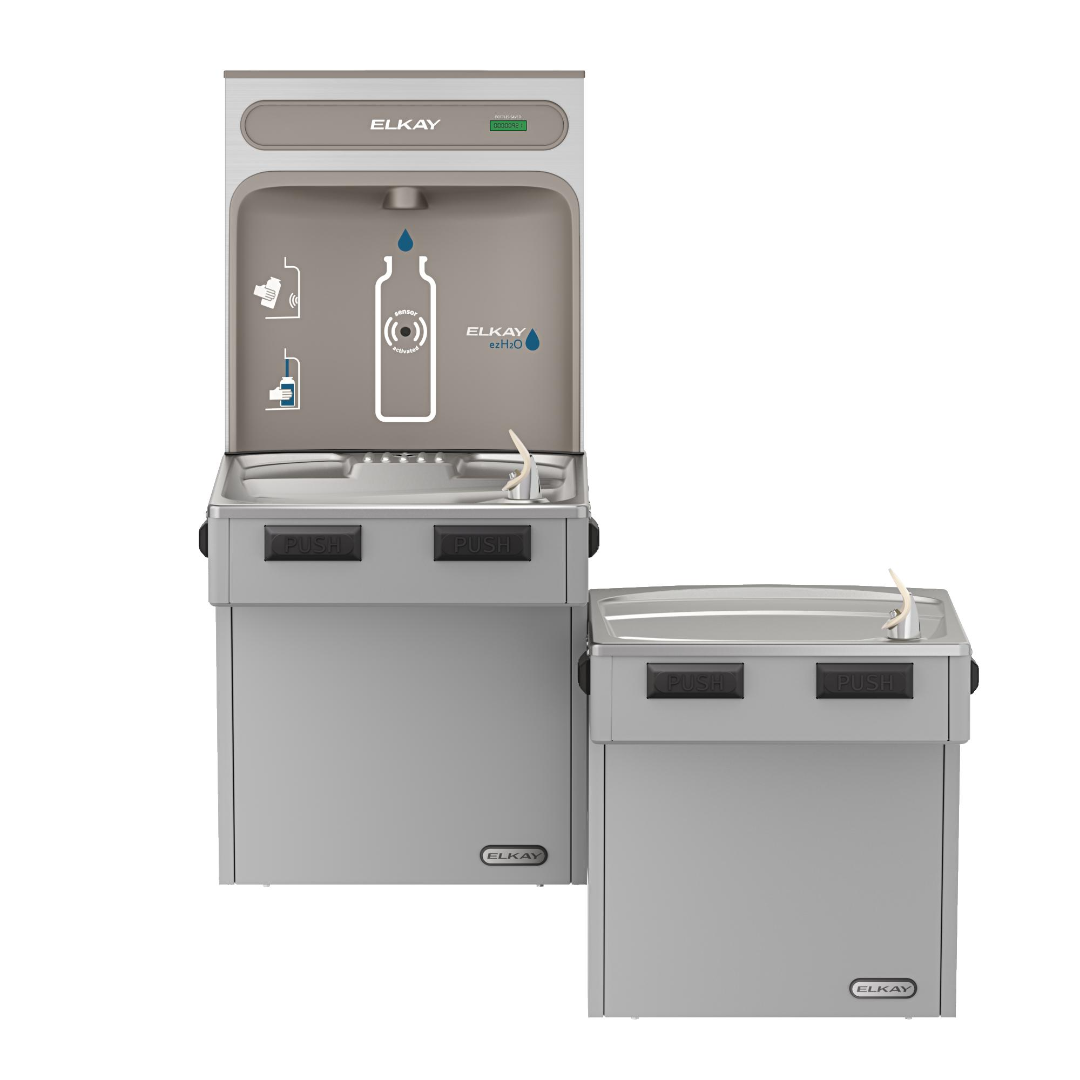

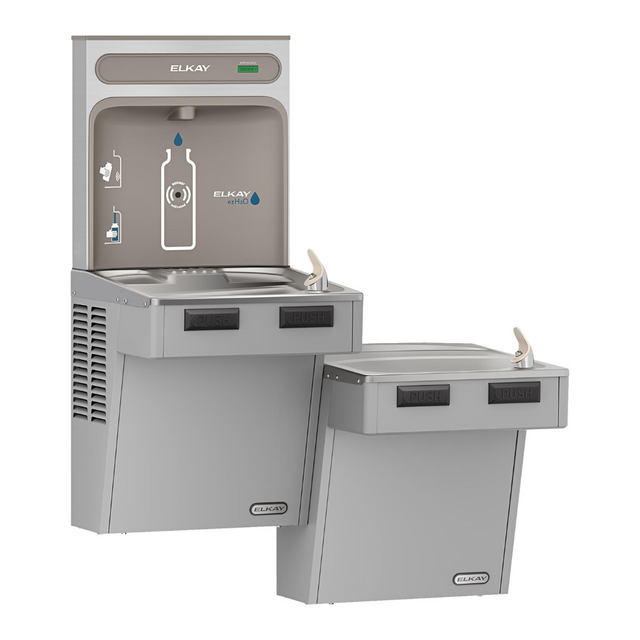

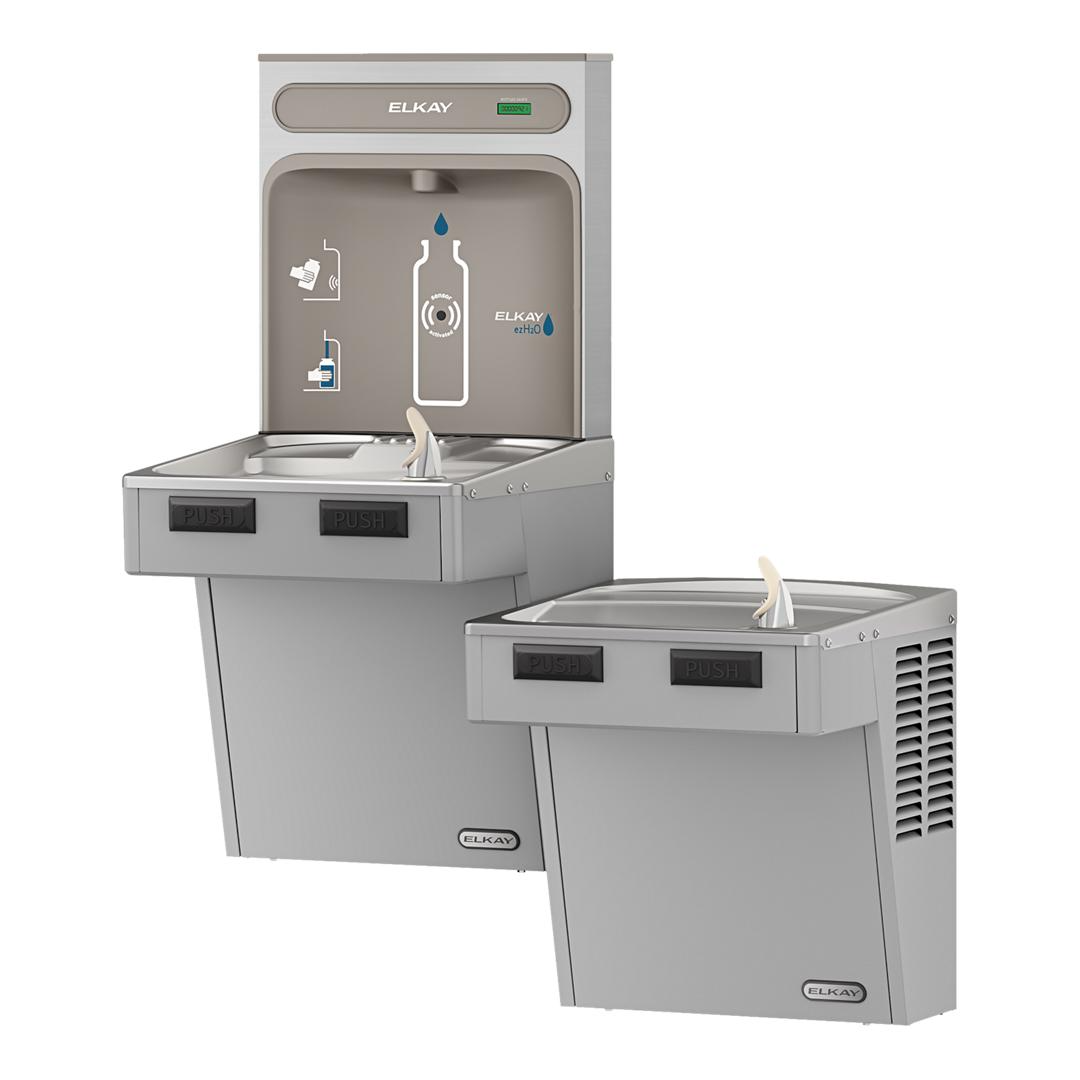

The Elkay EMABFTL8WSLK ezH2O® Bottle Filling Station combines a refrigerated bi-level ADA cooler with a hands-free bottle filler in a durable Light Gray Granite finish. Designed for indoor applications, this bottle filling station delivers chilled drinking water, touchless bottle filling, and mechanical fountain activation for dependable hydration in schools, offices, healthcare facilities, and public spaces.
Key Specifications:
| Design | Bi-Level ADA Cooler with Hands-Free Bottle Filler |
| Finish | Light Gray Granite. Also available in Stainless Steel. |
| Filtration | Non-Filtered (Compatible with Optional EWF3000 Universal Filtration Kit). For filtered option, choose the LMABFTL8WSLK. |
| Refrigeration | 8.0 GPH Chilling Capacity |
| Stations Served | 2 Stations |
Features & Benefits:
- Hands-Free Bottle Filling: Sensor-activated bottle filling provides convenient, touchless operation for enhanced hygiene.
- Mechanically Activated Fountain: Front and side pushbars continue supplying water even during bottle filler service interruptions.
- 8.0 GPH Refrigeration System: Delivers up to 8 gallons per hour of chilled drinking water at 50°F under standard test conditions.
- Green Ticker™ Display: Tracks the number of disposable plastic bottles diverted from landfills through refill usage.
- Laminar Flow Water Delivery: Produces a clean, splash-resistant stream for efficient bottle filling.
- Real Drain System: Eliminates standing water and promotes a cleaner drinking surface.
- Antimicrobial Protection: Key plastic components contain antimicrobial agents that help resist stains and odors.
- Flexi-Guard® Safety Bubblers: Flexible bubblers provide added durability and user protection.
What's Included:
- EMABFTL8WSLC Refrigerated Bi-Level Water Cooler
- EZWSR ezH2O® Bottle Filling Station
- Factory-Installed Refrigeration System
- Flexi-Guard® Safety Bubblers
- Installation Instructions
- Operation Manual
FAQ
Q: Is the Elkay EMABFTL8WSLK Refrigerated?
A: Yes. The unit provides 8.0 GPH of chilled drinking water under standard operating conditions.
Q: Does the Elkay EMABFTL8WSLK Include Water Filtration?
A: No. This model is supplied as a non-filtered unit. Filtration can be added using the optional EWF3000 Universal Filtration Kit.
Q: How Many Users Can the Elkay EMABFTL8WSLK Serve?
A: The bottle filler and bi-level fountain configuration serves two hydration stations.
Q: What Is Green Ticker™ Technology?
A: Green Ticker™ displays the number of disposable plastic water bottles saved through refill use.
Q: What Happens If Bottle Filler Service Is Required?
A: The mechanically activated fountain pushbars continue providing drinking water even if bottle filler maintenance is needed.
Q: Is the Elkay EMABFTL8WSLK ADA Compliant?
A: Yes. The unit complies with ADA and ICC A117.1 accessibility requirements when properly installed.
Q: Can the Elkay EMABFTL8WSLK Be Installed Outdoors?
A: No. This model is designed for indoor applications only.
Q: What Type of Water Stream Does the Bottle Filler Use?
A: The bottle filler uses laminar flow technology to provide a smooth stream with minimal splash.
Q: Are Any Accessories Available for the Elkay EMABFTL8WSLK?
A: Yes. Compatible accessories include the MLP200 In-Wall Carrier for additional installation support, the 98313C Cane Apron for enhanced accessibility, and the 36292C Power Block for multi-station bottle filling installations.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Elkay EMABFTL8WSLK is a bi‑level, filterless bottle filling station with integrated coolers designed for indoor commercial applications. Featuring touchless bottle filling, dual ADA‑compliant drinking stations, and a surface‑mount design, it provides a convenient hydration solution where recessed installation is not practical.

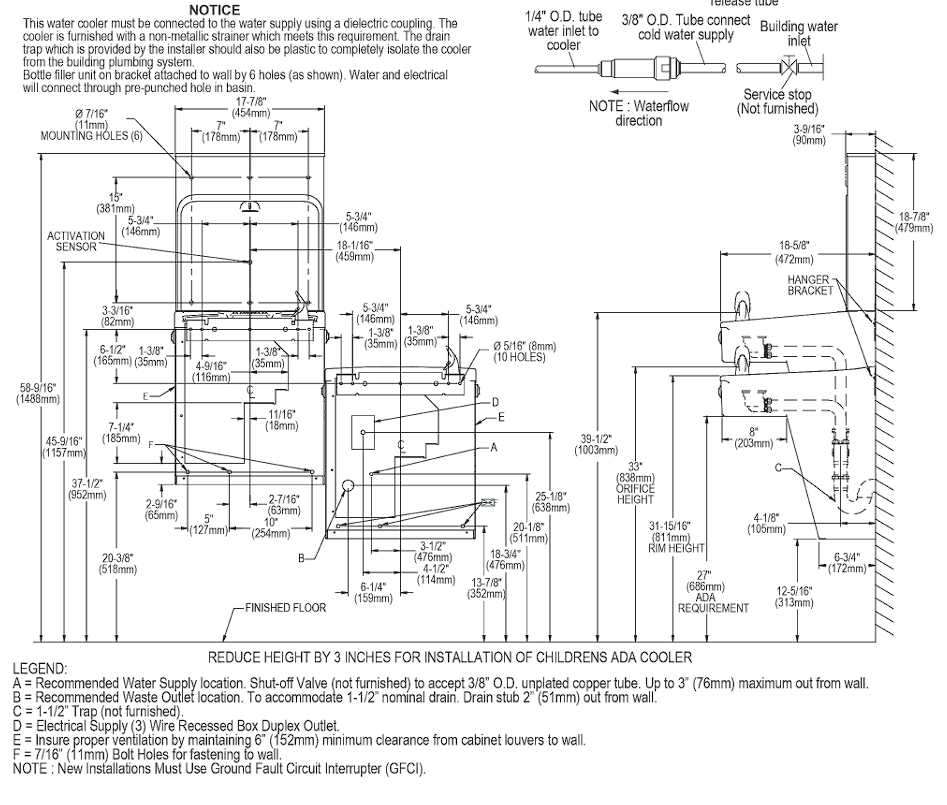

Key Installation Requirements:
- Surface‑mount installation on a properly supported wall structure
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Provide adequate clearance for servicing refrigeration components
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless and delivers chilled water only
- Always depressurize water line before servicing
- Ensure sensor area remains unobstructed for reliable bottle filler activation
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure for safe operation
Basic Installation Overview:
- Prepare mounting location and verify wall support requirements
- Install mounting hardware and secure the surface‑mount frame
- Connect cold water supply line and flush plumbing thoroughly
- Connect drain lines from both fountain basins to the building drainage system
- Mount the bottle filler and cooler assembly to the frame
- Connect electrical supply to a grounded outlet
- Pressurize the system and inspect all connections for leaks
- Test bottle filler activation, water flow, and cooler operation
- Install access panels and complete final adjustments
For complete specifications and installation guidelines, download the official EMABFTL8WSLK Spec Sheet and the Installation Manual.
