Elkay EMABFTL8WSSK | Wall-mount Bi-level Bottle Filling Station | F...

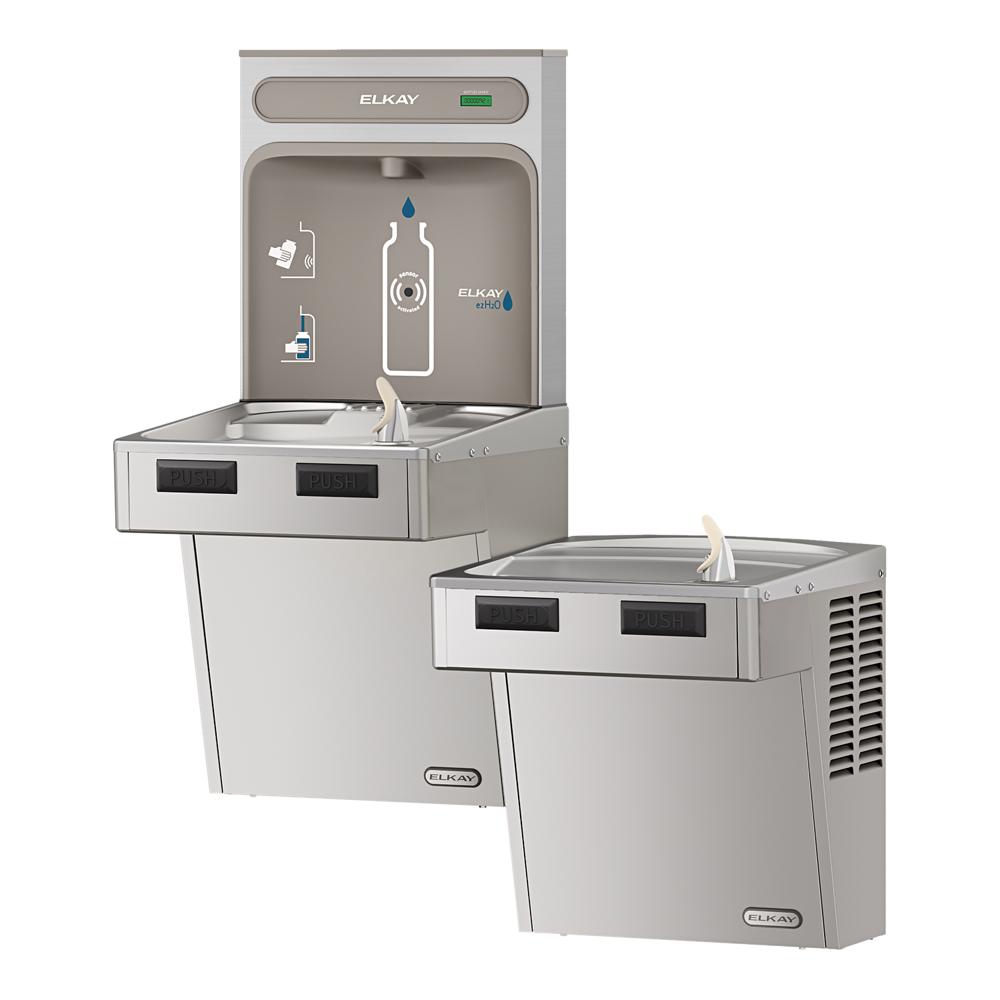

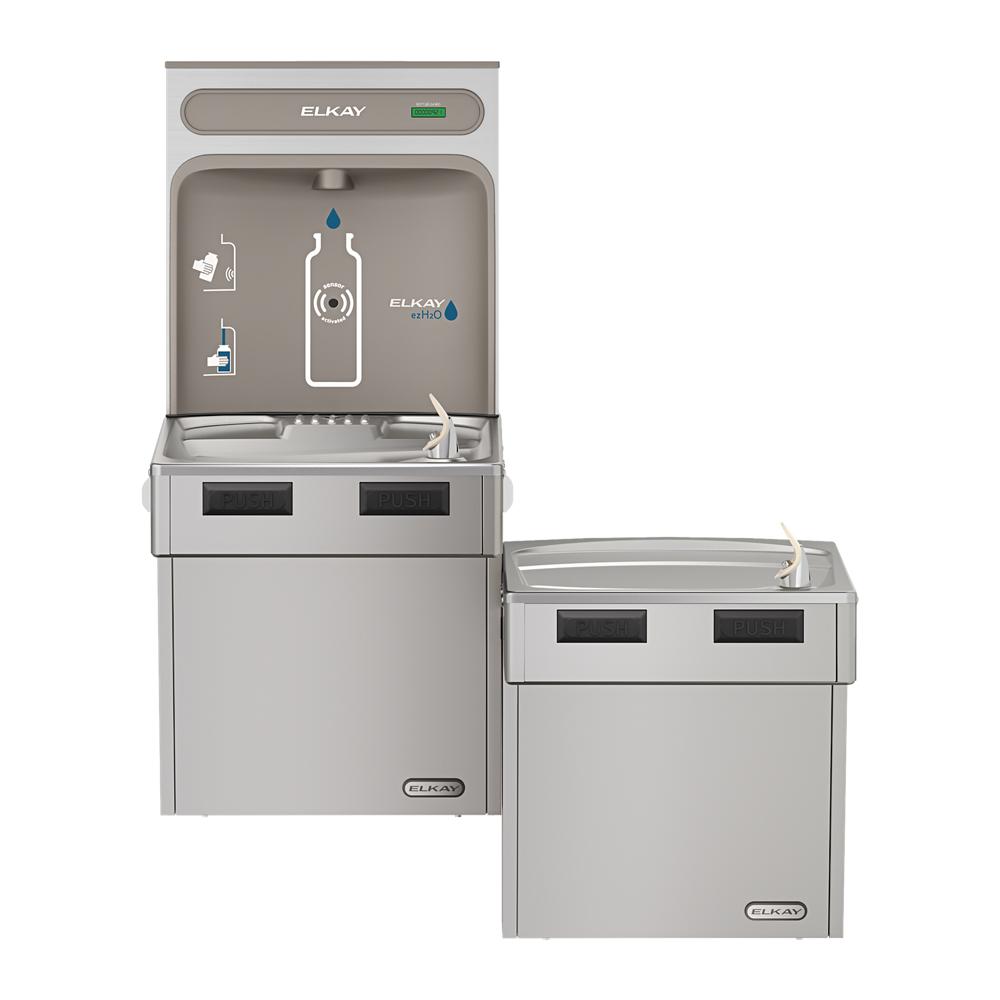

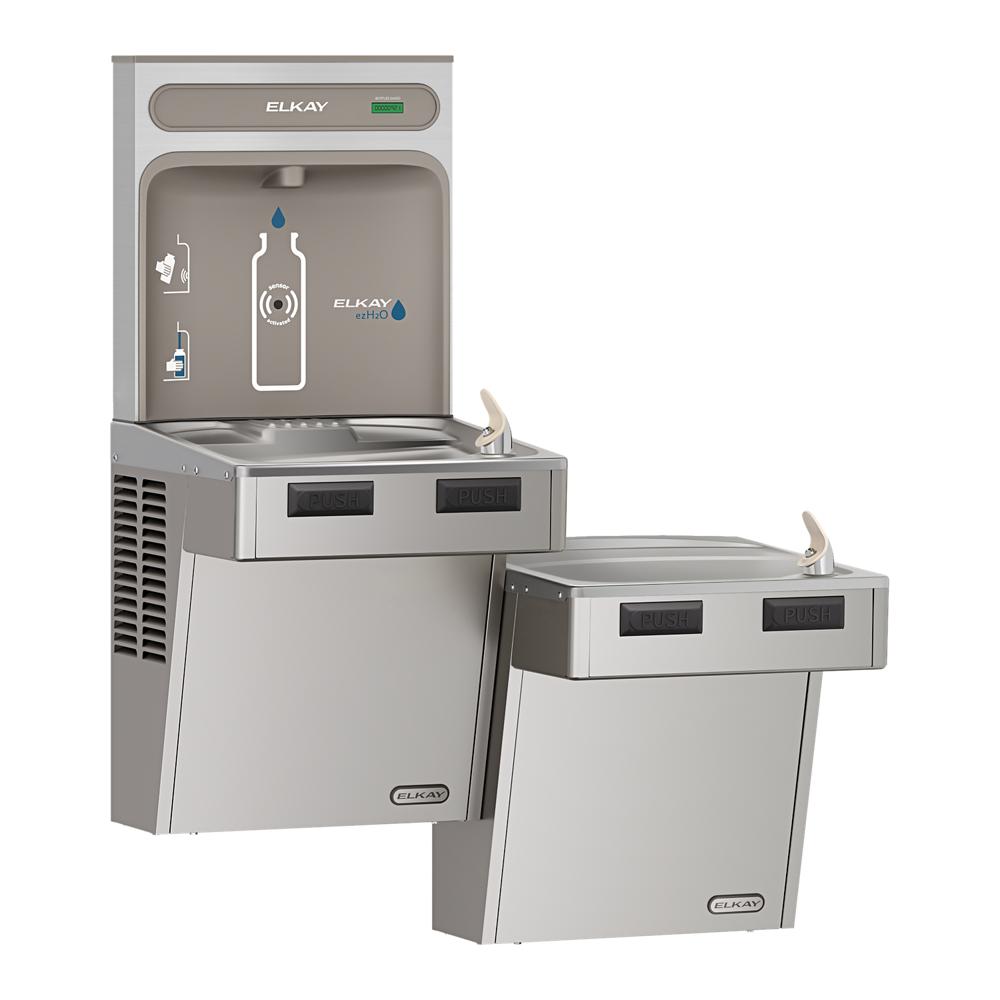

The Elkay EMABFTL8WSSK is a non-filtered, refrigerated ezH2O® Bottle Filling Station with Bi-Level ADA Cooler in stainless steel. Designed for high-traffic indoor environments, it combines hands-free bottle filling with mechanically activated bubblers, ADA compliance, and durable construction for reliable chilled hydration.
Key Specifications:
- Design: Bi-level ADA cooler with integrated bottle filler, wall-mount installation.
- Finish: Stainless Steel. For Granite Gray option, choose the EMABFTL8WSLK.
- Filtration: Non-filtered. For filtered option, choose the LMABFTL8WSSK.
- Refrigeration: 8.0 GPH chilled water capacity.
- Stations Served: 2 (dual station)
Features & Benefits:
- Hands-Free Bottle Filling: Sensor-activated bottle filler with laminar flow for clean, splash-free fills.
- Flexi-Guard® Safety Bubblers: Mechanically activated bubblers continue to dispense water during service disruptions.
- Green Ticker™: Displays the number of plastic bottles saved from waste.
- Antimicrobial Protection: Key plastic components feature silver ion antimicrobial properties.
What's Included:
- EMABFTL8WSSK Bottle Filling Station & Bi-Level ADA Cooler unit
- Installation hardware and instructions
- 5-year limited warranty on refrigeration system; 12-month warranty on electrical components and water system
FAQ
Q: Is the EMABFTL8WSSK filtered?
A: No. This model is non-filtered. For filtered bi-level options, see the LMABFTL8WSSK.
Q: Can filtration be added later?
A: Yes. The EMABFTL8WSSK is compatible with the EWF3000 Universal Filtration Kit, which can be installed separately.
Q: What accessories are available for installation?
A: Recommended accessories include the MLP200 In-Wall Carrier, the 98324C Cane Apron for ADA compliance, and the 36292C Power Block for multi-station installations.
Q: How much chilled water does this unit provide?
A: It delivers up to 8.0 gallons per hour of 50º F drinking water, based on ASHRAE 18 testing conditions.
Q: Is the EMABFTL8WSSK ADA compliant?
A: Yes. It meets ADA & ICC A117.1 accessibility standards when installed correctly.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

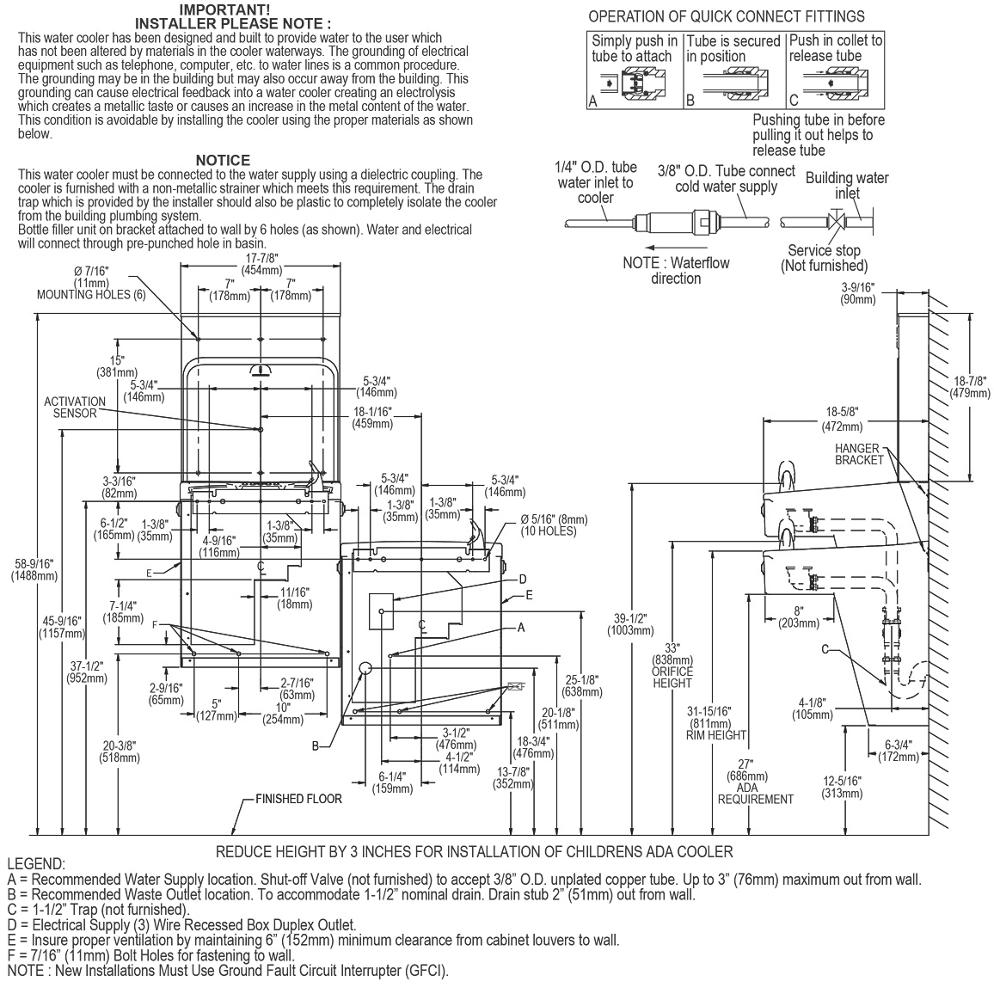

- Prepare wall framing and hanger bracket per rough‑in dimensions provided in the package manual.
- Mount hanger bracket securely using all designated holes; add support carrier if wall will not provide adequate support.
- Hang cooler on bracket, ensuring proper engagement with slots on the back panel.
- Remove front panel to access connections; connect water inlet line and install trap on waste outlet.
- If available, connect filter assembly and ensure proper orientation.
- If available, connect refrigeration components and verify ventilation clearance.
- Reconnect panel after plumbing is complete and check for leaks.
- Adjust bubbler stream height as needed; factory set at 35 psi.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect bubbler orifice and regulator periodically; clean or adjust if flow is irregular.
- Check quick‑connect fittings and tubing for leaks; reseat if necessary.
- Clean basin and exterior surfaces with mild, non‑abrasive cleaner.
- If available, replace filter at recommended intervals.
- If available, service refrigeration components as required.
- For service or repairs, consult the manual or a licensed technician.
