Elkay LZSTLG8WSSK | Wall-mount Versatile Bi-level Bottle Filling Station | Filtered, High-efficiency chiller, EZ-style fountains, Stainless Steel
Elkay LZSTLG8WSSK | Wall-mount Versatile Bi-level Bottle Filling Station | Filtered, High-efficiency chiller, EZ-style fountains, Stainless Steel is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information

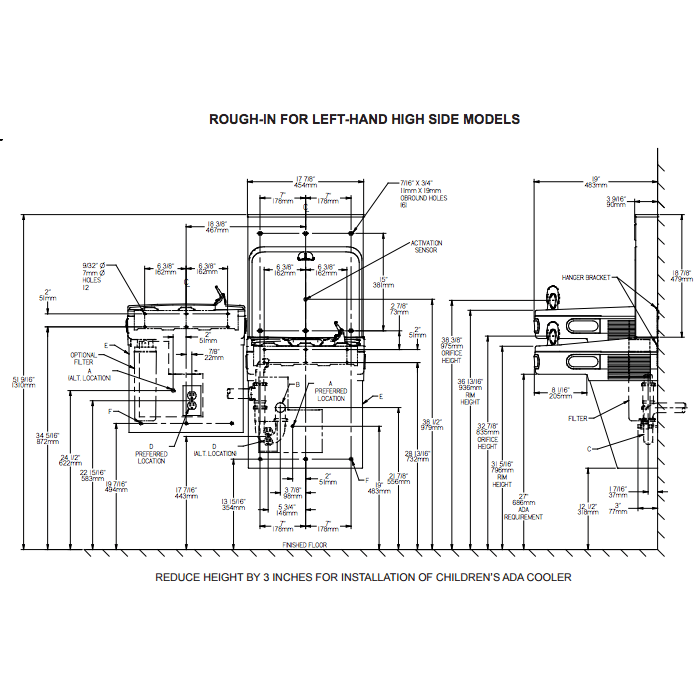

Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZSTLG8WSSK | Wall-mount Versatile Bi-level Bottle Filling St...

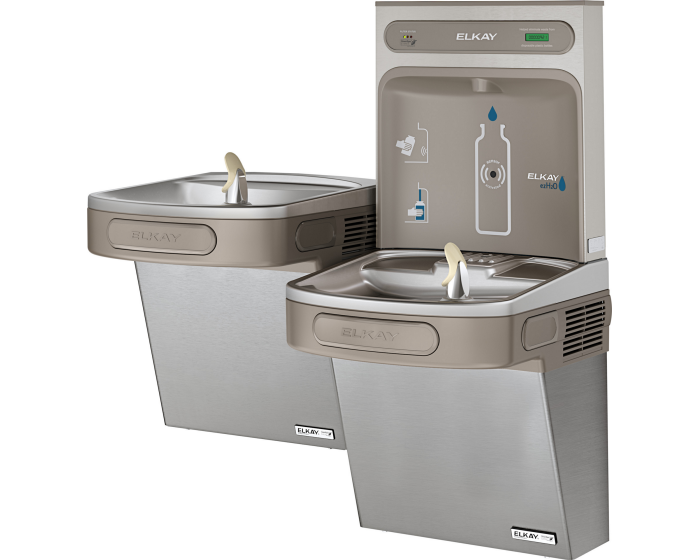

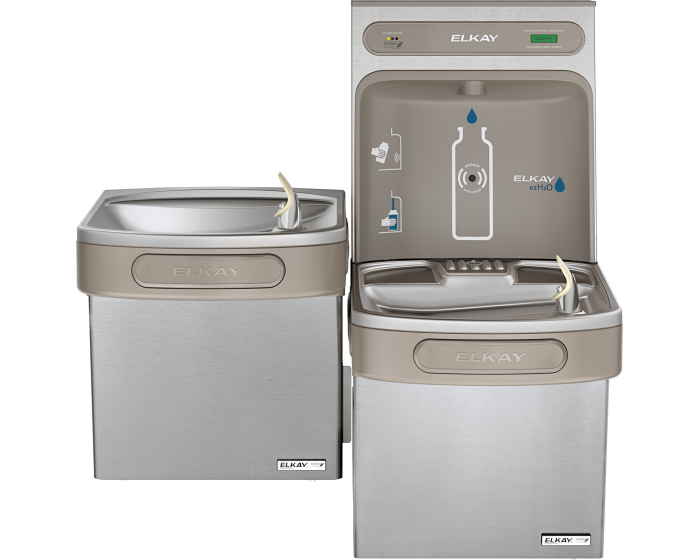

The Elkay LZSTLG8WSSK ezH2O® Bottle Filling Station with Versatile Bi-Level ADA Cooler delivers high-efficiency chilled water and hands-free bottle filling in a durable Stainless Steel finish. This model combines advanced filtration, sustainability features, and ADA-compliant accessibility, making it ideal for schools, offices, and public spaces.
Key Specifications:
- Design: Wall-mounted bi-level ADA cooler + bottle filler, serving 2 stations.
- Finish: Stainless Steel.
- Filtration: Includes 51300C WaterSentry® Plus filter, NSF/ANSI 42, 53, 372, and 401 certified for lead, microplastics, particulates, cysts, chlorine taste, and odor. 3,000-gallon capacity or 1 year after installation.
- Chilling Capacity: 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient, ASHRAE 18 tested).
- Refrigeration: Hermetically sealed compressor, fan-cooled condenser, copper tube/aluminum fin system with EPS foam insulation. Uses R-134a refrigerant.
- Power Requirements: 115V/60Hz, 360W, 6 full load amps.
- Dimensions: 36-3/4" L × 19" W × 39-1/16" H.
- Stations Served: 2.
- Compliance: ADA & ICC A117.1, UL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 42, 53, 61, 372 (lead-free), 401, GreenSpec® listed.
Features & Benefits:
- Hands-Free Bottle Fill: Sensor-activated with laminar flow for hygienic, splash-free filling.
- Bi-Level Design: Two ADA-compliant coolers plus bottle filler serve multiple users simultaneously.
- Flexi-Guard® StreamSaver™ Bubblers: Vandal-resistant bubblers reduce water waste and protect against injury.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste, promoting sustainability.
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- Real Drain System: Eliminates standing water for improved hygiene.
- High Efficiency: Compressor and insulation designed to reduce energy consumption.
- Durability: Stainless Steel finish resists wear and tampering, ideal for high-traffic environments.
What's Included:
- LZSTLG8WSSK Bottle Filling Station + bi-level ADA cooler (ships in multiple boxes)
- WaterSentry® Plus 51300C filter
- Flexi-Guard® StreamSaver™ safety bubblers
- Mounting frame and hanger brackets
- Installation hardware and instructions
- Owner’s manual and warranty guide
FAQ
Q: How often does the filter need to be replaced?
A: The filter should be replaced after 3,000 gallons of use or approximately once per year, depending on usage volume.
Q: Is this unit ADA compliant?
A: Yes, the Elkay LZSTLG8WSSK is designed with a bi-level configuration to meet ADA compliance requirements for accessibility.
Q: What is the installation process like?
A: The unit requires wall mounting and connection to water supply and electrical power (115V/60Hz). Professional installation is recommended to ensure proper setup and compliance with local building codes.
Q: What warranty is included?
A: The LZSTLG8WSSK comes with a 5-year limited warranty on the refrigeration system and a 1-year warranty on electrical components and water system (drinking water applications only).
Q: What is the difference between LZSTLG8WSSK and LZSTLG8WSLK?
A: Both are filtered, refrigerated bi-level models with identical performance and features. The difference is in the finish: LZSTLG8WSSK is Stainless Steel, while LZSTLG8WSLK is Light Gray Granite.
Detailed Features & Benefits
Cooling System: Hermetically-sealed compressor with lifetime lubrication, fan-cooled condenser, and EPS foam insulation for efficient chilled water delivery. Refrigerant R-134a controlled by calibrated capillary tube.
Accessibility: ADA-compliant bi-level design ensures inclusive access when installed according to ADA & ICC A117.1 standards.
Sustainability: Green Ticker™ encourages reusable bottle use, reducing single-use plastic waste.
Maintenance: Visual filter monitor and accessible panels simplify filter replacement and system service.
Warranty: 5-year limited warranty on refrigeration system; 1-year warranty on electrical components and water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
