Notice: The Elkay LZSTLG8WSLK has been discontinued and now ships as the upgraded LZSTL8WSLK.

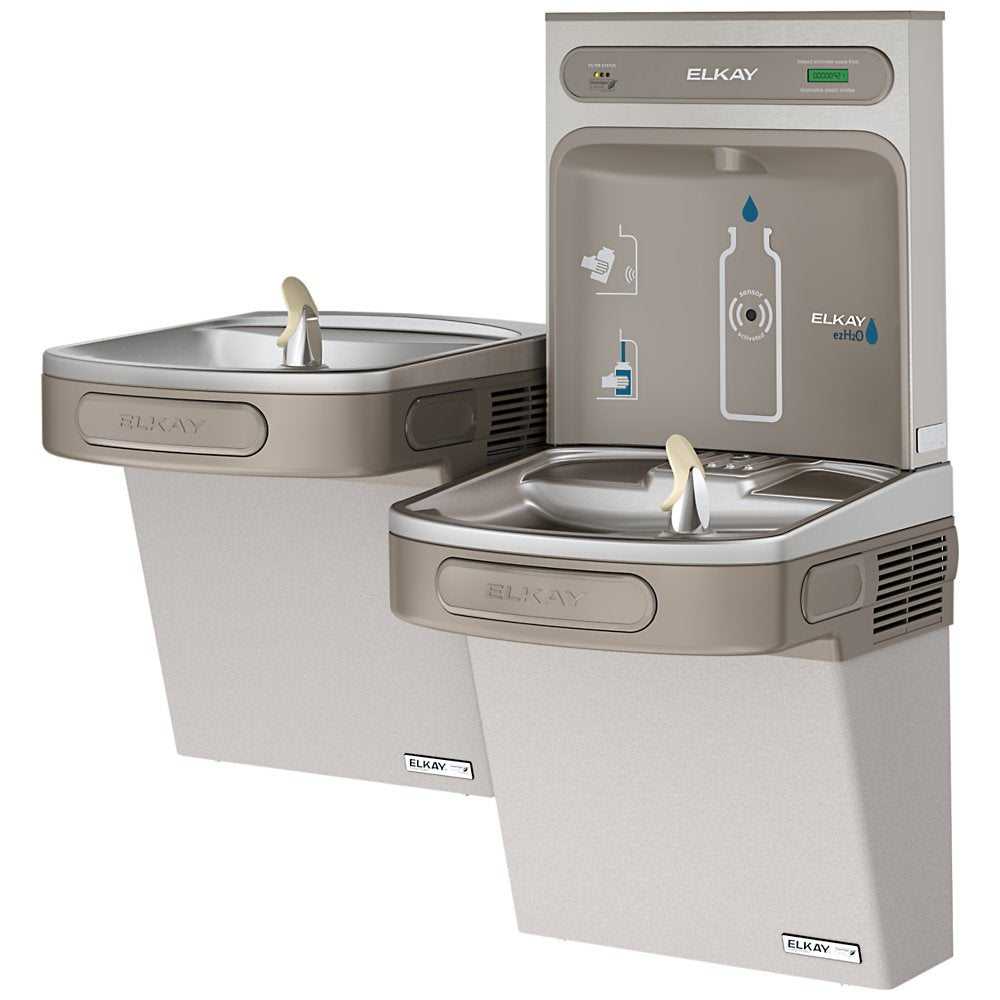

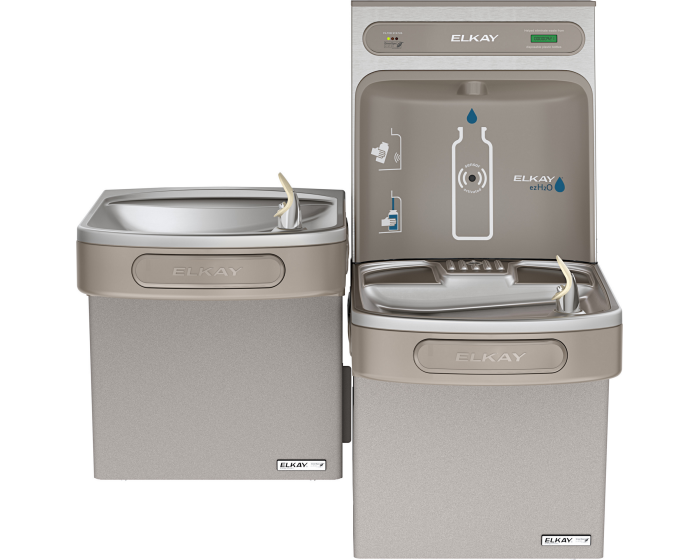

The Elkay LZSTLG8WSLK ezH2O® Bottle Filling Station with Versatile Bi-Level ADA Cooler has been upgraded and now ships as the Elkay LZSTL8WSLK. Customers ordering the discontinued LZSTLG8WSLK will receive the newer LZSTL8WSLK platform, which features a higher-capacity 6,000-gallon filtration system, Quick Filter Change technology, Alcove Light illumination, Real Drain drainage system, and enhanced bottle filling performance while maintaining the same trusted ezH2O® hands-free hydration experience.
Key Specifications:
| Design | Wall-Mounted ezH2O® Versatile Bi-Level ADA Cooler with Bottle Filling Station |
| Finish | Light Gray Granite |
| Filtration | Includes 51600C WaterSentry® Lead + Microplastics Filter, NSF/ANSI 42, 53, 372, and 401 certified with 6,000-gallon capacity |
| Refrigeration | 8.0 GPH Chilling Capacity with Hermetically-Sealed Refrigeration System |
| Stations Served | 2 Stations (Bottle Filler + Bi-Level Drinking Fountains) |
Features & Benefits:
- High-Capacity Filtration: Includes a 6,000-gallon WaterSentry® filter certified to reduce lead, microplastics, particulate matter, chlorine taste, and odor.
- Hands-Free Bottle Filling: Sensor-activated bottle filler delivers a 1.1 GPM laminar flow stream for fast, splash-resistant bottle filling.
- Quick Filter Change System: Front and side filter access allows replacement in less than one minute.
- Real Drain & Alcove Light: Real Drain technology eliminates standing water while the LED alcove light improves visibility during bottle filling.
- Versatile Installation Design: Supports multiple installation configurations for greater installation flexibility.
Comparison Table:
What's Included:
- Elkay LZSTL8WSLK ezH2O® Bottle Filling Station and Versatile Bi-Level ADA Cooler
- 51600C WaterSentry® Lead + Microplastics Filter
- Flexi-Guard® Safety Bubblers
- Bottle Filler Assembly
- Mounting Brackets and Installation Hardware
- Installation Instructions and Warranty Documentation
FAQ
Q: What Is The Difference Between The Elkay LZSTLG8WSLK And LZSTL8WSLK?
A: The discontinued LZSTLG8WSLK now ships as the upgraded LZSTL8WSLK, which features a larger 6,000-gallon filter, Quick Filter Change access, Alcove Light illumination, Real Drain technology, improved bottle filling performance, and updated electronics.
Q: What Filter Does The Elkay LZSTLG8WSLK Replacement Unit Use?
A: Orders for the discontinued LZSTLG8WSLK ship as the LZSTL8WSLK, which uses the 51600C WaterSentry® Lead + Microplastics Filter. The filter provides 6,000 gallons of filtration capacity and is certified to NSF/ANSI 42, 53, and 401 standards.
Q: Can The LZSTLG8WSLK Bottle Filler Be Installed On Either Side?
A: Yes. The Versatile design allows installation with either left-high/right-low or left-low/right-high fountain configurations. The optional VERSATILEBFKIT supports bottle filler relocation when required for alternate layouts.
Q: What Accessories Are Available For The Elkay LZSTLG8WSLK?
A: Several accessories are available, including the LKAPREZL Cane Apron, MLP200 In-Wall Carrier, STLBFUP Universal Back Panel Assembly Kit, PLZSRK-W1 Connected Retrofit Kit for plumbSMART® monitoring, and the VERSATILEBFKIT relocation kit for alternate bottle filler positioning.
Q: What Is The LZSTLG8WSLK Bottle Filling Rate?
A: The upgraded LZSTL8WSLK bottle filler dispenses water at approximately 1.1 GPM using a laminar flow design that helps minimize splashing.
Q: Is The Elkay LZSTLG8WSLK ADA Compliant?
A: Yes. The bi-level drinking fountain configuration is designed to comply with ADA accessibility requirements when properly installed.
Q: Does The Elkay LZSTLG8WSLK Have A Filter Status Indicator?
A: Yes. LED filter status lights provide a visual indication of remaining filter life and notify users when filter replacement is needed.
Q: What Does The LZSTLG8WSLK Green Ticker® Display Do?
A: The Green Ticker® displays the number of disposable 20 oz. plastic bottles saved from waste through the use of reusable bottles.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
