Elkay LZSTLDDLC | Wall-mount Bi-Level Drinking Fountain | Filtered,...

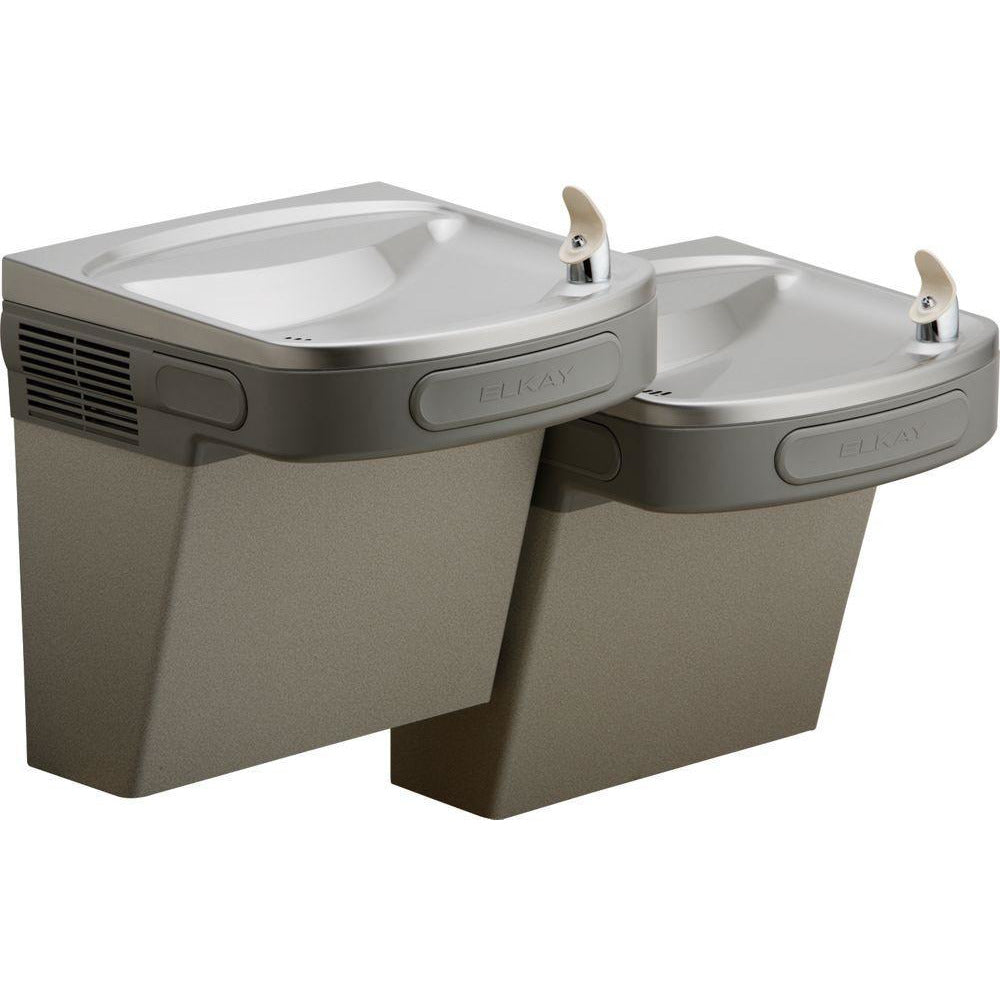

Elkay LZSTLDDLC bi-level drinking fountain serves filtered, non-refrigerated water at two heights from one wall-mounted indoor unit. Electronic front and side pushbars activate its Flexi-Guard safety bubblers, and a water filter is included.
Key Specifications:
| Design | Versatile bi-level ADA cooler with Flexi-Guard® Safety Bubblers and electronic front and side pushbars |
| Finish | Light Gray Granite |
| Filtration | Uses 51299C WaterSentry® Filter, NSF 42/53/372/401 certified, 1,500-gallon capacity |
| Refrigeration | Non-refrigerated; does not chill water |
| Stations Served | 2 stations (bi-level ADA cooler) |
Elkay Model LZSTLDDLC Features & Benefits:
- Bi-Level Drinking Fountain Design: Two stations at different heights give users a choice of drinking levels from one wall-mount unit.
- Versatile Installation: The high and low sides can be installed in the as-shipped layout or the alternate layout to suit the space.
- Certified Water Filtration: The filter is tested and certified to reduce lead, microplastics, Class 1 particulate, cysts, and chlorine taste and odor for cleaner drinking water.
- Flexi-Guard Safety Bubblers: Flexi-Guard bubblers are designed to help protect users from injury while drinking.
- Front and Side Pushbar Activation: Electronic pushbars let users start the water flow from the front or side of the fountain.
What's Included in the Elkay LZSTLDDLC:
- Elkay LZSTLDDLC bi-level drinking fountain
- Water filter
FAQ
Q: Does the Elkay LZSTLDDLC Chill the Water?
A: No. This is a non-refrigerated bi-level drinking fountain. For filtered, refrigerated water, choose the Elkay LZSTL8LC.
Q: Does the Elkay LZSTLDDLC Include a Bottle Filler?
A: No. For a similar filtered, non-refrigerated bi-level unit with a bottle filler, choose the Elkay LZSTLDDWSLK.
Q: Can Both Bubblers Be Used at the Same Time?
A: Elkay states that filtered bi-level models cannot provide adequate stream height from each bubbler when both are activated at the same time, regardless of supply line pressure.
Q: What Water Pressure Does the Elkay LZSTLDDLC Require?
A: It is designed for 20 to 105 psi supply line pressure. If inlet pressure is above 105 psi, a pressure regulator must be installed in the supply line.
Q: Does This Non-Refrigerated Drinking Fountain Need Electricity?
A: Yes. The unit must have electrical power for water to flow. New installations must use a GFCI, and Elkay highly recommends a dedicated circuit with 20-amp load protection.
Q: Does the Wall Need Additional Support?
A: The hanger bracket must be securely supported. If the wall cannot provide adequate support, add a fixture support carrier such as the Elkay MLP200 In-Wall Carrier.
Q: Is a Cane Apron Available for Exposed-Wall Installations?
A: Yes. The optional Elkay LKAPREZL Cane Apron is designed for specific bi-level applications on an exposed wall. When properly installed, it provides the 27" floor-to-underside clearance required for detection in a circulation path.
Q: What Warranty Does the Elkay LZSTLDDLC Have?
A: The fountain has a limited warranty against defects in materials and workmanship for 1 year from installation or 18 months from factory shipment, whichever comes first. See the full Elkay LZSTLDDLC warranty for details.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay LZSTLDDLC is designed for indoor wall-mount installation and ships in one box. Professional installation by a licensed plumber is strongly recommended to ensure proper water supply, drainage, and electrical connections.
Key Installation Requirements:
- Indoor wall-mounted (on-wall) installation only
- 115V / 60Hz electrical supply, with GFCI protection for new installations
- 3/8" O.D. water supply line with shut-off valve (not included)
- 20-105 psi supply line pressure
- 1-1/2" nominal drain connection
- 1-1/2" trap (not included)
Important Notes Before Installing the LZSTLDDLC:
- The unit does not include the shut-off valve or 1-1/2" trap — these must be supplied separately by the installer.
- Choose the standard or alternate bi-level layout before rough-in, since each layout uses different rough-in dimensions.
- The hanger bracket must be securely supported. If the wall cannot provide adequate support, add a fixture support carrier such as the Elkay MLP200.
- A dedicated circuit with 20-amp load protection is highly recommended.
- Always refer to the official Elkay LZSTLDDLC Spec Sheet for product specifications, accessories, and compliance information.
Basic Installation Overview:
- Confirm the wall can support the unit (approx. 49 lbs shipping weight) and complete the rough-in for your chosen layout.
- Remove the hanger bracket from the back of the unit and anchor it securely to the wall using all six mounting holes.
- Hang the unit on the bracket, making sure the bracket fully engages the slots on the back.
- Remove the lower front panel, then connect the water supply and install the trap according to the manual and local codes.
- Connect electrical power and test operation.
- Adjust the stream height if needed, then reinstall the front panel with all four screws.
For complete step-by-step instructions, download the official Elkay LZSTLDDLC Installation and Use Manual
