Elkay LZSTLDDWSVRLK | Wall-mount Versatile Bi-Level Bottle Filling Station | Filtered, Non-refrigerated, EZ-style fountain, Vandal-resistant bubbler, Granite Gray
Elkay LZSTLDDWSVRLK | Wall-mount Versatile Bi-Level Bottle Filling Station | Filtered, Non-refrigerated, EZ-style fountain, Vandal-resistant bubbler, Granite Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZSTLDDWSVRLK | Wall-mount Versatile Bi-Level Bottle Filling ...

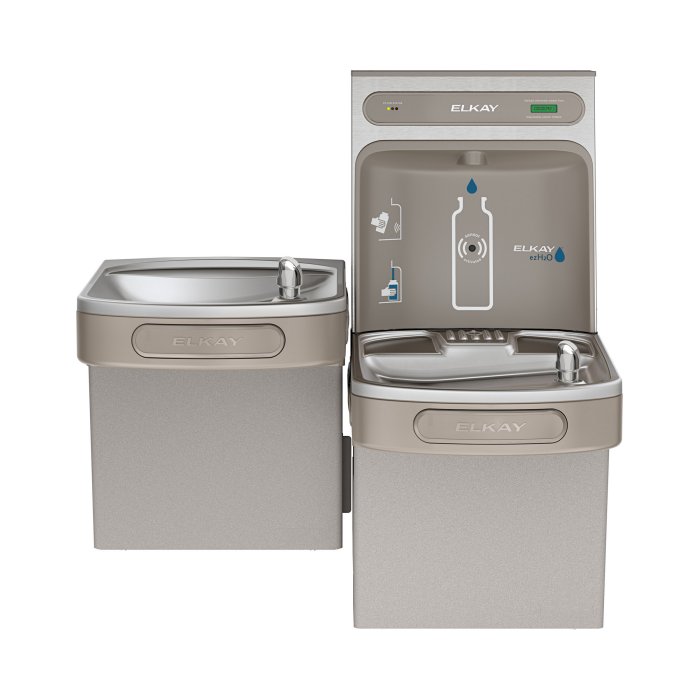

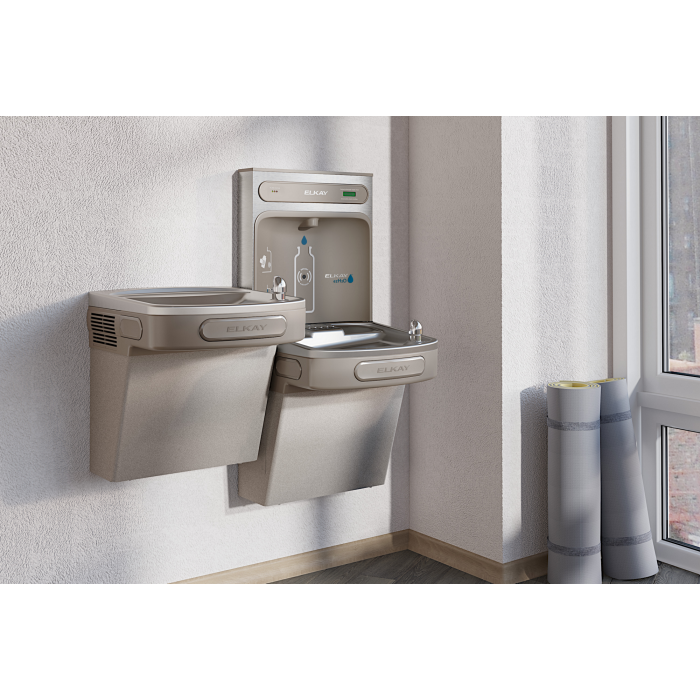

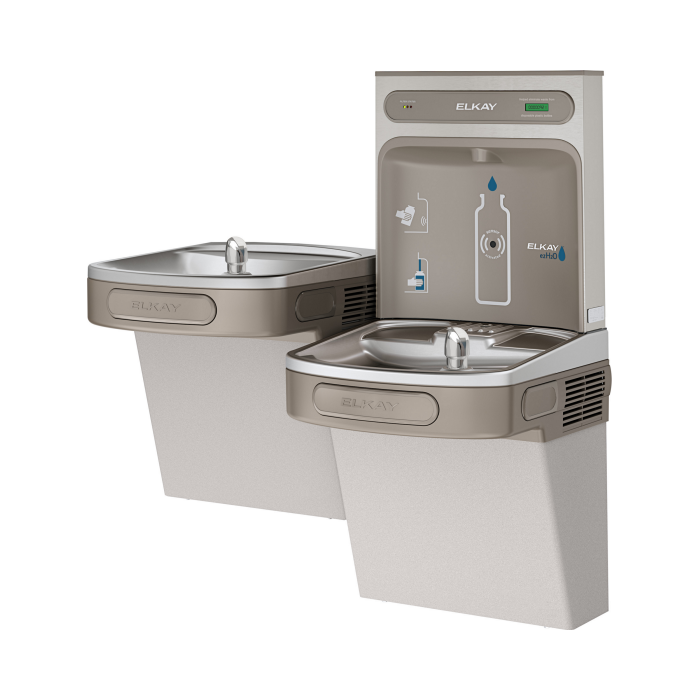

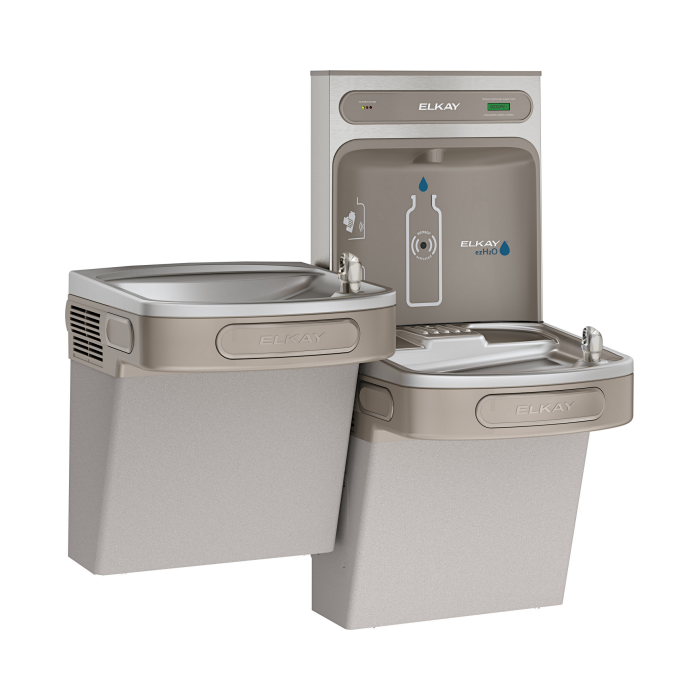

The Elkay LZSTLDDWSVRLK is a wall-mounted, filtered, non-refrigerated unit that includes a bottle filler and two drinking fountains. This model has a Granite Gray color finish.
The LZSTLDDWSVRLK's drinking fountain features a 'vandal-resistant' bubbler protected with a chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
The LZSTLDDWSVRLK is a versatile model. You can choose which of the left or right fountains you want to be the higher, and which of the two will carry the bottle filler allowing greater installation flexibility.
Elkay LZSTLDDWSVRLK Spec sheet HERE
Elkay LZSTLDDWSVRLK installation manual HERE
|
FILTERED? |
Yes |
|
COOLER CABINET FINISH |
Light Gray Granite |
|
POWER |
115V/60Hz |
|
BUBBLER OPTION |
Vandal-Resistant |
|
MOUNTING DETAILS |
Wall Mount (On-Wall) |
|
CHILLING DETAILS |
Non-Refrigerated GPH |
|
INSTALLATION LOCATION |
Indoor |
|
NUMBER OF FOUNTAINS |
Two fountains |
|
DIMENSIONS |
L: 36-3/4" W: 19" H: 39-1/16" |
|
SHIPPING WEIGHT |
66 lbs |
|
Elkay LZSTLDDWSVRLK PRODUCT COMPLIANCE |
● ADA & ICC A117.1 ● ASME A112.19.3/CSA B45.4 ● Buy American Act ● CAN/CSA C22.2 No. 120 ● GreenSpec ● NSF 42 ● NSF 53 ● NSF 61 ● NSF 372 (lead-free) ● UL 399
|
