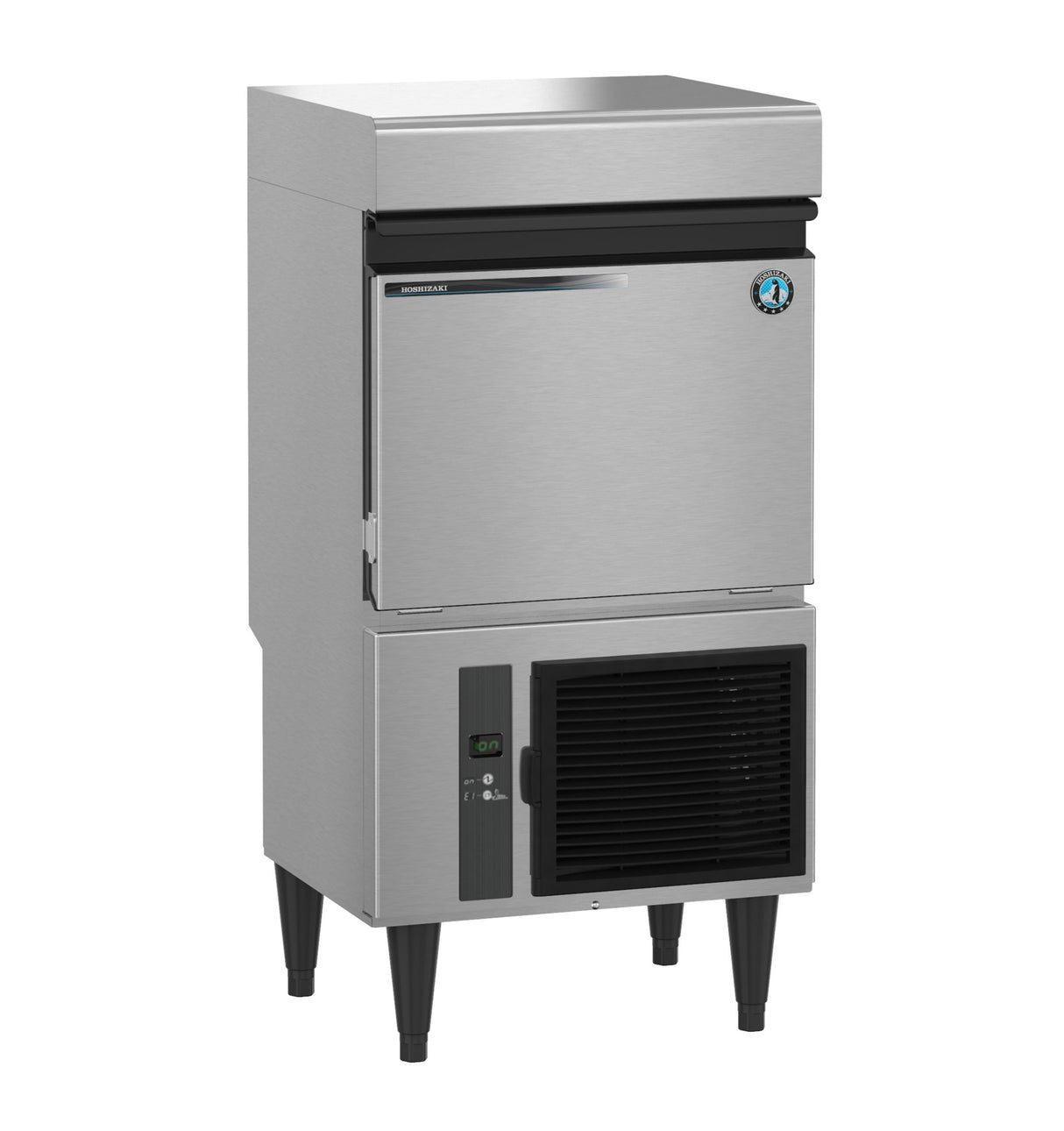

Hoshizaki IM-50BAA-LM | Large 2" Square Cube Icemaker, Air-cooled, 22 lbs capacity
Hoshizaki IM-50BAA-LM | Large 2" Square Cube Icemaker, Air-cooled, 22 lbs capacity is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.
Maintenance
Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.
Hoshizaki IM-50BAA-LM | Large 2" Square Cube Icemaker, Air-coo...
The IM-50BAA-LM by Hoshizaki is a compact, self-contained ice machine designed for small to medium-sized businesses. This versatile unit combines impressive ice production capacity of up to 50 lbs per day with a built-in 22 lb storage bin, making it ideal for bars, cafes, and small restaurants. Its ability to produce large, crystal-clear 2" square cubes sets it apart in the market, offering superior chilling ability and an attractive appearance for discerning customers.
Key Specifications:
- Ice Production Capacity: Up to 50 lbs of ice (approximately 172 cubes) production per 24 hours.
- Storage Capacity: Built-in storage bin with 22 lb capacity.
- Cube Size: Clear, solid 1.9" x 1.9" x 2.3" cubes, weighing approximately 4.2 oz each.
- Dimensions: Compact size of 19¾" W x 17¾" D x 39½" H, perfect for under-counter installation.
- Energy Efficiency: Uses 15.7 kWh per 100 lbs of ice production.
Features & Benefits:
- Space-Saving Design: Small footprint allows for easy under-counter placement, maximizing space utilization in tight environments.
- Superior Ice Quality: Large, clear cubes melt slowly, providing effective cooling without quickly diluting drinks, enhancing customer experience.
- Durability: Stainless steel exterior ensures longevity and easy cleaning, reducing maintenance costs over time.
- Contamination Protection: Closed water circuit offers ultimate protection against contamination, ensuring safe and clean ice production.
- Easy Maintenance: Removable air filter and easily accessible components simplify routine cleaning and servicing.
What's Included:
- IM-50BAA-LM Ice Machine unit
- Ice scoop
- 6.5' power cord with NEMA 5-15P plug
- Removable air filter
- Installation and operation manual
- Warranty documentation
FAQ
Q: What are the plumbing requirements for the IM-50BAA-LM?
A: The IM-50BAA-LM requires a minimum 1/2" Nominal ID Copper Water Tubing or equivalent for the water supply line. For drainage, it needs a minimum 3/4" Nominal ID Hard Pipe or equivalent. The unit operates with a water pressure range of 10-113 PSIG and a water temperature range of 45°F to 90°F.
Q: What is the warranty coverage for this ice machine?
A: Hoshizaki provides a 3-year parts and labor warranty on the entire machine. Additionally, there's a 5-year parts warranty on the compressor and air-cooled condenser coil. This warranty is valid in the United States, Canada, Puerto Rico, and U.S. Territories.
Q: Is this ice machine suitable for outdoor installation?
A: No, the IM-50BAA-LM is designed for indoor use only. It operates within an ambient temperature range of 45°F to 100°F, which is typical for indoor environments.
Detailed Features & Benefits
Ice Production and Storage: The IM-50BAA-LM's ability to produce up to 50 lbs of ice per day with a built-in 22 lb storage bin offers significant advantages for small to medium-sized establishments. This combination ensures a constant supply of fresh ice without the need for separate storage units, saving valuable space and reducing the frequency of ice replenishment. The large, clear 2" square cubes are not only visually appealing but also practical, melting slowly to provide effective cooling without quickly diluting beverages. This feature is particularly beneficial for bars and restaurants where drink quality and presentation are paramount.
Energy Efficiency and Environmental Considerations: With an energy consumption of 15.7 kWh per 100 lbs of ice production, the IM-50BAA-LM strikes a balance between performance and energy efficiency. This efficiency not only helps reduce operational costs but also aligns with environmental sustainability goals. The use of R134a refrigerant (6.0 oz charge) and HFC-free foam-injected polyurethane insulation further demonstrates Hoshizaki's commitment to minimizing environmental impact. These features make the IM-50BAA-LM an attractive option for businesses looking to reduce their carbon footprint without compromising on ice quality or production capacity.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
