Hoshizaki IM-200BAC | Self-Contained Square Icemaker, Air-cooled, 75 lbs capacity
Hoshizaki IM-200BAC | Self-Contained Square Icemaker, Air-cooled, 75 lbs capacity is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.
Maintenance
Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.
Hoshizaki IM-200BAC | Self-Contained Square Icemaker, Air-cooled, 7...

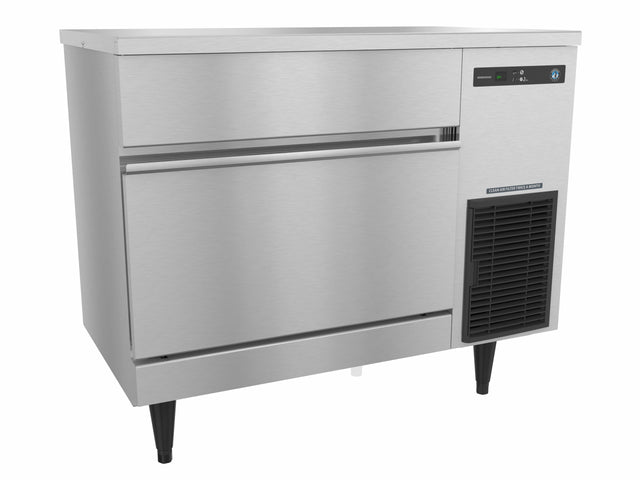

The IM-200BAC is a high-performance, self-contained square cuber ice machine from Hoshizaki America, Inc. This versatile unit combines efficient ice production with built-in storage, making it ideal for various commercial applications. Its standout features include high daily ice output, compact design, and the EverCheck™ alert system, setting it apart in the commercial ice machine market with its ability to produce large, clear square cubes.
Key Specifications:
- Ice Production: Up to 188 lbs. of ice production per 24 hours, with a built-in storage capacity of 2.5 ft³/75 lbs.
- Dimensions: 39½" W x 23⅝" D x 33½" H (including 6" legs), offering a compact footprint for space-efficient installation.
- Electrical: 115V/60/1, 7.5A running load, 15A maximum fuse size.
- Refrigerant: R-404A, with a charge amount of 10.6 oz.
- Operating Limits: Ambient temperature range of 45-100°F, water temperature range of 45-90°F.
Features & Benefits:

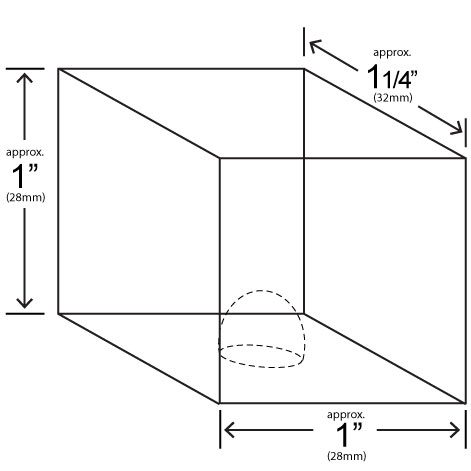

- High-Quality Ice Production: Produces large, individual, clear square cubes using dedicated jet spray technology, ideal for premium beverages.
- EverCheck™ Alert System: Monitors machine status for optimal performance and early problem detection.
- Durable Construction: Stainless steel exterior ensures longevity and easy cleaning in demanding commercial environments.
- Easy Maintenance: Removable air filter and front access simplify routine cleaning and servicing.
- Energy Efficiency: Consumes only 8.4 kWh per 100 lbs of ice, promoting cost savings and environmental sustainability.
What's Included:
- IM-200BAC Self-Contained Square Cuber Ice Machine
- Ice scoop
- Five 6" adjustable legs
- 6' power cord with NEMA 5-15P plug
- Removable air filter
- Installation and operation manual
- Warranty information
FAQ
Q: What are the water supply requirements for the IM-200BAC?
A: The ice machine requires a minimum 1/4" Nominal ID Copper Water Tubing or equivalent for the water supply line. The water pressure should be between 10-113 PSIG, and the water temperature should be within 45-90°F.
Q: How much clearance is required for proper installation and operation?
A: The IM-200BAC requires 6" clearance on the right side, 2" on the rear, and 2" on the left side with 0" on top (or 5/8" on left side with 2" on top) for proper air circulation and ease of maintenance/service.
Q: What type of warranty does the IM-200BAC come with?
A: The IM-200BAC comes with a 3-year parts and labor warranty on the entire machine. Additionally, it has a 5-year parts warranty on the compressor and air-cooled condenser coil.
Detailed Features & Benefits
Premium Ice Production Technology: The IM-200BAC utilizes advanced jet spray technology to produce large, individual clear square cubes. This unique ice-making process ensures each cube is formed separately, resulting in consistently high-quality ice. The clear, square shape of the cubes not only enhances the visual appeal of beverages but also provides optimal cooling without rapid dilution. This premium ice quality is particularly valuable for businesses serving high-end cocktails, spirits, or other beverages where ice quality can significantly impact the customer experience. The machine's capacity to produce up to 188 lbs of ice per day, combined with its 75 lbs storage capacity, ensures a steady supply of premium ice even during peak demand periods.
EverCheck™ Alert System and Efficient Design: The IM-200BAC is equipped with Hoshizaki's EverCheck™ alert system, a sophisticated monitoring technology that continuously oversees the machine's operation. This system provides early detection of potential issues, allowing for proactive maintenance and minimizing unexpected downtime. Combined with its efficient design, including a removable air filter and easy front access for servicing, the IM-200BAC offers significant advantages in terms of maintenance and operational reliability. The stainless steel exterior not only provides durability in demanding commercial environments but also facilitates easy cleaning, ensuring the machine maintains its appearance and hygiene standards over time. These features collectively contribute to lower long-term operational costs, reduced maintenance time, and extended equipment lifespan, making the IM-200BAC a smart investment for businesses prioritizing both quality and efficiency in their ice production.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
